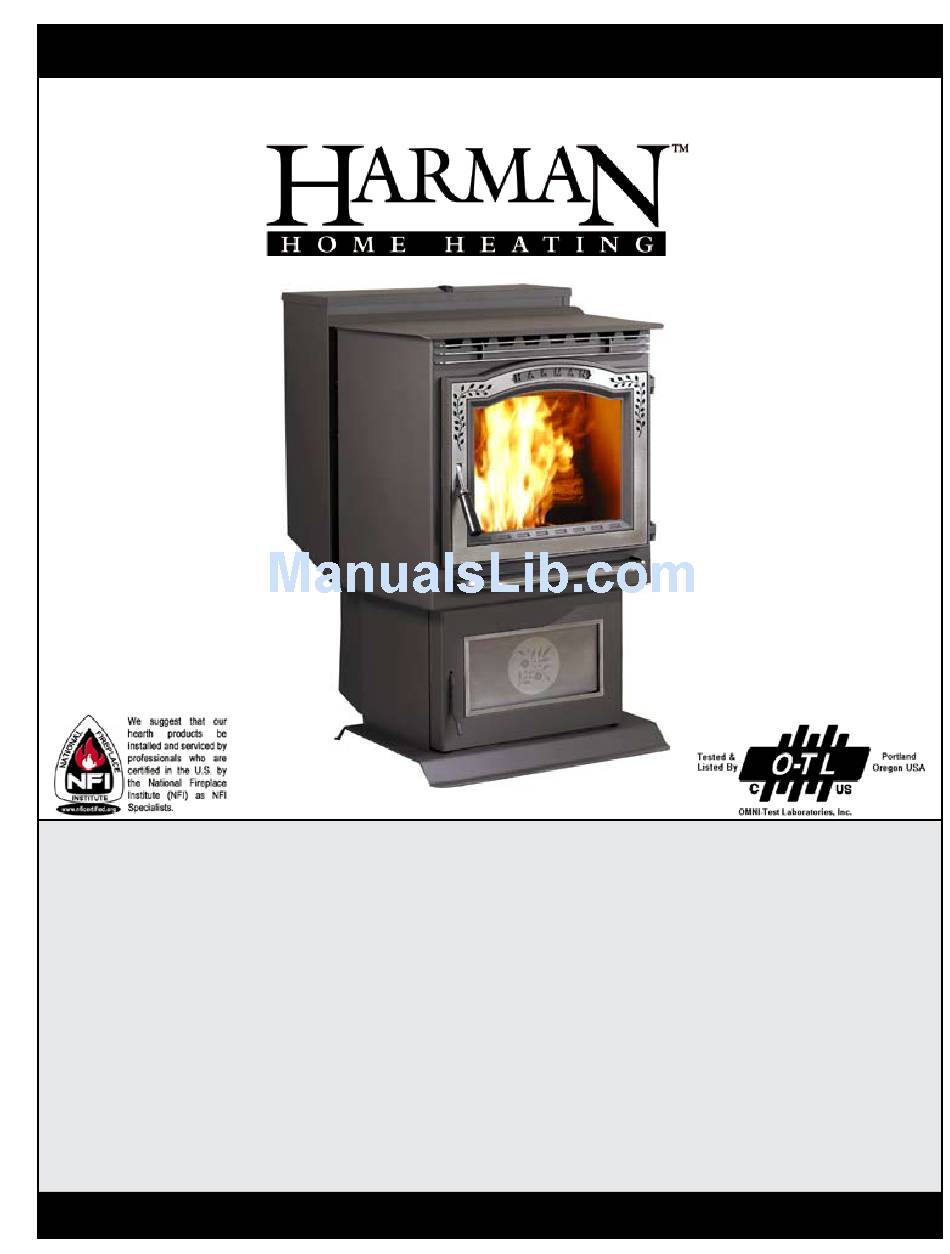

Harman Home Heating P68 Owner's Manual

Pellet stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

installation & Operating Manual
P68 Pellet Stove Owners Manual
r13
"Ce manuel est disponible en Français sur demande"

SaFetY nOtice

PleaSe read thiS entire Manual beFOre YOu inStall and uSe YOur new rOOM heater. Failure
tO FOllOw inStructiOnS MaY reSult in PrOPertY daMage, bOdilY injurY, Or even death.
FOr uSe in the u.S. and canada. Suitable FOr inStallatiOn in MObile hOMeS.
iF thiS Pellet StOve iS nOt PrOPerlY inStalled, a hOuSe Fire MaY reSult. FOr YOur SaFetY, FOl-
lOw inStallatiOn directiOnS.
cOntact lOcal building Or Fire OFFicialS abOut reStrictiOnS and inStallatiOn inSPectiOn
reQuireMentS in YOur area.
cOntact YOur lOcal authOritY (Such aS MuniciPal building dePartMent, Fire dePartMent, Fire
PreventiOn bureau, etc.) tO deterMine the need FOr a PerMit.
cette guide d'utiliSatiOn eSt diSPOnible en FrancaiS. chez vOtre cOnceSSiOnnaire de harMan
R1
hOMe heating.
Save theSe inStructiOnS.
item # 3-90-00688

Advertisement

Table of Contents
loading

Related Manuals for Harman Home Heating P68

Summary of Contents for Harman Home Heating P68

  • Page 1: Safety Notice

    & Operating Manual P68 Pellet Stove Owners Manual “Ce manuel est disponible en Français sur demande” SaFetY nOtice PleaSe read thiS entire Manual beFOre YOu inStall and uSe YOur new rOOM heater. Failure tO FOllOw inStructiOnS MaY reSult in PrOPertY daMage, bOdilY injurY, Or even death.
  • Page 3 8cm min 3"min P68 Pellet Stove...

  • Page 4: Table Of Contents

    The Award-Winning P68 Pellet Stove has the widest BTU range available, giving you 0 to 68,000 BTU when you need it, automatically. The only thing you need to do is set your desired room temperature and fill the hopper. With the P68 you will notice even heat throughout your home and a level of convenience you never thought possible.

  • Page 5: Venting

    MaY cauSe SKin burnS. Fuel The P68 is approved for use with wood pellets and for a mixture of shelled corn and wood pellets. See the corn mixture addendum on page 2 of this manual. Store fuel in a dry area, well away from the appliance.

  • Page 6: Door Handle Installation

    The P68 is bolted (1/ x 1" hex head bolts) to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base.
  • Page 7 (even with Clothing and other flammable materials should not be placed hopper) on or near this unit. 2" 2" 51mm warning Mobile/Manufactured home Standards do not allow installation in rooms 6" designated For Sleeping. 152 mm Fig. 6 P68 Pellet Stove...
  • Page 8 The clearance to an inside corner is 12". of combustible construction is desired, the H. A vent must not be installed within 3 feet (90 cm) installation shall conform to can/cSa-b365. (if above a gas meter/regulator assembly when measured in canada) from the horizontal center-line of the regulator. = Vent terminal P68 Pellet Stove...
  • Page 9 However, in some cases a perfect seal is not achieved. For this reason and the fact that the P68 operates with a positive vent pressure we specify that the joints also be sealed with high temp (rtv) silicone.

  • Page 10: Vent Configurations

    To install outside air use 2 /8" I.D. non-combustible flex pipe. There is a break-away hole on the rear panel (part #1-00-677077) of the P68 stove which must be removed before con- necting the flex pipe. The pipe should be run outside and terminate to the side or below the vent pipe outlet so the flue outlet is more than 12" from the inlet cover.
  • Page 11 Note: Do not place joints within wall pass- throughs. cautiOn Keep combustible materials (such as grass, leaves, etc.) at least 3 feet away from the flue outlet on the outside of the building. 12" min. wall to outlet 3 ft. Fig. 9 to combustibles P68 Pellet Stove...
  • Page 12 The connec- tor pipe should extend through the smoke chamber to the base or into the first flue tile. Be sure to design the venting so that it can be easily cleaned. Fig. 11 P68 Pellet Stove...
  • Page 13 The pipe or liner inside the chimney should be "diameter. In this method a cap should also be installed on the chimney to keep out rain. Fig. 13 P68 Pellet Stove...
  • Page 14 #8 installing through the ceiling Through the ceiling vent, follow PL vent Fig. 15 manufacturers recommendations when using wall and ceiling pass throughs. note: do not place joints within wall pass-throughs. 12" min. wall to outlet Fig. 16 P68 Pellet Stove...
  • Page 15 P68 AUTOMATIC IGNITION/OPERATION The P68 is a fully automatic stove that features two room temperature Mode operating modes; Stove temperature Mode and room temperature Mode. In Stove Temperature Mode, you select a burn rate and the stove will remain at the same burn rate regardless of the room temperature.

  • Page 16: Manual Operation

    P68 AUTOMATIC IGNITION/OPERATION Stove temperature Mode Shut down Procedure In the Stove Temperature Mode and with the igniter The best way to shut down the stove is simply let it run toggle switch in the Auto position, the stove will light out of pellets.
  • Page 17 P68 autOMatic Start uP Starting First Fire igniter Switch to"autO"(up position) Make sure the unit is plugged into a 120 VAC, 60 HZ electrical source. The power light should be the only light lit. SeeHint #7. nOtice: Fig. 17 Flame Guide 1"...
  • Page 18 P68 Manual ignitiOn/OPeratiOn The P68 Pellet Stove is capable of manual operation. This also allows the operator to manually control operation during an emergency (i.e. igniter failure, or when using certain generators or other auxilliary power source.) The unit can be switched between "AUTO" and "MANUAL" at any time during operation.
  • Page 19 P68 Manual Start uP Starting First Fire igniter Switch to"Manual" (down position) Fig. 20 Make sure the unit is plugged into a 120 VAC, 60 HZ electrical source. The power light should be the only light lit. Fig. 19 nOtice: See Hint #7.

  • Page 20: Esp Control

    P68 autOMatic ignitiOn eSP cOntrOl Feed adjuster Power Light Sets the maximum Indicates power to the feed rate control. Test Runs all motors at full speed for one minute to Status Light check operation. After Will be lit in either stove...

  • Page 21: Low Draft Voltage Adjustment

    The P68 is then factory set at a 1. Plug unit into a 120VAC, 60 HZ outlet. mid-point adjustment and in most cases will not need any 2. Close the hopper lid, front view door, and the ash pan.

  • Page 22: Room Sensor

    NOTE: Distances of more than 25 feet from the unit or in another room are not recommended. The room sensor is essential for the P68's excellent efficiency. NOTE: it is recommended that the room sensor be installed, even if only installed on the rear of the unit as a return air sensor.

  • Page 23: Maintenance

    See Fig. . determine if a creosote buildup has occurred. If a 5. Open burn pot clean-out. Clean fly ash from burn pot significant layer of creosote has accumulated (3 mm and replace cover. or more), it should be removed to reduce the risk of a 6. Remove ash pan. chimney or venting system fire. P68 Pellet Stove...
  • Page 24 (50 bags) and the venting system inspected and cleaned yearly, after each heating season. Fig. 33 Probe Be careful not to damage ESP probe when cleaning with brush. Fig. 31 P68 Pellet Stove...
  • Page 25 P68 Maintenance - burn Pot burn Pot cleaning and Maintenance 1. Scrape the top holed surface and sides of the burn pot.(Fig ) It is not necessary to completely remove all material from the burn pot. The excess will be pushed out during the next use.
  • Page 26 P68 Maintenance - gasket adjustment Your new Harman Stove viewing door gasket has been factory set, however over a period of time some minor adjustment may be necessary. The easiest way to check the adjustment of the door gasket is to take...
  • Page 27 Lay the glass retainers into position and install the screws. Tighten each screw evenly to avoid making any stress points. P68 Pellet Stove...

  • Page 28: Helpful Hints

    % or more. 4. The holes in the burnpot may be getting filled The P68 is capable of burning all  categories with ash or carbon buildup. of pellets due to a patented feeder and burn pot sys- 5. Combustion blower fan blades may need tem.

  • Page 29: Specifications

    Options Floor Protector Hopper Extension The P68 Steel Floor Protector measures 25 inches The hopper extension allows you to put more pellet fuel wide by  inches deep. It is made of 20 gauge in the hopper and extends burn time on one load of steel. This is the minimum size for floor protection...
  • Page 30 K i t ( p a r t # 1 - 0 0 - 6 7 7 0 7 7 ) incorporates safe venting passage through a wall, and provides attachment to outside air in one component. P68 Pellet Stove...
  • Page 31 P68 wiring diagram PLUG WHITE YELLOW BLACK WHITE LT.BLUE WHITE GREEN CORD RUBBER 18/3 P68 Pellet Stove...
  • Page 32 Loosen these two wing screws for access to clean the air passage and igniter. For P38+ model, follow Stove Temp instructions. Keep feed rate on #3 or P68 Pellet Stove above when using a wall thermostat.
  • Page 33 Other products may not operate properly, can create unsafe conditions or damage your appliance. P68 Pellet Stove...
  • Page 34 P68 Pellet Stove...
  • Page 35 P68 Pellet Stove...
  • Page 36 P68 Pellet Service Parts beginning Manufacturing date: n/a Steel Pellet Stove ending Manufacturing date: active 1-70-00688-1 (black), 1-70-00688-2 (charcoal), 1-70-00688-3 (goldenfi re), 1-70-00688-4 (Metallic blue), 1-70-00688-5 (honey glo), 1-70-00688-10 (Mojave red), 1-70-00688-12 (Forest green) 2 & 3 Part number list on following page.
  • Page 37 P68 Pellet Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

  • Page 38: Service Parts

    P68 Pellet Service Parts Service Parts diagram beginning Manufacturing date: n/a ending Manufacturing date: active #3 Post Serial number 008280309 Feeder assembly 3.15 3.12 3.16 3.14 3.13 3.11 3.10 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number.
  • Page 39 P68 Pellet Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for Stocked your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 40 P68 Pellet Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 41 Service & Maintenance log date Of Service Performed by description Of Service P68 Pellet Stove...
  • Page 42 Service & Maintenance log date Of Service Performed by description Of Service P68 Pellet Stove...
  • Page 44 Proudly Printed On 100% Recycled Paper...
