Harman Home Heating P61A Owner's Manual

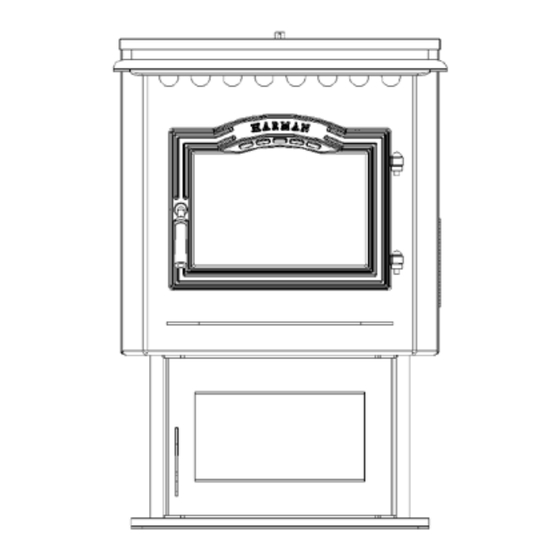

P61a pellet stove
Hide thumbs Also See for P61A:
Table of Contents

Advertisement

Quick Links

Download this manual
installation & Operating Manual
P61A Pellet Stove Owners Manual
R17
"Ce manuel est disponible en Français sur demande"

SAFetY nOtice

PleASe ReAd thiS entiRe MAnuAl beFORe YOu inStAll And uSe YOuR new ROOM heAteR. FAiluRe
tO FOllOw inStRuctiOnS MAY ReSult in PROPeRtY dAMAge, bOdilY injuRY, OR even deAth.
FOR uSe in the u.S. And cAnAdA. SuitAble FOR inStAllAtiOn in MObile hOMeS.
iF thiS hARMAn StOve iS nOt PROPeRlY inStAlled, A hOuSe FiRe MAY ReSult. FOR YOuR SAFetY, FOl-
lOw inStAllAtiOn diRectiOnS. dO nOt uSe MAkeShiFt cOMPROMiSeS.
cOntAct lOcAl building OR FiRe OFFiciAlS AbOut ReStRictiOnS And inStAllAtiOn inSPectiOn
ReQuiReMentS in YOuR AReA.
cOntAct YOuR lOcAl AuthORitY (Such AS MuniciPAl building dePARtMent, FiRe dePARtMent, FiRe
PReventiOn buReAu, etc.) tO deteRMine the need FOR A PeRMit.
cette guide d'utiliSAtiOn eSt diSPOnible en FRAncAiS. chez vOtRe cOnceSSiOnnAiRe de hARMAn
hOMe heAting.
SAve theSe inStRuctiOnS.
Manual item# 3-90-05822

Advertisement

Table of Contents
loading

Related Manuals for Harman Home Heating P61A

Summary of Contents for Harman Home Heating P61A

  • Page 1: Safety Notice

    & Operating Manual P61A Pellet Stove Owners Manual “Ce manuel est disponible en Français sur demande” SAFetY nOtice PleASe ReAd thiS entiRe MAnuAl beFORe YOu inStAll And uSe YOuR new ROOM heAteR. FAiluRe tO FOllOw inStRuctiOnS MAY ReSult in PROPeRtY dAMAge, bOdilY injuRY, OR even deAth.
  • Page 3 8cm min 3"min P61A Pellet Stove...

  • Page 4: Table Of Contents

    Report #: 135-S-22-4 Meets requirements of : ASTM E1509-04, ULC S627-00, and ULC/ORD-C1482-M1990. This appliance is also approved for installation into a shop. Division of Hearth & Home Technologies, Inc 352 Mountain House Road Halifax, PA 17032 P61A Pellet Stove...
  • Page 5 And At leASt AnnuAllY bY A QuAliFied SeRvice PeRSOn. PeRiOdic cleAning iS ReQuiRed thROughOut the heAting SeASOn And At the end OF eAch winteR FOR the StOve tO wORk eFFicientlY. See cleAning inStRuc- tiOnS On PAge 22. P61A Pellet Stove...
  • Page 6 Assembly and installation unpacking The P61A is bolted (1/4 x 1" hex head bolts) to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base.

  • Page 7: Installation

    Fig. 5 wARning the StRuctuRAl integRitY OF the MAnuFActuRed hOMe FlOOR,wAll, And ceiling/ROOF MuSt be MAintAined. wARning MObile/MAnuFActuRed hOMe StAndARdS dO nOt AllOw inStAllAtiOn in ROOMS deSignAted Fig. 6 FOR SleePing. P61A Pellet Stove...
  • Page 8 (if from the horizontal center-line of the regulator. in canada) = Area where termination is not permitted = Venting Terminal = Air Supply Inlet P61A Pellet Stove...
  • Page 9 However, in some cases a perfect seal is not achieved. For this reason and the fact that the P61A operates with a positive vent pressure we specify that the joints also be sealed with silicone.

  • Page 10: Vent Configurations

    & home technologies assumes no responsibility for, nor does the warranty extend to, smoke damage caused by reverse drafting of pellet appliances under shut-down or power failure conditions. P61A Pellet Stove...

  • Page 11: Venting

    Note: Do not place joints within wall pass- throughs. cAutiOn keep combustible materials (such as grass, leaves, etc.) at least 3 feet away from the flue outlet on the outside of the building. 12" min. wall to outlet 3 ft. Fig. 9 to combustibles P61A Pellet Stove...
  • Page 12 The connector pipe should extend through the smoke chamber to the base or into the first flue tile. Be sure to design the venting so that it can be easily cleaned. Fig. 11 P61A Pellet Stove...
  • Page 13 The pipe or liner inside the chimney should be 4" diameter. In this method a cap should also be installed on the chimney to keep out rain. Fig. 13 P61A Pellet Stove...
  • Page 14 #8 installing through the ceiling Through the ceiling vent, follow PL vent Fig. 15 manufacturers recommendations when using wall and ceiling pass through. note: do not place joints within wall pass-throughs. 12" min. wall to outlet Fig. 16 P61A Pellet Stove...

  • Page 15: Esp Control

    Dealer. 5 blinks (in igniter Auto. Mode Only): Indicates that the unit has failed to light within the 36 minute start cycle. To reset - Turn Mode Selector to "OFF", then turn to either mode again. P61A Pellet Stove...

  • Page 16: Automatic Operation

    AutOMAtic ignitiOn/OPeRAtiOn The P61A is a fully automatic stove that features two Room temperature Mode operating modes; Stove temperature Mode and Room temperature Mode. In Stove Temperature Mode, you select a burn rate and the stove will remain at the same burn rate regardless of the room temperature.
  • Page 17 6) there should be 1" or more of ash on output with the distribution blower at full speed. the front of the burn pot. If there is less than 1" of ash, turn the feed adjuster knob down to a lower setting. P61A Pellet Stove...
  • Page 18 The 1" ash bed OnlY uSe wOOd Pellet Fuel. dO nOt buRn is only a maximum burn rate and at most normal settings the ash gARbAge in StOve. bed will be larger. P61A Pellet Stove...

  • Page 19: Manual Operation

    MAnuAl ignitiOn/OPeRAtiOn The P61A Pellet Stove is capable of manual operation. This also allows the operator to manually control operation during an emergency (i.e. igniter failure, when using a 502H battery backup, as opposed to the 512H, or when using certain generators.) The unit can be switched between "AUTO"...
  • Page 20 OnlY uSe wOOd Pellet Fuel. dO nOt buRn less ash bed is not obtainable, it is not a problem. The 1" ash bed gARbAge in StOve. is only a maximum burn rate and at most normal settings the ash bed will be larger. P61A Pellet Stove...

  • Page 21: Low Draft Voltage Adjustment

    The P61A is then factory set at a 1. Plug unit into a 120VAC, 60 HZ outlet. mid-point adjustment and in most cases will not need any 2.

  • Page 22: Maintenance

    Lay the glass retainers into position and install the screws. Tighten each screw evenly to avoid making any stress points. P61A Pellet Stove...
  • Page 23 4. Scrape burnpot with flat end of scraper provided Blower with the stove. Inspect the holes on the burnpot Wheel surface. See Fig. 33. 5. Open burn pot clean-out. Clean fly ash from burn pot and replace cover. Blower Cover Latch Fig 27 P61A Pellet Stove...
  • Page 24 The stove should be cleaned after each ton of pellets (50 bags) and the venting system inspected and cleaned after each heating season. Fig. 33 Probe Be careful not to damage ESP probe when cleaning with brush. Fig. 31 P61A Pellet Stove...

  • Page 25: Burn Pot Cleaning And Maintenance

    Igniter hot lead wires (high temperature) note: the hot lead/cold lead connection must always be pulled to the rear of the Burn pot igniter feeder body before operation. Viewed from below through the ash pan opening. Fig. 36 P61A Pellet Stove...

  • Page 26: Safety Features

    If the switch opens when the cycle is at rest, the power lights for the feed motor or igniter will not illuminate. Be sure all doors, including the hopper lid, are securely closed when operating the appliance. P61A Pellet Stove...

  • Page 27: Troubleshooting

    3% or more. 5. Combustion blower fan blades may need The P61A is capable of burning all 3 categories cleaned. of pellets, and up to a 50% mixture with shelled corn, see next page for special instructions.

  • Page 28: Fuel Specifications

    Damp pellet as a result of using fuel with higher ash or mineral fuel could turn back into sawdust which does not flow content. properly through the feed system. P61A Pellet Stove...

  • Page 29: Mixing Corn With Pellets

    Loosen these two wing screws for access to clean the air passage and igniter. For P38+ model, follow Stove Temp instructions. Keep feed rate on #3 or P61A Pellet Stove above when using a wall thermostat.

  • Page 30: Power Failure / Back-Up

    Always keep appliance doors and hopper lid closed and latched during operation and during power failures to minimize risk of smoke or burn-back. cAutiOn! use only harman approved battery back-up devices. Other products may not operate properly, can create unsafe conditions or damage your appliance. P61A Pellet Stove...

  • Page 31: Options

    This will allow the swell latch of the hopper extension to fully expand to the bottom side of the hole for a proper seal. P61A Pellet Stove...

  • Page 32: Wiring Diagram

    HARMAN P43/P61A/P68 PELLET STOVE WIRING DIAGRAM MALE/FEMALE CONNECTIONS BROWN WHITE GREEN WIRE IS GROUND REMOTE SENSOR PORTS 6 AMP GLASS FUSE BONDED TO STOVE BODY CONTROL GREEN BOARD WHITE BLUE ESP PROBE TWISTED WIRE HOPPER LID SWITCH MALE/FEMALE CONNECTIONS N.O.

  • Page 33: Warranty

    Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 34 WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...

  • Page 35: Service Parts

    P61A Pellet Service Parts beginning Manufacturing date: n/A Steel Pellet Stove ending Manufacturing date: Active 1-90-05801-1 (black), 1-90-05801-2 (charcoal), 1-90-05801-3 (goldenfi re), 1-90-05801-4 (Metallic blue), 1-90-05801-5 (honey glo), 1-90-05801-10 (Mojave Red), 1-90-05801-12 (Forest green) 2 & 3 12 13 Part number list on following page.
  • Page 36 P61A Pellet Service Parts beginning Manufacturing date: n/A ending Manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 37 P61A Pellet Service Parts beginning Manufacturing date: n/A ending Manufacturing date: Active #3 Post Serial number 008085803 Feeder Assembly 3.12 3.15 3.16 3.14 3.13 3.11 3.10 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 38 P61A Pellet Service Parts beginning Manufacturing date: n/A ending Manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 39 P61A Pellet Service Parts beginning Manufacturing date: n/A ending Manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 40 Service & Maintenance log date Of Service Performed by description Of Service P61A Pellet Stove...
  • Page 41 Service & Maintenance log date Of Service Performed by description Of Service P61A Pellet Stove...
  • Page 42 P61A Pellet Stove...
  • Page 44 Proudly Printed On 100% Recycled Paper...
