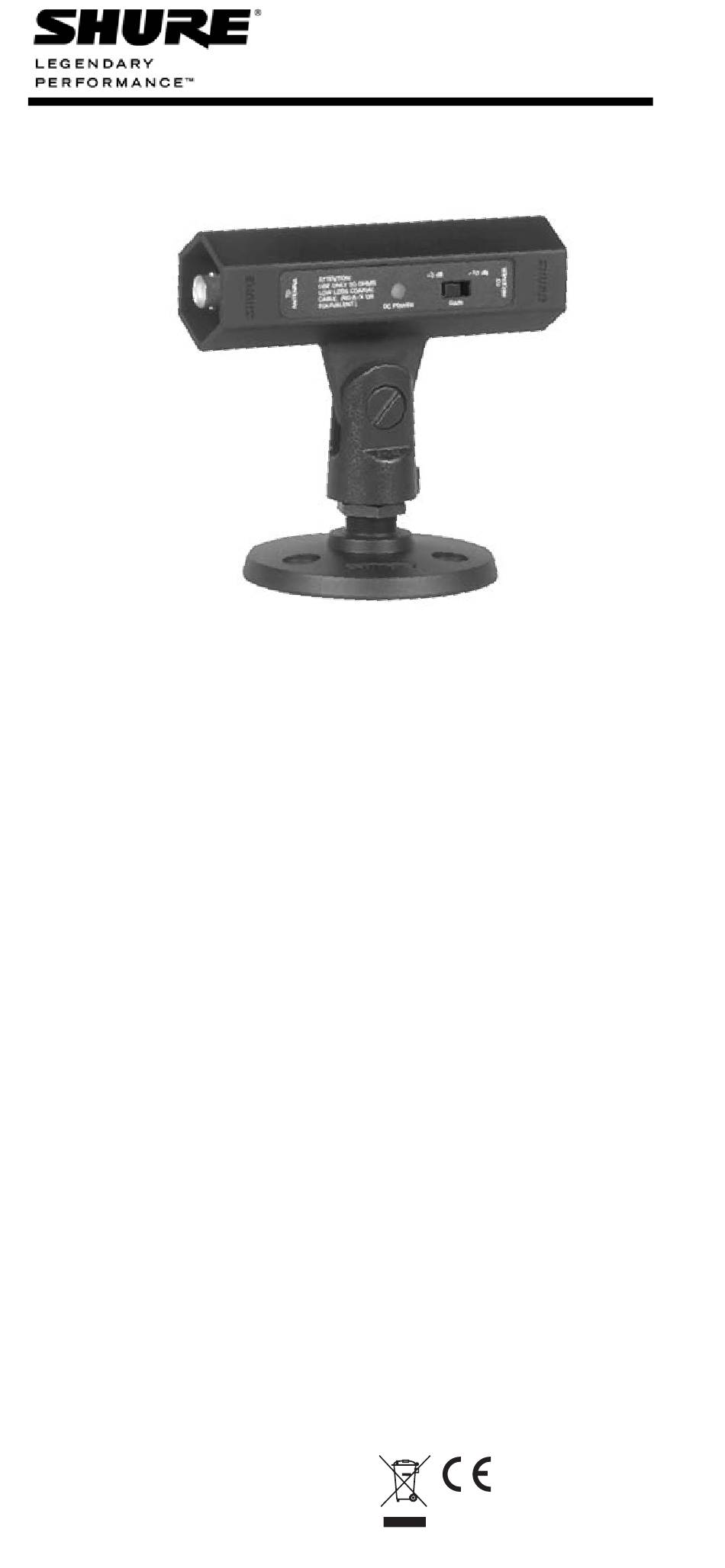

SHURE MODEL UA830
UHF IN-LINE RF AMPLIFIER
SHURE MODÈLE UA830
UHFAMPLIFICATEUR D'ANTENNE EN LIGNE RF
SHURE MODELL UA830
UHF IM ZEILE HF-ANTENNENVERSTÄRKER
MODELO UA830 DE SHURE
AMPLIFICADOR DE ANTENAS EN LINEA RF
MODELLO UA830 SHURE
UHF IN AMPLIFICATORE AD ANTENNA IN LINEA RF
©2008 Shure Incorporated
Printed in U.S.A.
27D8643 (Rev. 9)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shure UA830
Summary of Contents for Shure UA830
- Page 1 UHF IN-LINE RF AMPLIFIER SHURE MODÈLE UA830 UHFAMPLIFICATEUR D'ANTENNE EN LIGNE RF SHURE MODELL UA830 UHF IM ZEILE HF-ANTENNENVERSTÄRKER MODELO UA830 DE SHURE AMPLIFICADOR DE ANTENAS EN LINEA RF MODELLO UA830 SHURE UHF IN AMPLIFICATORE AD ANTENNA IN LINEA RF ©2008 Shure Incorporated Printed in U.S.A.
- Page 1 SHURE MODEL UA830 UHF IN-LINE RF AMPLIFIER ©2005, Shure Incorporated Printed in U.S.A. 27D8643 (Rev. 8)
- Page 2 Usually, the antennas should be as far apart as possible, creating the widest RF field and ensuring signal reception. In a diversity system such as the Shure Model UR4, as in the example in Figure 1, Shure rec- ommends that the two antennas be positioned at 45° angles pointing away from each other (Figure 1).
- Page 2 Usually, the antennas should be as far apart as possible, cre- ating the widest RF field and ensuring signal reception. In a diversity system such as the Shure Model U4, as in the example in Figure 1, Shure recommends that the two antennas be positioned at 45° an- gles pointing away from each other (Figure 1).
- Page 3 1. Thread the Shure Model UA830 unit on the supplied stand (Figure 2), or on a 5/8 in.-27 thread microphone stand. 2. Connect the antenna to the TO ANTENNA port on the Model UA830 unit (Figure 2). 3. Using 50 W low-loss coaxial cable (purchased separately, Shure...
- Page 3 3. Using 50 W low-loss coaxial cable (purchased separately, Shure UA825 or UA850 or UA8100 recommended), connect the TO RECEIVER port of the UA830 to the Shure Model U4 or ULX wireless receiver or UA845, or UA844 Antenna Distribution System (see Figure 3 for U4 Receiver example).
- Page 4 • UA8100 Extension Cable (30.4 m [100 ft])-Set GAIN switch in 10 dB position. • If over 15.2 m (50 ft) is required, a maximum of two UA830's (Shure model UR4 and UA845 only) may be chained together. See Figure 5. The Gain switches for each UA830 must be adjusted separately.
- Page 4 • UA8100 Extension Cable (30.4 m [100 ft])-Set GAIN switch in 10 dB position. • If over 15.2 m (50 ft) is required, a maximum of two UA830's (Shure model U4 and UA845 only) may be chained together. See Figure 5. The Gain switches for each UA830 must be adjusted separately.
-
Page 5: Specifications
1-800-516-2525. Outside the United States, please contact your authorized Shure Service Center. CERTIFICATION UA830: Eligible for CE Marking. Meets requirements of EMC Standard EN 301 489 Parts 1 and 9. Meets the essential requirements of the Eu- ropean R&TTE Directive 99/5/EC. -
Page 5: Specifications
Service department at 1-800-516-2525. Outside the United States, please contact your authorized Shure Service Center. CERTIFICATION UA830: Eligible for CE Marking. Meets requirements of EMC Stan- dard EN 301 489 Parts 1 and 9. Meets the essential requirements of the European R&TTE Directive 99/5/EC. - Page 7 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
