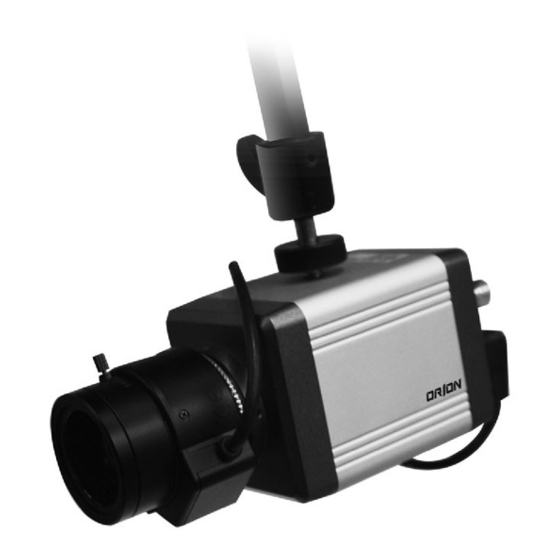

- Page 1 Installation and User’s Guide Installation and User’s Guide 1/3” CMOS HIGH SENSITIVE DAY/NIGHT HD CCTV CHDC-21BSDC HD CCTV CAMERA http://www.orionimages.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Table Of Contents
Thank you for choosing ORION Images high quality HD CCTV Camera. Please read this instruction manual carefully to keep your ORION Images product at peak performance for longer service duration. All ORION Images products are designed and manufactured with utmost care and craftsmanship to provide long life and high quality performance, if it is properly used and maintained as outlined in this manual. - Page 3 Installation and User’s Guide http://www.orionimages.com CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules.
-
Page 4: Handling Precautions
3. PACKAGE OF CONTENT DC Power Cable x 1 C-Mount Ring x 1 DC Power Female Connector Lens Mount Cap x 1 Hexagon Ranch x 1 CHDC-21BSDC Camera x 1 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 5: Features
Installation and User’s Guide http://www.orionimages.com 4. FEATURES HD-SDI OUTPUT This camera outputs and HD-SDI signal featuring resolutions of 1920 x 1080p (30 / 25) or 1280 x 720p (60 / 50) SMPTE 274M standard. TEST COLOR BAR A built-in the Test Color Bar signal makes easy for adjustment. NTSC / PAL OUTPUT This output can be used for a test or an adjustment of the lens or camera angle when installed. -
Page 6: Name Of Parts And Functions
Installation and User’s Guide http://www.orionimages.com 5. NAMES OF PARTS AND FUNCTIONS Rear View Top View ① C-MOUNT RING This can be removed when used with CS-Mount lens. ② LENS FLANGE BACK FOCUS SCREW To be used to adjust the lens flange back focal distance (distance between lens mounting edge and image focal point), if the camera fails to come into focus with the lens focus ring, this can be used for re-adjustment of lens back focus using a hex driver attached. - Page 7 Installation and User’s Guide http://www.orionimages.com FOR THE VIDEO CONTROLLED TYPE AUTO IRIS LENS Set the lens selector switch to VIDEO position. -Connector cable leads - Auto iris lens ① Red (power) ② Not used ③ White (video) ④ Black (shielded) *Make proper isolation on the tip of the green wire to prevent a short-circuit.
-
Page 8: Operation
6. OPERATION 6-1. USER SETUP The CHDC-21BSDC series camera has provision of camera setup and memory function for camera ID setting, sync system selection, various picture quality setups, Back light compensation, Privacy Mask setting, Day/Night, Motion Detection settings for optimum reproduction. -
Page 9: Entering The Setup Mode And Its Basics
Installation and User’s Guide http://www.orionimages.com 6-3. ENTERING THE SETUP MODE AND ITS BASICS 6-3-1. SETUP MENU (Main Menu) Hold down the E button longer than 1 second, and the menu at left appears on the left top of the screen and ... - Page 10 Installation and User’s Guide http://www.orionimages.com CVBS-Ratio Aspect ratio of NTSC or PAL can be selected in either 16:9 or 4:3. COLOR BAR When it is turned ON, SMPTE COLOR BAR signal can be displayed thru the video output connector ⑫. SHADING DET This is for shading correction.
- Page 11 Installation and User’s Guide http://www.orionimages.com (4) AWB : Select Auto or Manual / white balance. MODE You can select AUTO, PRESET, or MANUAL. AUTO- White Balance is automatically adjusted. PRESET- Activate a data stored in manual mode.. MANUAL- You can select a three color temperatures, Low (3700°K), Middle (5100°K) or High (9500°K).
- Page 12 Installation and User’s Guide http://www.orionimages.com (5) PICT ADJUST : You can adjust the Brightness, the Contrast, the Color Gain, Shading, Mirror, Flip, Still, Shading or Digital Zoom. BRIGHTNESS Brightness can be adjusted in arrange of 0 to 20. Pressing (R) button will make brighter. COLOR GAIN Color Gain can be adjusted in a arrange of 0 to 20.
- Page 13 Installation and User’s Guide http://www.orionimages.com (6) WDR / BLC / DNR : Wide Dynamic (WDR) or Backlight Compensation (BLC) & Digital Noise Reduction (DNR) level can be selected. MODE This is to modify intensity of WDR and SDI out FFS goes down to 15 from 30.
- Page 14 Installation and User’s Guide http://www.orionimages.com DELAY: Speed of a change-over is selected, Low, Middle or High. RETURN: Press (E) button to go back previous menu. (8) PRIVACY : This is to set the area to be masked (not to view on the screen).
- Page 15 Installation and User’s Guide http://www.orionimages.com COLOR This is to select the color of the ZONE to be marked; CYN → Cyan GRN → Green MAG → Magenta RED → Red BLU → Blue BLK → Black WHT → White YEL → Yellow TRANS This is to select a transparency of the ZONE in a range of 0, 1, 2, 3, and 4.
- Page 16 Installation and User’s Guide http://www.orionimages.com (10) CAMERA ID : This is to add the camera ID on the screen. MODE Turn ON to add the camera ID. X-POS This is to move the zone specifies under the ZONE NO vertically (in a range from 0 to 40). Y-POS This is to move the zone specifies under the ZONE NO vertically (in a range from 0 to 40).
-
Page 17: Specifications
Installation and User’s Guide http://www.orionimages.com 7. SPECIFICATIONS CHDC-21BSDC Image Sensor 1/3” CMOS Effective Pixel 1944(H) x 1092(V), 2.1M Pixel Sync System Internal HD-SDI (SMPTE 274M) / 75 ohm BNC x 1 1920 x 1080 30p / 25p, 1280 x 720 60p / 50p... -
Page 18: Outline Dimension
Installation and User’s Guide http://www.orionimages.com 8. OUTLINE DIMENSION Unit: Inch Side View Rear View Top View Front View pg18 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 19: Warranty And After-Sale Service
Keep this card in a safe place. Please consult ORION Images Corporation or your dealer for full warranty information. Your dealer will repair or replace free of charge within the warranty period according to the warranty coverage.
