Page 2

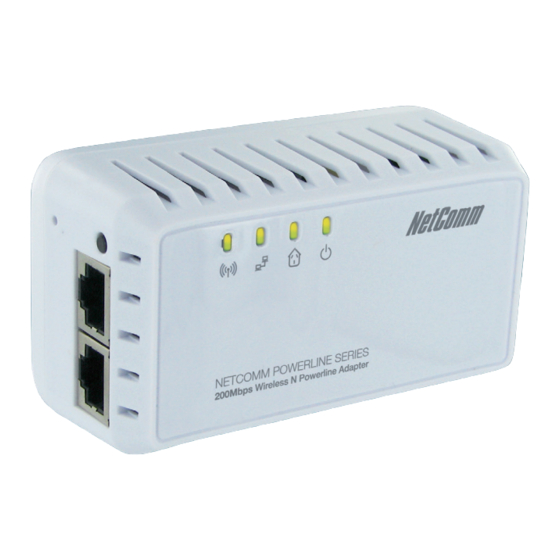

Device Overview Device Overview 1. Wireless LED - Lights up when a wireless signal is being transmitted 2. LAN LED - Lights up when either/both of the LAN ports are in use 3. Powerline LED - Changes colour depending on data transfer 4.
Page 3
Pairing Powerline Devices • Connect the Powerline Adapters to power outlets close together so you can observe the LED behaviour. Upon connection the power LED will remain on • Hold the Simple Connect button down on the first device until the LEDs flash, then hold the Simple Connect on the second device for 3 seconds and finally hold the Simple Connect button on the first device for 3 seconds • To confirm the connection was made, the power and powerline LEDs on all Adapters will be on...
Page 4
Creating a Powerline Network NOTE: You will need at least one other 200Mbps Powerline Adapter to create a powerline network with the NP202WN. If you need another Powerline Adapter, try another NP202WN or the NP201AV or NP204 (also available from NetComm).
Page 5
2. Enter the wireless security key for your device. The unique security key will be 64XX XXXX (Where the X’s are the same letters and/ or numbers in your wireless SSID). Later releases of the NP202WN use the default wireless security key of "a1b2c3d4e5" (no quotations).
Page 6
Troubleshooting WHAT CAN THE LEDS TELL ME? The Powerline LED changes colour depending on the speed of your data transfer. - Fastest - Faster - Fast LED Off - Adapter not paired or wall socket not turned on. MY POWERLINE ADAPTERS WILL NOT CONNECT TO EACH OTHER • Get both adapters and connect them as detailed in this QSG but to power sockets that are close to each other in the same room.
