Supero SuperServer 7047R-TRF User Manual

Hide thumbs Also See for SuperServer 7047R-TRF:
Table of Contents

Advertisement

Quick Links

Download this manual

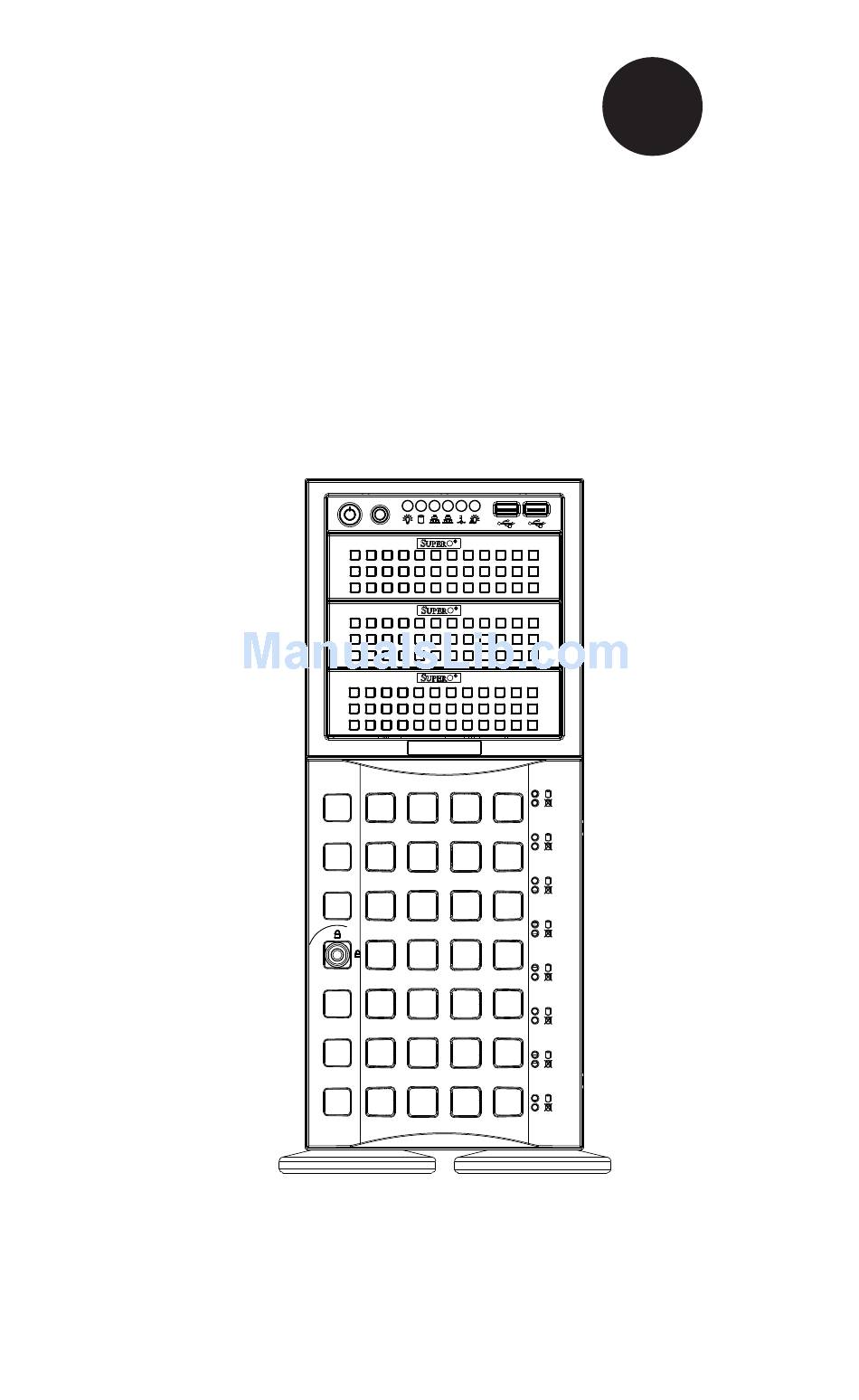

S
UPER
®
SUPERSERVER
7047R-TRF
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer 7047R-TRF and is the answer not in the manual?

Questions and answers

Related Manuals for Supero SuperServer 7047R-TRF

Summary of Contents for Supero SuperServer 7047R-TRF

  • Page 1 UPER ® SUPERSERVER 7047R-TRF USER'S MANUAL Revision 1.0b...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 7047R-TRF. Installation and maintainance should be performed by experienced technicians only. The SuperServer 7047R-TRF is a high-end server based on the SC745TQ-R920B 4U tower/rackmountable chassis and the X9DRi-F serverboard.
  • Page 4 SUPERSERVER 7047R-TRF USER'S MANUAL Chapter 6: Advanced Chassis Setup Refer to Chapter 6 for detailed information on the SC745TQ-R920B server chassis. You should follow the procedures given in this chapter when installing, removing or reconfi guring SAS/SATA or peripheral drives and when replacing system power supply units and cooling fans.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 7047R-TRF USER'S MANUAL Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ....................... 1-2 Onboard Controllers/Ports ................1-2 Graphics Controller ..................1-2 Other Features ....................1-3 Server Chassis Features ................1-3 System Power ....................
  • Page 7 Table of Contents Installing the Server into the Rack ..............2-8 Checking the Serverboard Setup ..............2-9 Checking the Drive Bay Setup ..............2-10 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-1 Power ......................3-1 Reset ....................... 3-1 Control Panel LEDs ..................
  • Page 8 SUPERSERVER 7047R-TRF USER'S MANUAL Connecting Cables ..................5-8 Connecting Data Cables ................. 5-8 Connecting Power Cables ................5-8 Connecting the Control Panel ................. 5-8 I/O Ports ......................5-9 Installing Memory ..................5-10 Memory Support .................... 5-10 DIMM Module Population Confi guration ...........5-11 Adding PCI Expansion Cards ...............
  • Page 9 Table of Contents Boot ....................... 7-25 Security ......................7-25 Save & Exit ....................7-26 Appendix A BIOS POST Error Codes Appendix B System Specifi cations Drive Bays ....................... B-1 Peripheral Drive Bays ..................B-1 Expansion Slots ....................B-1 Serverboard ..................... B-2...
  • Page 10 SUPERSERVER 7047R-TRF USER'S MANUAL Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SUPERSERVER 7047R-TRF is a high-end server comprised of two main subsystems: the SC745TQ-R920B 4U/tower chassis and the X9DRi-F serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 12: Serverboard Features

    7047R-TRF USER'S MANUAL Serverboard Features At the heart of the SuperServer 7047R-TRF lies the X9DRi-F, a dual processor serverboard based on the Intel PCH C602/C606 chipset. Below are the main features of the X9DRi-F. (See Figure 1-1 for a block diagram of the chipset).

  • Page 13: Other Features

    Front Control Panel The control panel on the SuperServer 7047R-TRF provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activity, system overheat and power supply failure. A main power button and a system reset button are also included.

  • Page 14: Advanced Power Management (For -F Models Only)

    SUPERSERVER 7047R-TRF USER'S MANUAL Advanced Power Management (for -F Models Only) Intel® Intelligent Power Node Manager (NM) The Intel Intelligent Power Node Manager (IPNM) provides your system with ® real-time thermal control and power management for maximum energy effi ciency.
  • Page 15 Chapter 1: Introduction Figure 1-1. Intel PCH C602/C606 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. #0-6 #0-5 #1-6 #0-4 #1-5 #0-3 #1-4 #0-2 #1-3 #0-1 #1-2 E5-2600 Series E5-2600 Series #1-1 Processor Processor...

  • Page 16: Contacting Supermicro

    SUPERSERVER 7047R-TRF USER'S MANUAL Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 17: Chapter 2 Server Installation

    The SuperServer 7047R-TRF may be employed either as a tower or mounted in a rack as a 4U rackmount chassis. If using it as a tower unit, please read the Server Precautions in the next section and then skip ahead to Section 2-5.

  • Page 18: Choosing A Setup Location

    SUPERSERVER 7047R-TRF USER'S MANUAL Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Warning! To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: •...

  • Page 20: Reliable Ground

    SUPERSERVER 7047R-TRF USER'S MANUAL Reliable Ground A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).
  • Page 21 Chapter 2: Server Installation Figure 2-1. Identifying the Sections of the Rack Rails ter ail Inner ail ail ra ets...

  • Page 22: Installing The Chassis Rails

    SUPERSERVER 7047R-TRF USER'S MANUAL Installing the Chassis Rails You will need to remove the top cover and the feet to add rack rails to the chassis. First, remove the top and right covers (top and left covers when standing as a tower chassis) by fi...

  • Page 23: Installing The Rack Rails

    Chapter 2: Server Installation Installing the Rack Rails Determine where you want to place the SuperServer 7047R-TRF in the rack. (See Rack and Server Precautions in Section 2-3.) Position the fi xed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 24: Installing The Server Into The Rack

    SUPERSERVER 7047R-TRF USER'S MANUAL Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. You should have two brackets in the rack mount kit.

  • Page 25: Checking The Serverboard Setup

    Chapter 2: Server Installation Checking the Serverboard Setup After setting up the the system, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Accessing the Inside of the System 1.

  • Page 26: Checking The Drive Bay Setup

    SUPERSERVER 7047R-TRF USER'S MANUAL Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the hard drives and backplane have been properly installed and all connections have been made. Checking the Drives 1. All drives can be accessed from the front of the server. For servicing the optional DVD-ROM and IDE hard drives, you will need to remove the top/left chassis cover.
  • Page 27 Chapter 2: Server Installation Figure 2-5. Accessing the Inside of the System (Rack Confi guration shown) 2-11...
  • Page 28 SUPERSERVER 7047R-TRF USER'S MANUAL Notes 2-12...

  • Page 29: Chapter 3 System Interface

    System Interface Overview The control panel on the SUPERSERVER 7047R-TRF has several LEDs and two buttons. There are also two LEDs on each SATA drive carrier. These LEDs keep you constantly informed of the overall status of the system and the activity and health of specifi...

  • Page 30: Control Panel Leds

    SUPERSERVER 7047R-TRF USER'S MANUAL Control Panel LEDs The control panel located on the front of the SC745 chassis has six LEDs that provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Information Led

    Chapter 3: System Interface Information LED See the following table for the status shown by this LED. Information LED Status Description Continously on and red An overheat ocondition has occured. (This may be caused by cable congestion.) Blinking red (1 Hz) Fan failure: check for an inoperative fan.
  • Page 32 SUPERSERVER 7047R-TRF USER'S MANUAL Notes...

  • Page 33: About Standardized Warning Statements

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 34 SUPERSERVER 7047R-TRF USER'S MANUAL Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 35 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 36: Installation Instructions

    SUPERSERVER 7047R-TRF USER'S MANUAL Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 37: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 38: Power Disconnection Warning

    SUPERSERVER 7047R-TRF USER'S MANUAL ‫ﻓﻲ‬ ‫ﺍﻟﺘﻲ ﺗﻢ ﺗﺜﺒﻴﺘﻬﺎ‬ ‫ﻣﻦ ﺍﻟﺪﻭﺍﺋﺮﺍﻟﻘﺼﻴﺮﺓ‬ ‫ﺍﻟﺤﻤﺎﻳﺔ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﻳﻌﺘﻤﺪ ﻋﻠﻰ‬ ‫ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ‬ ‫ﺍﻟﻤﺒﻨﻰ‬ ‫ﺃﻛﺜﺮ ﻣﻦ‬ ‫ﻟﻴﺲ‬ ‫ﻮﻗﺎﺋﻲ‬ ‫ﺍﻟ‬ ‫ﺍﻟﺠﻬﺎﺯ‬ ‫ﺗﻘﻴﻴﻢ‬ ‫ﺃﻥ‬ ‫ﺗﺄﻛﺪ ﻣﻦ‬ 20A, 250V Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie.
  • Page 39 Chapter 4: Warning Statements for AC Systems Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 40: Equipment Installation

    SUPERSERVER 7047R-TRF USER'S MANUAL Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden.

  • Page 41: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 42: Battery Handling

    SUPERSERVER 7047R-TRF USER'S MANUAL ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 44: Redundant Power Supplies

    SUPERSERVER 7047R-TRF USER'S MANUAL Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 45: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 46: Comply With Local And National Electrical Codes

    SUPERSERVER 7047R-TRF USER'S MANUAL Attention Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance. ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬...

  • Page 47: Product Disposal

    Chapter 4: Warning Statements for AC Systems ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales.Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬...

  • Page 48: Hot Swap Fan Warning

    SUPERSERVER 7047R-TRF USER'S MANUAL Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 49 Chapter 4: Warning Statements for AC Systems 当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他 物品太靠近风扇 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 50: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 警告...
  • Page 51 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 52 Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen.

  • Page 53: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X9DRi-F serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 54: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. Refer to the Supermicro website for updates on CPU support and memory options. Installing the LGA2011 Processor 1.
  • Page 55 Chapter 5: Advanced Serverboard Setup 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load the Lever Pull lever away labeled 'Close 1st' from the socket 3.
  • Page 56 SUPERSERVER 7047R-TRF USER'S MANUAL 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket.
  • Page 57 Chapter 5: Advanced Serverboard Setup 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 58: Installing A Passive Cpu Heatsink

    SUPERSERVER 7047R-TRF USER'S MANUAL Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket underneath.

  • Page 59: Removing The Heatsink

    Chapter 5: Advanced Serverboard Setup Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket. 1.

  • Page 60: Connecting Cables

    SUPERSERVER 7047R-TRF USER'S MANUAL Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 61: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Front Control Panel Header Pins (JF1) Ground x (key) x (key) Power LED HDD LED NIC1 NIC2 OH/Fan Fail LED Power Fail LED Ground Reset Ground Power I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-2 below for the colors and locations of the various I/O ports.

  • Page 62: Installing Memory

    SUPERSERVER 7047R-TRF USER'S MANUAL Installing Memory Caution! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRi-F supports up to 512 GB of DDR3 1866/1600/1333/1066/800 MHz speed registered ECC 1GB, 2GB, 4GB, 8GB, 16GB and 32GB size SDRAM in 16 DIMM slots.

  • Page 63: Dimm Module Population Confi Guration

    Chapter 5: Advanced Serverboard Setup Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules P1-A1 P1-B1 P1-C1 P1-D1 P1-A2 P1-B2 P1-C2 P1-D2 CPU1 P2-E1 P2-F1 P2-G1 P2-H1 P2-E2 P2-F2 P2-G2 P2-H2 CPU2 Processor and Memory Module Population Number of CPU and Memory Population Confi...

  • Page 64: Adding Pci Expansion Cards

    SUPERSERVER 7047R-TRF USER'S MANUAL Adding PCI Expansion Cards PCI Expansion Slots One riser card is used to support PCI expansion cards in the system. The RSC- R2UU-UA3E8+ riser card can support one UIO card and three full-height, full-length PCI-Express x8 expansion cards.

  • Page 65: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-4. X9DRi-F Serverboard Layout (not drawn to scale) COM1 LAN2 LAN1 USB 2/3 USB 0/1 CTRL KB/Mouse CTRL IPMI_LAN FAN6 FAN5 CPU2 X9DRi-F JITP0 C602/ CPU1 C606 FANB JSTBY1 SAS4~7 SAS0~3 FAN2 FAN3 Notes: •...
  • Page 66 SUPERSERVER 7047R-TRF USER'S MANUAL X9DRi-F Quick Reference Jumper Description Default Setting JBT1 CMOS Clear (See Section 2-7) JPB1 BMC Enabled Pins 1-2 (Enabled) JPG1 VGA Enabled Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JPME1 Manufacture Mode Pins 1-2 (Normal)
  • Page 67 Chapter 5: Advanced Serverboard Setup Connector Description COM1/COM2 Backplane COM Port1/Front Accessible COM2 Header FAN1~6, FAN A, FAN B CPU/System Fan Headers I-SATA 0/1 Intel SB SATA 3.0 Connectors 0/1 (Color: White) I-SATA 2~5 Intel SB SATA 2.0 Connectors 2~5 (Color: Black) J22 (JPWR3) ATX 24-Pin Power Connector JPWR1/2...

  • Page 68: Connector Defi Nitions

    SUPERSERVER 7047R-TRF USER'S MANUAL Connector Defi nitions Power Connectors ATX Power 24-pin Connector Pin Defi nitions (JPWR3) A 2 4 - p i n m a i n p o w e r s u p p l y Pin# Defi nition Pin # Defi...
  • Page 69 Chapter 5: Advanced Serverboard Setup Reset Connector Reset Button Pin Defi nitions The reset connector is located on pins (JF1) 3 and 4 of JF1 and attaches to the Pin# Defi nition reset switch on the computer chassis. Reset See the table on the right for pin Ground defi...
  • Page 70 SUPERSERVER 7047R-TRF USER'S MANUAL HDD LED HDD LED Pin Defi nitions The HDD LED connection is located (JF1) on pins 13 and 14 of JF1. Attach the Pin# Defi nition hard drive LED cable here to display disk activity (for any hard drives on the...
  • Page 71 Chapter 5: Advanced Serverboard Setup Universal Serial Bus (USB) FP USB (4/5, 8/9, 10/11, USB 6) Pin Defi nitions Four Universal Serial Bus ports (USB USB 4, 8,10, 6, 7 USB 5, 9, 11 0/1, USB 2/3) are located on the I/O Pin # Defi...
  • Page 72 SUPERSERVER 7047R-TRF USER'S MANUAL Serial Ports Serial Port Pin Defi nitions (COM1/COM2) Two COM connections (COM1/COM2) Pin # Defi nition Pin # Defi nition are located on the motherboard. COM1 is located on the Backplane I/O panel. COM2, located close to PCI-E Slot1, provides front access support.
  • Page 73 Chapter 5: Advanced Serverboard Setup TPM Header/Port 80 TPM/Port 80 Header Pin Defi nitions (JTPM1) A Trusted Platform Module/Port 80 Pin # Defi nition Pin # Defi nition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)>...
  • Page 74 SUPERSERVER 7047R-TRF USER'S MANUAL T-SGPIO 1/2 Headers SGPIO Header Pin Defi nitions (T-SGPIO1/T-SGPIO2) Two SGPIO (Serial-Link General Pin# Defi nition Pin# Defi nition Purpose Input/Output) headers are located on the motherboard. These Data In headers support Serial_Link interface Ground Data Out for onboard SATA connections.

  • Page 75: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the Jumper motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two Setting pins to change the function of the connector.
  • Page 76 SUPERSERVER 7047R-TRF USER'S MANUAL LAN Enable/Disable LAN Enable/Disable Jumper Settings (JPL1) JPL1 enables or disables the GLAN Jumper Setting Defi nition Port1/GLAN Port2 on the motherboard. Enabled (default) See the table on the right for jumper Disabled settings. The default setting is Enabled.

  • Page 77: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup Manufacturer Mode Select ME Mode Select Jumper Settings (JPME1) Close this jumper (JPME1) to bypass Jumper Setting Defi nition SPI fl ash security and force the system Pins 1-2 Normal (Default) to use the Manufacturer mode which will allow the user to fl...

  • Page 78: 5-11 Sata Drive Connections

    SUPERSERVER 7047R-TRF USER'S MANUAL Onboard Power LED Onboard PWR LED Indicator LED Settings (LE1) An Onboard Power LED is located LED Color Defi nition at LE1 on the motherboard. When System Off (PWR cable not this LED is on, the system is on. Be...

  • Page 79: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...
  • Page 80 SUPERSERVER 7047R-TRF USER'S MANUAL Note: Click the icons showing a hand writing on paper to view the readme fi les for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list.

  • Page 81: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup Figure 5-9. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 82: 5-14 Serverboard Battery

    SUPERSERVER 7047R-TRF USER'S MANUAL 5-14 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-x). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 83: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform simple maintenance on the SC745TQ-R920B chassis. Following the component installation steps in the order given will eliminate most common problems. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 84: Front Control Panel

    SUPERSERVER 7047R-TRF USER'S MANUAL Figure 6-1. Chassis Front View Main Power System Reset USB Ports 5.25" Drive Bays System LEDs 8 Drive Bays (behind locking bezel) Front Control Panel The front control panel must be connected to the JF1 connector on the serverboard to provide you with system status and alarm indications.
  • Page 85 Chapter 6: Advanced Chassis Setup...

  • Page 86: System Fans

    SUPERSERVER 7047R-TRF USER'S MANUAL System Fans Three 8-cm chassis cooling fans (located in the center of the chassis) provide cooling airfl ow while two 8-cm exhaust fans expel hot air from the chassis. The chassis is also fi tted with an air shroud to concentrate the fl ow of cooling air over the areas of highest generated heat.
  • Page 87 Chapter 6: Advanced Chassis Setup Figure 6-3. Removing a Chassis Fan Figure 6-4. Removing the Air Shroud...

  • Page 88: Drive Bay Installation

    Warning: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/fi les/ storage/SAS-CompList.pdf...

  • Page 89: Sata Backplane

    The SAS/SATA drives plug into a backplane. Installing Components in the 5.25" Drive Bays The SuperServer 7047R-TRF has two 5.25" drive bays. Optional DVD-ROM drives can be installed into these 5.25" drive bays. 1. First power down the system and then remove the top/left chassis cover to access the drive components.

  • Page 90: Storage Module

    SUPERSERVER 7047R-TRF USER'S MANUAL Storage Module If the SuperServer 7047R-TRF is to be used in a rack confi guration, you must turn the storage module 90 degrees. This can be done before, during, or after setup. Rotating the Storage Module 1.

  • Page 91: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 7047R-TRF has two 920 Watt power supply modules. The power supply has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage. With redundant power, the system does not need to be shut down when replacing a failed power supply module (follow the procedure below but skip the steps on removing power).
  • Page 92 SUPERSERVER 7047R-TRF USER'S MANUAL Notes 6-10...

  • Page 93: Chapter 7 Bios

    Introduction This chapter describes the AMI BIOS Setup Utility for the SUPERSERVER 7047R-TRF. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 94: Main Menu

    SUPERSERVER 7047R-TRF USER'S MANUAL Main Menu When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys.
  • Page 95 Chapter 7: BIOS Select Enabled force the system to wait until the 'F1' key is pressed when an error occurs. The options are Disabled and Enabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture"...
  • Page 96 SUPERSERVER 7047R-TRF USER'S MANUAL CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi gure CPU settings. Socket 0 CPU Information This submenu displays the following information regarding the CPU installed in Socket 0.
  • Page 97 Chapter 7: BIOS Active Processor Cores Set to Enabled to use a processor's Second Core and beyond. (Please refer to Intel's web site for more information.) The options are All, 1, 2, and 4. Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value. Enable this function to boot the legacy operating systems that cannot support processors with extended CPUID functions.
  • Page 98 SUPERSERVER 7047R-TRF USER'S MANUAL Note: If there is any change to this setting, you will need to power off and restart the system for the change to take effect. Please refer to Intel's website for detailed information. Clock Spread Spectrum...
  • Page 99 Chapter 7: BIOS Energy Performance The options are Performance, Balanced Performance, Balanced Energy, and Energy Effi cient. Factory Long Duration Power Limit This item displays the power limit set by the manufacturer during which long duration power is maintained. Long Duration Power Limit This item displays the power limit set by the manufacturer during which long duration power is maintained.

  • Page 100: North Bridge

    SUPERSERVER 7047R-TRF USER'S MANUAL Chipset Confi guration North Bridge This feature allows the user to confi gure the settings for the Intel North Bridge. IOH (IO Hub) Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 101 Chapter 7: BIOS Port 1B Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1B. Select GEN3 to enable PCI-Exp Generation 3 support for Port 1B. The options are GEN1, GEN2, and GEN3.
  • Page 102 SUPERSERVER 7047R-TRF USER'S MANUAL Port 1A Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1A. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1A. Select GEN3 to enable PCI-Exp Generation 3 support for Port 1A. The options are GEN1, GEN2, and GEN3.
  • Page 103 Chapter 7: BIOS QPI Link Frequency Select Use this feature to select the desired QPI frequency. The options are Auto, 6.4 GT/s, 7.2 GT/s, and 8.0 GT/s. DIMM Confi guration • Total Memory: This item displays the total memory size available in the system.
  • Page 104 SUPERSERVER 7047R-TRF USER'S MANUAL DRAM RAPL Mode RAPL which stands for Running Average Power Limit is a feature that provides mechanisms to enforce power consumption limits on supported processors The options are DRAM RAPL MODE0 , DRAM RAPL MODE1, and Disabled.

  • Page 105: South Bridge

    Chapter 7: BIOS DRAM RAPL RAPL which stands for Running Average Power Limit is a feature that provides mechanisms to enforce power consumption limits on supported processors The options are Mode 0, MODE1, and Disabled. Device Tagging Select Enabled to support device tagging. The options are Disabled and Enabled.
  • Page 106 SUPERSERVER 7047R-TRF USER'S MANUAL Port 60/64 Emulation Select Enabled to enable I/O port 60h/64h emulation support for the legacy USB keyboard so that it can be fully supported by the operating systems that do not recognize a USB device. The options are Disabled and Enabled.
  • Page 107 Chapter 7: BIOS Port 0~Port 5 Hot Plug Select Enabled to enable hot-plug support for a port specifi ed by the user so that the user is allowed to change a hardware component or a device without shutting down the system. The options are Enabled and Disabled. Staggered Spin-up Select Enabled to enable Staggered Spin-up support to prevent excessive power consumption caused by multiple HDDs spinning-up simultaneously.
  • Page 108 SUPERSERVER 7047R-TRF USER'S MANUAL Thermal Confi guration Thermal Management Select Enabled to initialize the PCH Thermal subsystem device. The options are Enabled and Disabled. If Enabled is selected, the following item appears: PCIe/PCI/PnP Confi guration This submenu allows the user to confi gure the following PCIe/PCI/PnP settings.
  • Page 109 Chapter 7: BIOS ASPM Support This feature allows the user to set the Active State Power Management (ASPM) level for a PCI-E device. Select Force L0 to force all PCI-E links to operate at L0 state. Select Auto to allow the system BIOS to automatically set the ASPM level for the system.

  • Page 110: Serial Port Console Redirection

    SUPERSERVER 7047R-TRF USER'S MANUAL Serial Port Mode This feature allows the user to set the serial port mode for Console Redirection. The options are SOL and COM. Device Settings This feature indicates whether or not a reset is required for a serial port specifi ed.
  • Page 111 Chapter 7: BIOS Bits Per Second This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.

  • Page 112: Acpi Settings

    SUPERSERVER 7047R-TRF USER'S MANUAL Legacy OS Redirection Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty Keypad Use this feature to select function key and keypad setting on Putty. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.
  • Page 113 Chapter 7: BIOS tion embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Enabled and Disabled. Trusted Computing (Available if a TPM device is installed) Confi guration TPM Support Select Enabled on this item and enable the TPM jumper on the motherboard to allow TPM support to improve data integrity and network security.

  • Page 114: Event Logs

    SUPERSERVER 7047R-TRF USER'S MANUAL ME (Management Engine) Subsystem Intel ME Subsystem Confi guration This feature displays the following ME Subsystem Confi guration settings. ME Subsystem Select Enabled to support Intel Management Engine (ME) Subsystem, a small power computer subsystem that performs various tasks in the background. The options are Enabled and Disabled.

  • Page 115: Ipmi

    Chapter 7: BIOS Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurences a duplicate event must happen before the MECI counter is incremented. This is a numeric value ranging from 1 to 255.
  • Page 116 SUPERSERVER 7047R-TRF USER'S MANUAL When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

  • Page 117: Boot

    Chapter 7: BIOS Router IP Address This item displays the Router IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). Router MAC Address This item displays the Router Mac address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

  • Page 118: Save & Exit

    SUPERSERVER 7047R-TRF USER'S MANUAL Save & Exit This menu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi...
  • Page 119 Chapter 7: BIOS Restore User Defaults Select this feature and press <Enter> to load the user's defaults previously saved in the system. When the dialog box appears, asking you if you want to restore user's defaults, click Yes to restore the user's defaults previously saved in the system, or click No to abandon the user's defaults that were previously saved.
  • Page 120 SUPERSERVER 7047R-TRF USER'S MANUAL Notes 7-28...

  • Page 121: Appendix A Bios Post Error Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS POST Error Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 122 SUPERSERVER 7047R-TRF USER'S MANUAL Notes...

  • Page 123: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Dual Intel E5-2600 V2 series series (Socket R LGA2011 type) processors Note: You must install at least two processors for full functions to be supported. Note: Please refer to our web site for a complete listing of supported processors. Chipset One Intel PCH C602 chipset and one Intel PCH C606 Southbridge chipset BIOS...

  • Page 124: Serverboard

    SUPERSERVER 7047R-TRF USER'S MANUAL Serverboard X9DRi-F (Extended ATX form factor) Dimensions: 12.00" (L) x 13.00" (W) (304.80 mm x 330.20 mm) Chassis SC745TQ-R920B, tower/4U mini-tower Dimensions (as tower): (WxHxD) 7 x 19 x 27 in. (178 x 483 x 686 mm) Weight Gross (Bare Bone): 70 lbs.
  • Page 125 Appendix B: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3- 3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) California Best Management Practices Regulations for Perchlorate Materials:...
  • Page 126 SUPERSERVER 7047R-TRF USER'S MANUAL (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

Table of Contents
