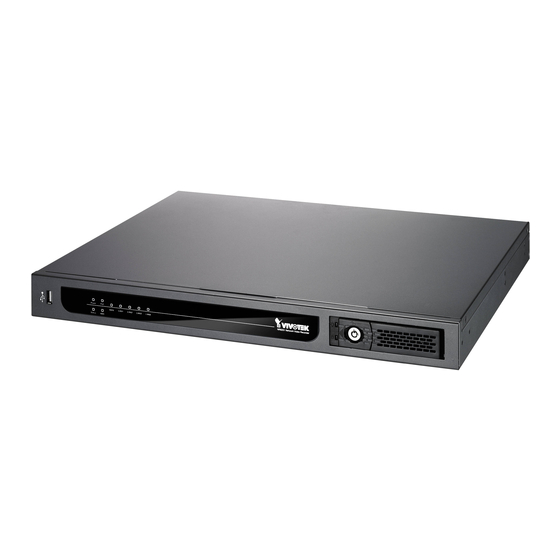

Vivotek NR8201 Quick Installation Manual

H.264 compatible with vast cms lockable hdd & rack mount design
Hide thumbs Also See for NR8201:
Table of Contents

Advertisement

Quick Links

See also: User Manual
NR8201/8301
H.264 Compatible with VAST CMS Lockable HDD & Rack Mount Design
NR8201
4-CH Viewing & Recording
External eSATA Interface
NR8301
8-CH Viewing & Recording
RAID 0, 1 Scalable Storage
Rev. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR8201 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek NR8201

Summary of Contents for Vivotek NR8201

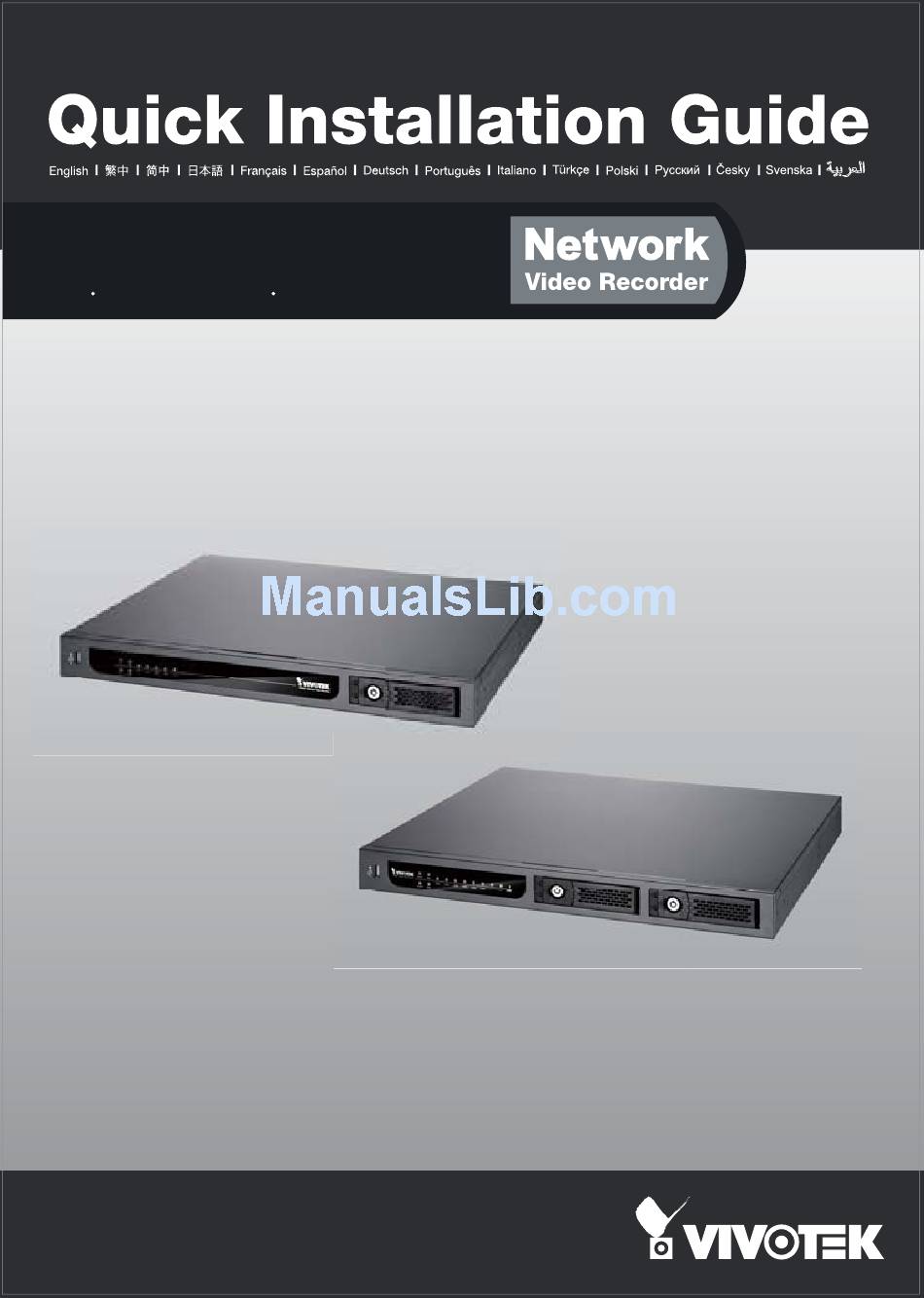

  • Page 1 NR8201/8301 H.264 Compatible with VAST CMS Lockable HDD & Rack Mount Design NR8201 4-CH Viewing & Recording External eSATA Interface NR8301 8-CH Viewing & Recording RAID 0, 1 Scalable Storage Rev. 1.1...
  • Page 2 Warning Before Installation Power off the Network Video Recorder Keep the Network Video Recorder as soon as it is found smoking or away from water. If the Video Recorder smelt unusual. is wet, power off immediately. Contact your distributor when such cases Contact your distributor when such cases happen.
  • Page 3 Do not place the Network Video Do not touch the Network Video Recorder on unsteady surfaces. Recorder when it's lightening. Do not drop the Network Video Do not insert any object into the Recorder. Network Video Recorder, such as needles. EN - 2...

  • Page 4: Package Contents

    Package Contents NR8201 (4CH) or NR8301 (8CH) Power Cord NR8201 NR8301 Rack Mount Kit Software CD NR8201: NR8301: Rack Mount Ear x 2 Rack Mount Ear x 2 Screws x 4 (Black) Screws x 4 (Black) Screws x 4 (Grey)

  • Page 5: Physical Description

    Power Button Recessed Reset Button General I/O Terminal Block NR8201 Status Indicator Removable & Lockable Hard Disk Tray x 1 Power NR8201 Network Video Recorder LAN 1 LA N 2 LAN3 LAN4 Status USB Socket Ethernet 10/100 RJ45 Socket x 4 (LAN);...

  • Page 6: Hardware Installation

    Hardware Installation Before using the Network Video Recorder, please prepare SATA hard disk(s) for recording video. 1. Make sure the power is disconnected. 2. Install the supplied rack mount ears if you want to install the enclosure into a rack cabi- net.

  • Page 7: Network Deployment

    6: Digital Input 2 NR8301 7: Digital Input 2 Ground 8: Digital Input 3 4-CH PoE 9: Digital Input 3 Ground Data Transmitting 10: Digital Input 4 11: Digital Input 4 Ground 12: Ground Power Supply NR8201 EN - 6...

  • Page 8: Assigning An Ip Address

    You may use DDNS for Internet access. There are three ways to get WAN IP address: DHCP (Dynamic IP), Static IP address, and PPPoE (DSL). If your network environment is DHCP, you can use VIVOTEK Installation Wizard 2 (IW2) to discover the IP address for the WAN port.

  • Page 9: Ready To Use

    Ready to Use Following is the Homepage of the Network Video Recorder. Configuration page Note If you want to record live video and playback the recorded video, you have to add devices to the Network Video Recorder on the Configuration page. For further setup, please refer to user's manual on the software CD.
  • Page 10 P/N: 625013601G Ver.1.1 Copyright 2011 VIVOTEK INC. All rights reserved. New Taipei City...
