Information Notice; Front Panel Overview - Elation DMX DUO User Manual

Section: 3 Information Notice
Product Modification Warning:
Elation Professional products are designed and manufactured to meet the requirements of United
States and International safety regulations. Modifications to the product could affect safety and render
the product non-compliant to relevant safety standards.
Updates & Changes:
Information and specifications in this manual are subject to change without notice. Elation
Professional assumes no responsibility or liability for any errors or inaccuracies that may appear in
this manual.
Copyright:
© 2004 Elation Professional
All rights reserved. No part of this manual may be reproduced, in any form or by any means, without
permission in writing from Elation Professional.
It is of great benefit to keep this user manual for future reference.

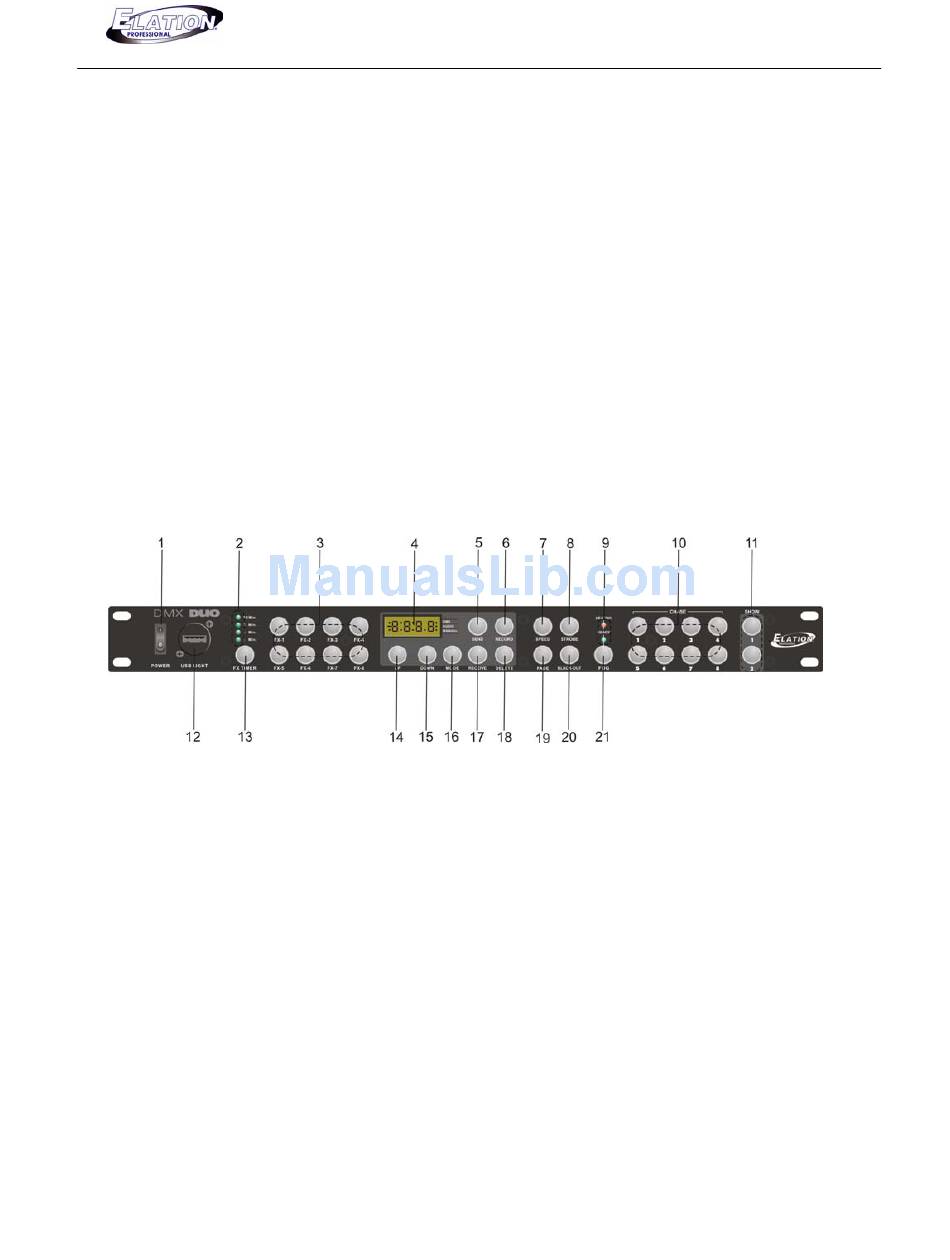

Section 4: Front Panel Overview
1. Power switch- switches the units power on or off. Up position switches the unit ON and Down
position switches the unit OFF.
2. FX timer LED's- indicate selected timer interval between 1, 3, 5 or 10 minutes. The built in timer
works in conjunction with the eight (8) FX light buttons. Selected timer interval will have its LED lit. (See
section 6 for additional information).
3. 1-8 FX switches- Switch effects ON or OFF. When an FX button is selected, corresponding button
illuminates. Therefore, corresponding effect or effects will switch ON. These buttons are also used to
select effects for timer interval automatic playback. (See section 6 for additional information).
4. Display- display's chase/show times and current operation mode.
5. Send Button- used to send memory data file to another DMX Duo or PC. (See Section 10 for
additional data transfer information).
6. Record Button- used to record chase and show steps. Also used to engage record mode.
7. Speed Button- to adjust chase or show hold times. When selected, a chase or show hold time can
be changed with the UP/Down buttons.
DMX DUO
4
