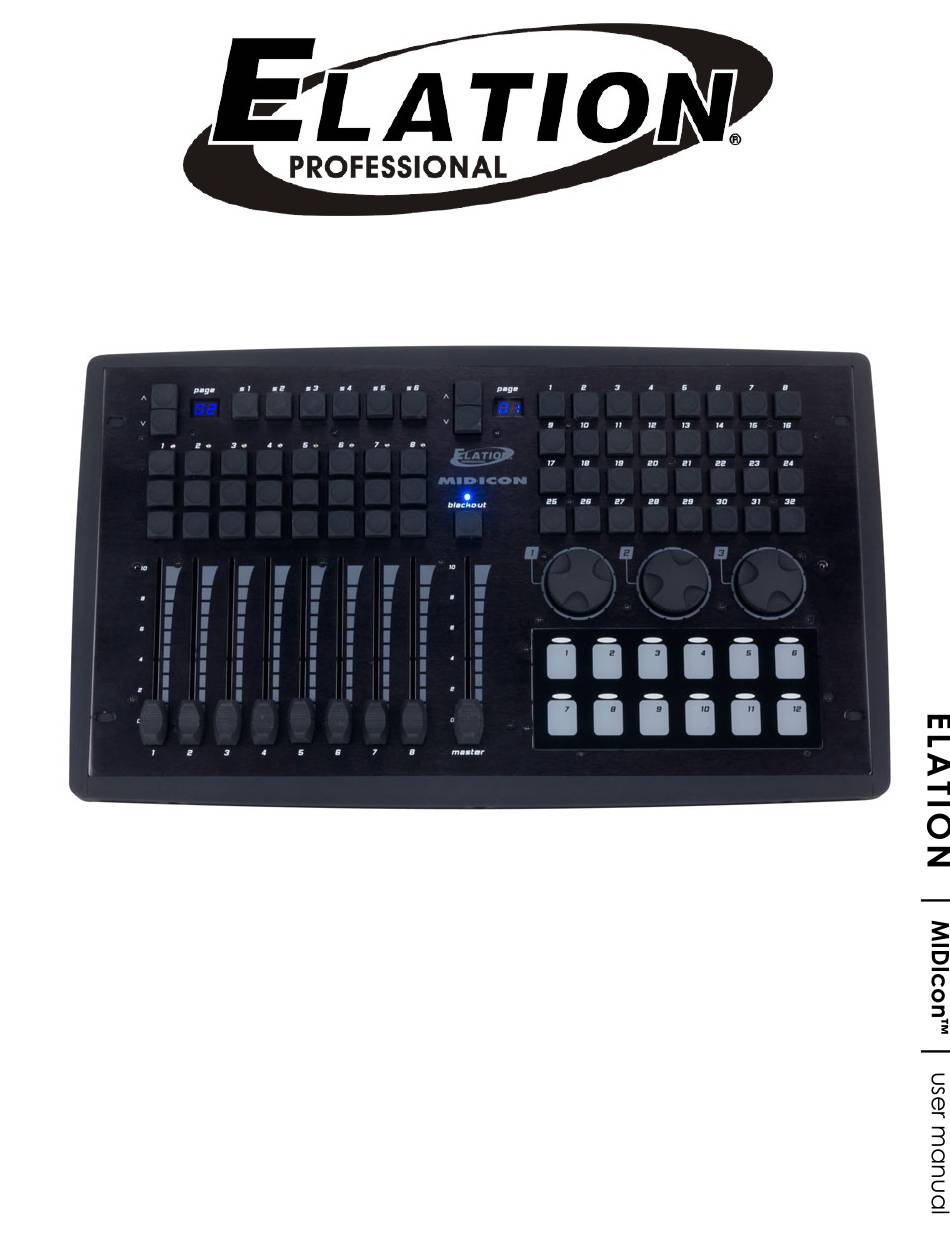

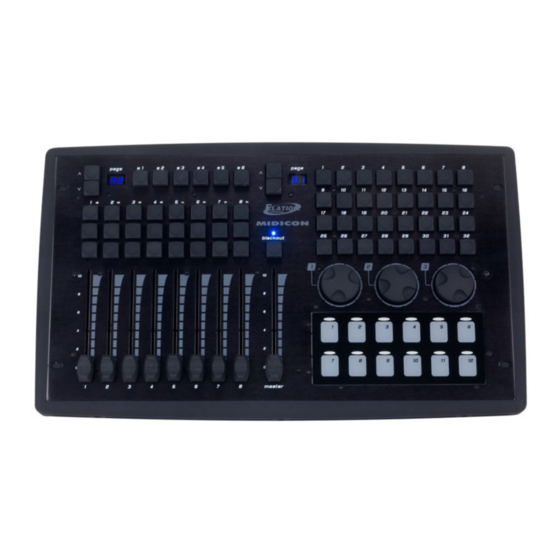

- Page 1 MIDIcon™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
- Page 3 . e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions Overview Device Overview Device Operation MIDI Message LED Control Technical Specifications MIDIcon™ User Manual...
-
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS USB Cable Manual & Warranty Card MIDIcon™ User Manual... -
Page 5: Customer Support
You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST... -
Page 6: Limited Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
I N D O O R S U S E O N L Y ! DO NOT EXPOSE DEVICE TO RAIN AND MOISTURE! MIDIcon™ User Manual... - Page 8 MIDIcon™. Refer to the picture of MIDIcon™ in the Device Overview section of this manual, which provides an illustration of controls broken down into the following 6 sections: Playbacks: This includes most of the left side of the control panel, 8 playback faders with 3 buttons above each fader (A, B, C).
-
Page 9: Device Overview
. e l a t i o n l i g h t i n g . c o m D E V I C E O V E R V I E W MIDIcon™ User Manual... -
Page 10: Memory Buttons
The playback section was designed to take advantage of the playback features in the Elation Lighting software programs. There are “A”, “B” and “C” buttons above each playback fader. The function of each button will vary depending on the software that you are using. -
Page 11: Device Operation
The following is a brief summary of how to use MIDIcon™ with the Elation’s Emulation lighting software. The first time you use MIDIcon™ with Emulation you will need to select it as your MIDI controller. Make sure the controller is turned on before you start Emulation. Go to the “options view”... - Page 12 ADJ MyDMX SOFTWARE The following is a brief summary of how to use the MIDIcon™ controller with the ADJ MyDMX lighting software. The MyDMX software will recognize any MIDI controller so there is no setup required.
-
Page 13: Midi Messages
. e l a t i o n l i g h t i n g . c o m M I D I M E S S A G E S The following is a list of the MIDI messages sent to your software from MIDIcon™ for each button press, wheel or fader movement. - Page 14 Button 25 – Note 77 Button 26 – Note 78 Button 27 – Note 79 Button 28 – Note 80 Button 29 – Note 81 Button 30 – Note 82 Button 31 – Note 83 Button 32 – Note 84 MIDIcon™ User Manual...
- Page 15 Down Button – Note 88 The page number is embedded in the MIDI channel for continuous controller 11. The continuous controller value can be ignored. The notes will show the buttons as pressed or released. (Notes are always MIDI channel 1). MIDIcon™ User Manual...
-
Page 16: Led Control
The following messages can be sent to MIDIcon™ by the software to control the states of the LEDs and displays. The MIDIcon™ will control the LEDs and page displays on power up. As soon as any valid LED control message is received, MIDIcon™ will defer all LED control to external software. -
Page 17: Technical Specifications
Length: 19.0” (483mm) Width: 10.5” (267mm) Vertical Height: 4.0” (267mm) Weight: 8.0 lbs. (3.6 kg) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. MIDIcon™ User Manual...
