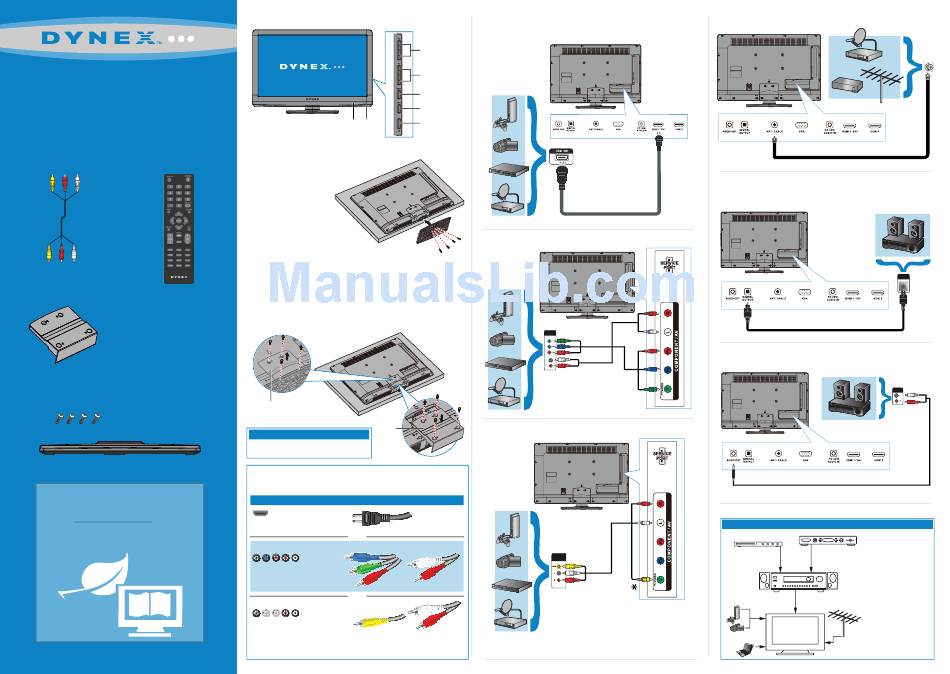

Dynex DX-32E250A12 Quick Setup Manual

32" LED-LCD TV
QUICK SETUP GUIDE
DX-32E250A12
Composite
cable
Remote control
and
two AAA batteries
Flat stand cover
for wall mounting
TV stand and four screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, then click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Front features
Volume +/-
Channel ▼/▲
Menu
Input
Power button
Power Remote
indicator control
sensor
Installing the stand
1 Carefully place your TV screen face-down
on a cushioned, clean surface to
protect the screen from damages
and scratches.
2 Secure the stand to the TV
with the four provided
screws.
Stand
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the stand, then remove the stand.
3 Secure the flat stand cover to the back of your TV, using the four screws you just
removed.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Stand
Flat stand
Warning
cover
This apparatus is intended to be supported
by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
Best
HDMI video/audio
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI 1 jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, or game station
Using HDMI (best)
Using component cables (better)
Screws
AUDIO/VIDEO
OUT
Using composite cables (good)
AUDIO/VIDEO
OUT
*Cables are often color-coded to match
color-coded jacks. In this case connect
yellow to green (Y), red to red, and
white to white.
Connecting an antenna/cable wall jack
Connecting a Home Theater System
Using Digital audio
Using Analog audio
AUDIO IN
Connecting a home theater system with multiple devices
Cable or satellite TV box
Blu-ray player/DVD player/VCR
We recommend that you connect
the AV receiver's HDMI OUT jack to
your TV's HDMI 1/DVI IN jack and
the AV receiver's Audio IN to your
TV's Digital output jack.
AV receiver
• Have a game console connect to
your TV's HDMI 2 IN jacks.
• When you watch a program
through an antenna or cable TV
Game console
connected to the ANT/CABLE IN
or camera
jack.
Antenna or
cable TV
Computer
(no box)
OPTICAL
AUDIO IN
