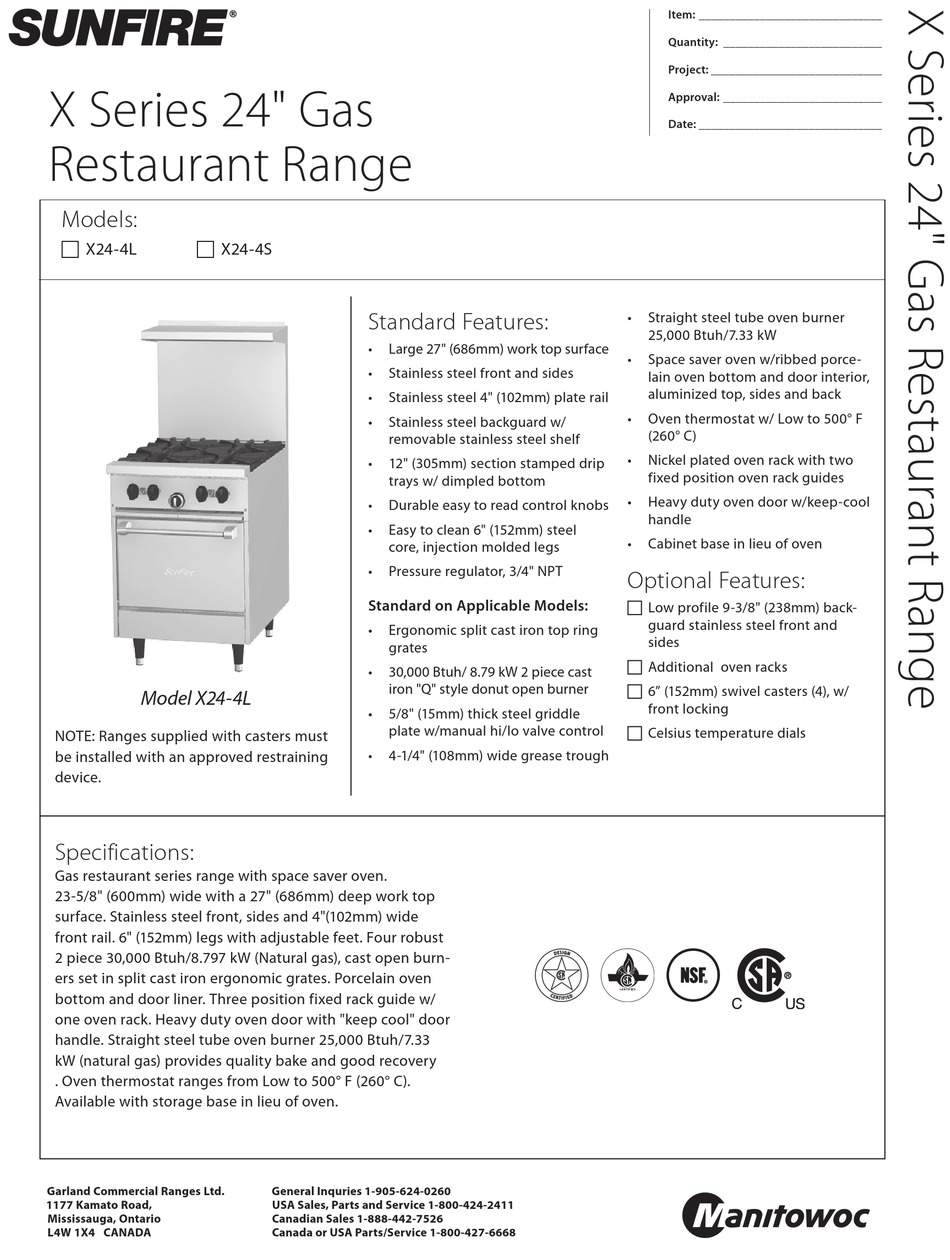

Sunfire X24-4L Instruction Manual

X Series 24" Gas
Restaurant Range
Models:
 X24-4L  X24-4S
Model X24-4L
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with space saver oven.
23-5/8" (600mm) wide with a 27" (686mm) deep work top
surface. Stainless steel front, sides and 4"(102mm) wide
front rail. 6" (152mm) legs with adjustable feet. Four robust
2 piece 30,000 Btuh/8.797 kW (Natural gas), cast open burn-
ers set in split cast iron ergonomic grates. Porcelain oven
bottom and door liner. Three position fixed rack guide w/
one oven rack. Heavy duty oven door with "keep cool" door
handle. Straight steel tube oven burner 25,000 Btuh/7.33
kW (natural gas) provides quality bake and good recovery
. Oven thermostat ranges from Low to 500° F (260° C).
Available with storage base in lieu of oven.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 4" (102mm) plate rail
• Stainless steel backguard w/
removable stainless steel shelf
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• Durable easy to read control knobs
• Easy to clean 6" (152mm) steel
core, injection molded legs
• Pressure regulator, 3/4" NPT
Standard on Applicable Models:
• Ergonomic split cast iron top ring
grates
• 30,000 Btuh/ 8.79 kW 2 piece cast
iron "Q" style donut open burner
• 5/8" (15mm) thick steel griddle
plate w/manual hi/lo valve control
• 4-1/4" (108mm) wide grease trough
General Inquries 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
• Straight steel tube oven burner
25,000 Btuh/7.33 kW
• Space saver oven w/ribbed porce-
lain oven bottom and door interior,
aluminized top, sides and back
• Oven thermostat w/ Low to 500° F
(260° C)
• Nickel plated oven rack with two
fixed position oven rack guides
• Heavy duty oven door w/keep-cool
handle
• Cabinet base in lieu of oven

Optional Features:

 Low profile 9-3/8" (238mm) back-
guard stainless steel front and
sides
 Additional oven racks
 6" (152mm) swivel casters (4), w/
front locking
 Celsius temperature dials
