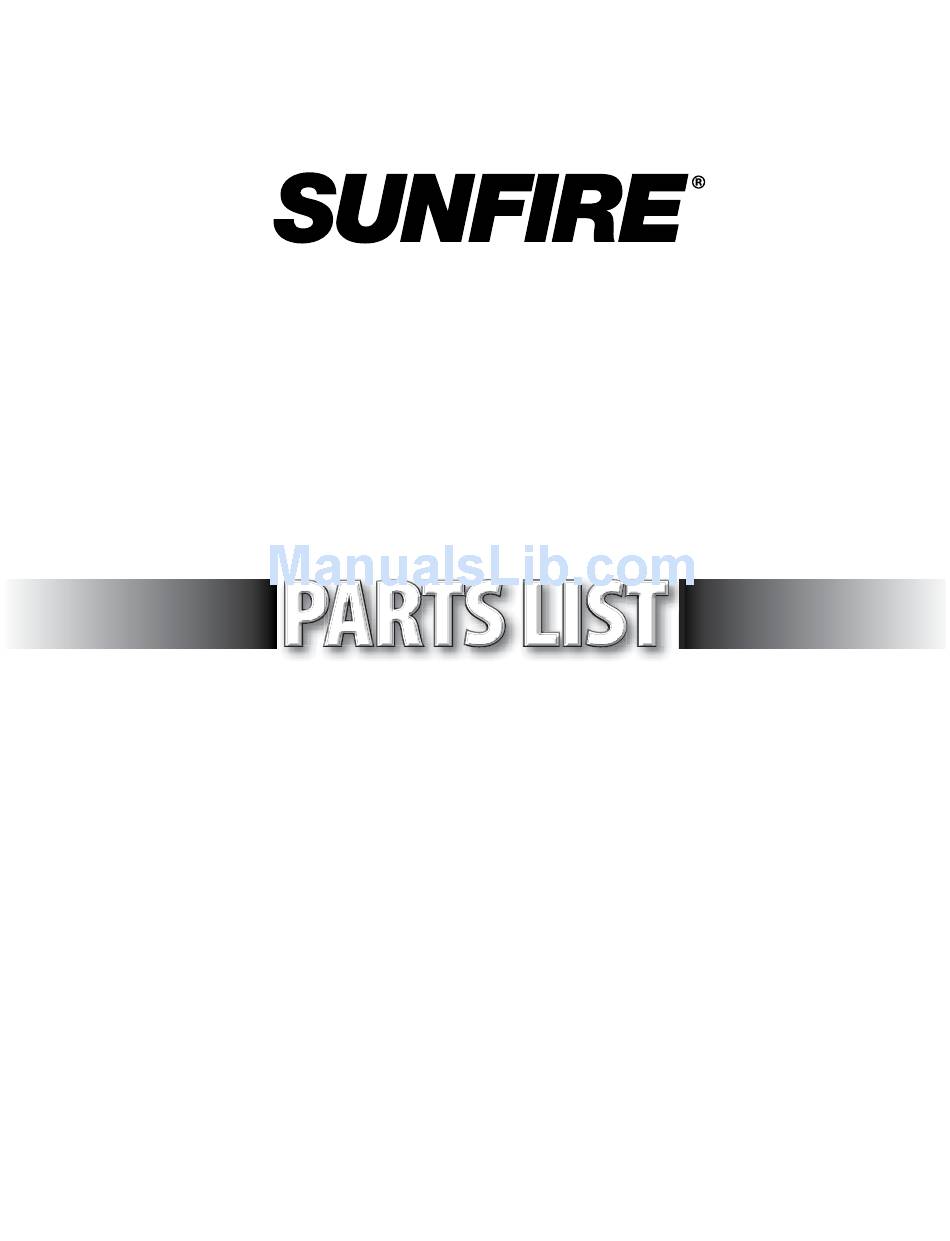

Sunfire X24 Parts List

X series gas restaurant ranges
Hide thumbs
Table of Contents

Advertisement

Quick Links

X Series
Gas Restaurant Ranges
X24 / X36 / X60
models
P
: 1 800 427 6668
(US & Canada)
F
: 1 800 361 7745
(US & Canada)
www.Garland-Group.com
U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunfire X24

Summary of Contents for Sunfire X24

  • Page 1 X Series Gas Restaurant Ranges X24 / X36 / X60 models : 1 800 427 6668 (US & Canada) : 1 800 361 7745 (US & Canada) www.Garland-Group.com U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 2 Quality Factory Replacement Parts for the World’s Finest Foodservice Equipment Solutions This parts list is updated regularly. Please find the most current revision on our website @ www.Garland-Group.com...

  • Page 3: Table Of Contents

    X Series Gas Restaurant Ranges X24 / X36 / X60 models Table of Contents Rating Plate Location / Serial# & Model Code Interpretation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Oven Section Components —...
  • Page 4 Blank Page Page 4 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 5 2 / 4 / 6 / 10 - Number of Open Top Burners R24 - Raised Griddle/Broiler, 24" wide Gxx - Griddle, xx" wide Unit Width - 24 / 36 / 60 inches Sunfire X Series Gas Restaurant Ranges U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10) Page 5...
  • Page 6 X Series Gas Restaurant Ranges models X24 / X36 / X60 24” Single Space Saver Oven / Cabinet Door (1 of 2) 49 OR 49A X series 24inch L Oven Section 1of2 Page 6 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 7 X Series Gas Restaurant Ranges models X24 / X36 / X60 24” Single Space Saver Oven / Cabinet Door (2 of 2) (see 33C) 31A/31B 33A/33B 32A/32B X series 24inch L Oven Section 2of2 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10) Page 7...
  • Page 8 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 24" SInGLE SPACE SAVER OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 4523184 24" Main Channel Front 4525529 24" Main Channel Rear 4522764 Body Side L/R 4523041 Main Back 24"...
  • Page 9 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 24" SInGLE SPACE SAVER OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO Oven Door Handle Kit, 20W, Sunfire 4526108 15-AUG/08 note: Kit includes items 31B, 32B, 33B...
  • Page 10 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 24" SInGLE SPACE SAVER OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO G02251-1 Pressure Test Spigot 2203400 1/8" NPT Pipe Plug 4523570 .187 (3/16) Dia Tubing - SIT Valve to Oven Pilot...
  • Page 11 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 24" SInGLE SPACE SAVER OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO LEGS & CASTERS 4522416 6" Adjustable Leg, Sunfire 4524104 6" Flanged Leg (Optional) 6"...
  • Page 12 X Series Gas Restaurant Ranges models X24 / X36 / X60 36” Single Standard Oven / Cabinet Door (1 of 2) 49 OR 49A 36inch R Oven Section 1of2 Page 12 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 13 X Series Gas Restaurant Ranges models X24 / X36 / X60 36” Single Standard Oven / Cabinet Door (2 of 2) 31A/31B 33A/33B 32A/32B (see 33C) 36inch R Oven Section 2of2 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10) Page 13...
  • Page 14 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 36" SInGLE STAnDARD OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 4523068 36" Main Channel Front 4525530 36" Main Channel Rear 4522764 Body Side L/R 4522761 Main Back 36"...
  • Page 15 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 36" SInGLE STAnDARD OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO F299 Bolt 1/4-20x1/2" Bell Crank 4522818 Bell Crank Support Bracket 4512250 Oven Door Spring 4523497 Oven Door J-Bolt, 6”...
  • Page 16 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 36" SInGLE STAnDARD OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 2127502 Regulator - Natural Gas 4.5" WC 2127500 Regulator - Propane Gas 10" WC...
  • Page 17 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 36" SInGLE STAnDARD OVEn / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO LEGS & CASTERS 4522416 6" Adjustable Leg, Sunfire 4524104 6" Flanged Leg (Optional) 6" Caster Package, non-adjustable (Optional)
  • Page 18 X Series Gas Restaurant Ranges models X24 / X36 / X60 60” Single or Double Standard Ovens / Cabinet Door (1 of 2) Tubings: Tubings: OVEN on the RIGHT OVEN on the LEFT 49 OR 49A 60inch R Oven Section 1of2...
  • Page 19 X Series Gas Restaurant Ranges models X24 / X36 / X60 60” Single or Double Standard Ovens / Cabinet Door (2 of 2) 31A/31B 33A/33B 32A/32B (see 33C) 60inch R Oven Section 2of2 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10) Page 19...
  • Page 20 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 60" SInGLE OR DOubLE STAnDARD OVEnS / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 4523068 36" Main Channel Front 4525530 36" Main Channel Rear 4523184 24” Main Channel Front 4525529 24”...
  • Page 21 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 60" SInGLE OR DOubLE STAnDARD OVEnS / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO Door Handle, Sunfire, 1.0” Dia 4522646 note: Used FROM (date) 15-Aug/08 (serial#) 15-AUG/08 0808100100641 (model) X60-10RR-0001.
  • Page 22 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 60" SInGLE OR DOubLE STAnDARD OVEnS / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 60” Valve Panel All burners or 12” Griddle (Std) on L/H or R/H...
  • Page 23 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 60" SInGLE OR DOubLE STAnDARD OVEnS / CAbInET DOOR COMPOnEnTS ITEM PART# DESCRIPTIOn FROM uP TO 4527220 SIT Pilot Tube Connection .187 (3/16) Dia Tubing, SIT Valve to Oven Pilot,...
  • Page 24 X Series Gas Restaurant Ranges models X24 / X36 / X60 Open Top burners (12” Section Shown) Range Top - Open Top Burners Page 24 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 25 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 OPEn TOP buRnERS OPEn TOP SECTIOn ITEM PART # DESCRIPTIOn 12" 24" 36" 60" 4522264 Dual Venturi Housing Base Assembly 4522266 Air Shutter - Open Top 10-24 x 3/8" Hex Washer Head Screw...
  • Page 26 X Series Gas Restaurant Ranges models X24 / X36 / X60 hot Top (12” Section Shown) Pilot L/H Top View Range Top - Hot Top Page 26 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 27 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 hOT TOP hOT TOP ITEM PART # DESCRIPTIOn FROM uP TO 12” 24” 36” 4525514 Hot Top / Griddle Burner Box H-Burner W/Shutter Assembly (Partially Ported) note: Assembly includes a cast iron H-burner 4525463 (p/n 1014901) and an air shutter.
  • Page 28 X Series Gas Restaurant Ranges models X24 / X36 / X60 hi / Low Griddle Top Top View Used UP TO 1-DEC-2009 Range Top - Hi-Low Griddle Page 28 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 29 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 hI / LOW GRIDDLE TOP GRIDDLE SIZE ITEM PART# DESCRIPTIOn FROM uP TO Hot Top / Griddle Burner Box (was 4525514 4523179) 4524158 Griddle / Hot Box Patch 4524326 12"...
  • Page 30 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 hI / LOW GRIDDLE TOP GRIDDLE SIZE ITEM PART# DESCRIPTIOn FROM uP TO CK4523335 Crumb Tray Assembly, Sunfire F554 Rivet .125" Dia. SS 4525512 Griddle Box Heat Shield...
  • Page 31 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 hI / LOW GRIDDLE TOP GRIDDLE SIZE ITEM PART# DESCRIPTIOn FROM uP TO 4523235 12" Griddle Assembly 4523780 12" Griddle Assembly (Fully Grooved) 4523234 24" Griddle Assembly 4523781 24"...
  • Page 32 X Series Gas Restaurant Ranges models X24 / X36 / X60 Raised Griddle broiler Top Range Top - Raised Griddle Broiler Page 32 U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10)
  • Page 33 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 RAISED GRIDDLE bROILER TOP ITEM PART # DESCRIPTIOn QuAnTITY 4523068 36" Main Channel – Front 4525530 36" Main Channel – Rear 4523069 36" Drip Angle 4523087 Top Grate Support Rail...
  • Page 34 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 RAISED GRIDDLE bROILER TOP ITEM PART # DESCRIPTIOn QuAnTITY 4523815 Broiler Box Shield 4523823 RGB Pilot Bracket 1473700 Broiler Pilot Assembly - Natural Gas 1473701 Broiler Pilot Assembly - Propane Gas...
  • Page 35 Blank Page U_GMD_PL_RANGESXSERIES_XSERIES (Rev 10) Page 35...
  • Page 36 X Series Gas Restaurant Ranges models X24 / X36 / X60 high Shelf & Low Profile back Guard Components 60" High Shelf Front Panel 36" High Shelf Shown for Raised Griddle Broiler Only 60" Low Guard Front Panel 48" Back Guard Shown for Raised Griddle Broiler Only High Shelf and Low Profile Back Guard...
  • Page 37 SunFIRE PARTS IDEnTIFICATIOn X Series Gas Restaurant Ranges models X24, X36, X60 hIGh ShELF & LOW PROFILE bACk GuARD COMPOnEnTS ITEM PART # DESCRIPTIOn QuAnTITY high Shelf (hS) Components 4523112 High Shelf Upright (Vertical Side Channel) 4523267 24" HS Back Panel 4524105 24"...

  • Page 38: Gas Conversion Kits

    Up To Date Added 1-APR/09 New Part Number Part Number Changed - Was M9-54 Large Orifice #54 Propane INDEX Description From Page 4 Changed Was: SUNFIRE 24" X SERIES RESTAURANT RANGE STANDARD 21-MAY/09 OVEN VIEW SECTION 4,8,12 New Drawing 64A,(69A)
  • Page 39 Added rating plate, serial#, and model code info. page. Removed Crumb Tray Trim 4522402 (S/S), as used in CK4523334. Use Crumb Tray Trim 4522403 (Sunfire) where CK4523335 is listed. But trims are interchangeable. A number of X series models have been removed from production. Related part numbers stay in parts list.
