Honda 08E60-SCV-100 Installation Instructions

Keyless entry
Hide thumbs

Advertisement

Quick Links

www.HandA-Accessories.com
INSTALLATION
INSTRUCTIONS

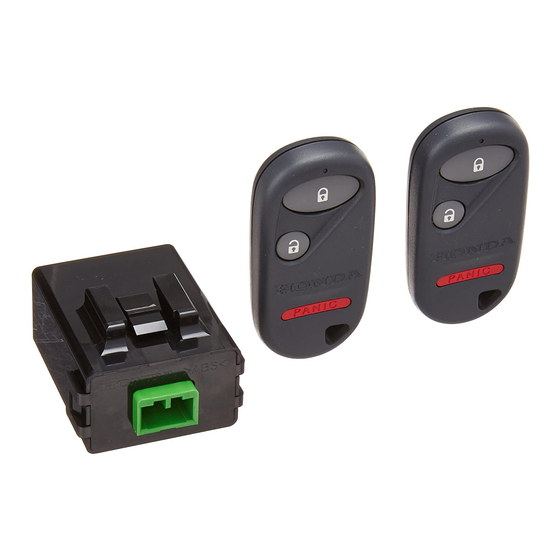

PARTS LIST
2 Transmitters
Receiver unit
Bracket
Flange bolt
Owner's manual
TOOLS REQUIRED
Ratchet
10 mm Socket
Illustration of the Keyless Entry Installed in the
Vehicle
©
2002 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
KEYLESS ENTRY
P/N 08E60-SCV-100
RECEIVER
UNIT
2709050K
Application
ELEMENT
INSTALLATION
Customer Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures
should not be attempted by "do-it-yourselfers."
1.
If equipped, make sure you have the anti-theft
code for the radio, then write down the frequencies
for the preset buttons.
2.
Disconnect the negative cable from the battery.
3.
Remove the driver's dashboard lower cover, turn
the knobs clockwise, then pull the driver's
dashboard lower cover out toward you to release
the six retaining tabs.
DRIVER'S
DASHBOARD
LOWER
COVER
Note:
There will be a box inside the Element box that
says "Civic" on it. The Civic and the Element
use the same main control unit so Honda just
reboxes the Civic unit with the required bracket
for the Element.
AII 24295 (0212)
Publications No.
AII 24295
Issue Date
DEC 2002
RETAINING
TABS (6)
2403050K
KNOB
08E60-SCV-1000-91
1 of 2

Advertisement

loading

  Related Manuals for Honda 08E60-SCV-100

  Summary of Contents for Honda 08E60-SCV-100

  • Page 1 Honda just reboxes the Civic unit with the required bracket for the Element. RECEIVER UNIT 2709050K 1 of 2 © 08E60-SCV-1000-91 2002 American Honda Motor Co., Inc - All Rights Reserved. AII 24295 (0212)
  • Page 2 Locate the 5-pin connector blue-taped to the vehicle harness and remove the blue tape to free the 5-pin connector. Plug the 5-pin connector into the receiver unit. 2 of 2 © AII 24295 (0212) 2002 American Honda Motor Co., Inc - All Rights Reserved.
