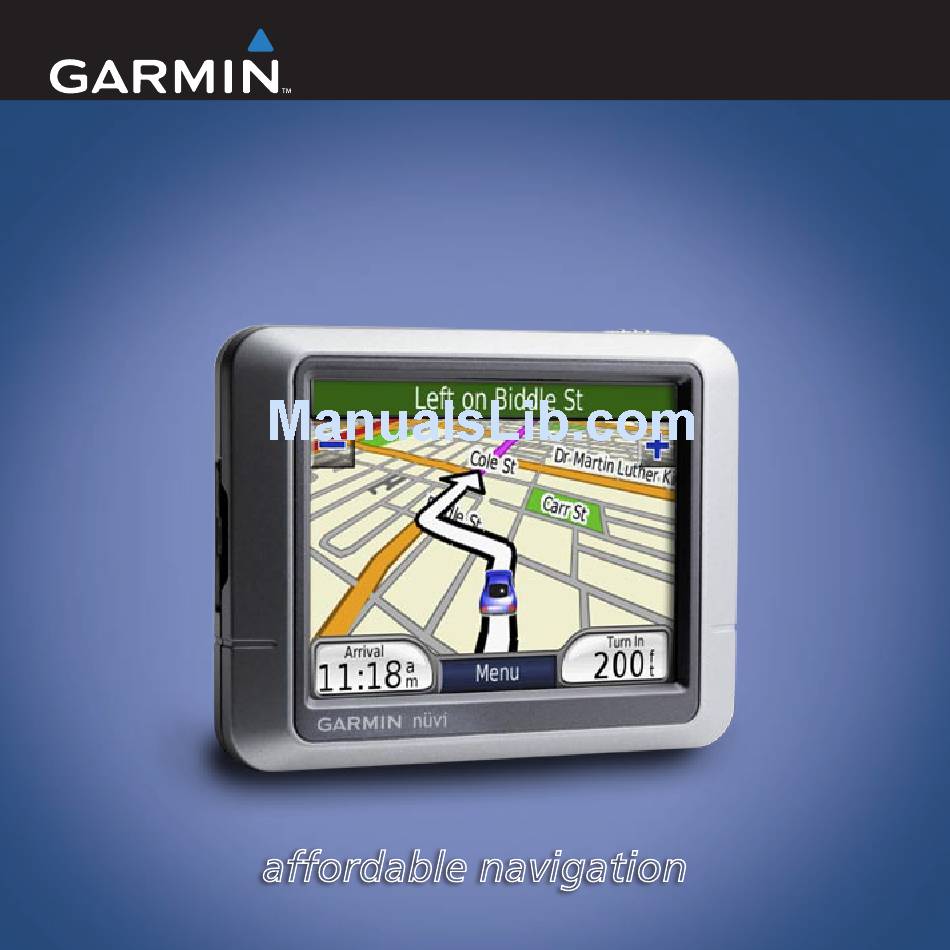

- Page 1 set up and go! nüvi 200 Series ® affordable navigation...
-
Page 2: What Is In The Box
What Is in the Box? • nüvi unit • Suction cup mount to mount the nüvi to your windshield. • Vehicle power cable to charge/power your nüvi using a vehicle power outlet. RESET button ettinG tarted • Dashboard disk to mount the suction cup mount on your dashboard instead. -
Page 3: Step 1: Mount The Nüvi
Check your state and local traffic laws before mounting. Currently, state laws in California and Minnesota prohibit drivers from using suction mounts on their windshields while operating motor vehicles. Other Garmin dashboard or friction mounting options should be used. See Step 1: Mount the nüvi Select a suitable location to mount the nüvi on your windshield. -
Page 4: Step 2: Configure The Nüvi
Step 2: Configure the nüvi To turn on your nüvi, slide the Power key to the left. Follow the on-screen instructions. To turn off your nüvi, slide the Power key to the left. Step 3: Acquire Satellites Before the nüvi can find your current location and navigate a route, you must do the following: 1. -
Page 5: Finding A Restaurant
Finding a Restaurant 1. Touch Where to > Points of > Food. 2. Select a category. Touch to see more choices. 3. Select a destination, and touch Go. Finding an Address 1. Touch Where to > Address. 2. Select a country and state/province, if necessary. 3. Touch Spell City. Enter the city/ postal code, touch Done, and select the city/postal code in the list. 4. Enter the number of the address, and touch Done. -
Page 6: Taking A Detour
Spelling the Name You can spell the name or part of the name of the location you are looking for using the on-screen keyboard. 1. Touch Where to > Points of Interest. 2. Touch Spell Name. 3. Using the on-screen keyboard, enter letters in the name. Touch Done. 4. Touch the place you are looking for, and touch Go. -
Page 7: Trip Information
View map Touch current location. Touch to view different parts of the map. Touch any object on the map; an arrow appears pointing at the object. After you touch Go, the Map page opens with your route marked with a magenta line. -
Page 8: Y Our Nüvi
Locking Your nüvi 1. Touch > Settings > Security. 2. Touch the button next to Garmin Lock. Touch OK. 3. Enter a four-digit PIN. Touch Yes to accept the PIN. 4. Touch OK. Drive to a security location (any location to which you return frequently, such as your home or office). Touch Set. Each time you turn on the nüvi, enter the four-digit PIN or drive to the security location. -
Page 9: Resetting Your Nüvi
Resetting Your nüvi If your unit stops responding, turn off the unit, and then turn it back on. If this does not help, reset your nüvi. CauTiON: Do not reset your nüvi with a ballpoint pen or other sharp object, which could damge your unit. -
Page 10: Mounting On Your Dashboard
Mounting on Your Dashboard Use the enclosed mounting disk to mount your unit to the dashboard and to comply with certain state regulations. iMPOrTaNT: The permanent mounting adhesive is extremely difficult to remove after it is installed. 1. Clean and dry the dashboard where you are placing the disk. -
Page 11: Product Information
Mportant Warnings Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. • When installing the unit in a vehicle, place the unit securely so it does not obstruct the driver’s view of the road or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. -
Page 12: Declaration Of Conformity
• Do not puncture or incinerate. • When storing the unit for an extended time, store within the following temperature range: 32° to 77°F (0° to 25°C). • Do not operate the unit outside of the following temperature range: -4° to 131°F (-20° to 55°C). •... -
Page 13: Industry Canada Compliance
Industry Canada Compliance Category I radiocommunication devices comply with Industry Canada Standard RSS-210. Category II radiocommunication devices comply with Industry Canada Standard RSS-310. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that... -
Page 14: Caring For Your Nüvi
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. -
Page 15: Specifications
than cleaning. Clean the unit’s outer casing (not the touch screen) using a cloth dampened with a mild detergent solution, and then wipe dry. Avoid chemical cleaners and solvents that can damage plastic components. Cleaning the Touch Screen Clean the touch screen with a soft, clean, lint-free cloth. - Page 16 Garmin and nüvi are trademarks of Garmin Ltd. or its subsidiaries, registered in ® ® the USA and other countries. Garmin Lock and myGarmin are trademarks of ™ ™ Garmin Ltd. or its subsidiaries and may not be used without the express permis- sion of Garmin.
