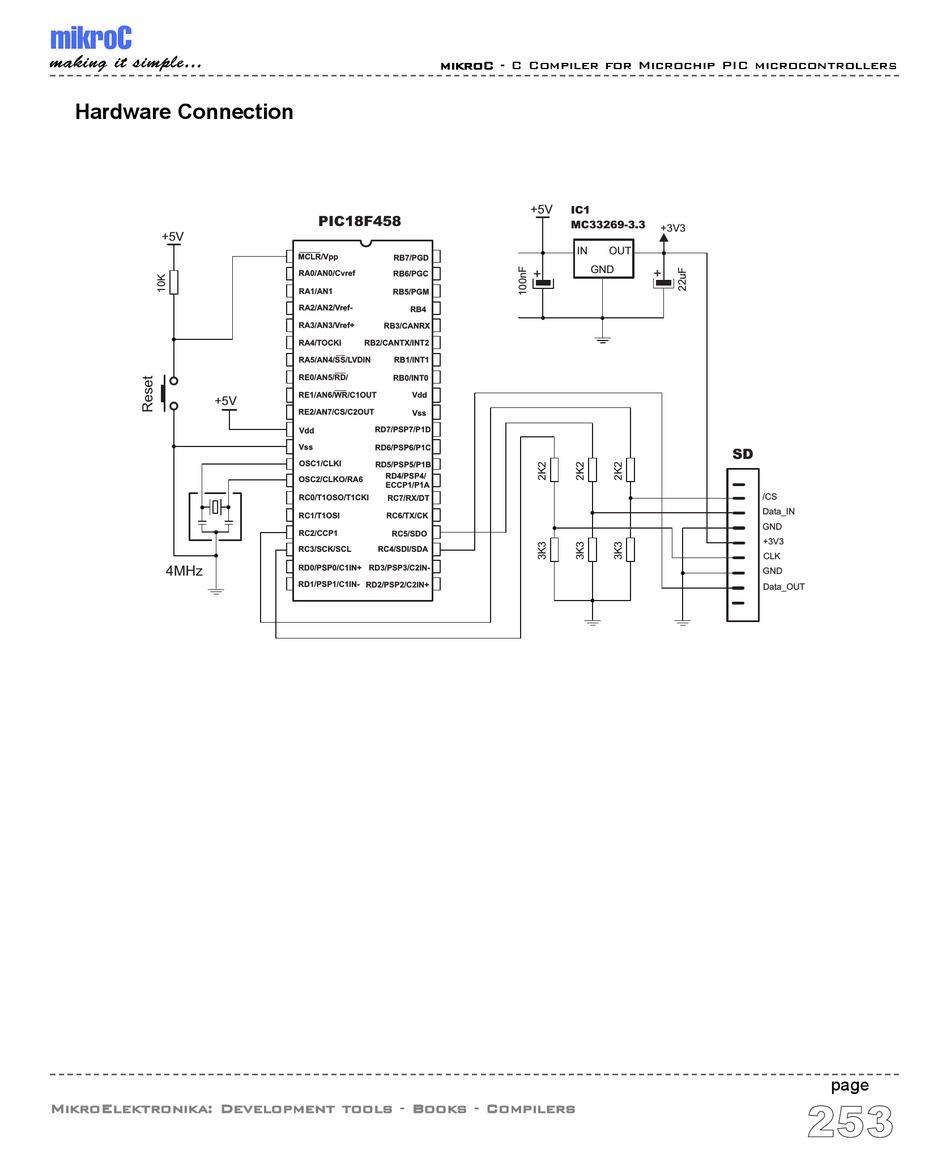

Hardware Connection
+5V
+5V
4MHz
MikroElektronika: Development tools - Books - Compilers
mikroC - C Compiler for Microchip PIC microcontrollers
PIC18F458
MCLR/Vpp
RB7/PGD
RA0/AN0/Cvref
RB6/PGC
RA1/AN1
RB5/PGM
RA2/AN2/Vref-
RB4
RA3/AN3/Vref+
RB3/CANRX
RA4/TOCKI RB2/CANTX/INT2
RA5/AN4/SS/LVDIN RB1/INT1
RE0/ AN5/ RD/
RB0/INT0
RE1/ AN6/ WR/C1OUT Vdd
RE2/ AN7/ CS/C2OUT
Vss
Vdd RD7/PSP7/P1D
Vss
RD6/PSP6/P1C
OSC1/CLKI
RD5/PSP5/P1B
RD4/PSP4/
OSC2/CLKO/RA6
ECCP1/P1A
RC0/T1OSO/T1CKI RC7/RX/DT
RC1/T1OSI RC6/TX/CK
RC2/CCP1
RC5/SDO
RC3/SCK/SCL RC4/SDI/SDA
RD0/PSP0/C1IN+
RD3/PSP3/C2IN-
RD1/PSP1/C1IN- RD2/PSP2/C2IN+
+5V
IC1
MC33269-3.3
+3V3
IN OUT
GND
+ +
SD
/CS
Data_IN
GND
+3V3
CLK
GND
Data_OUT
