mikroC - C Compiler for Microchip PIC microcontrollers

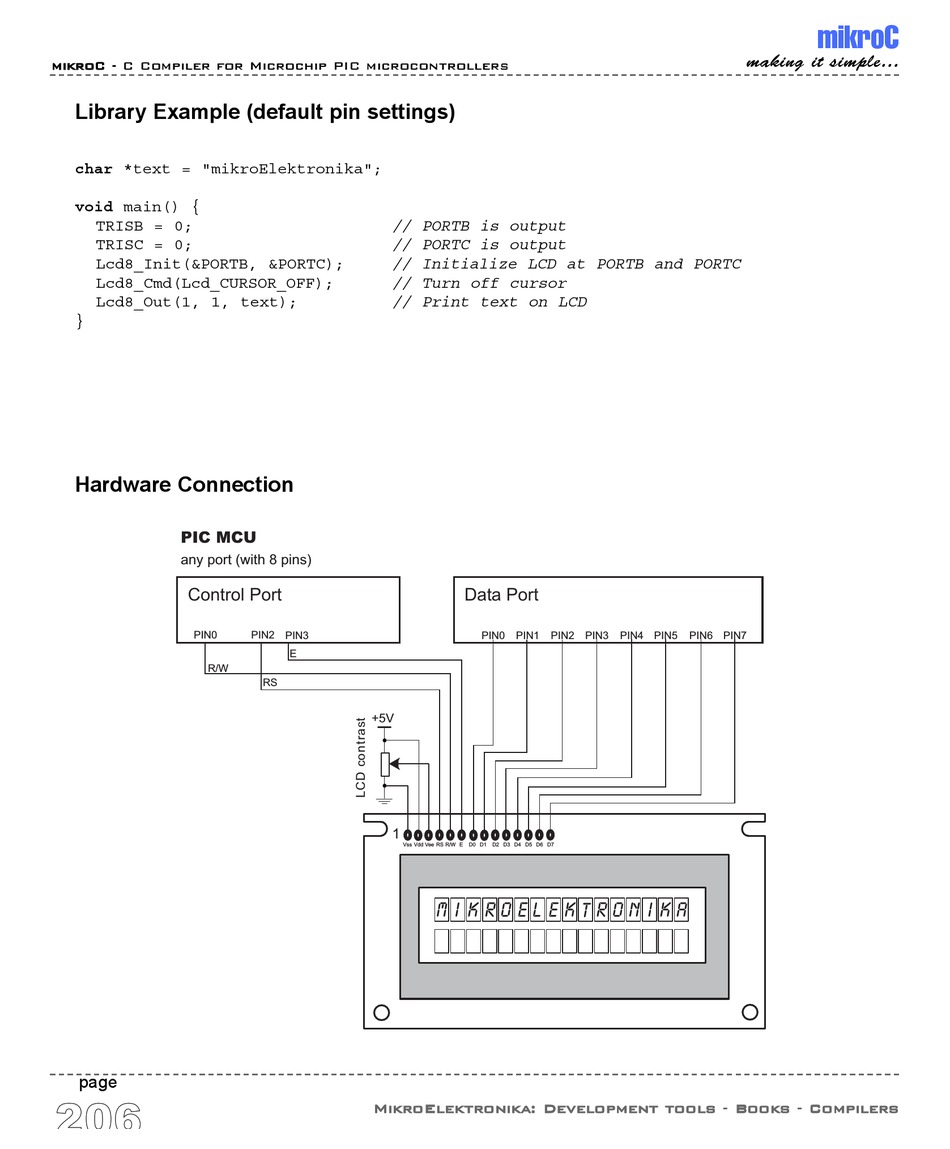

Library Example (default pin settings)
char *text = "mikroElektronika";
void main() {
TRISB = 0;
TRISC = 0;
Lcd8_Init(&PORTB, &PORTC);
Lcd8_Cmd(Lcd_CURSOR_OFF);
Lcd8_Out(1, 1, text);
}
Hardware Connection
PIC MCU
any port (with 8 pins)
Control Port
PIN0
R/W
page
206
// PORTB is output
// PORTC is output
// Initialize LCD at PORTB and PORTC
// Turn off cursor
// Print text on LCD
PIN2 PIN3
E
RS
+5V
1
Vss Vdd Vee
MikroElektronika: Development tools - Books - Compilers
Data Port
PIN0 PIN1 PIN2 PIN3
RS R/W E D0 D1 D2 D3 D4 D5 D6 D7
m i k r o e l E k t r o n i k a
making it simple...
PIN4 PIN5 PIN6 PIN7
