mikroC
making it simple...
Library Example (default pin settings)
char *text = "mikroElektronika";
void main() {
TRISB = 0;
Lcd_Init(&PORTB);
Lcd_Cmd(Lcd_CLEAR);
Lcd_Cmd(Lcd_CURSOR_OFF);
Lcd_Out(1, 1, text);
}//~!

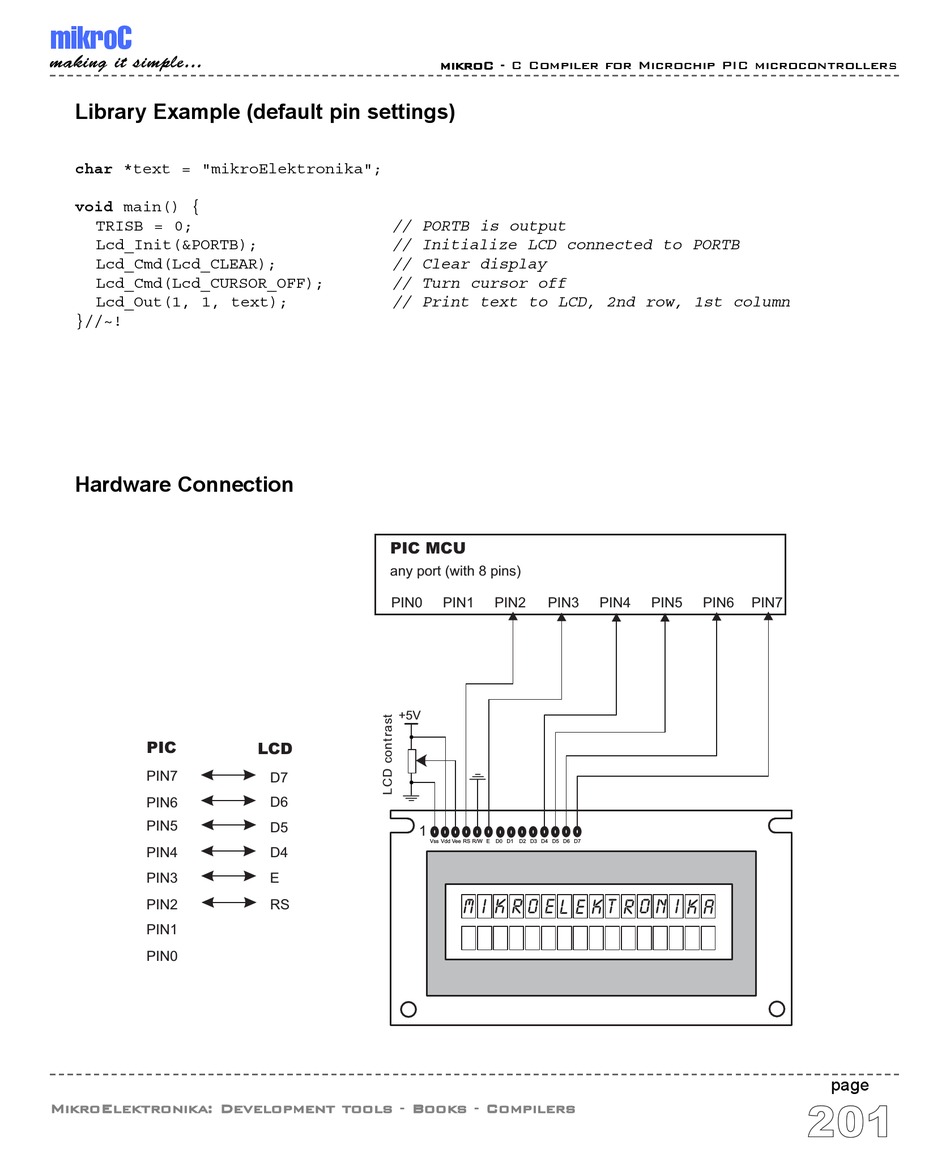

Hardware Connection

PIC
PIN7
PIN6
PIN5
PIN4
PIN3
PIN2
PIN1
PIN0
MikroElektronika: Development tools - Books - Compilers
// PORTB is output
// Initialize LCD connected to PORTB
// Clear display
// Turn cursor off
// Print text to LCD, 2nd row, 1st column
PIC MCU
any port (with 8 pins)
PIN0
+5V
LCD
D7
D6
D5
1
Vss
D4
E
RS
mikroC - C Compiler for Microchip PIC microcontrollers
PIN1 PIN2 PIN3 PIN4
Vdd Vee RS R/W E D0 D1 D2 D3 D4 D5 D6 D7
m i k r o e l E k t r o n i k a
PIN5 PIN6 PIN7
201
page
