mikroC - C Compiler for Microchip PIC microcontrollers

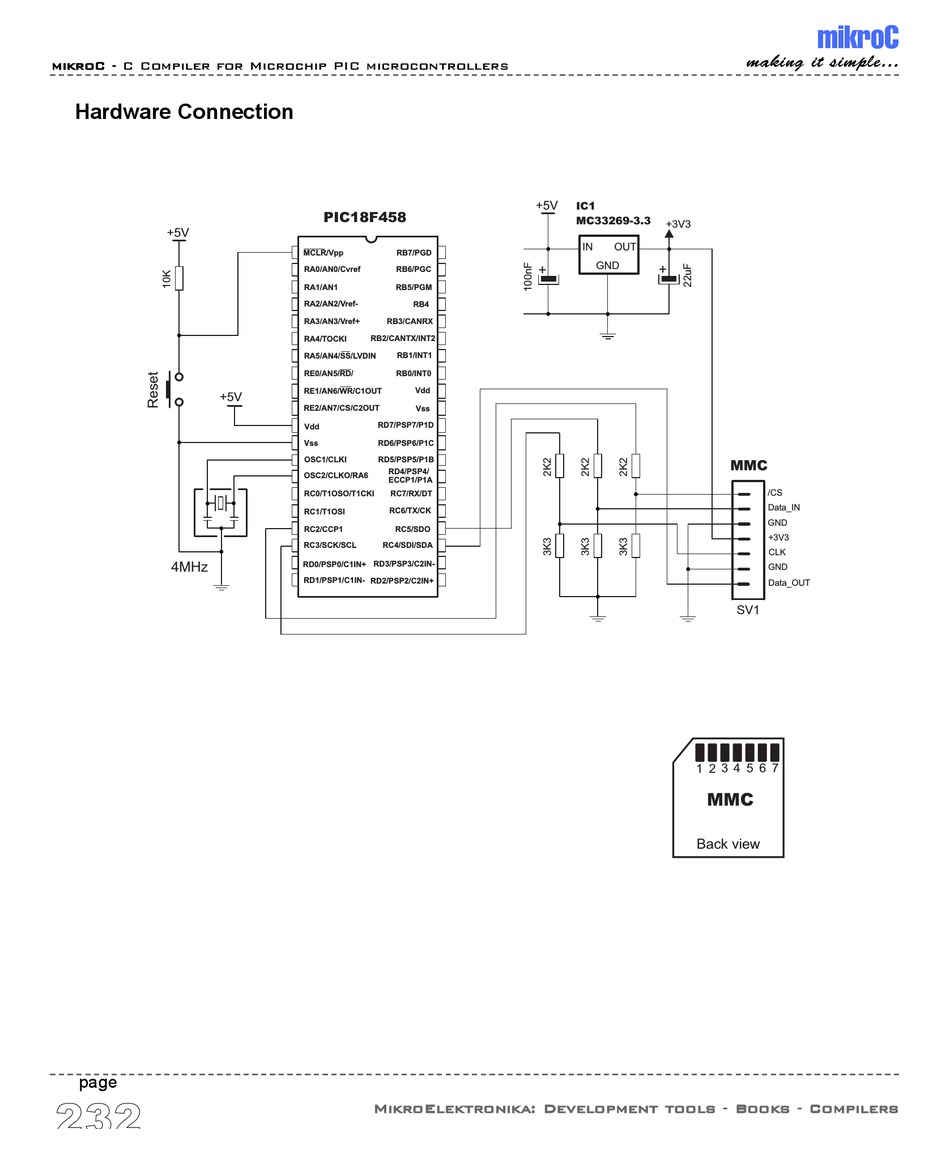

Hardware Connection
+5V
+5V
4MHz
page
232
PIC18F458
MCLR/Vpp RB7/PGD
RA0/AN0/Cvref RB6/PGC
RA1/AN1 RB5/PGM
RA2/AN2/Vref- RB4
RA3/AN3/Vref+ RB3/CANRX
RB2/CANTX/INT2
RA4/TOCKI
RB1/INT1
RA5/AN4/SS/LVDIN
RE0/ AN5/ RD/ RB0/INT0
Vdd
RE1/ AN6/ WR/C1OUT
RE2/ AN7/ CS/C2OUT Vss
RD7/PSP7/P1D
Vdd
Vss RD6/PSP6/P1C
OSC1/CLKI
RD5/PSP5/P1B
RD4/PSP4/
OSC2/CLKO/RA6
ECCP1/P1A
RC7/RX/DT
RC0/T1OSO/T1CKI
RC6/TX/CK
RC1/T1OSI
RC2/CCP1 RC5/SDO
RC3/SCK/SCL RC4/SDI/SDA
RD0/PSP0/C1IN+ RD3/PSP3/C2IN-
RD1/PSP1/C1IN- RD2/PSP2/C2IN+
MikroElektronika: Development tools - Books - Compilers
+5V
IC1
MC33269-3.3
+3V3
IN OUT
GND
+ +
1 2 3 4 5 6 7
MMC
Back view
mikroC
making it simple...
MMC
/CS
Data_IN
GND
+3V3
CLK
GND
Data_OUT
SV1
