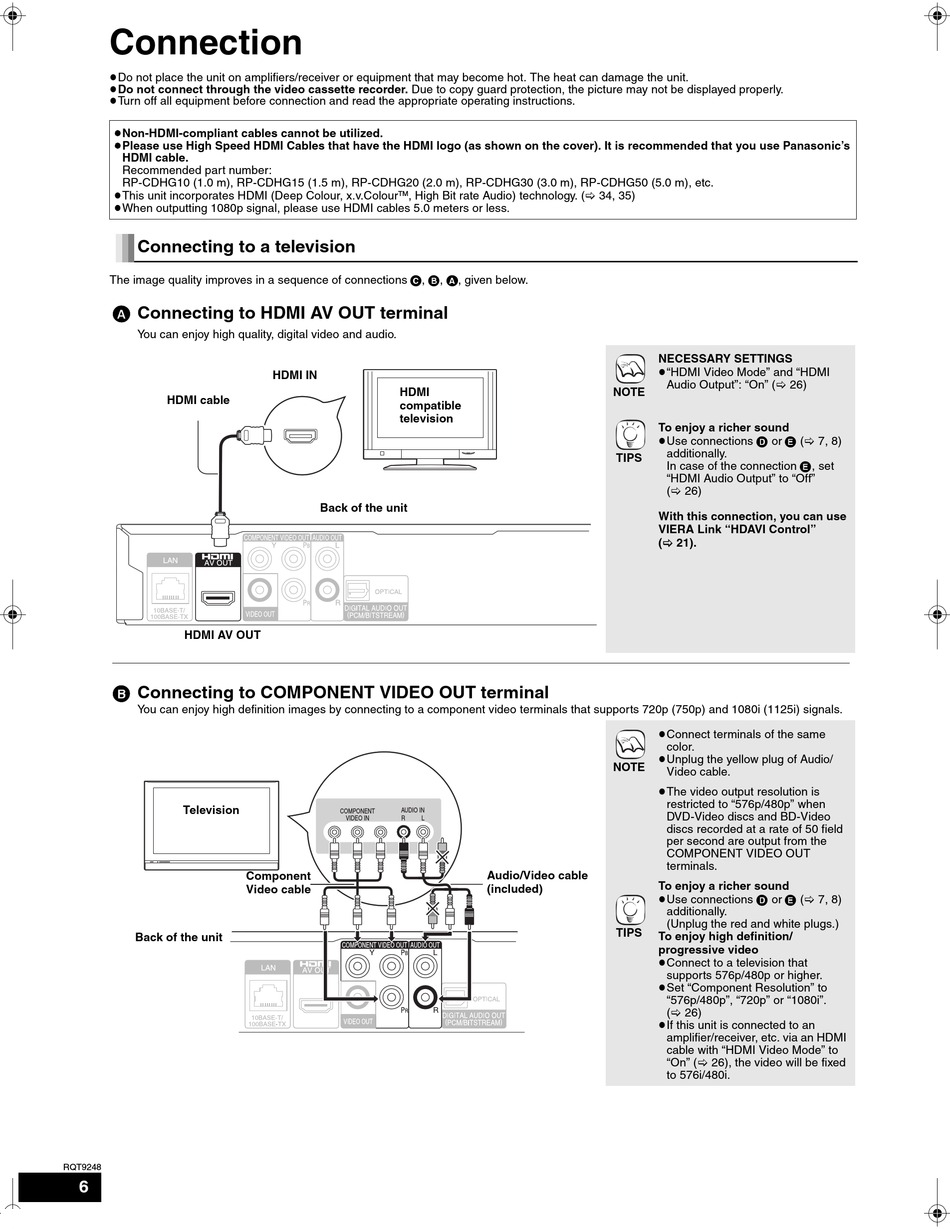

Connection

≥Do not place the unit on amplifiers/receiver or equipment that may become hot. The heat can damage the unit.
≥Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not be displayed properly.
≥Turn off all equipment before connection and read the appropriate operating instructions.
≥Non-HDMI-compliant cables cannot be utilized.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that you use Panasonic's
HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
≥This unit incorporates HDMI (Deep Colour, x.v.Colour
≥When outputting 1080p signal, please use HDMI cables 5.0 meters or less.
Connecting to a television
The image quality improves in a sequence of connections C, B, A, given below.
A Connecting to HDMI AV OUT terminal
You can enjoy high quality, digital video and audio.
HDMI cable
HDMI AV OUT
B Connecting to COMPONENT VIDEO OUT terminal
You can enjoy high definition images by connecting to a component video terminals that supports 720p (750p) and 1080i (1125i) signals.
Television
Back of the unit
RQT9248
6
TM , High Bit rate Audio) technology. (
HDMI IN
HDMI
compatible
television
Back of the unit
AUDIO IN
COMPONENT
VIDEO IN R
Component
Video cable
L
Audio/Video cable
(included)
34, 35)
NECESSARY SETTINGS
≥"HDMI Video Mode" and "HDMI
Audio Output": "On" (
NOTE
To enjoy a richer sound
≥Use connections D or E (
additionally.
TIPS
In case of the connection E, set
"HDMI Audio Output" to "Off"
( 26)
With this connection, you can use
VIERA Link "HDAVI Control"
( 21).
≥Connect terminals of the same
color.
≥Unplug the yellow plug of Audio/
NOTE
Video cable.
≥The video output resolution is
restricted to "576p/480p" when
DVD-Video discs and BD-Video
discs recorded at a rate of 50 field
per second are output from the
COMPONENT VIDEO OUT
terminals.
To enjoy a richer sound
≥Use connections D or E (
additionally.
(Unplug the red and white plugs.)
TIPS
To enjoy high definition/
progressive video
≥Connect to a television that
supports 576p/480p or higher.
≥Set "Component Resolution" to
"576p/480p", "720p" or "1080i".
( 26)
≥If this unit is connected to an
amplifier/receiver, etc. via an HDMI
cable with "HDMI Video Mode" to
"On" ( 26), the video will be fixed
to 576i/480i.
26)
7, 8)
7, 8)
