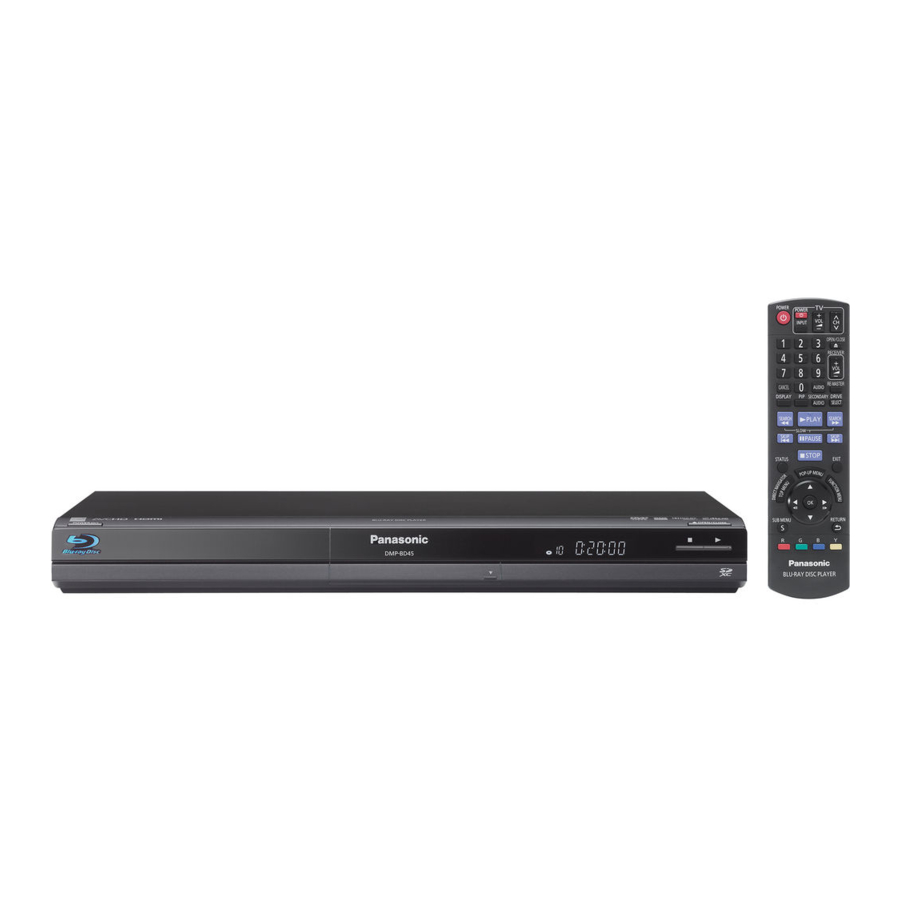

Panasonic DMP-BD65, DMP-BD45, DMPBD65EG, DMPBD45EG Manual

Getting started

Reading the Operating Instructions (PDF format)

For Windows

  1. Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
  2. Select the desired language and then click [Operating Instructions] to install.
  3. Double click the "BD65_45EG Operating Instructions" shortcut icon on the desktop.

When the Operating Instructions (PDF format) will not open
You will need Adobe Acrobat Reader 4.0 or later or Adobe Reader 6.0 or later to browse or print the Operating Instructions (PDF format).
Download and install a version of Adobe Reader that you can use with your OS from the following Web Site. http://get.adobe.com/reader/otherversions

If using the following OS

  • Windows 2000 SP4
  • Windows XP SP2/SP3
  • Windows Vista
  • Windows 7

Insert the CD-ROM containing the Operating Instructions (supplied), click [Adobe(R) Reader(R)] and then follow the messages on the screen to install.

To uninstall the Operating Instructions (PDF format) Delete the PDF file from the "Program Files\Panasonic\DMP\" folder.

  • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.

For Macintosh

  1. Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
  2. Open the "Manual" folder in "VFF0537" and then copy the PDF file with the desired language inside the folder.
  3. Double click the PDF file to open it.

Accessory

Check the supplied accessories before using this unit.

1 Remote control
[BD65] (N2QAKB000077)
[BD45] (N2QAKB000079)
2 Batteries for remote control
1 AC mains lead
1 CD-ROM

information

  • Product numbers correct as of December 2009. These may be subject to change.
  • Do not use AC mains lead with other equipment.

Using the remote control

Insert so the poles (i and j) match those in the remote control.
Using the remote control

information Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

  • Do not mix old and new batteries or different types at the same time.
  • Do not heat or expose to flame.
  • Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.
  • Do not take apart or short circuit.
  • Do not attempt to recharge alkaline or manganese batteries.
  • Do not use batteries if the covering has been peeled off. Remove batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Playable discs/Cards/USB devices

Type Logo examples Type detail Playable contents
BD-Video Video
BD-RE Video
JPEG
BD-R Video
DivX®
DVD-Video Video
DVD-RAM Video
AVCHD
JPEG
DVD-R Video
AVCHD
DivX
MP3
JPEG
DVD-R DL
DVD-RW Video
AVCHD
+R/+RW/+R DL
Music CD Music [CD-DA]
CD-R
CD-RW
DivX
Music [CD-DA]
MP3
JPEG
SD Memory Card (from 8 MB to 2 GB)
(Including miniSD Card and microSD Card)
SDHC Memory Card (from 4 GB to 32 GB)
(Includes microSDHC Card)
SDXC Memory Card (48 GB, 64 GB)
(Includes microSDXC Card)
MPEG2
AVCHD
JPEG
USB device
(up to 128 GB)
DivX
MP3
JPEG

Discs that cannot be played in this unit

Any other disc that is not specifically supported or previously described.

  • 2.6 GB and 5.2 GB DVD-RAM
  • DVD-RAM that cannot be removed from their cartridges
  • Super Audio CD
  • Photo CD
  • DVD-Audio
  • Video CD and Super Video CD
  • WMA discs
  • HD DVD

Region management information

BD-Video
This unit plays BD-Video marked with labels containing the region code "B". Example:

DVD-Video
This unit plays DVD-Video marked with labels containing the region number "2" or "ALL".
Example:

Finalize

DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by a recorder, etc. needs to be finalized by the recorder to play on this unit. Please refer to the recorder's instructions.

BD-Video

  • Please enjoy BD-Live functions, such as the network connection. The various functions differ depending on the disc.
  • This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in BD-Video.

Music CD

Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

SD card

  • MiniSD Cards, microSD Cards, microSDHC Cards and microSDXC Cards can be used, but must be used with an adaptor card. These are usually supplied with such cards, or otherwise customer provided.
  • Keep the Memory Card out of reach of children to prevent swallowing.
  • To protect the card's contents, move the record prevention tab (on the SD card) to "LOCK".
  • This unit is compatible with SD Memory Cards that meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC Memory Cards in FAT32 format (Does not support long file name.) and SDXC Memory Cards in exFAT.
  • If the SD card is used with incompatible computers or devices, recorded contents may be erased due to the card being formatted etc.
  • Useable memory may be slightly less than the card capacity.

USB device

  • This unit supports connecting a USB memory, digital camera and video camera produced by Panasonic, etc. It is not warranted that all USB devices will work with this unit.
  • This unit does not support USB device charging.
  • FAT12, FAT16 and FAT32 file systems are supported.
  • This unit supports USB 2.0 High Speed.

BD-RE, BD-R

Discs recorded in DR mode using Panasonic Blu-ray Disc recorders may not playback the audio etc., correctly.
information

  • It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method and how the files were created.
  • The producers of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc's instructions carefully.

Connection and setting

Connecting to a TV

  • Do not place the unit on amplifiers/receiver or equipment that may become hot. The heat can damage the unit.
  • Before making any connections we suggest you temporarily disconnect all the units from AC power.
  • Do not connect video signals through a video recorder. Due to copy guard protection the picture may not be displayed properly.
  • Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that you use Panasonic's HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters or less.

Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.

Via an HDMI AV OUT terminal

  • The HDMI connection supports VIERA Link "HDAVI Control" when used with a compatible Panasonic TV.
  • Set "HDMI Video Mode" [BD65] and "HDMI Audio Output" to "On" ([FUNCTION MENU] > "To Others" > "Setup" > "TV/Device Connection" > "HDMI Connection").

Connecting to an amplifier/receiver

Via an HDMI AV OUT terminal

  • The HDMI connection supports VIERA Link "HDAVI Control" when used with a compatible Panasonic TV.
  • Set "HDMI Video Mode" [BD65] and "HDMI Audio Output" to "On" ([FUNCTION MENU] > "To Others" > "Setup" > "TV/Device Connection" > "HDMI Connection").
  • Set "Digital Audio Output" depending on the used terminal and connected amplifier/receiver.
    ([FUNCTION MENU] > "To Others" > "Setup" > "Sound")

Connecting to a broadband network

[BD65]
The following services can be used when this unit is connected to broadband.

  • Firmware can be updated
  • You can enjoy the BD-Live
  • You can enjoy the VIERA CAST

For details about connection method, refer to the instructions supplied with the connected equipment.

  • The unit is not compatible with public wireless LAN services (Hotspot etc.) provided in airports, stations, cafes etc.

Using LAN (ethernet) cable
Connecting to a broadband network

  • Use shielded LAN cables when connecting to peripheral devices.
  • Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
  • Only the Wireless LAN Adaptor DY-WL10 (optional) can be used.
  • When connection conditions are poor, use the USB extension cable supplied with the Wireless LAN Adaptor DY-WL10 (optional).
  • Read the operating instructions for the Wireless LAN Adaptor DY-WL10 (optional) thoroughly when using it.
  • For up to date compatibility information on your Wireless router (Access Point) refer to http://panasonic.jp/support/global/cs/

Setting

Easy Setting

After connecting your new player for the first time and pressing the , a screen for the basic settings will appear.

Preparation
Turn on the television and select the appropriate video input on the television.

  1. Press .
    Setup screen appears.
    If this unit is connected to a Panasonic TV (VIERA) supporting HDAVI Control 2 or later via an HDMI cable, then the setting information on the TV is acquired by this TV.
    Standby/on switch ()
    Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
  2. Follow the on-screen instructions and make the settings with [] and press [OK].
    "On-Screen Language", "TV Aspect" and "Quick Start" are set. ([FUNCTION MENU] > "To Others" > "Setup" > "Display", "TV/Device Connection" or "General")

[BD65]
After completing "Easy Setting", you can perform "Network Easy Setting".
information

  • You can perform this setup anytime by selecting "Easy Setting" in the Setup menu. ([FUNCTION MENU] > "To Others" > "Setup" > "General")

Network Easy Setting

[BD65]
After completing "Easy Setting", you will be asked to perform "Network Easy Setting".
Select "Wired" or "Wireless" and press [OK].

"Wired" connection
Follow the on-screen instructions to make your connection settings.

"Wireless" connection
If you select "Wireless" and "Wireless LAN Adaptor is not connected." is displayed, check that the Wireless LAN Adaptor is fully inserted. Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice.
Select "WPS (PUSH button)" or "Search for access point" and then follow the on-screen instructions and make the settings.

Playback

Inserting or removing a media

Inserting or removing a media

  • When inserting a media, ensure that it is facing the right way up.
  • When indicator on this unit's display blinks, do not turn off the unit or remove the media. Such action may result in loss of the media's contents.
  • When removing the SD card, press on the centre of the card and pull it straight out.
  • If you connect a Panasonic product with a USB connection cable, setup screen may be displayed on connected equipment. For details, refer to the instructions for the connected equipment.

To switch drives
Press [DRIVE SELECT] to select "BD/DVD/CD", "SD card" or "USB device".

  • If a media is inserted while the unit is stopped, the drive switches automatically depending on the inserted media.

Playing video contents


Preparation
Turn on the television and select the appropriate video input on the television.

  1. Press to turn on the unit.
  2. Insert the media.
    Play starts.
    • If the menu is displayed, press [] to select the item and press [OK].
    • If play does not start, press [] (PLAY).

To show menus
You can display Top Menu, DIRECT NAVIGATOR or Pop-up Menu.
Press [TOP MENU/DIRECT NAVIGATOR] or [POP-UP MENU].

  • Press [] to select the item and press [OK].
  • Pop-up menu also appears by pressing [OPTION] and selecting "Pop-up Menu".

information

  • Signal from PAL discs is output as PAL. Signal from NTSC discs is output as "NTSC" or "PAL60". You can select "NTSC" or "PAL60" in "NTSC Contents Output" for NTSC discs.
    ([FUNCTION MENU] > "To Others" > "Setup" > "Picture")
  • DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED.
    Press [] when you have finished playback to protect the unit's motor, your television screen and so on.
  • Depending on media and contents, the display may change or may not appear.
  • DivX: Successive play is not possible.
  • It is not possible to playback AVCHD and MPEG2 video which have been dragged and dropped, copied and pasted to the media.

Other operations during play

These functions may not work depending on the media and contents.

Stop
Press [].
The stopped position is memorized.

Resume play function
Press [] (PLAY) to restart from this position.

  • The position is cleared if the tray is opened or you press [] several times to display "STOP" on unit's display.
  • On BD-Video discs including BD-J, the resume play function does not work.

Pause
Press [].

  • Press [] again or [] (PLAY) to restart play.

Search/Slow-motion
Search
While playing, press [
] or [].

  • Music and MP3: The speed is fixed to a single step.

Slow-motion
While paused, press [
] or [].

  • BD-Video and AVCHD: Forward direction [] only.

The speed increases up to 5 steps.

  • Press [] (PLAY) to revert to normal playback speed.

Skip
While playing or paused, press [] or [].
Skip to the title, chapter or track you want to play.

  • Each press increases the number of skips.

Frame-by-frame
While paused, press [] () or [] ().

  • Press and hold to change in succession forward or backward.
  • Press [] (PLAY) to revert to normal playback speed.
  • BD-Video and AVCHD: Forward direction [] () only.

Changing audio
Press [AUDIO].
You can change the audio channel number or soundtrack language ([DISPLAY]B"Disc"B"Soundtrack"), etc.

What is VIERA Link "HDAVI Control"?
VIERA Link "HDAVI Control" is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or other device under "HDAVI Control".
You can use this function by connecting the equipment with an HDMI cable. See the operating instructions for connected equipment for operational details.

Preparation

  1. Set "VIERA Link" to "On" ([FUNCTION MENU] > "To Others" > "Setup" > "TV/Device Connection" > "HDMI Connection" > "VIERA Link" > "On").
    (The default setting is "On".)
  2. Set the "HDAVI Control" operations on the connected equipment (e.g., TV).
  3. Turn on all "HDAVI Control" compatible equipment and select this unit's input channel on the connected TV so that the "HDAVI Control" function works properly.
    Also when the connection or settings are changed, repeat this procedure.

Automatic input switching

Power on link
When the following operations are performed, the television will automatically switch the input channel and display the corresponding action. When the television is off, the television will automatically turn on.

  • When play starts on the unit
  • When an action that uses the display screen is performed
    (e.g., DIRECT NAVIGATOR screen)
  • BD-Video, DVD-Video:
    When playback stops, the TV will automatically return to TV tuner mode.

Power off link
All connected equipment compatible with "HDAVI Control", including this unit, automatically turns off when you switch the television off.

Playing music continuously even after turning off power to the television
When the unit is connected to a Panasonic TV (VIERA) that supports HDAVI Control 2 or later and an amplifier/receiver supports VIERA Link.

  1. While playing music Press [OPTION].
  2. Press [] to select "TV Power" and press [OK].

Easy control only with VIERA remote control

Only TV supports "HDAVI Control 2" or later
By using the TV remote control, you can play discs using the "Control Panel" and display the Top Menu or Pop-up Menu, etc.

  1. Press [OPTION].
  2. Select an item, then press [OK].
  • The OPTION menu may not appear while the Top Menu for BD-Video or DVD-Video is displayed.

information

  • The buttons that you can use for this unit vary depending on the TV. For details, refer to the operating instructions of the TV.
  • The operation of this unit may be interrupted when you press incompatible buttons on the TV remote control.
  • This unit supports "HDAVI Control 5" function.
    "HDAVI Control 5" is the newest standard (current as of December, 2009) for Panasonic's HDAVI Control compatible equipment. This standard is compatible with Panasonic's conventional HDAVI equipment.
  • VIERA Link "HDAVI Control", based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.
  • Please refer to individual manuals for other manufacturers' equipment supporting VIERA Link function.

Specifications

Signal system: PAL/NTSC
Operating temperature range: +5°C to +35°C
Operating humidity range: 10% to 80% RH (no condensation)
Video output: 1.0 Vp-p (75 Ω)/Pin jack: 1 system
[BD65]: Component video output (Y: green, PB: blue, PR: red):
Y:1.0 Vp-p (75 Ω)/PB, PR: 0.7 Vp-p (75 Ω)/Pin jack: 1 system
Audio output: 2 Vrms (1 kHz, 0 dB)/Pin jack
Number of connectors: 2 channel: 1 system
Digital audio output: Optical digital output (Optical terminal)
HDMI AV output:
Type A (19 pin)
HDMI (V.1.4, Content Type)
This unit supports "HDAVI Control 5" function.
SD card slot: Connector: 1 system
USB slot: USB2.0: 1 system
[BD65]: Ethernet: 10BASE-T/100BASE-TX: 1 system

LASER Specification
Class 1 LASER Product:

Wave length: 790 nm (CDs)/655 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous radiation is emitted with the safety protection
Power supply: AC 220 to 240 V, 50 Hz
Power consumption:
[BD65]: Approx. 20 W
[BD45]: Approx. 19 W
Power consumption in standby mode: Approx. 0.2 W
Power consumption in quick start standby mode: Approx. 7 W

Dimensions (WkDkH): Including the projecting parts
430 mmk207 mmk49 mm
Mass: Approx. 1.9 kg
Specifications are subject to change without notice.


THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.


TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

  • DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
  • USE ONLY THE RECOMMENDED ACCESSORIES.
  • DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
    ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
  • DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
  • DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.


Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.
The socket outlet shall be installed near the equipment and easily accessible.
The mains plug of the power supply cord shall remain readily operable.
To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Safety precautions

Placement
Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life. Do not place heavy items on the unit.

Voltage
Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock. Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service centre. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Panasonic DMP-BD65, DMP-BD45, DMPBD65EG, DMPBD45EG Manual

Advertisement

Need help?

Need help?

Do you have a question about the DMP-BD65 and is the answer not in the manual?

Questions and answers

Table of Contents
