Panasonic DP-UB9000 Manual

Accessories

Check the supplied accessories before using this unit.
1 Remote control
(N2QAYA000172)
2 Batteries for remote control
1 AC mains lead
(K2CT2YY00103)

• Product numbers are provided in these operating instructions correct as of August 2018.
  These may be subject to change.
• Do not use AC mains lead with other equipment.

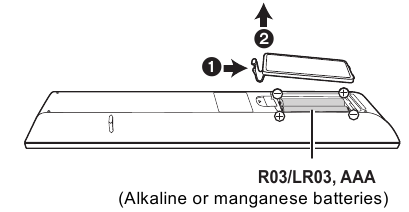

Using the remote control
Insert the batteries to the terminal so that it (i and j) matches those in the remote control.

Point it at the remote control signal sensor on this unit.

Unit and media care

Clean this unit with a soft, dry cloth

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, carefully read the instructions that came with the cloth.

This unit's lens
Use the lens cleaner (not supplied) to clean the unit's lens.

Clean discs

Wipe with a damp cloth and then wipe dry with a dry cloth.

Disc handling precautions

• Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.
• Do not attach labels or stickers to discs.
• Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use the following discs:
  • Discs with exposed adhesive from removed stickers or labels (rented discs, etc.).
  • Discs that are badly warped or cracked.
  • Irregularly shaped discs, such as heart shapes.

Playable media

Device	Media markings	Device types	Contents format
BD		Ultra HD Blu-ray*1*2	Video
		BD-Video	Video
		BD-RE BD-RE DL	Video, JPEG, MPO
		BD-R BD-R DL	Video, MKV, JPEG, MPO
DVD		DVD-Video	Video
		DVD-R	Video, AVCHD, MKV, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA
		DVD-R DL
		DVD-RW	Video, AVCHD
	—	+R/+RW/+R DL
CD		Music CD	Music [CD-DA]
	—	CD-R CD-RW	MKV, JPEG, MPO, AAC, AIFF, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA
USB	—	USB devices (up to 4 TB)	AVCHD, AVCHD 3D, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

^*1 See "Enjoying Ultra HD Blu-ray"
^*2 Unless otherwise indicated, BD-Video content includes Ultra HD Blu-ray content in these operating instructions.

Types of discs that cannot be played by this unit
Any other disc that is not specifically supported or previously described.

• DVD-RAM
• Super Audio CD
• Photo CD
• DVD-Audio
• Video CD and Super Video CD
• HD DVD

Region management information
The unit can play back BD-Video/DVD-Video discs of the following regions codes, including "ALL":
Example:

Finalize
Any DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW that are recorded by a recorder need to be finalized by the recorder to play on this unit. Please refer to the recorder's instructions.

BD-Video
This unit supports high bit rate audio (Dolby^® Digital Plus, Dolby^® TrueHD, DTS-HD^® High Resolution Audio and DTS-HD^® Master Audio) adopted in BD-Video.

3D
3D videos and 3D still pictures can be played back when this unit is connected to a 3D compatible TV using a High Speed HDMI Cable.

Music CD
Operation and sound quality of CDs that do not comply with CD-DA specifications (copy control CDs, etc.) cannot be guaranteed to work.

USB device

• Connect a USB device while the HOME menu is displayed.
• This unit does not guarantee connection with all USB devices.
• This unit does not support USB device charging.
• FAT12, FAT16, FAT32, and NTFS file systems are supported.
• The USB port on the front of the unit supports USB 2.0 High Speed and the USB port on the rear of the unit supports USB 3.0 Super-Speed.
• The USB port on the rear of the unit supports an HDD formatted in FAT32 and NTFS. If the HDD is not recognized, the power to the HDD may not be supplied. Supply power from an external source.
• It is not possible to use two USB devices simultaneously.
• For playback of 4K videos stored on a USB device, use USB 3.0 port on rear of the unit and USB device conforming to USB 3.0.

BD-RE, BD-R
This unit may not correctly play back the audio portion of a video recorded to a disc in multiple languages with a Blu-ray disc recorder.

• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method, and how the files were created.
• The producers of the disc can control how discs are played, so you may not always be able to control play as described in these operating instructions. Read the disc's instructions carefully.

Control reference guide

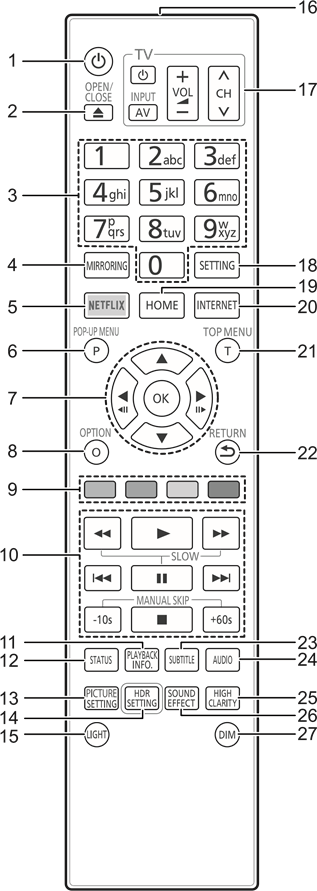

Remote control
When other Panasonic devices respond to the remote control of the unit, change the remote control code.

1. Turn the unit on and off
2. Open or close the disc tray
3. Select title numbers, etc./Enter numbers or characters
4. Show Mirroring screen
5. Show NETFLIX screen
6. Show Pop-up menu
7. []: Move the highlight for selection
   [OK]: Confirm the selection
   ()(): Frame-by-frame
8. Show Option menu
9. Coloured buttons (red, green, yellow, blue) Used for various purposes depending on the screen
10. Basic playback control buttons
11. Show "Playback Information Window"
12. Show the status messages

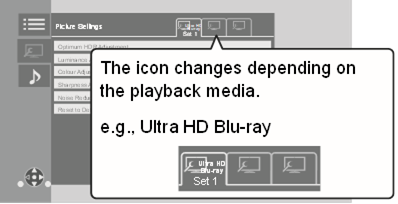

13. Show "Picture Settings"
14. Show "HDR Setting"
15. Light up the remote control buttons
16. Transmit the remote control signal
17. TV operation buttons
    You can operate the Panasonic TV using this unit's remote control. Some buttons may not work depending on the TV.
18. Show Setup menu
19. Show HOME menu
20. Show the Home screen of the Network Service
21. Show Top menu
22. Return to previous screen
23. Show "Subtitles"/"Subtitle Settings"
24. Change soundtrack
25. Switch the "High Clarity Sound" settings
26. Switch the "Sound Effects" setting
27. Switch the brightness of the unit's display

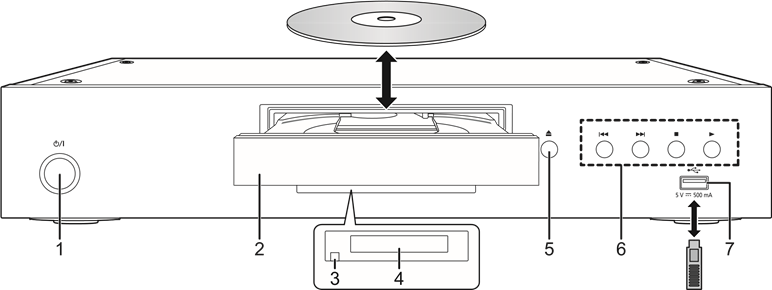

Front

1. Standby/on switch ()
   Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2. Disc tray
3. Remote control signal sensor
   Distance: Within approx. 7 m
   Angle: Approx. 20e up and down, 30e left and right

4. Display
5. Disc tray open/close button
6. Basic playback control buttons
7. USB port (5 V DC 500 mA)
   This port supports USB 2.0 High Speed.

Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.

• When inserting a media item, ensure that it is facing the correct way, which is the right side facing up.
• If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

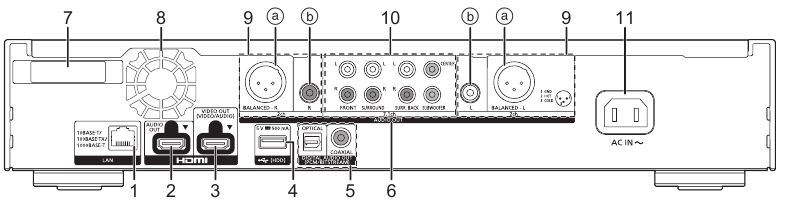

Rear

1. LAN port
2. HDMI AUDIO OUT terminal
3. HDMI VIDEO OUT terminal
4. USB port (HDD) (5 V DC 900 mA)
   This port supports USB 3.0 Super-Speed.
5. DIGITAL AUDIO OUT terminal
   (OPTICAL/COAXIAL terminal)
6. Analogue AUDIO OUT terminals
7. Wireless LAN antenna
8. Cooling fan
9. 2ch AUDIO OUT terminals
   1. BALANCED terminals
   2. AUDIO OUT terminals
10. 7.1ch AUDIO OUT terminals
11. AC IN () terminal

The symbols on this product represent the following.

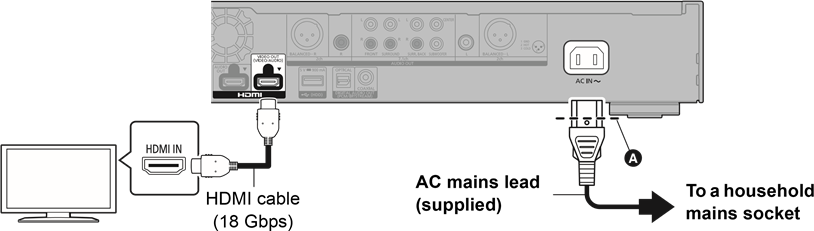

Connecting to a TV

4K images can be played back when this unit is connected to 4K compatible TV.

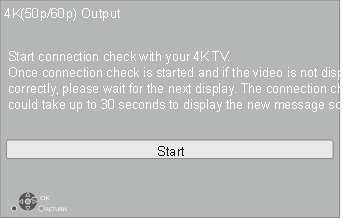

Enjoying 4K output

• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps.
  When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic's HDMI cable.
• If you connect this unit to a 4K-compatible TV and perform "Easy Settings", 4K (50p/60p) will be automatically selected.
• To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.

Enjoying video and audio with a 4K-compatible TV

• Insert the AC mains lead up to , a point just before the round hole.

Setting

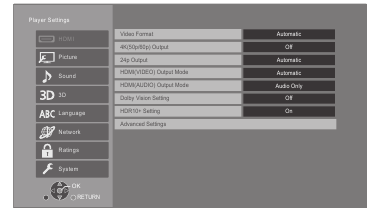

Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".

Connecting to an amplifier/receiver

Enjoying video with a 4K-compatible TV and audio with an amplifier
You can enjoy richer sound by using the HDMI AUDIO OUT terminal.
(Audio is output in high resolution.)

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy audio with a TV
  Set "HDMI(VIDEO) Output Mode" to "Video+Audio".

• The HDMI AUDIO OUT terminal is not compatible with 4K output and the VIERA Link.

Enjoying video with a 4K-compatible TV and audio with a 4K-compatible amplifier

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".

• About ARC
  When using the TV or amplifier/receiver that does not have the indication of "(ARC)" (non-ARC-compatible) on the HDMI terminal, the amplifier/receiver and TV must also be connected using an optical digital cable or coaxial cable in order to enjoy the TV's sound through the amplifier/receiver.

Enjoying audio with an amplifier connected to the DIGITAL AUDIO OUT/Analogue AUDIO OUT terminals
Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy audio with an amplifier connected to the OPTICAL/COAXIAL terminal or 2ch AUDIO OUT terminals:
  Set "Audio Output" to "Off" in "Advanced Settings".
• To enjoy audio with an amplifier connected to the 7.1ch AUDIO OUT terminals: Set "Analogue Multi Channel" to "On".

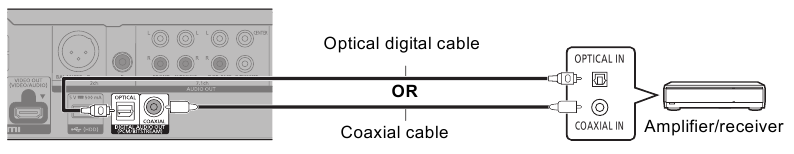

OPTICAL/COAXIAL (DIGITAL AUDIO OUT)
(Audio is not output from HDMI OUT terminal.)

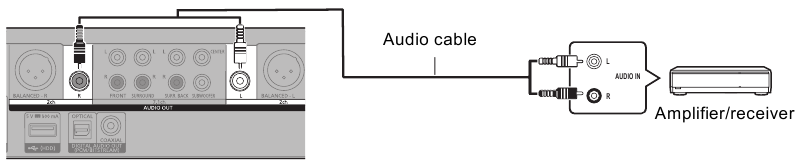

2ch AUDIO OUT (Analogue AUDIO OUT)

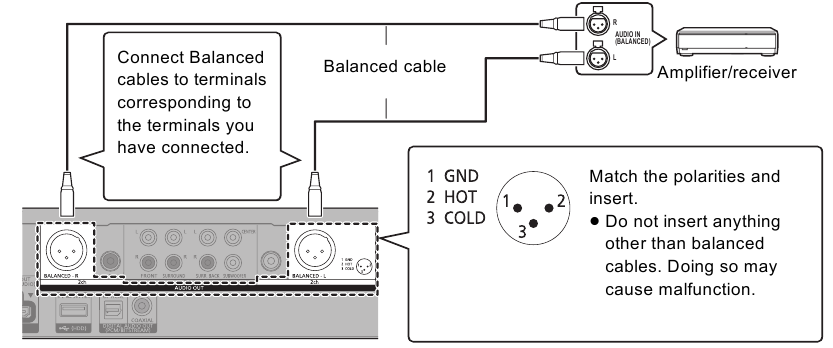

BALANCED terminals
(Audio is not output from HDMI OUT terminal.)

AUDIO OUT terminals
Connect terminals of the same colour. (Audio is not output from HDMI OUT terminal.)

7.1ch AUDIO OUT (Analogue AUDIO OUT)
Set the speaker presence and size according to your environment. (Audio is not output from HDMI OUT terminal.)

Cable connections

1. Front speaker (L/R)
2. Surround speaker (L/R)
3. Centre speaker

4. Subwoofer
5. Surround back speaker (L/R)
   (Only for 7.1ch AUDIO OUT)

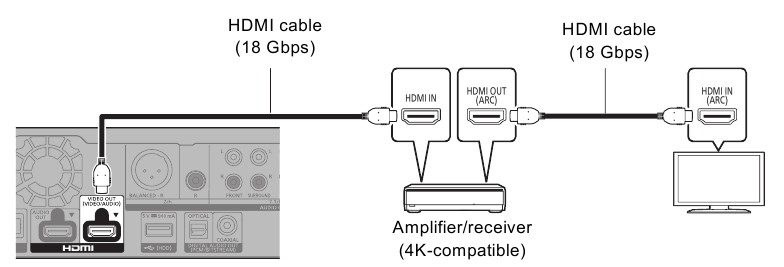

Connecting an amplifier to a 4K-compatible TV
3D or 4K images can be played back when this unit is connected to a 3D or 4K compatible TV.

• This connection only supports up to 5.1ch.
• To connect a TV and amplifier with an HDMI cable, connecting terminals on both the TV and amplifier must be ARC-compatible. ("About ARC")

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".

Enjoying video with a 4K-compatible TV in combination with an amplifier connected to the HDMI AUDIO OUT terminal and another amplifier connected to the DIGITAL AUDIO OUT/ Analogue AUDIO OUT terminals

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy audio with an amplifier connected to the OPTICAL/COAXIAL terminal or 2ch AUDIO OUT terminals:
  Set "Audio Output" to "Off" in "Advanced Settings".
• To enjoy audio with an amplifier connected to the 7.1ch AUDIO OUT terminals: Set "Analogue Multi Channel" to "On".
• To enjoy audio with a TV
  Set "HDMI(VIDEO) Output Mode" to "Video+Audio".

• It is not possible to simultaneously output audio from both the amplifier connected to the HDMI AUDIO OUT terminal and the other amplifier connected to the DIGITAL AUDIO OUT/Analogue AUDIO OUT terminals.

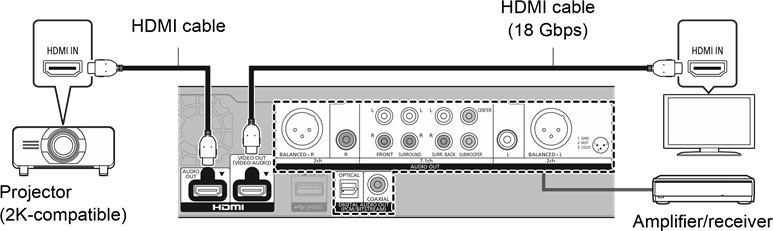

Enjoying video with a 4K-compatible TV in combination with a 2K-compatible projector and an amplifier that is connected to the DIGITAL AUDIO OUT/Analogue AUDIO OUT terminals

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy audio with an amplifier connected to the OPTICAL/COAXIAL terminal or 2ch AUDIO OUT terminals:
  Set "Audio Output" to "Off" in "Advanced Settings".
• To enjoy audio with an amplifier connected to the 7.1ch AUDIO OUT terminals: Set "Analogue Multi Channel" to "On".
• To enjoy audio with a TV
  Set "HDMI(VIDEO) Output Mode" to "Video+Audio".
  Set "Audio Output" to "On" in "Advanced Settings".
• To enjoy video with a projector
  Set "HDMI(AUDIO) Output Mode" to "Video+Audio".
  (It is not possible to output 3D, 4K or HDR content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when "Video+Audio" is selected.)

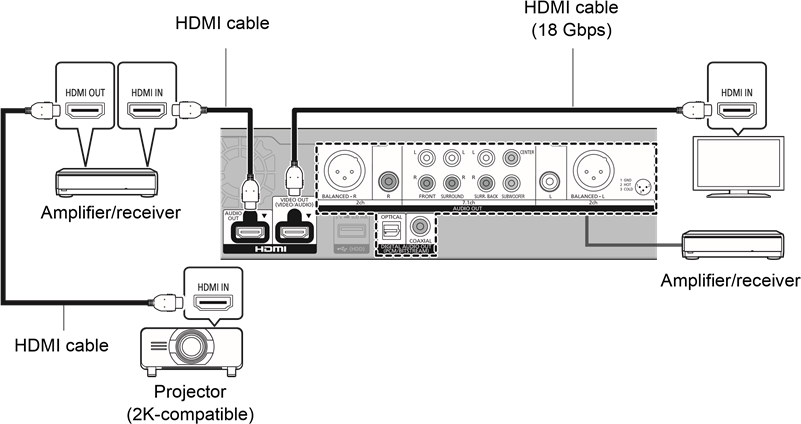

Enjoying video with a 4K-compatible TV in combination with a 2K-compatible projector and an amplifier that is connected to the HDMI AUDIO OUT terminal and another amplifier that is connected to the DIGITAL AUDIO OUT/Analogue AUDIO OUT terminals

Setting
Set the following items in the Setup menu:

• Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy audio with an amplifier connected to the OPTICAL/COAXIAL terminal or 2ch AUDIO OUT terminals:
  Set "Audio Output" to "Off" in "Advanced Settings".
• To enjoy audio with an amplifier connected to the 7.1ch AUDIO OUT terminals: Set "Analogue Multi Channel" to "On".
• To enjoy audio with a TV
  Set "HDMI(VIDEO) Output Mode" to "Video+Audio".
• To enjoy video with a projector
  Set "HDMI(AUDIO) Output Mode" to "Video+Audio".
  (It is not possible to output 3D, 4K or HDR content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when "Video+Audio" is selected.)

• It is not possible to simultaneously output audio from both the amplifier connected to the HDMI AUDIO OUT terminal and the other amplifier connected to the DIGITAL AUDIO OUT/Analogue AUDIO OUT terminals.

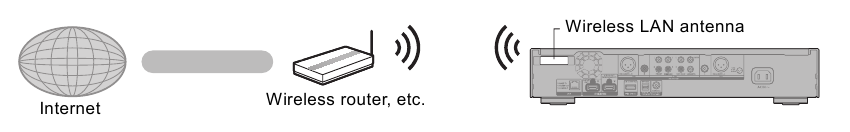

Connecting to the network

The following services can be used when this unit is connected to broadband.

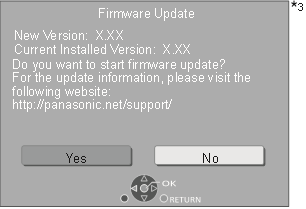

• Firmware can be updated
• You can enjoy BD-Live/Network Service

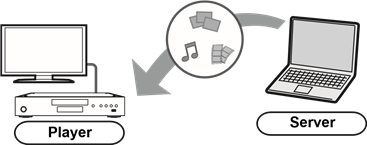

• You can access other devices (Home Network)
• This unit supports Direct Access and can make a wireless connection to wireless devices without router. You can use this function when enjoying Home Network feature, etc. Internet access is not available while connected via Direct Access.

For details about connection method, refer to the instructions supplied with the connected equipment.

• The unit is not compatible with public wireless LAN services. - Ensure that the wireless LAN antenna is not in contact with the HDMI cable and other cords. Otherwise, the radio signal range may be reduced.
• When using an USB-HDD, place it as far away from the wireless LAN antenna as possible.
  Otherwise, it may cause slower communication speeds or communication instability because of radio signal interference.
• See the precautions of wireless LAN connection.

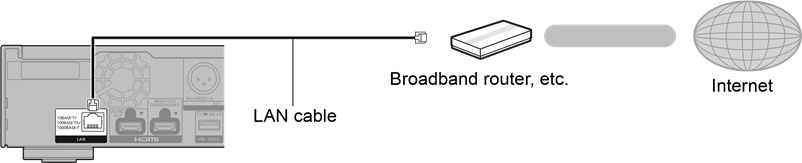

LAN cable connection

• Use category 5e or above straight LAN cables (STP) when connecting to peripheral devices.
• Inserting any cable other than a LAN cable in the LAN port can damage the unit.

Settings

The following settings can be performed anytime in the Setup menu.

Easy Settings
After connecting your new player for the first time and pressing [], the basic settings screen will appear.

Preparation
Turn on the TV and select the appropriate video input.

1. Press [].
   Setup screen appears.
2. Follow the on-screen instructions to continue with the settings.
   (e.g., "Quick Start")
   • Certain recent models of Panasonic TVs (VIERA) may automatically apply their language setting to this unit.

When connected to a 4K (50p or 60p)-compatible TV
When connected to a 4K (50p or 60p)-compatible TV, you can set the video output format.

Follow the on-screen instructions to set the format.

• To reconnect this unit to a 4K (50p or 60p)-compatible TV after connecting this unit to a 2K-compatible TV and completing "Easy Settings", set "4K(50p/60p) Output" to "4K(50p/60p) 4:4:4" or "4K(50p/60p) 4:2:0".

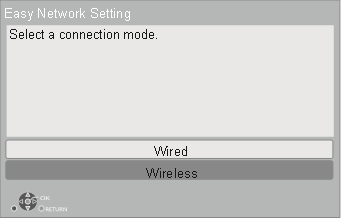

"Wired" connection
Follow the on-screen instructions to apply your connection settings.

"Wireless" connection
Preparation
Before beginning wireless connection setup

• Obtain your network name (SSID*¹).
• If your wireless connection is encrypted, please be sure that you know your encryption key.

Then follow the on-screen instructions and apply the settings.
PUSH button method*²:
If the wireless router supports the PUSH button method*², you can connect to and configure the security settings of your wireless LAN device with ease by pressing the Link button on the router.

1. Press the green button on the remote control.
2. Press Link button or corresponding button of the wireless router until the lamp starts flashing.
   • For details, refer to the operating instruction of the wireless router.
3. Select "Start".

Search for wireless network:

• The available wireless networks will be displayed on the screen. Select your network name.
  • If your network name is not displayed, search again by pressing the red button on the remote control.
  • Stealth SSID will not be displayed when you press the red button on the remote control.
    Enter manually by using "Manual setting".
• If your wireless network is encrypted, Encryption Key input screen will be displayed.
  Input the encryption key of your network.

• Refer to the operating instructions of the hub or router.
• Do not use this unit to connect to any wireless network for which you do not have usage rights. Using these networks may be regarded as illegal access.
• If you have trouble getting online on your PC after performing network settings on this unit, perform the network settings on your PC.
• Please be aware that connecting to a network without encryption may result in the leaking of data such as personal or secret information.

^*1 An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices.
^*2 The PUSH button method is a connection method which allows you to set encryption for a wireless LAN connection with ease.
You can connect to a wireless LAN network by pressing a certain button on the wireless access point [Link button, WPS (Wi-Fi Protected Setup^TM) button, etc.].

Firmware updates
This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.
When a new firmware version is available, the following message is displayed.

Select "Yes" to start downloading the firmware. When the firmware update starts after the downloading is finished, a black screen is displayed.
You cannot operate the unit until the update is complete. Don't remove the AC mains lead during the update. Removing the AC mains lead while the update is in progress may damage the unit.
After the firmware is installed, unit will restart and the following screen will be displayed.

• You can also download the latest firmware from the following website and store it to a USB device to update the firmware. https://panasonic.jp/support/global/cs/ (This site is in English only.)
• To show the firmware version on this unit. ("Firmware Version Information")
• Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.

^*3 "X.XX" represents the firmware version number.

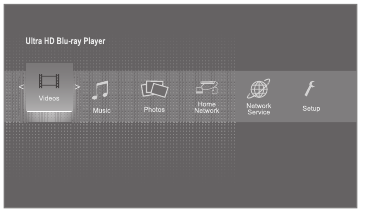

HOME menu

Major functions of this unit can be operated from the HOME menu.

Preparation
Turn on the TV and select the appropriate video input.

1. Press [] to turn on the unit.
2. Press [OK] or [] to select the item.
   • Press [OK] or [] to select the item if necessary.


Videos/Music/Photos

Disc	Play back the contents. When multiple contents are recorded, select the types of contents or the title. See "Playable media"
USB

Network Service
Displays the Home screen of Network Service.

Setup

Player Settings
Wallpaper	Changes the background of HOME menu.
BD-Video Data Erase

To show the HOME menu Press [HOME].

• Items to be displayed may vary with the media.

Playback

1. Insert the media.
   Playback starts depending on the media.
2. Select the item to play and press [OK].
   Repeat this step if necessary.

• DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED. Press [] when you have finished playback to protect the unit's motor, your TV screen and so on.
• When the following conditions are met, still pictures are played back in 4K regardless of the image quality.
  • The unit is connected to a 4K compatible TV
  • "Video Format" is set to "Automatic" or "4K"
• This unit can not output 4K images when playing back in 3D.
• It is not possible to play back AVCHD and MPEG2 videos which have been dragged and dropped or copied and pasted to the media.
• To enjoy BD-Video that supports Dolby Atmos^® or DTS:X^®
• If you press the blue button while displaying the playback screen of an album or similar group of songs containing a sound source recorded at a live performance or concert (a music file containing songs that are recorded continuously)*, you can perform seamless playback without gaps between songs from the beginning of the selected folder or track. (Gapless Playback)

* AIFF, DSD (DFF), FLAC, WAV

Stop
Press [].
The stopping point is memorized.

Resume play function
Press [] to restart from this point.

• The point is cleared if the media is removed.
• On BD-Video discs including BD-J, the resume play function does not work.

Pause
Press [].

• Press [] again or [] to restart play.

Search/Slow motion
Search
While playing, press [] or [].

• Ultra HD Blu-ray, MKV, MP4 and MPEG2: Audio is not heard.

Slow motion
While paused, press [] or [].

• BD-Video and AVCHD: [5] only.
• MKV, MP4 and MPEG2: Not effective.
  The speed increases up to 5 steps.
• Music, MP3, etc.: The speed is fixed to a single step.
• Press [] to revert to normal playback speed.

Manual Skip
Skip forward 1 minute
Press [+60s].
Skip backward 10 seconds
Press [-10s].

• MKV: Not effective.

• Each press shows the next frame.
• Press and hold to change in succession forward or backward.
• Press [] to revert to normal playback speed.
• BD-Video and AVCHD: Forward only.
• MKV, MP4 and MPEG2: Not effective.

Changing soundtrack
Press [AUDIO].
You can change the audio channel number or soundtrack language, etc.

Show top menu/pop-up menu
Press [TOP MENU] or [POP-UP MENU].
Select the item and press [OK].

Adjust the screen brightness
While playing HDR video, press [HDR SETTING].
When HDR (High Dynamic Range) video is output to a connected HDR-compatible TV, a menu is displayed, allowing you to adjust the brightness of the entire screen.
Press [] to adjust the setting.
Press [RETURN] to exit.

Direct playback of music CDs
You can select tracks on music CDs using the number buttons on the remote control.
Press to while the list of tracks is displayed to enter the 2-digit track number.
e.g., 5: [0][5], 15: [1][5]

Show the status messages
While playing, press [PLAYBACK INFO.]. You can check the detailed video content* playback status.

• When outputting HDR material tagged with metadata, such as Ultra HD Blu-ray content, press [PLAYBACK INFO.] again to display its luminance information (HDR10 metadata).
  • "–" is displayed if there is no metadata on the media being played back.
  • "–" is displayed when HDR metadata is not output from the HDMI VIDEO OUT terminal, such as during Dolby Vision output.

	Video attribute information of video content*
	Audio attribute information of video content*
	HDMI(VIDEO) output information
	HDMI(AUDIO) output information

Press [RETURN] to exit.
* BD-Video, DVD-Video, MKV, MP4, MPEG2 (except Network Contents)

While playing, press [STATUS].
The status messages give you information about what is currently being played. Each time you press [STATUS], the display information may change or disappear from the screen.

• Depending on media and contents, the display may change or not appear.


1. Displayed when an HDR (High Dynamic Range) video signal is being output.
   • "HDR (High Dynamic Range: HLG to PQ Conversion)": The format of the HDR video is converted from HLG to PQ
   • "Dynamic Range Conversion Output": The video signal is converted to SDR (Standard Dynamic Range)
2. T: Title, P: Programme, C: Chapter, PL: Playlist
3. Elapsed time in the title
4. Method of HDR (High Dynamic Range) video
5. Output resolution/Frame rate
6. Current position
7. Total time
   e.g., JPEG

• During music playback, the elapsed time, file name and other relevant information are displayed on the unit's display.
  e.g., MP3


Preparation

• For 4K/HDR viewing, connect to a device (TV, etc.) and HDMI terminals that support HDCP2.2*¹, 4K (50p/60p) 4:4:4 and HDR signals that meet Ultra HD Blu-ray standards.
  Due to copyright restrictions, it may not be possible to play back certain discs unless this unit is connected to the Internet.

• When connected to a device or terminal that does not support HDCP2.2*¹, this unit applies Dynamic Range Conversion*² to HDR signals to output them in 2K resolution. In addition, depending on the disc, it may not be possible to perform playback correctly.
• When connected to a device or terminal that supports 4K (50p/60p) 4:2:0 (8 bit) and lower, this unit plays back 50p/ 60p content by applying Dynamic Range Conversion*² to its HDR signals to output them.
• When connected to a device or terminal that does not support 4K resolution, this unit applies Dynamic Range Conversion*² to HDR signals to output them in 2K resolution.
• When connected to a device or terminal that does not support HDR, this unit applies Dynamic Range Conversion*² to HDR signals to output them. In addition, depending on the disc, it may not be possible to output content in 2K resolution or perform playback correctly.

^*1 HDCP is a technology designed to prevent illegal copying. "2.2" represents a version.
^*2 Dynamic Range Conversion is a function that converts HDR video signals into video signals suited to TVs that do not support HDR input.

Enjoying 3D video and photos
Preparation
Connect this unit to a 3D compatible TV.

• Perform the necessary preparations for the TV.
• Play back following the instructions displayed on the screen.
• 3D Settings

• Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue. In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.
• 3D video might not output the way it is set in "Video Format" and "24p Output".
• When playing back 3D photos from "Photos" screen, select from the "3D" list. (Still pictures in "2D" are played back in 2D.)
  If "2D" and "3D" indications are not displayed, press the red button on the remote control to switch the view of playback contents.

1. Perform network connection and settings.
2. Connect a USB device with 1 GB or more free space.
   • The USB device is used as the local storage.
3. Insert the disc.

Deleting data on the USB device
Select "BD-Video Data Erase" in the HOME menu and press [OK].

• The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.
• "BD-Live Internet Access" may need to be changed for certain discs.

Slideshow
Play a slideshow of photos and adjust various settings during the playback.

1. Insert the media.
2. Select "View Photos".
3. Select an item and press the green button.
   The following items can be set.

Start Slideshow	Start the slideshow. You can display still pictures in the selected folder one by one at a constant interval.
Interval	Change the display interval.
Transition Effect	Select the effect when sliding pictures.
Repeat Play	Set whether to repeat the slideshow.
Soundtrack	Set whether to play background music. FLAC and MP3, etc., on the USB device can be played back during the slideshow of JPEG on the USB device.
Soundtrack Folder	Select the folder from which the music files are played.
Shuffle BGM	Background music is played in random order.

• Still pictures displayed as " " cannot be displayed as thumbnail with this unit.
• You cannot play back AAC and ALAC as background music.

Home Network feature

Before using the following features, be sure to configure the connected equipment on your Home Network.

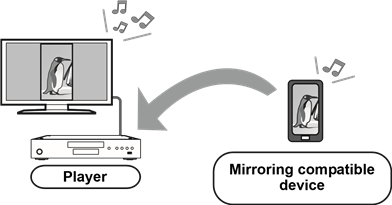

Using Mirroring
Mirroring is a function which displays a smartphone or tablet's screen on a TV via this unit.
Enjoy the content shown on a Miracast^®-compatible smartphone or similar device on your large TV screen.

• A device that supports the Mirroring function and Android^TM ver. 4.2 or higher is required. For information on whether the smartphone, etc. supports Mirroring, contact the manufacturer of the device.


1. Press [MIRRORING].
2. Operate the Mirroring compatible device.
   • On the device, enable Mirroring and select this unit (DP-UB9000) as the device to be connected.
     For details, refer to the instructions supplied with the device.

To exit from Mirroring
Press [HOME].

Playing back contents on the Network Contents server
You can share photos, videos and music stored in the Network Contents server*¹ [PC, smartphone, recorders, etc.] connected to your home network.

• About support format of Network Contents

• When this unit is connected to a Panasonic recorder with a server function, register this unit to the recorder.

1. - Press [HOME].
2. Select "Home Network" and press [OK].
3. Select "Network Contents Playback" and press [OK].
   • The list can be updated by pressing the green button on the remote control.
   • The selected equipment can be deleted from the list by pressing the red button on the remote control.
   • The connection method can be switched to Direct Access*² by pressing the yellow button on the remote control.
4. Select the equipment and press [OK].
5. Select the item to play and press [OK].
   • You may be able to use convenient functions depending on the content by pressing [OPTION].

To exit from Network Contents Playback screen
Press [HOME].

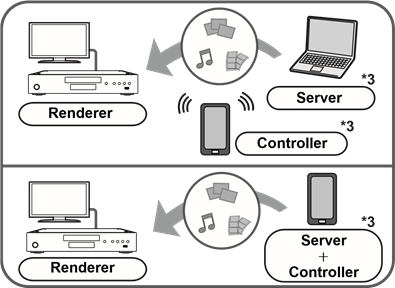

Using the Digital Media Controller
You can use a smartphone or tablet as the Digital Media Controller (DMC) to playback contents from Network Contents server*¹ on the Renderer (this unit).

Possible applications:

1. Press [HOME].
2. Select "Home Network" and press [OK].
3. Select "Media Renderer" and press [OK].
4. Select "Home Network" or "Direct Access"*² and press [OK], then follow the indications on the screen.
5. Operate the DMC compatible devices.

To exit from Media Renderer screen
Press [HOME].

• Direct Access*² connection while using Home Network feature is only temporary, and the network connection method returns to the original setting when exiting.
• Depending on the device or connection environment, the data transfer rate may decrease.
• Depending on the contents and the connected equipment, playback may not be possible.
• Items displayed in grey on the display cannot be played back by this unit.

^*1 DLNA compatible server, etc.
^*2 Direct Access is a function which allows you to wirelessly and directly connect wireless LAN-equipped devices to each other without a wireless router in between. You can connect devices such as those that support Wi-Fi Direct^®.
^*3 DMC compatible software should be installed.

Enjoying Network Service

Network Service allows you to access some specific websites supported by Panasonic, and enjoy Internet contents such as photos, videos, etc. from Network Service home screen.

* Images are for illustration purposes, contents may change without notice.

Preparation

• Network connection
• Network setting
  • When the "Terms and Conditions of Use / Privacy Policy" is displayed

1. Press [INTERNET].
   • Netflix can be accessed directly by pressing [NETFLIX] button even when this unit is off.
2. Select the item and press [OK].
   To exit from Network Service
   Press [HOME].

• In the following cases, settings are possible using the Setup menu items.
  • When restricting the use of Network Service ("Network Service Lock")
  • When the audio is distorted ( "Audio Auto Gain Control")
  • When wrong time is displayed ( "Time Zone", "Summer Time")
• When using a slow Internet connection, the video may not be displayed correctly. A high speed Internet service with a speed of at least 6 Mbps is recommended.
• Be sure to update the firmware as soon as a firmware update notice is displayed on the screen. If the firmware is not updated, you may not be able to use Network Service function properly.
• Network Service Home Screen is subject to change without notice.
• The services through Network Service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
• Some features of websites or content of the service may not be available.
• Some content may be inappropriate for viewers.
• Some content may only be available for specific countries and may be presented in specific languages.

VIERA Link

What is VIERA Link?
VIERA Link is a convenient function which will link the operations of this unit and a Panasonic TV (VIERA) or other device under "VIERA Link".
You can use this function by connecting the equipment with an HDMI cable*. See the operating instructions for connected equipment for operational details.
* Only when connecting via an HDMI VIDEO OUT terminal on this unit.

• When play starts on the unit
• When you display a menu, such as the HOME menu or Setup menu

Playing music continuously even after turning off the TV
When the unit is connected to a Panasonic TV (VIERA) that supports VIERA Link and an amplifier/receiver supports VIERA Link.

1. While playing music Press [OPTION].
2. Select "TV Power Off".

Easy control only with VIERA remote control
Only when TV supports "VIERA Link"
By using the TV remote control, you can perform various playback operations and settings. See the operating instructions of the TV for more details.

• If you set "VIERA Link" to "Off", set to "On". (The default setting is "On".)
• The buttons and functions that you can use for this unit vary depending on the TV. For details, refer to the operating instructions of the TV.
• The operation of this unit may be interrupted when you press certain buttons on the TV remote control.
• VIERA Link, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.
• Please refer to individual manuals for other manufacturers' equipment supporting VIERA Link function.

Option menu

A variety of playback operations and settings can be performed from this menu.
Available options differ depending on the playing contents and the condition of the unit.

1. Press [OPTION]. e.g., Ultra HD Blu-ray

   • When playing music, select "Playback Settings" and press [OK].
2. Select an item and change the settings.
   To exit the screen
   Press [OPTION].

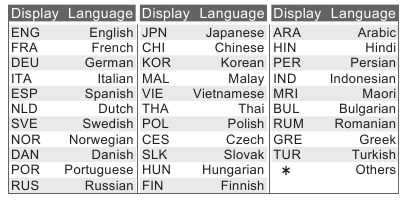

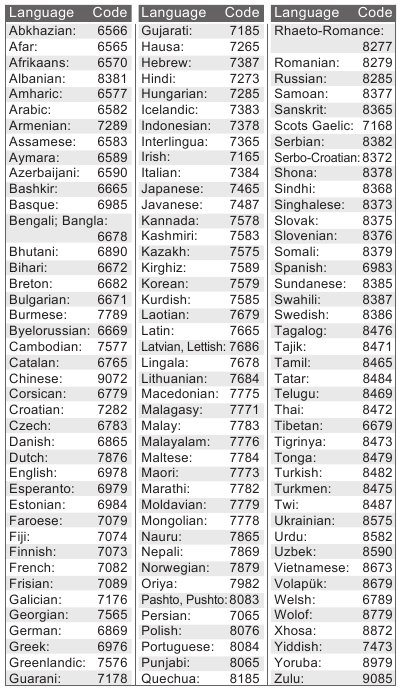

   Regarding Language

• Pop-up Menu
  Display Pop-up Menu.
• Menu
  Display Menu.
• Reception
  The radio wave status during the playback of Network Contents is displayed. (Only when a wireless connection is used)

• Settings for BD Video playback, Ultra HD Blu-ray playback and settings for the playback of other types of media are registered separately.
  (The default settings for "Set 1"/ "Set 2" are the same as the settings for "Standard".)
• You cannot change the "Standard" settings.

• Luminance Adjustment
  Adjust the contrast, brightness, tone curve (white/ black) and system gamma.
• Colour Adjustment
  Adjust the colour saturation and hue.
• Sharpness Adjustment
  Adjust the sharpness of images. The greater the value is, the sharper images will be.
• Noise Reduction
  Reduce unnecessary noise in videos. The greater the value is, the less noise will appear.
• Bandwidth Limitation
  Adjust the bandwidth limitations.
• Progressive
  Select the method of conversion for progressive output to suit the type of material being played.
  • If the video is disrupted when "Auto" is selected, select either "Video" or "Film" depending on the material to be played back.
• Reset to Default Picture Settings
  Return "Picture Settings" of the selected tab ("Set 1" or "Set 2") to the factory preset.

Sound Settings

• Sound Effects^*1*2
  Select the sound effect.
  (Upsampling up to 192 kHz/32 bit is possible.)
  This setting is also able to switch by pressing [SOUND EFFECT].
  • Night Surround: Enjoy a movie with powerful sound even when the volume is kept low at night. The audio is set in such a way that it can be heard easily.
    • Audio with a sampling frequency higher than 192/176.4 kHz will be down-sampled to 192/ 176.4 kHz for output.
  • Remaster:
    This feature gives you brighter sound by increasing the high frequency portion of the audio.
    • This setting does not apply to audio with a sampling frequency higher than 192 kHz.
      Recommended setting

      Remaster 1	Pop and rock
      Remaster 2	Jazz
      Remaster 3	Classical

  • Digital Tube Sound:
    This feature gives you a warm sound, like that produced by a vacuum tube amplifier.
    • This setting does not apply to audio with a sampling frequency higher than 192 kHz.
      Recommended setting

      Digital Tube Sound 1	A crisp, delicate sound
      Digital Tube Sound 2	A tight, hi-fi sound
      Digital Tube Sound 3	A soft, rich sound
      Digital Tube Sound 4	A clear, powerful sound
      Digital Tube Sound 5	A distinctive mid-range sound
      Digital Tube Sound 6	A soft, enveloping sound

• Sound Effect Frequency
  Set the maximum sampling frequency for the audio selected in "Sound Effects".
  • Even when "96/88.2kHz" is selected, an audio source with a sampling frequency of 96 kHz or higher will be output with the original sampling frequency.
  • When "Sound Effects" is set to "Off", this setting is disabled.
• DSD Decode Sampling Frequency
  Select the settings that suit your sound quality preferences.
  • Even when "352.8kHz" is set, the same audio output setting as "176.4kHz" is applied during digital audio output.
• DSD LPF Setting
  Select the settings that suit your sound quality preferences.
• Dialogue Enhancer*²
  The volume of the centre channel is raised to make dialog easier to hear.
• High Clarity Sound
  Stop processing signals that affect the audio quality or turn off the unit's display to make the audio quality clearer.
  Select whether or not to output images. This setting is able to switch by pressing [HIGH CLARITY].
  • If "On (Video Off)" is selected, the setting will be cancelled when video playback ends.
• Analogue Out Filter
  This allows you to change the digital filter setting for the internal DAC (digital-analogue converter).
• Analogue Volume (dB)
  This adjusts the volume of all the analogue AUDIO OUT terminals.

^*1 Not every function can be set individually.
^*2 This function is effective for audio from HDMI OUT or DIGITAL AUDIO OUT only when "Digital Audio Output" is set to "PCM".

3D Settings

• Signal Format

Original	Keep original picture format.
Side by side	3D picture format comprising of left and right screens.

• Graphic Display Level
  3D position for the Option menu or message screen, etc. can be adjusted during 3D playback.

Setup menu

Change the unit's settings if necessary. The settings remain intact even if you switch the unit to standby.

1. While displaying the HOME menu, press [SETTING].

2. Select an item and change the settings.
   To exit the screen Press [HOME].

HDMI

• Video Format
  The items supported by the connected devices are indicated on the screen as "*". When any item without "*" is selected, the images may be distorted.

• If "Automatic"*¹ is selected, the best suited output resolution to the connected TV is automatically selected.

• 4K(50p/60p) Output
  This unit automatically chooses to output images in 4K*² (50p/60p) when connected to a 4K (50p or 60p) compatible TV.
  • This item is available only when "Video Format" is set to "Automatic" and "4K". - This item is not available when "HDMI(AUDIO) Output Mode" is set to "Video+Audio".
  • To connect to a TV that supports 4K (50p/60p) 4:4:4/8 bit or 4K (50p/60p) 4:2:2/12 bit, select "4K(50p/60p) 4:4:4".
    Images will not be output correctly with an HDMI cable that does not support 18 Gbps.
  • To connect to a TV that supports 4K (50p/60p) 4:2:0/8 bit, select "4K(50p/60p) 4:2:0".
• 24p Output
  Content recorded at 24p*³, such as BD-Video films, is output at 24p when played back.
  • When this unit is connected to TV compatible with 4K/24p and "Video Format" is set to "Automatic" or "4K", images will be output in 4K/ 24p.
  • When this unit is connected to a TV compatible with 1080/24p and "Video Format" is set to "Automatic", "1080i" or "1080p", images will be output in 1080/24p.
  • If images output in 24p are distorted, change the setting to "Off".
• HDMI(VIDEO) Output Mode
  Set whether or not to output audio from the HDMI VIDEO OUT terminal.
  • When an amplifier is connected to the HDMI AUDIO OUT terminal and this menu item is set to "Automatic ( Video Only / Video+Audio )", the TV may not output audio. In that case, select "Video+Audio".
• HDMI(AUDIO) Output Mode
  Set whether or not to output images from the HDMI AUDIO OUT terminal.
  • It is not possible to output 3D, 4K or HDR content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when "Video+Audio" is selected.
• Dolby Vision Setting
  You can set enable/disable of the Dolby Vision function.
  By changing this setting to "On", you can use the Dolby Vision function under the following conditions:
  • device (TV, etc.) that supports Dolby Vision is connected.
  • disc that supports Dolby Vision is played back.
  • The "Picture Settings" setting is disabled while using the Dolby Vision function.
  • If all the conditions below are met, both Dolby Vision and HDR10+ are enabled. In that case, playback in HDR10+ format takes precedence.
    • The playback media or content is recorded in both Dolby Vision and HDR10+ formats.
    • Both Dolby Vision and HDR10+ are supported by the connected device (TV, etc.).
    • Both this function and "HDR10+ Setting" are set to "On".
• HDR10+ Setting
  You can set enable/disable of the HDR10+ function.
  By changing this setting to "On", you can use the HDR10+ function under the following conditions:
  • device (TV, etc.) that supports HDR10+ is connected.
  • disc that supports HDR10+ is played back.
  • The "Optimum HDR Adjustment" setting is disabled while using the HDR10+ function.

• Advanced Settings
  Press [OK] to show the following settings:
  • Colour Mode
    This setting is for selecting colour-space conversion of the image signal.
  • Deep Colour Output
    Set the output method to be used when this unit is connected to a TV that supports Deep Colour.
  • HDR/Colour Gamut Output
    Set the output type for HDR (High Dynamic Range) material.
  • SDR/HDR Conv. (Network Service)
    When Network Service content is played back, this converts SDR (Standard Dynamic Range) content to HDR signals to minimise the screen distortion that occurs when the displayed content changes. (Available for some Network Service contents only)
  • HLG / PQ Conversion
    Set whether or not to convert HDR (High Dynamic Range) videos in HLG format to PQ format before outputting them when this unit is connected to a TV that supports only HDR (PQ) format.
    • When "HDR/Colour Gamut Output" is set to other than "HDR/BT.2020 (Auto)", this setting is disabled.
  • HDR Display Type
    Set the type of the connected HDR-compatible display. The operation of "HDR Optimiser" in the "Picture Settings" is optimised based on this setting.
  • HDCP Output Setting
    If you connect to a TV that does not support HDCP2.2 via an amplifier or speaker, some images may be displayed as black screens. In that case, select "HDCP1.4 Limit".
  • Contents Type Flag
    Depending on the playback content, the TV will output adjusting to the optimal method when a TV that supports this function is connected.
  • Audio Output
    This setting selects whether or not to output audio from HDMI.
    • To enjoy audio with the HDMI terminal, select "On". To enjoy audio with the OPTICAL/COAXIAL/2ch AUDIO OUT terminal, select "Off". Audio will not be output from the HDMI terminal regardless of the settings for "HDMI(VIDEO) Output Mode" and "HDMI(AUDIO) Output Mode".
  • 7.1ch Audio Reformatting
    Surround sound with 6.1ch or less is automatically expanded and played back at 7.1ch.
    • If "Off" is selected, sound is played over the original number of channels. (Note that in the case of 6.1ch audio, playback will be at 5.1ch.)
    • Audio reformatting is enabled in the following cases:
      • When you have selected "PCM" in "Digital Audio Output".
      • When the audio is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or LPCM.
      • BD-Video playback

^*1 It displays images at the highest resolution available on your TV.
^*2 A high resolution image/display technology of approximately 4000 (width) k 2000 (height) pixels.
^*3 A progressive image recorded at a rate of 24 frames per second (motion-picture film). Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials.


• Still Mode
  Select the type of picture shown when you pause playback.

  Automatic	Automatically selects the type of picture shown.
  Field	Select if jittering occurs when "Automatic" is selected.
  Frame	Select if small text or fine patterns cannot be seen clearly when "Automatic" is selected.

• Seamless Play
  This enables smooth playback of the gaps between pieces of content such as programmes.
  • The expected effect may not be achieved depending on the content.
  • If you select "Off", playback will be accurate, but the picture may freeze for a moment.

Sound

• Dynamic Range Compression
  You can listen at low volumes but still hear dialogue clearly.
  (Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
  • "Automatic" is effective only when playing Dolby TrueHD.
• Digital Audio Output
  Press [OK] to show the following settings:
  • Dolby Audio
  • DTS/DTS-HD
  • MPEG Audio
    Select the audio signal to output.
    • Select "PCM", when the connected equipment cannot decode the respective audio format. This unit decodes the audio format and transmits to the connected equipment.
    • If you do not make proper settings the audio may be static or noisy.
  • BD-Video Secondary Audio
    Select whether or not to mix the primary and secondary audio (including the button click sound).
    If "Off" is selected, the unit outputs the primary audio only.

• To enjoy BD-Video that supports Dolby Atmos^® or DTS:X^®
  Connect this unit to an AV amplifier or similar device that supports it with an HDMI cable, and select the following settings:
  • Dolby Audio: "Bitstream"
  • DTS/DTS-HD: "Bitstream"
  • BD-Video Secondary Audio: "Off"
• OPTICAL / COAXIAL Down Sampling
  Set the maximum sampling frequency to be used when outputting down-sampled audio from the OPTICAL/COAXIAL terminal.
  • Set a frequency supported by the connected device.
  • When playing back BD-Video, signals are converted to 48 kHz despite the settings in the following cases:
    • when the signals have a sampling frequency of 192 kHz
    • when the disc has copy protection
    • when "BD-Video Secondary Audio" is set to "On"
• Downmix
  Select the downmix system of multi-channel to 2-channel sound.
  • Select "Surround encoded", when the connected equipment supports the virtual surround function.
  • The downmix effect is not available when "Digital Audio Output" is set to "Bitstream".
  • The audio will be output in "Stereo" in the following cases:
    • AVCHD playback
    • Playback of secondary audio (including the button click sound).
• HDMI Output Settings of Music Playback
  Minimise the audio noise during music playback by automatically switching the video output to 1080i.
• Settings for High Clarity Sound
  Set a terminal that will stop processing audio signals or whether or not to turn on/off the unit's display when "High Clarity Sound" is set to "On (Video Off)" or "On (Video On)".
  • Set an option for video playback and audio playback.
• Audio Delay
  Synchronization between picture and sound is corrected by adjusting the delay time of the audio output.
• Analogue Multi Channel
  Multi-channel surround sound is output from the 7.1ch AUDIO OUT terminals.
  • If "On" is selected, audio will not be output from the HDMI OUT terminal.
  • Speaker presence and size

  • Delay time ( )
  • Channel balance ()

To finish the speaker setting
Select "Complete".

3D

• 3D BD-Video Playback
  Select the playback method of 3D compatible video software.
• 3D AVCHD Output
  Select the output method of 3D AVCHD videos.
• 3D Playback Message
  Set to display or hide the 3D viewing warning screen when playing back the 3D compatible video software.

Language

• Soundtrack Preference
  Choose the language for audio.
  • If "Original" is selected, the original language of each disc will be selected.
  • When the selected language is not recorded on the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.
  • Enter a code when you select "Other ****".
• Subtitle Preference
  Choose the language for the subtitle.
  • When "Automatic" is selected, a subtitle for the language selected in the "Soundtrack Preference" is displayed only when the language other than the language selected in the "Soundtrack Preference" is played back.
  • When the selected language is not recorded on the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.
  • Enter a code when you select "Other ****".
• Menu Preference
  Choose the language for the disc menus.
  • Enter a code when you select "Other ****".
• Subtitle Text
  Select a desired item according to the language used for MKV subtitles text.
  • This item is displayed only after playing back a file.
• On-Screen Language
  Choose the language for menus and on-screen messages.

Network

• Easy Network Setting
• Network Settings
  Perform network-related settings individually. Press [OK] to show the following settings:
  • LAN Connection Mode
    Select the LAN connection method.
    • When not using wireless LAN (when turning it off), select "Wired".
  • Wireless Settings
    This allows the wireless router and connection settings to be set up. Current connection settings and connection state can be checked. The wireless router connection wizard will be displayed.
    Select a connection method to wireless access point.
    Search for wireless network
    PUSH button
    PIN code
    This method allows you to set encryption for a wireless LAN connection with ease. You can connect to a wireless LAN network by entering a PIN code generated by this unit into the wireless access point you want to connect to.
    Manual setting
    If a search using "Search for wireless network" does not find the wireless access point you want to connect to, or if you cannot connect to a wireless LAN network with other methods, enter an SSID manually to establish a wireless LAN connection.
  • IP Address / DNS Settings
    This is for checking the state of the network connection and setting the IP address and DNS-related.
    Press [OK] to show the respective setting.
  • Proxy Server Settings
    This is for checking the state of connection with the Proxy server and performing settings.
    Press [OK] to show the respective setting.
  • Network Service Settings
    Press [OK] to show the following settings:
    Audio Auto Gain Control
    Volume that is different depending on the contents is adjusted automatically to the standard volume while using the Network Service.
    • Depending on contents, this function effect will not work.
    • Select "Off" when the audio is distorted.
      Time Zone
      Set the unit's time to match your location.
    • Some Network Service contents require the time zone to be set. Set time zone if necessary.
      Summer Time
      Select "On" when using summer time.
  • Network Drive Connection
    This unit can access a hard disk shared folder on a network and play back videos, still pictures, and music.
  • Remote Device Settings
    Press [OK] to show the following settings:
    Device Name Entry
    Set the name of this unit to be displayed on the connected equipment.
    Registration Type

    Automatic	Allow connections to all the equipment accessing this unit.
    Manual	Set the permission for individual equipment connections accessing this unit.

    Remote Device List
    Registering/deregistering of the displayed equipment can be performed when "Manual" in "Registration Type" is selected.
    • You can register up to 16 devices.
      Networked Standby
      Even when "Quick Start" is set to "Off", by using a remote device (smartphone or tablet), you can wake the unit from the off state and start certain Internet content services.
    • To activate operation from the remote device, select "On". But power consumption in standby mode will increase.
    • To use this function, you will need a remote device that can run a function that wakes another device from Networked Standby and apps designed for various services of "Network Service". Refer to the instructions for the respective apps for details.
    • Only the devices permitted by the "Remote Device List" can be operated.
  • BD-Live Internet Access
    You can restrict Internet access when BD-Live functions are used.
    • If "Limit" is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.
  • Voice Control Settings
    Press [OK] to show the following settings:
    Voice Control
    Set whether to operate the unit using a network-connected device (smart speaker, etc.).
    • When this is set to "Off" and the HOME menu is displayed, this setting is also displayed by pressing and holding [OPTION] for more than 5 seconds.
      Device ID
      This is a number provided to identify another device, such as a smart speaker, when the unit is operated from that device.
    • When "Voice Control" is set to "On" and the HOME menu is displayed, this setting is also displayed by pressing and holding [OPTION] for more than 5 seconds.
      Initialize Device Password
      This initialises the "Device Password" displayed in "Device ID".
    • If you perform "Default Settings", the "Device Password" changes automatically.
  • IP Control Settings
    Press [OK] to show the following settings:
    Control4 Discovery
    Enables Control4 mode.
    • When this setting is switched from "Off" to "On", "Quick Start" automatically switches to "On".
      Send Identify
      Sends identifying message to Control4 controller.
    • This function is available when "Control4 Discovery" is set to "On".

    • For details of the settings and operations, consult your local Control4 dealer.
• Legal Notices
  Displays the "Terms and Conditions of Use / Privacy Policy".
  Your use of internet-enabled functions and software updates must follow the rules set forth in the "Terms and Conditions of Use". Please review "Terms and Conditions of Use" and "Privacy Policy" carefully and confirm your understanding of "Privacy Policy" and agreement to the "Terms and Conditions of Use" by checking the box and select "OK".

• DVD-Video Ratings
  Set a ratings level to limit DVD-Video play.
• BD-Video Ratings
  Set an age limit of BD-Video (including Ultra HD Blu-ray) play.
• Network Service Lock
  You can restrict the usage of Network Service.

System

• Easy Settings
  You can execute basic settings.
• TV Settings
  Press [OK] to show the following settings:
  • TV System
    Perform the setup so it matches the TV System of the connected TV.
  • Screen Saver Function
    This is to prevent image retention on the screen.
    • When this is set to "On":
      If a list of playback content is displayed and there is no operation for 5 minutes or more, the screen switches to HOME menu automatically.
    • While playing and pausing, etc., this function is not available.
  • On-Screen Messages
    Choose whether to show status messages automatically.
  • VIERA Link
    Set to use "VIERA Link" function when connected via HDMI cable to a device that supports "VIERA Link".
    • Select "Off" when you do not want to use "VIERA Link".
• Front Panel Display
  Changes the brightness of the unit's display. This setting is also able to switch by pressing [DIM].
  • If "Automatic" is selected, the display is set to bright and only dimmed during playback.
  • This setting does not work when "Front Panel Display" in "Settings for High Clarity Sound" is set to "Off".
    (Except for when "High Clarity Sound" is set to "Off")
• Quick Start
  Speed of start-up from standby mode is increased.
  • When set to "On", the internal control unit will be powered. The idle power consumption will increase so compared to when set to "Off".
  • The cooling fan may rotate at a slow speed to prevent the internal temperature from rising.
• Remote Control
  Change the remote control code if other Panasonic products react to this remote control.
• Firmware Update
  Press [OK] to show the following settings:
  • Automatic Update Check
    When this equipment remains connected to the Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.
  • Update Now
    You can update the firmware manually if a firmware update is available.
• System Information
  Press [OK] to show the following settings:
  • Software Licence
    Information about the software used by this unit is displayed.
  • Firmware Version Information
    Display firmware version of this unit and wireless LAN module.
• Default Settings
  This returns all values in the Setup menu and the Option menu to the default settings, except for some settings of network, ratings, remote control code, on-screen language, etc.

Troubleshooting guide

Before requesting service, please perform the following checks.
If the problem remains unresolved, consult your dealer for instructions.

Do you have the latest firmware installed?
Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

The following do not indicate a problem with this unit:

• Regular disc rotating sounds.
• Image disturbance during search.
• Image disturbance when replacing 3D discs.

Unit does not respond to remote control or unit's buttons.
Press and hold [] on the main unit for 3 seconds.

• If still unable to turn the unit off, disconnect the AC mains lead, wait 1 minute, then reconnect the AC mains lead.

Cannot eject disc

1. While the unit is off
   Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. – "00 RET" is displayed on the unit's display.
2. Press [] (right) repeatedly on the remote control until "06 FTO" is displayed on the unit's display.
3. Press [OK].

General operation

To return to the factory default

• Select "Yes" in "Default Settings" in the Setup menu.

To return all settings to the factory preset

• Reset the unit as follows:

1. While the unit is off
   Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. – "00 RET" is displayed on the unit's display.
2. Press [] (right) repeatedly on the remote control until "08 FIN" is displayed on the unit's display.
3. Press and hold [OK] for more than 5 seconds.

This unit is turned off when the input for the TV is switched.

• This is a normal phenomenon when using VIERA Link. For details please read the operating instructions for the TV.

The remote control doesn't work properly

• Change the batteries in the remote control.
• The remote control and this unit are using different codes.
  If "SET CODE " is displayed on the unit's display when a button is pressed on the remote control, change the code on the remote control.
  Press and hold [OK] and the displayed number ("") for more than 5 seconds.

This unit is turned off automatically

• To save on electricity, this unit is turned off automatically depending on the media if there is no button operation for about 20 minutes when not playing back (such as when paused or displaying the menu, displaying still pictures, etc.).

You have forgotten your ratings password. You want to cancel the ratings level.
The ratings level returns to the factory defaults.

1. While the unit is on
   Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. – "00 RET" is displayed on the unit's display.
2. Press [] (right) repeatedly on the remote control until "03 VL" is displayed on the unit's display.
3. Press [OK].

The TV screen turns black

In the following cases, HDMI authentication takes place and a black screen is displayed:

• When "24p Output" is set to "Automatic".
• When the display is switched between 2D and 3D images.
• When you quit the 4K playback by displaying another screen, including the HOME menu.
• When "HDMI Output Settings of Music Playback" is set to "Sound Quality Priority".

This unit does not recognize the USB connection correctly

• Disconnect and re-connect the USB cable. If it still does not recognize the connection, turn this unit off and on again.
• USB devices may not be recognized by this unit when connected using the following:
  • a USB hub
  • a USB extension cableh If you connect USB HDD to this unit, use the USB cable that is supplied with the HDD. h If the USB HDD is not recognized, the power to the USB HDD may not be supplied. Supply power from an external source.
• If you connect a second USB device while a screen other than the HOME menu is displayed, it will not be detected. Display the HOME menu and reconnect the USB device you want to use.

• An incorrect resolution is selected in "Video Format". Reset the setting as follows:
  1. While the unit is on
     Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
     • "00 RET" is displayed on the unit's display.
  2. Press [] (right) repeatedly on the remote control until "04 PRG" is displayed on the unit's display.
  3. Press and hold [OK] for more than 5 seconds. Set the item again.
     • When Dolby Digital Plus, Dolby TrueHD, and DTS-HD^® audio are not output properly, select "Yes" in "Default Settings" and make proper settings.
• The connected devices are changed. Reset the setting as follows:
  1. While the unit is on
     Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
     • "00 RET" is displayed on the unit's display.
  2. Press [] (right) repeatedly on the remote control until "13 L4K" is displayed on the unit's display.
  3. Press and hold [OK] for more than 5 seconds.
     • "4K(50p/60p) Output" will be set to "Off". Make the correct setting again.
     • PAL discs cannot be correctly viewed on an NTSC TV.
• When "3D BD-Video Playback" in the Setup menu is set to "Automatic", images may not be output depending on the connection method. After removing the disc from this unit, select "Set before play" in the Setup menu, and select "2D Playback" in the setup screen displayed when playing 3D discs.
• When outputting in 4K, images may be distorted depending on the HDMI cable. Use an HDMI cable that supports 18 Gbps.

Video is not output

• Video is not output when the "High Clarity Sound" is set to "On (Video Off)".
• Video from the HDMI AUDIO OUT terminal is not output when the "HDMI(AUDIO) Output Mode" is set to "Audio Only".

Video is not output in 4K or high-definition

• Confirm that "Video Format" in the Setup menu is set properly.
• Confirm the HDMI cable, related connections and the compatibility of TV video input. To output images in 4K, connect the HDMI cable to a 4K compatible terminal of the connected device.
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• To enjoy image in 4K (50p/60p) with the connected 4K-compatible TV, set "4K(50p/60p) Output" to "4K(50p/60p) 4:4:4" or "4K(50p/60p) 4:2:0".
• If "4K(50p/60p) Output" is set to "4K(50p/60p) 4:4:4", check to see if the connected HDMI cable supports 18 Gbps.
• When the unit is connected to a TV that supports formats up to 4K(50p/60p) 4:2:0 or "4K(50p/60p) Output" is set to "4K(50p/60p) 4:2:0", material recorded in 4K(50p/60p) cannot be output in HDR. To play back material recorded in 24p, set "24p Output" to "Automatic".

Cannot output video in HDR quality even when connected to an HDR-compatible TV.

• When connected to a device (TV and amplifier/receiver, etc.) or terminal that does not support HDR, this unit applies Dynamic Range Conversion to HDR signals to output them. In addition, depending on the disc, it may not be possible to output content in 2K resolution or perform playback correctly.
• Video may not be output from your TV in HDR quality, depending on the content.
  Set "HDR/Colour Gamut Output" to "HDR/ BT.2020 (Auto)" and "HLG / PQ Conversion" to "Automatic".

3D video is not output

• Connect to a 3D compatible device (TV and amplifier/receiver, etc.).
• When a non-3D compatible amplifier/receiver is connected between this unit and a TV, 3D video is not output.
• Set "HDMI(AUDIO) Output Mode" to "Audio Only".
• Confirm the settings on this unit and the TV for 3D.

3D video is not output correctly as 2D

• Select "Set before play" in the Setup menu, and select "2D Playback" in the setup screen displayed when playing 3D discs. ("3D BD-Video Playback")
• Discs that have recorded titles with Side by side (2 screen structure) and that can be enjoyed in 3D are played back in accordance with the settings of the TV.

No picture is output from Netflix

• When the unit is connected to a TV that does not support HDCP2.2 via an amplifier or speaker, it may not be possible to view Netflix.*
  If HDCP2.2 is not supported by your TV, try either of the following solutions:
  • Connect the unit and the TV directly.
  • Set "HDCP Output Setting" to "HDCP1.4 Limit".
    * This limitation is due to a specification defined by Netflix, Inc.
    Press [RETURN] if a black screen is displayed.

Cannot play back videos on the USB device smoothly

• Use the port on the rear side of this unit, which supports USB 3.0.

A black band is displayed around the edge of the screen.
The aspect ratio of the screen is abnormal.

• Adjust the aspect setting on the TV.

There is a lot of image lag when playing video.

• Set "0" all items in the "Noise Reduction".

The screen brightness changes automatically.

• The screen brightness changes automatically to suit the scene while using the Dolby Vision/ HDR10+ function.

Audio

Cannot hear the desired audio

• Check the connections and the "Digital Audio Output" settings.
• When the unit is connected to an amplifier/ receiver with the 7.1ch AUDIO OUT terminals, set "Analogue Multi Channel".
• To output audio from a device connected with an HDMI cable, set "Audio Output" to "On" in the Setup menu.
• When connecting this unit to a TV via an HDMI VIDEO OUT and to an amplifier/ receiver via an HDMI AUDIO OUT, set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )".

Even when gapless playback is performed for an album or similar group of songs containing a sound source recorded at a live performance or concert (a music file containing songs that are recorded continuously), the playback is interrupted between songs.

• In the following cases, playback is interrupted between songs:
  • When the file contains recordings that differ from one another in their settings, such as file format, sampling frequency, and channel number
  • When files of 100 or more songs are contained in a single folder

The volume of audio output from the analogue AUDIO OUT terminals is too high or too low.

• Adjust the volume of the analogue AUDIO OUT terminals in "Analogue Volume (dB)" in the Option menu.

Cannot output audio with a sampling frequency higher than 192 kHz from the HDMI AUDIO OUT/OPTICAL/COAXIAL terminal.

• On this unit, only the analogue AUDIO OUT terminals support output of audio with a sampling frequency higher than 192 kHz. Connect to any of the analogue AUDIO OUT terminals to output audio with a sampling frequency higher than 192 kHz.

There is no sound coming out

• To output audio using OPTICAL/COAXIAL terminal, set "OPTICAL / COAXIAL Down Sampling" properly.
• Refer to "Connecting to an amplifier/receiver" to check the audio output settings suited to the connections of your device. In the following cases, audio is not output from the terminals listed below:
  • HDMI VIDEO OUT terminal
    • When a device is connected to the HDMI AUDIO OUT terminal and "HDMI(VIDEO) Output Mode" is set to "Automatic ( Video Only / Video+Audio )"
    • When "Audio Output" in "Advanced Settings" is set to "Off"
    • While playback is being performed with "Audio Output" in "Settings for High Clarity Sound" set to "OPTICAL / COAXIAL Only" or "Analogue Only"
    • When "Analogue Multi Channel" is set to "On"
  • HDMI AUDIO OUT terminal
    • When "Audio Output" in "Advanced Settings" is set to "Off"
    • While playback is being performed with "Audio Output" in "Settings for High Clarity Sound" set to "OPTICAL / COAXIAL Only" or "Analogue Only"
    • When "Analogue Multi Channel" is set to "On"
  • OPTICAL/COAXIAL terminal
    • When a device is connected to the HDMIAUDIO OUT terminal and "Audio Output" in "Advanced Settings" is set to "On"
    • While playback is being performed with "Audio Output" in "Settings for High Clarity Sound" set to "HDMI Only" or "Analogue Only"
  • 2ch AUDIO OUT terminals
    • When a device is connected to the HDMI AUDIO OUT terminal and "Audio Output" in "Advanced Settings" is set to "On"
    • While playback is being performed with "Audio Output" in "Settings for High Clarity Sound" set to "HDMI Only" or "OPTICAL / COAXIAL Only"
  • 7.1ch AUDIO OUT terminals
    • While playback is being performed with "Audio Output" in "Settings for High Clarity Sound" set to "OPTICAL / COAXIAL Only"
    • When "Analogue Multi Channel" is set to "Off"

• The disc is dirty.
• The disc is not finalized.
• Depending on the Ultra HD Blu-ray disc, it may not be possible to perform playback unless this unit is connected to the Internet.

Still pictures (JPEG) do not play back normally.

• The images that were edited on the PC, such as Progressive JPEG, etc., may not be played back.

I can't play back BD-Live.

• Confirm that this unit is connected to the broadband Internet.
• Confirm the "BD-Live Internet Access" settings.
• Confirm a USB device is connected to the USB port.

• Confirm the network connection and settings.
• There may be interference that prevents the unit from detecting your home network. Place the unit and the wireless router closer to each other. This unit may be able to detect your network name ("SSID").
• Check the operating instructions for each device and connect accordingly.

When using wireless LAN connection, video from the Network Contents server* is not played back or video frames are dropped during playback.

• Higher transfer rate router such as 802.11n (2.4 GHz or 5 GHz) or 802.11ac wireless router may solve the problem. If you use 802.11n (2.4 GHz or 5 GHz) or 802.11ac wireless router, it is necessary to set the encryption type to "AES". Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.
• On the "Wireless Settings" screen, the continuous lighting of at least 4 "Reception" indicators is the target for a stable connection. If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the "Easy Network Setting" again.
  * DLNA compatible server, etc.

Messages on the screen
Cannot read. Please check the disc.

• You inserted an incompatible disc.

Cannot play this file.

• You tried to play a non-compatible video.

No disc inserted.

• The disc may be upside down.

This operation cannot be performed now.

• Some operations (reverse slow motion, etc.) are unsupported by the unit.

IP address is not set.

• The "IP Address" in "IP Address / DNS Settings" is "---. ---. ---. ---". Set the "IP Address", "Subnet Mask", and "Gateway Address". (Select the automatic address acquisition if necessary.)

The wireless access point currently has a low network security setting. It is recommended to change to a higher setting.

• Set a stronger network security level referring to the wireless router operating instructions.

• The unit fails to operate properly. Press [Í/I] on the main unit for 3 seconds to switch the unit to standby, then switch back on.

NET

• While connecting to a network.

NO PLAY

• There is a viewing restriction on a BD-Video or DVD-Video.
• A DVD-Video disc with an incompatible region code is inserted.

NO READ

• The media is dirty or badly scratched. The unit cannot play.

REMOVE

• The USB device is drawing too much power. Remove the USB device.

SET CODE
(" " stands for a number.)

• The remote control and this unit are using different codes. Change the code on the remote control. Press and hold [OK] and the indicated number button at the same time for more than 5 seconds.


U59

• Temperature of this unit is hot and the unit switches to standby for safety reasons.
  Wait for about 30 minutes.
  Install or place this unit with good ventilation.

START

• A firmware update will start. Please do not turn off the unit.

UPDATE /5
("" stands for a number.)

• A firmware update is in progress. Please do not turn off the unit.

FINISH

• The firmware update is complete.

Specifications

General

• Specifications are subject to change without notice.

• With certain recording states and folder structures, the play order may differ or playback may not be possible.
• A combined total of up to 10,000 files and folders can be displayed as playable data in each folder regardless of their format.
  (Even when the picture playback menu is displayed, for example, if a folder in the menu contains playable videos and music files, they are also counted as playable data.)

Audio information
The audio output differs depending on which terminals are connected to the amplifier/receiver, and the settings on the unit. ("Digital Audio Output")

• The number of channels listed is the maximum possible number of output channels when connected to amplifier/ receiver compatible with the respective audio format.

HDMI OUT/DIGITAL AUDIO OUT (OPTICAL/COAXIAL)

	Terminal	"Digital Audio Output"
		"Bitstream"	"PCM"
Output channel	HDMI OUT	Outputs using original audio*3	BD-Video: 7.1ch PCM*3*4 DVD-Video: 5.1ch PCM
	DIGITAL AUDIO OUT (OPTICAL/ COAXIAL)	Dolby Digital/ DTS® Digital SurroundTM	Down-mixed 2ch PCM

Analogue AUDIO OUT

Output channel	2ch AUDIO OUT	2ch
	7.1ch AUDIO OUT	BD-Video: 7.1ch*3*4 DVD-Video: 5.1ch

^*3 When "BD-Video Secondary Audio" is set to "On", the audio will be output as Dolby Digital, DTS^® Digital Surround^TM or 5.1ch PCM. However, when playing BD-Video without secondary audio or navigation sounds, the audio is output as the original format.
^*4 The audio output is amplified from 5.1ch or 6.1ch to 7.1ch depending on the DTS, Inc. specifications.

Supported format for Network Contents Playback
When this unit works as a Network Contents client, following contents are playable.

• File formats that are not supported by your Network Contents server* cannot be played.
  * DLNA compatible server, etc.

Video

Container	Video codec	Audio codec	Example of file extension
MKV	H.264 HEVC	AAC PCM Vorbis FLAC	.mkv
AVCHD	H.264	Dolby Digital	.mts
MP4	H.264 HEVC	AAC	.mp4, .mov
PS	MPEG2	Dolby Digital Linear PCM	.mpg, .mpeg
TS	MPEG2 H.264 HEVC	AAC Dolby Digital	.m2ts, .ts


Format	Example of file extension
JPEG	.jpg

Audio

Audio codec	Example of file extension
MP3	.mp3
FLAC	.flac
WAV	.wav
AAC	.m4a, .adts
WMA	.wma
ALAC	.m4a
DSD	.dsf, .dff
AIFF	.aif, .aiff
Linear PCM	—

• Depending on the server, the contents other than stated above can be played back.

Language code list

Display languages list

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0344 844 3899
• For customers within Ireland: 01 289 8333
• Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
• For further support on your product, please visit our website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application atwww.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

Firmware updates

Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology. Panasonic recommends updating your firmware as soon as you are notified. For details, refer to "Firmware updates"
https://panasonic.jp/support/global/cs/
This site is in English only.

Precautions

Unit
To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead
To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.
• Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object
Keep the batteries out of reach of children to prevent swallowing.

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries
Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

for AC Mains Lead
(For the AC mains plug of three pins)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13-ampere and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.

Before use
Remove the connector cover.

How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.


Voice Control
For details, refer to https://panasonic.jp/support/global/cs/

To enjoy Ultra HD Blu-ray Disc featured with High Dynamic Range (HDR)
If you see a message about High Dynamic Range (HDR) compatible issue while an Ultra HD Blu-ray Disc is played back, please check your TV settings as follows. An example of the message: "This player is not connected to a High Dynamic Range (HDR) compatible TV."

1. When you use a Panasonic TV that is compatible with 4K/High Dynamic Range (HDR) and was released in 2015 or later, enable the HDR setting of the TV. (This setting may not be available depending on the TV. Refer to the operating instructions of the TV for details.)
2. If you use a TV not from Panasonic, compatible with 4K and High Dynamic Range (HDR), please refer to the operating instructions of the TV.
3. When you play a High Dynamic Range (HDR) disc on a TV without High Dynamic Range (HDR) capability, the disc can be played back (in non-HDR quality) even if the message appears.
