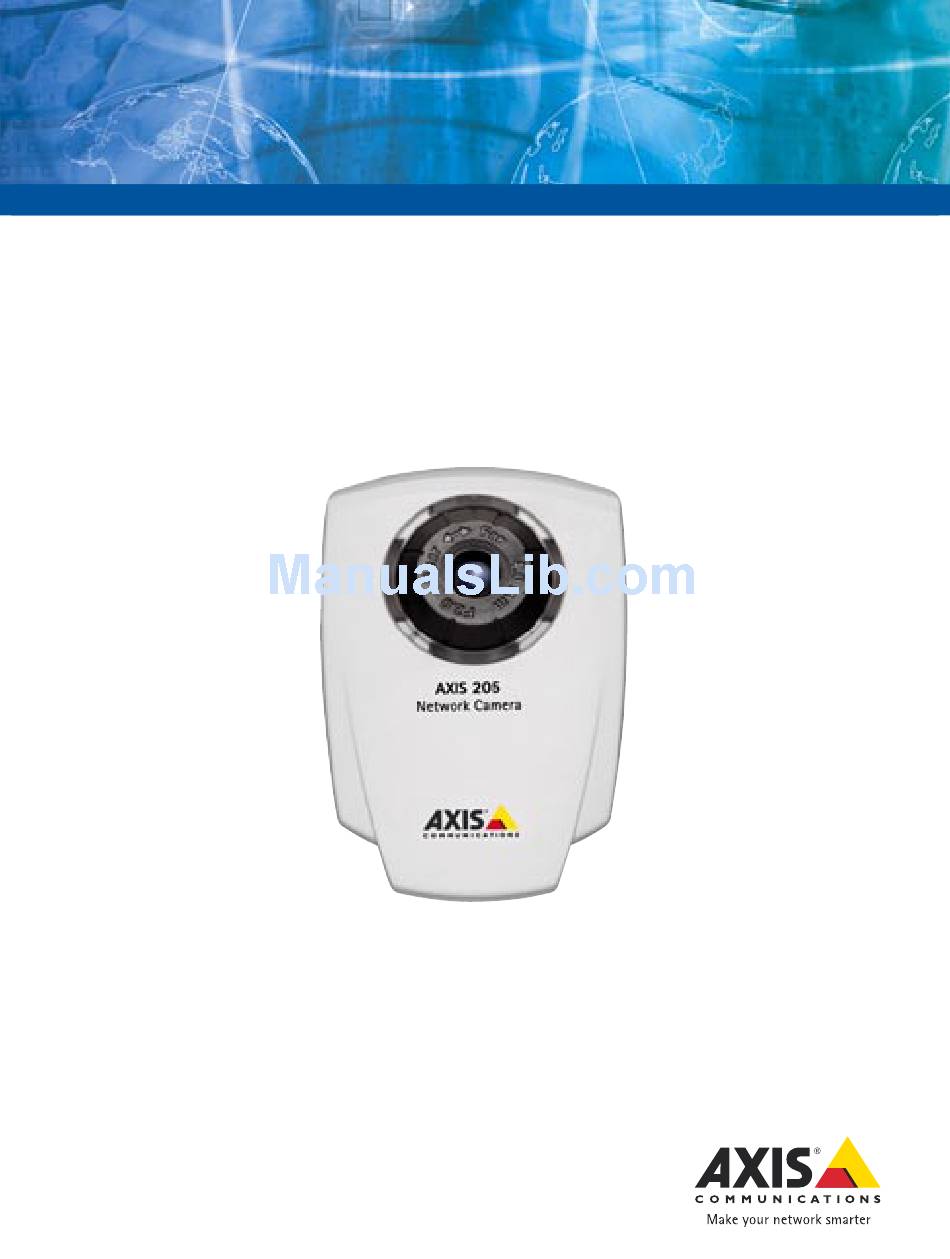

- Page 1 I N S T A L L A T I O N G U I D E AXIS 205 Network Camera Goes anywhere your network goes...
-
Page 2: Hardware Inventory
Control button Power indicator Focus ring (see page 6) Power connector Network connector Hardware Inventory The items supplied with the AXIS 205 are listed below. Please contact your dealer if anything is missing or damaged. Item Description/type Quantity Notes Network Camera... -
Page 3: Installation Procedure
For the advanced user! Upon delivery, the AXIS 205 is set to obtain a dynamic IP address via DHCP. When using a broadband router (NAT-box) that includes a DHCP server, the camera will receive an IP address when power is applied. -
Page 4: Registration
The registration service web page also shows the other available information about your AXIS 205, i.e. its public IP address and the private IP address used on your local network. If the IP address of your PC is on a different IP address segment than the one used for your camera, it might not be possible to access it, unless it is also accessible from the Internet. -
Page 5: Manual Installation With Arp And Ping
Configure the remaining network parameters from the setup tools. Manual Installation with ARP and Ping As an alternative to the AXIS IP Utility, the AXIS 205 can be installed using the ARP and Ping commands, as described below. -
Page 6: Accessing The Camera From A Browser
AXIS 205 Network Camera Installation Example: c:\WINNT>arp -s 192.168.0.125 00-40-8c-18-10-00 c:\WINNT>ping -l 408 -t 192.168.0.125 For Unix/Linux, enter the following: (note that you must be the root user and that the ping length must be 408.) Example (for Linux): >arp -s 192.168.0.125 00:40:8c:18:10:00 temp >ping -s 408 192.168.0.125... -
Page 7: The Factory Default Settings
Exposure to direct sunlight or halogen light may cause perma- nent damage to the CMOS image sensor in the AXIS 205. Damage as a result of exposure to strong light is not covered by the Axis warranty. -
Page 8: Troubleshooting
Check with your network administrator if a proxy server is blocking communication with the Axis access. A proxy server should be configured to allow the AXIS 205 Internet Dynamic DNS to access the Axis Internet Dynamic DNS service via HTTP. After... -
Page 9: Pinging Your Ip Address
IP address. Request timed out This IP address is not used and is available for use with your Axis camera. If you already installed the unit using this IP address, the installation may have failed. Reinstall the unit. Also check all cabling.
