Instrukcja obsługi i instalacji
Εγχειρίδιο Λειτουργίας & Εγκατάστασης
CD/USB/MP3/WMA RECEIVER
LECTEUR CD/USB/MP3/WMA
CD/USB/MP3/WMA-RECEIVER
SINTOLETTORE CD/USB/MP3/WMA
CD/USB/MP3/WMA-ONTVANGER
RECEPTOR CD/USB/MP3/WMA
CD/USB/MP3/WMA-RECEIVER
ODTWARZACZ CD/USB/MP3/WMA
z interfejsem
CD/USB/MP3/WMA ΔΕΚΤΗΣ
Advertisement
Chapters
Table of Contents
Related Manuals for Clarion CZ200E
Summary of Contents for Clarion CZ200E
-
Page 1: Rubber Cap
Instrukcja obsługi i instalacji Εγχειρίδιο Λειτουργίας & Εγκατάστασης CD/USB/MP3/WMA RECEIVER LECTEUR CD/USB/MP3/WMA CD/USB/MP3/WMA-RECEIVER SINTOLETTORE CD/USB/MP3/WMA CD/USB/MP3/WMA-ONTVANGER RECEPTOR CD/USB/MP3/WMA CD/USB/MP3/WMA-RECEIVER ODTWARZACZ CD/USB/MP3/WMA z interfejsem CD/USB/MP3/WMA ΔΕΚΤΗΣ... -
Page 2: Table Of Contents
Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. • Check the contents of the enclosed warranty card and store it in a safe place with this manual. 1. FEATURES ........................3 2. -
Page 3: Features
1. FEATURES MP3/WMA compatible with ID3-TAG display Detachable Front Panel with 3.5mm Auxiliary Input USB available 4ch/2V RCA Output with Subwoofer Control and BEAT-EQ with 3 Band Parametric Equalizer ® Compatible with iPod / iPhone™ via USB Expanding Systems Expanding audio features 4-Channel Amplifier USB Memory iPod/... -
Page 4: Precautions
2. PRECAUTIONS WARNING For your safety, the driver should not operate the controls while driving. Also, while driving, keep the volume to a level at which external sounds can be heard. 1. When the inside of the car is very cold and the player is used soon after switching on the heater, moisture may form on the disc or the optical parts of the player and... -
Page 5: Front Panel / Generalities
Doing so may damage or deform the When the memorized data is lost or body. damaged by any chance, Clarion shall • If a problem should occur, have the set not be liable for any damage. inspected at your store of purchase. -
Page 6: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, keep it in the safety place and prevent scratches. We recommend taking the DCP with you when leaving the car. 1. Press the [ ] button (2 sec.) to turn off the power. -

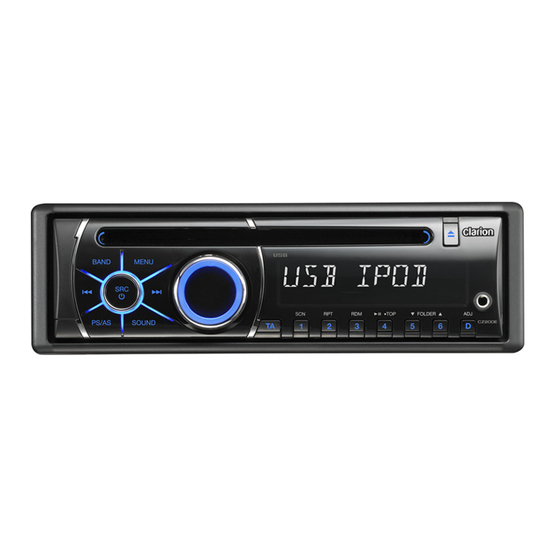

Page 7: Controls
3. CONTROLS Operational Panel [BAND] [MENU] Disc Slot [PS/AS] [SOUND] [TA] [1~6] AUX Jack [OPEN] [POWER/SRC] [VOLUME] [ADJ] Names of Buttons / SRC] Key [VOLUME] Key • Power / Toggle the audio source • Adjust volume level / Confirm [BAND] Key [TA] Key •... -
Page 8: Cautions On Handling
4. CAUTIONS ON HANDLING Handling Discs Handling Storage • New discs may have some roughness • Do not expose discs to direct sunlight or around the edges. If such discs are used, any heat source. the player may not work or the sound may •... -
Page 9: Operations
5. OPERATIONS Basic Operations Note: CAUTION • Be sure to read this chapter referring to the chapter “3. CONTROLS” While driving, keep the volume level at which external sounds can be heard. CAUTION Playing source selection When the unit is turned on, starting and stopping the engine with its volume Press [SRC] key on the front panel raised to the maximum level may harm... -
Page 10: Radio Operations
2. The unit has 5 bands, such as FM1, FM2, FM3, MW and LW. FM3, MW and LW can store by AS function. Each bands can store 6 stations, CZ200E/CZ200ER/ CZ200EG can store 30 stations in total. Manual store When one expected radio station has been detected, press and hold number key 1~6 to store it in the memory. -
Page 11: Radio Data System Operations
Radio Data System Operations Radio Data System is ON and the REG function is OFF. Note: This unit has a built-in “Radio Data System” • T his function can be used when a regional decoder system that supports broadcast broadcast of the same network is received. stations transmitting “Radio Data System” data. TA (Traffic Announcement) When using the “Radio Data System”... -
Page 12: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/WMA byte alphabetical letters and numerals files (including an extension). 3. Do not affix a name to a file inside a folder Notes: having the same name. • I f you play a file with DRM (Digital Rights Management) for WMA remaining ON, no Folder structure audio is output (The WMA indicator blinks). -
Page 13: Folder Select
CD/MP3/WMA Operations Fast-forward/Fast-reverse • Discs not bearing the mark TEXT TEXT and CD-ROMs cannot be played by this Fast-forward unit. Press and hold the [ ] button . • Some CDs recorded in CD-R/CD-RW Fast-reverse mode may not be usable. Press and hold the [ ] button . -
Page 14: Usb Operations
CD/MP3/WMA Operations MP3/WMA: Random play 1. Press the [RPT] button to perform repeat This function allows you to play all tracks play, “TRACK RPT” appears on the display, recorded on a disc in a random order. and “RPT” segment lights on. Press the [RDM] button to perform random 2. -
Page 15: Aux Operations
AUX Operations Press [SRC] button on the panel to select AUX. AUX is just for Audio content with 3.5mm Jack connector plugged into audio-in socket on the front panel. AUX Input sensitivity setting 1. Press the [ADJ] button. 2. Turn the [VOL/SEL] knob to select “AUX MID”. 3. -
Page 16: Audio Setup
Audio Setup Press the [SOUND] key to enter sound effect BALANCE -> FADER -> M-B EX -> LPF(low setting mode. First Press shows current EQ. pass filter) -> SUBW VOL, rotate the volume Rotate the volume knob to changes BEAT knob to select a value. -
Page 17: Trouble Shooting
6. TROUBLE SHOOTING GENERAL Problem Cause Measure Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating. Turn off the power and open the operation panel. Unit can not Press the reset button with a thin rod. -
Page 18: Error Display
USB Devices Problem Cause Measure The USB device has been Reversing the connection direction of the USB inserted with wrong direction. device, try it again. USB device cannot be inserted. The USB connector is broken. Replace with a new USB device. The USB device is damaged. -
Page 19: Specifications
8. SPECIFICATIONS FM Tuner Input Frequency range: 87.5-108.0MHz Audio input sensitivity: Usable sensitivity: 8dBμ High: 320mV (at 1V output) Frequency response: 30Hz-15kHz Mid: 650mV (at 1V output) Stereo separation: 30dB(1kHz) Low: 1.3V (at 1V output) Signal/noise ratio: >55dB (input impedance 10 k or greater) Aux-in level: ≤2V MW Tuner... -
Page 20: Installation / Wire Connection Guide
For tough dirt, installation, consult your dealer or an apply a little cold or warm water to a authorized Clarion service center. soft cloth and wipe off the dirt gently. -
Page 21: Cautions On Installation
3. Take care of the top and bottom of the outer escutcheon and mount it so that all the hooks are locked. Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions 7-3/16"... -
Page 22: Unit Installation
Notes of installation positive pole first and then the negative pole. 1. Before installation, please make sure 7. DO NOT block the cooling fan exit to proper connections are conducted and ensure sufficient heating dissipation of this the unit operates normally. Improper unit, or it may result in damage to this unit. -
Page 23: Removing The Source Unit
Method B 6) Removing the Source Unit Disassemble trim ring 1. Push the trim ring to right and pull out the right part. 2. Push the trim ring to left and pull out the left part. 1. Insert this unit directly to the opening of the Disassemble the unit dashboard. -
Page 24: Wiring And Connections
7) Wiring and Connections White Black Rear audio output (Left) Subwoofer output 1 Black Rear audio output (Right) Subwoofer output 2 Black White Left Front audio USB connector output terminal Right Gray Black Black Steering wheel control terminal 4 Channel Amplifier Fuse 15A ANTENNA (Black) -
Page 25: Connecting The Accessories
Rear right - Front right - Front left + Rear left + AMP Remote ACC + Ground Rear right + Front right + Front left - Rear left - Illumination Phone Mute Battery + Phone Mute / Brown Rear right (+) / Purple Rear right (-) / Purple with black stripe Front right (+) / Grey Front right (-) / Grey with black stripe... - Page 26 0092828 date 28/12/2009 Clarion Europe S.A.S. Z.I. du Pré à Varois, Route de Pompey, 54670 Custines, FRANCE Clarion Co., Ltd. All Rights Reserved. Copyright © 2010: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Gedruckt in China...
