(CZ209)
This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
* Koki's lead free solder S3X-55M 1.0mm
(CLARION Parts No.642-0231-02)
2. Use a nitrogen solder system.
3. Do not use "General solder" and "Lead
free solder" together.

SPECIFICATIONS

FM tuner section
Frequency range:
87.9MHz to 107.9MHz
(PE-3157B-A)
87.0MHz to 108.0MHz
(PE-3157K-A/B)
Usable sensitivity:
9dBuV
50dB quieting sensitivity:
15dBuV
Alternate channel selectivity: 70dB
Stereo separation:
35dB(1kHz)
Frequency Response:
30Hz to 15kHz(+3/-3dB)
AM tuner section
Frequency range:
530kHz to 1710kHz
(PE-3157B-A)
531kHz to 1629kHz
(PE-3157K-A/B)
Usable sensitivity:
25dBuV
CD player section
System:
Compact disc digital audio
system
Usable discs:
Compact disc
Frequency response:
5Hz to 20kHz(+1/-1dB)
Dynamic range:
85dB(1kHz)
Harmonic distortion:
0.01%
MP3/WMA mode
MP3 Sampling rate:
8kHz to 48kHz
Xiamen Clarion Electrical Enterprise Co., Ltd
8/F., Xiamen Mail Processing Centre, No.275 Lujiang Road , Xiamen,China
Tel:+86-592-2389080 Fax:+86-592-2389089
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-Ku, Saitama-Shi, Saitama 330-0081, Japan
Service Manual
-1-

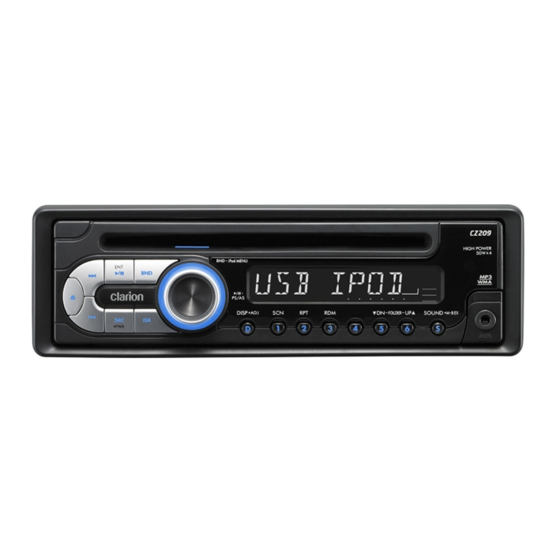

CD/USB/MP3/WMA Receiver
CZ209
Model
(PE-3157B-A for U.S.A)
CZ209A
Model
(PE-3157K-A/B for Other Countries)
MP3 Bit rate:
8kbps to 320kbps / VBR
WMA Bit rate:
48kbps to 192kbps
Logical format:
ISO9660 level1, 2
JOLIET or Romeo
Audio section
Maximum power output:
50W x 4
Bass control action:
+14/-14dB(100Hz)
Treble control action:
+14/-14dB(10kHz)
Line output level:
1.8V(CD 1kHz)
General
Power supply voltage:
14.4V DC(10.8 to 15.6V allowable),
negative ground
Current consumption:
Less than 15A
Speaker impedance:
4ohm(4ohm to 8ohm allowable)
Weight:
Source unit
Remote control unit 40g
(PE-3157B-A)
Dimensions(mm):
Source unit
178(W)x50(H)x155(D)
Remote control unit
44(W)x113(H)x11(D)
(PE-3157B-A)
NOTE
* We cannot supply PWB with component parts in principle. When
a circuit on PWB has failure, please repair it by component parts
base. Parts which are not mentioned in service manual are not
supplied.
* Specifications and design are subject to change without notice for
further improvement.
* Use only compact discs bearing the
Some CDs recorded in CD-R/CD-RW mode may not be usable.
* Windows Media , and the Windows
gistered trademarks of Microsoft Corporation in the United States
and/or other countries.
* iPod is for legal or rightholder-authorized copying only. Don't steal
music. iPod is a trademark of Apple Computer, Inc., registered in
the U.S and other countries.
Published by Service Dept.
298-6621-00 FEB.2009 P
Printed in P.R.C.
1.22kg
or
mark.
logo are trademarks, or re-
CZ209/CZ209A
