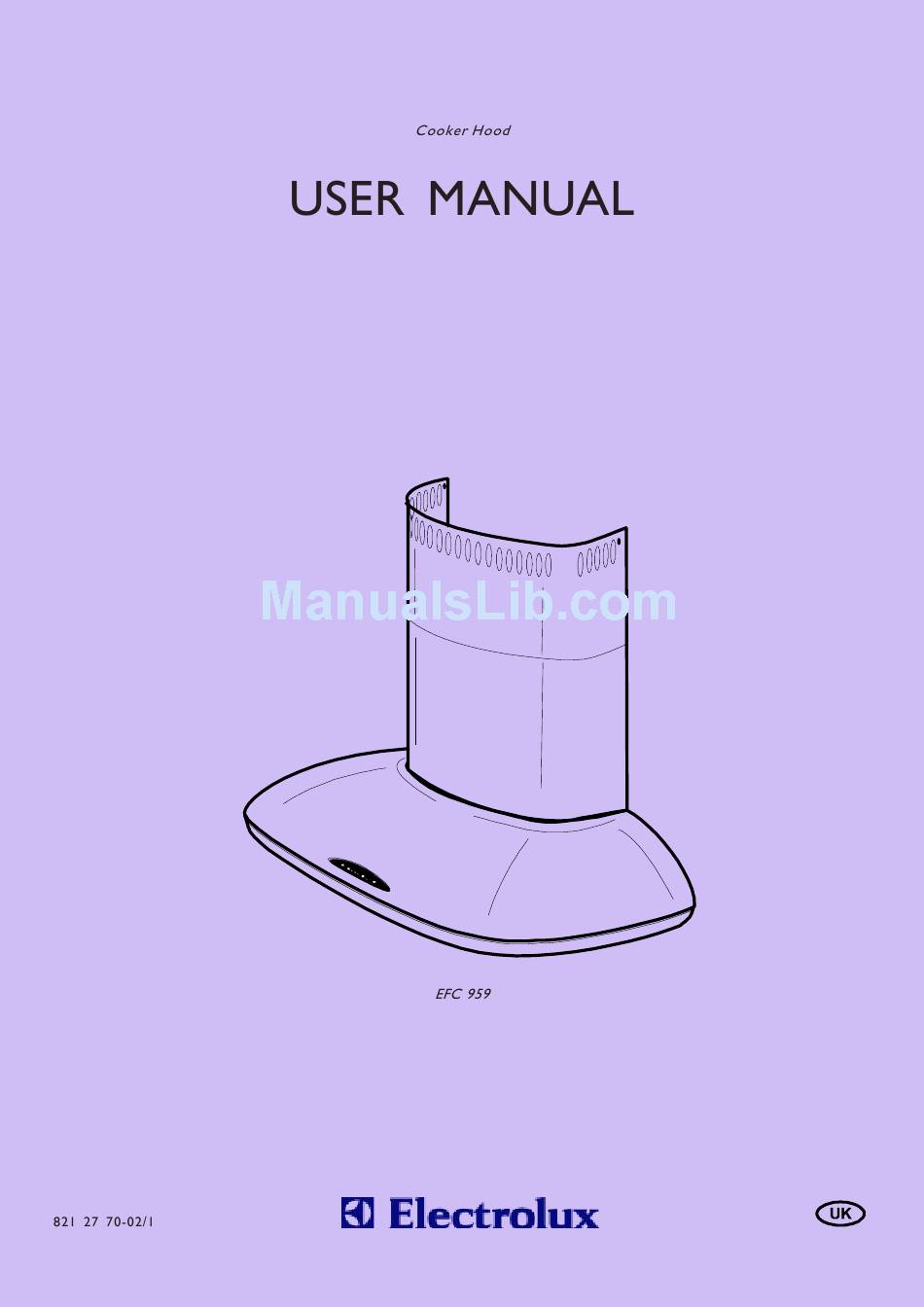

Electrolux EFC 959 User Manual

Electrolux EFC 959 User Manual

Electrolux cooker hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EFC 959

Summary of Contents for Electrolux EFC 959

  • Page 2 Die Verpackung besteht aus wiederverwertbarem Karton. El embalaje de cartón puede ser reciclado. L'emballage en carton est recyclable. Het karton van de verpakking is recycleerbaar. Wellpapp A embalagem de cartão pode ser reciclada. The cardboard packaging can be recycled. Die Dunstabzugshaube kann mit einem hocheffektiven, WASCHBAREN Kohlefilter ausgestattet werden.

  • Page 3: Table Of Contents

    Contents Safety instructions ........... 43 Guide to use the Instructions Description of the cooker hood ........ 44 The following symbols will be found in the text to Using the cooker hood ..........45 guide you throughout the Instructions: Maintenance and cleaning ........45 If the hood does not function ........

  • Page 4: Description Of The Cooker Hood

    Description of the cooker hood The cooker hood Adjustable chimney Work light Duct Grease filters Motorhouse Hood Control panel The control panel Speed light Intensive speed indicators light indicator On and Off Speed adjustment Intensive speed Lighting switch switch switch switch Accessories Functions...

  • Page 5: Using The Cooker Hood

    Using the cooker hood The control panel Do not operate the fan at a higher speed The control panel is on the front of the hood. Best than necessary. The low speeds are results are obtained by using low speed for normal adequate for ordinary requirements while conditions and high speed when smells and steam are cooking.

  • Page 6: If The Hood Does Not Function

    Cleaning the motor cover It is also possible to clean the motor cover (Fig. 2): Remove the chimney (see mounting). Unscrew the three screws on the front and unhook the front cover (A). Remove the soundproofing (B). Push the snaps (D) up on the plastic middle wall (C).

  • Page 7: Technical Data

    Technical data Model EFC 959 Airflow Intensive 480 m ³/h x) 400 m ³/h Max. 370 m ³/h Min. 200 m ³/h Size Height 700-1130 mm Width 895 mm Depth 505 mm Light Max 2x9 W PL Grease filter 2 pcs.

  • Page 8: Electrical Connection

    Electrical connection The electric outlet should be placed inside the chimney. The hood has a power cord and moulded plug with earth connection for a wall outlet of 230V. The power cord is 1 m long. Mounting the chimney support (Fig.

  • Page 9: Fitting The Carbon Filter

    Mounting the cold air valve (Fig. 10): Not applicable for recirculation. The hood can be fitted with a cold air valve. The cold air valve consists of two valves fitted into the hood outlet. If there is no other form of ventilation to expel air from the kitchen than the hood, the outer end of the valves should be clipped off and removed.
