Summary of Contents for AEG FAVORIT 35080 i

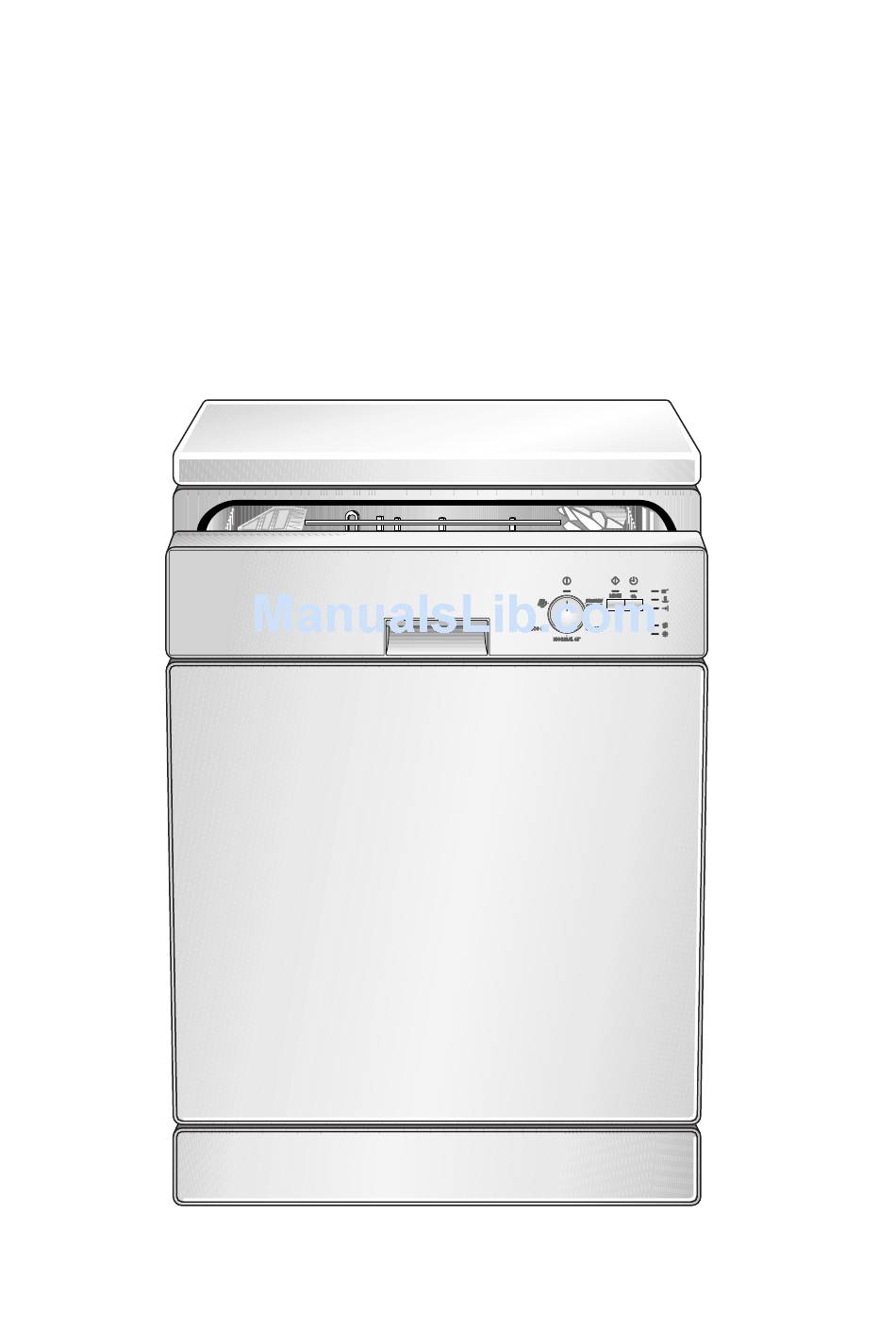

- Page 1 FAVORIT 35080 i Dishwasher User information...
- Page 2 Dear customer, Please read this User Information carefully and keep it to refer to at a later date. Pass this User Information on to any subsequent owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning: Notes that concern your personal safety.
-
Page 3: Table Of Contents
Contents Operating Instructions ........Safety . -
Page 4: Operating Instructions
Operating Instructions 1 Safety Prior to using for the first time • Follow the ”Instructions for installation and connection”. Correct use • The dishwasher is only intended for washing domestic dishes. • Additions or modifications to the dishwasher are not permitted. •... -
Page 5: Diagram Of Appliance
Diagram of appliance Upper basket spray arm and floor spray arm Water hardness dial Dispenser for special salt Dispenser for detergent Dispenser for rinse aid Rating plate Filters Control panel... - Page 6 Power indicator End of cycle indicator Programme progress display Control knob Control indicators Start button Set delay timer The control knob is used to select the desired dishwashing cycle. In the Off position the line points vertically upwards. The Start button is used to: –...
-
Page 7: Prior To Using For The First Time
Prior to using for the first time If you wish to use 3 in 1 detergent: – First read the section “Using 3in1 detergents”. – Do not fill up with special salt or rinse aid. If you do not use 3in1 detergent, before using for the first time 1. - Page 8 8. If the hardness setting is correctly set, turn control knob to the Off po- sition. The hardness setting is now saved. If the water softener is set electronically to “1”, this switches off the control indicator for special salt. Adjusting the hardness Water hardness setting...
-
Page 9: Adding Special Salt
Adding special salt To decalcify the water softener, it must be filled up with special salt. Use only special salt suitable for domestic dishwashers. If you do not use 3 in1 detergent, fill up with special salt: – Before using the dishwasher for the first time. –... -
Page 10: Filling Up With Rinse Aid
Filling up with rinse aid With rinse aid the rinsing water drains away better and so you get smear-free, gleaming dishes and clear glasses. If you do not use 3in1 detergent, fill up with rinse aid: – Before using the dishwasher for the first time. –... -
Page 11: Setting The Amount Of Rinse Aid Required
Setting the amount of rinse aid required Only change the amount dispensed, if smears, milky spots (reduce the amount) or dried on water spots (increase the amount) can be seen on glasses and dishes. (See section “If dishwashing results are not satisfac- tory”.) The dosage can be set from 1-6. -
Page 12: In Daily Use
In daily use Loading cutlery and dishes Sponges, cleaning cloths and any other objects that can absorb water must not be washed in the dishwasher. Plastic and Teflon-coated dishes and pans tend to retain water droplets. These dishes and pans therefore do not dry as well as those made of china and stainless steel. -
Page 13: Loading Cutlery
Loading cutlery Warning: Sharp knives and other items of cutlery with sharp edges must be laid in the cutlery rack or in the upper basket to avoid the risk of injury. To ensure that all items of cutlery in the cutlery basket can be reached by the water, you should: 1.Place the grid insert on the cut- 2.Place forks and spoons in the... - Page 14 To make it easier to load larger dish- es, the two plate rests on the right in the lower basket can be folded down. Cups, Glasses, Coffee Service Load smaller, fragile crockery and long, sharp cutlery in the upper bas- ket.
-
Page 15: Adding Detergent
Adding detergent Detergents remove the dirt from dishes and cutlery. The detergent must be added before the cycle starts. Only use detergent intended for do- mestic dishwashers. The detergent compartment is lo- cated on the inside of the door. 1. If the lid is closed: Press the release button. -
Page 16: Using 3In1 Detergents
Concentrated detergents Today’s detergents for dishwashers are almost exclusively low-alkaline concentrated detergents with natural enzymes in tablet or powder form. Using 50°C dishwashing cycles in conjunction with these concentrated detergents reduces pollution and is good for your dishes, as these dish- washing cycles are specially matched to the dirt-dissolving properties of the enzymes in concentrated detergents. -
Page 17: Selecting The Dishwashing Cycle (Cycle Table)
Selecting the dishwashing cycle (Cycle Table) Programme Consumption sequence values Dishwashing- Suitable Type of cycle for: soiling heavily soiled, Dinner serv- INTENSIV dried-on food re- • • • • ice and CARE 70° mains, in particular cookware protein and starch Dishes, ex- 30 MIN just used, lightly to... -
Page 18: Selecting A Programme
Selecting a programme When your dishes look like this, select: an intensive programme. a normal or energy-saving pro- gramme. a short programme (e.g. 30 minute programme). -
Page 19: Starting A Dishwashing Cycle
Starting a dishwashing cycle 1. Check that the spray arms can turn freely. 2. Turn the water tap on fully. 3. Close the door. 4. Select the desired cycle. The programme progress indicators flash. 5. Press Start button. The dishwashing cycle starts. Interrupting or aborting a dishwashing cycle Only interrupt a dishwashing cycle that is in progress if it is absolutely necessary. -
Page 20: Setting The Delay Timer
Setting the Delay Timer With the delay timer you can delay the start of a dishwashing cycle for 3 hours. 1. Select dishwashing cycle. The programme progress indictors flash. 2. Press Delay Timer button. The indicator above the number of hours lights up. 3. -
Page 21: Care And Cleaning
Care and cleaning Do not use furniture care products or aggressive cleaners. • When necessary, clean the dishwasher’s controls with a soft cloth and clean warm water. • Occasionally check the internal dispensers, door seal and water inlet filter (if fitted) for dirt and clean them, if necessary. Cleaning the filters The filters must be regularly checked and cleaned. - Page 22 5. Remove the flat filter (3) from the base of the washing compartment and clean both surfaces thoroughly. 6. Re-insert the flat filter. 7. Place the fine filter in the micro-fil- ter and fit the two together. 8. Insert the filter system in place and lock it by turning the handle clock- wise as far as it will go.
- Page 23 3. Place cleaned upper basket spray arm back in position against the connect- ing piece: press the two together firmly, until you feel them snap into place. Bottom spray arm 1. To remove bottom spray arm, pull it upwards out of its catch. 2.
-
Page 24: What To Do If
What to do if... Remedying small malfunctions If while the appliance is operating indicators on the control panel flash or are lit up as described in the following table, please consult this to find out how to remedy the fault. After remedying the fault that is flashing in the first or second rhythm in the programme progress display, press the start-button. - Page 25 Malfunction Possible cause Remedy The indicator for the end of the dishwashing cycle is Turn off the tap and The anti-flood system has flashing in rhythm 3 short contact the Customer been triggered. light signals one after anoth- Care Department. The mains plug is not Connect the plug to a plugged in.
-
Page 26: If The Dishwashing Results Are Not Satisfactory
If the dishwashing results are not satisfactory The dishes are still dirty. • The wrong dishwashing cycle was selected. • The dishes were loaded is such a way that the dishwashing water did not reach all items. The baskets for the dishes must not be overload- •... -
Page 27: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 28: Technical Data
Technical data Capacity: 12 place settings including serving dishes Permitted water pres- 1-10 bar (=10-100 N/cm = 0.1-1.0 MPa) sure: Electrical connection: 230 V, 10 A, also see the rating plate on the right-hand side of the dishwasher’s interior door . Dishwashers that can be integrated and built-in Dimensions: 820 - 880 x 596 x 570 (H x W x D in mm) -
Page 29: Notes For Test Institutes
Notes for Test Institutes Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test cycle (see “Cycle Table”). Tests in accordance with EN 50242 must be carried out when the salt dispenser in the water softener and the rinse aid dispenser have been filled with salt and rinse aid respectively, and using the test cycle (see “Cycle Table”). - Page 30 Lower basket with cutlery basket Cutlery basket *) If there are cup racks in place on the lefthand side or if beer glass holders are in place, remove them.
-
Page 31: Installation And Connection Instructions
Installation and connection instructions 1 Safety information for the installation • Only transport the dishwasher in an upright position, otherwise salt water may run out. • Before using the dishwasher for the first time, check for any damage caused in transport. Do not under any circumstances connect an ap- pliance that is damaged. -
Page 32: Installing The Dishwasher
Installing the dishwasher • The dishwasher must be installed on a firm floor and adjusted to en- sure that it is stable and level in all directions. • To compensate for unevenness in the floor and to match the height of the appliance to that of sur- rounding units, extend the thread- ed feet using a screwdriver. -
Page 33: Connecting The Dishwasher
Connecting the dishwasher Connecting to the water supply • The dishwasher can be connected to cold and hot water supplies up to max. 60°C. • The dishwasher must not be connected to open hot water appliances or instantaneous water heaters. Permitted water pressure Lowest permitted water pressure: Consult your plumber if the water pres-... -
Page 34: Water Drainage
Water drainage Drain hose The drain hose must not be kinked, crushed or entangled. Connecting the drain hose: – Maximum permitted height: 1 metre. – Minimum required height: 40 cm above the bottom edge of the ap- pliance. Extension hoses •... -
Page 35: Electrical Connection
Electrical connection Details about the voltage, type of supply and the fuses required are to be found on the rating plate. The rating plate is located on the right- hand inner edge of the dishwasher door. To isolate the dishwasher from the mains, pull out the mains plug. Important: –... -
Page 36: Guarantee Conditions
Guarantee Conditions Belgium DECLARATION OF GUARANTEE TERMS. Our appliances are produced with the greatest of care. However, a defect may still occur. Our con- sumer services department will repair this upon request, either during or after the guarantee peri- od. The service life of the appliance will not, however, be reduced as a result. This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provi- sions of the Civil Code. - Page 37 withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or re- quested adjustments are not covered by the guarantee and are not possible in all cases. Our consumer services department is always at your disposal, even after the guarantee period has expired.
-
Page 38: Customer Service Centres
Customer Service Centres Belgium Tel.: Fax.: Electrolux Home Products Belgium Consumer services 02/363.04.44 02/363.04.00 ELECTROLUX SERVICE 02/363.04.60 Bergensesteenweg 719 1502 Lembeek E-mail: consumer.services@electrolux.be... -
Page 39: Service
Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. - Page 40 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 612 246-00-220205-03 Subject to change without notice...
