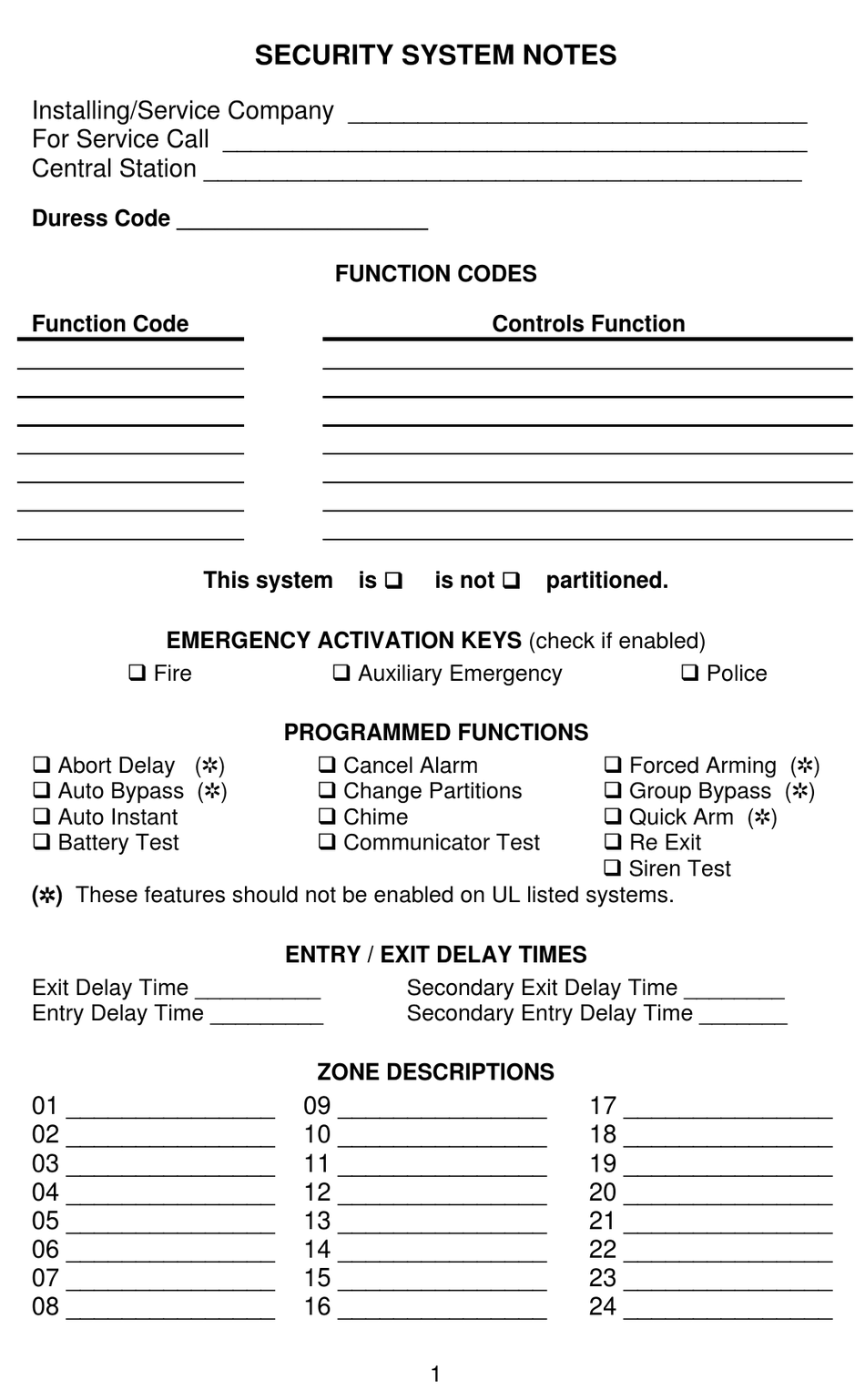

    SECURITY SYSTEM NOTES Installing/Service Company _________________________________ For Service Call __________________________________________ Central Station ___________________________________________ Duress Code ____________________ FUNCTION CODES Function Code Controls Function is ‰ is not ‰ This system partitioned. EMERGENCY ACTIVATION KEYS (check if enabled) ‰ Fire ‰ Auxiliary Emergency ‰...
  • Page 2 THIS MANUAL IS FURNISHED TO HELP YOU UNDERSTAND YOUR SECURITY SYSTEM AND BECOME PROFICIENT IN ITS OPERATION. ALL USERS OF YOUR SECURITY SYSTEM SHOULD READ AND FOLLOW THE INSTRUCTIONS AND PRECAUTIONS IN THIS BOOKLET. FAILURE TO DO SO COULD RESULT IN THE SECURITY SYSTEM NOT WORKING PROPERLY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GLOSSARY OF TERMS ..................4 UNDERSTANDING THE LIGHTS ................5 Armed Light....................5 Bypass Light ....................5 Cancel Light ....................5 Chime Light....................5 Exit Light ......................5 Fire Light ......................5 Instant Light ....................5 Power Light ....................5 Ready Light....................6 Stay Light .......................6 Zone Light ......................6 EMERGENCY ACTIVATION KEYS ..............6 KEYPAD FUNCTIONS ..................7 Arming Your System In The “Away”...

  • Page 4: Glossary Of Terms

    GLOSSARY OF TERMS Abort Delay : An option that allows a delay in reporting to the central station. Authority Level : The level of access an individual has when using an alarm panel. Central Station: Location where alarm data is sent during an alarm report . Chime Feature: An option that allows the keypad to sound a ding-dong whenever an entry/exit door is opened.

  • Page 5: Understanding The Lights

    UNDERSTANDING THE LIGHTS Armed Light The armed light is “on” when the system is armed. The armed light is “off” when it is disarmed. The armed light will flash when there has been an alarm during the previous arm cycle. Bypass Light The bypass light is “on”...

  • Page 6: Ready Light

    Ready Light The ready light is “on” when the system is ready to arm and “flashes” if ready to force arm. The ready light is off when the system is not ready to arm because of a zone(s) being faulted. Stay Light The stay light is “on”...

  • Page 7: Keypad Functions

    KEYPAD FUNCTIONS ARMING YOUR SYSTEM IN THE “AWAY” MODE AWAY is used when the user is away from the premise and wants the interior protected. Listed below are the steps to arm in the AWAY Mode: Step 1 Close all protected doors and windows. Ready light will be on or flashing when all protected zones and sensors are secure.

  • Page 8: Using The Quick Arm

    Step 3 Press the [STAY] key. The stay light will illuminate indicating that all interior zones are bypassed. (All interior devices will bypass automatically, giving the user freedom of movement within the interior area.) The bypass light will illuminate if any zone(s) are bypassed. If any zone(s) have been bypassed previously by the user, the light(s) corresponding to the bypassed zone(s) will illuminate, alerting the user that a zone(s) may be unprotected and can be faulted without...

  • Page 9: Cancel / Abort Feature

    CANCEL / ABORT FEATURE (Optional, see page 1) The cancel light will flash during an abort delay time. If a code is entered followed by the [CANCEL] key while this light is flashing, all abortable reports will stop the communication process. Entering a code followed by the [CANCEL] key during or after an alarm report to the central station will cause the cancel light to come on.

  • Page 10: Changing User Codes

    CHANGING USER CODES Step 1 Your system must be in the Disarmed state to change user codes. Step 2 Press [U]-[5]. Step 3 Enter a “Master Arm/Disarm Code”. NOTE: For partitioned systems, someone changing the code of another person must have access to all or more partitions than the user being changed.
  • Page 11 Step 5 Lights illuminated indicate the authority levels assigned to this code. An explanation of the lights is listed below. You may toggle (turn on/off) the authority level by pressing the number for that authority level. LIGHT AUTHORITY LEVELS IF LIGHT 8 IS OFF Reserved (Note: Do not change if on.) Arm Only...

  • Page 12: Other Keypad Functions

    OTHER KEYPAD FUNCTIONS SETTING THE KEYPAD TONE Press [ ]-[ 0 ]. Keypad is now in the “Adjust Tone” mode. Step 1 Pressing the [ 1 ] key will make the keypad sounder go to higher Step 2 tones, pressing the [ 2 ] key will make the keypad sounder go to lower tones.

  • Page 13: Reset Function

    RESET FUNCTION This function is used to reset Smoke Detectors, Zone Troubles, and Zone Tampers. Step 1 Disarm the system if not disarmed. Step 2 Press [ ]-[7]. Resets have now been performed. Step 3 If the keypad begins beeping, the reset did not execute properly. Enter your code to silence the keypad.

  • Page 14: Keypad Control Tones (Beeps)

    Time Hour Code Time Hour Code Time Hour Code 12:00 8:00 AM 4:00 PM Midnight 1:00 AM 9:00 AM 5:00 PM 2:00 AM 10:00 AM 6:00 PM 3:00 AM 11:00 AM 7:00 PM 12:00 4:00 AM 8:00 PM Noon 5:00 AM 1:00 PM 9:00 PM 6:00 AM...

  • Page 15: Service Menu

    SERVICE MENU The service light will be “on” if the security system requires service. If the service light is “on”, press the [ ] key followed by the [ 2 ] key to determine the service condition. One or more zone lights will illuminate indicating what service(s) is required.

  • Page 16: Emergency Evacuation Plans

    EMERGENCY EVACUATION PLANS An emergency evacuation plan should be established for an actual fire alarm condition. For example, the following steps are recommended by the National Fire Protection Association and can be used as a guide in establishing an evacuation plan for your building. Draw up a floor plan of your home.
  • Page 17 SYSTEM NOTES...
  • Page 18 NX-8 USER’S MANUAL NX8UI00 REV I (09-15-00)
