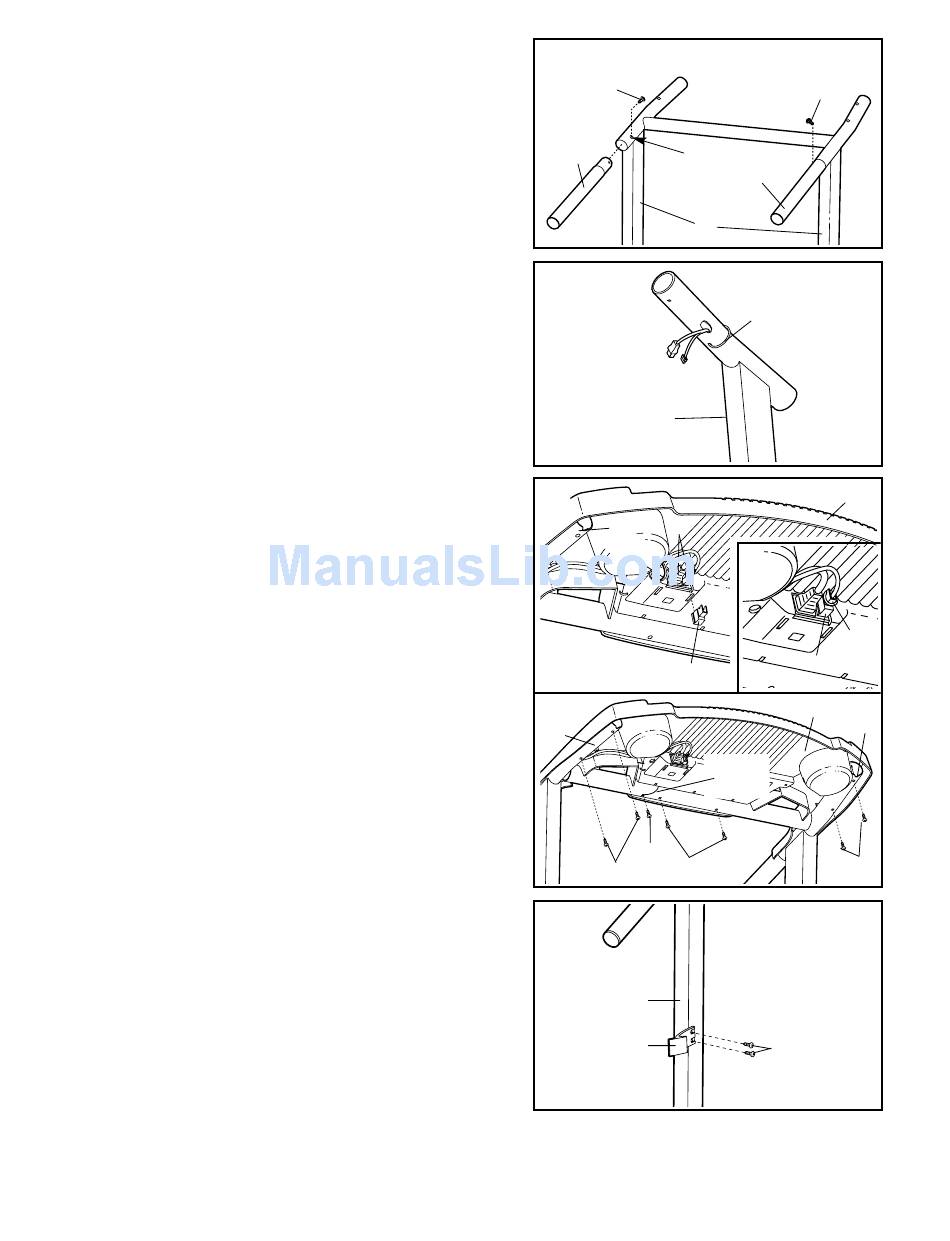

3. Remove the Handrail Screw (53) from one of the
Handrails (1). Insert the Handrail into the tube at the top
of the left Upright (11), and align the hole in the Handrail
with the slotted hole in the Upright. Loosely thread the
Handrail Screw into the Handrail, rotate the Handrail until
the Screw is touching one end of the slotted hole, and
then fully tighten the Screw.
Attach the other Handrail (1) to the right Upright (11) in
the same way.
4. There may be a plastic tie in the tube on the right Upright
(11). If there is, do not remove the tie.
5. Place the Console Base (46) on the Uprights (11) (only
the right Upright is shown). Pull out just enough of the two
Wires (21) to connect them to the receptacles in the
Console Base. Make a loop with the indicated plastic tie
and insert the end through the tie holder on the bottom of
the Console Base. Locate the Wire that has a two-pin
connector and a three-pin connector. Plug the connectors
into the matching receptacles in the Console Base. If the
connectors do not fit easily, rotate them and then
plug them in. Slide the Wire Cover (87) onto the connec-
tors so that they are completely covered. Next, plug the
other Wire into the other receptacle on the Console Base.
WARNING: Do not connect or disconnect the Wires
whilst the treadmill power cord is plugged in. Tighten
the plastic tie and cut off the end.
See the inset drawing. Loop the included plastic tie around
the Wire Cover (87) so that the plastic tie is in the two
notches in the Wire Cover. Tighten the plastic tie and cut
off the end.
Refer to drawing 5b. Thread six Console Screws (66) into
the Uprights (11) and the Console Base (46). After all six
Console Screws have been started, tighten the Screws
until they are snug. Do not overtighten the Screws.
Attach the indicated ground wire to the Uprights (11) with
the Ground Screw (89). WARNING: The console must
be grounded.
6. Attach the Storage Latch (14) to the left Upright (11) with
two Screws (88). Be careful not to overtighten the
Small Screws.
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
3
53
1
4
5a
11
Tie
5b
11
89
66
6
11
14
6
53
Slotted
Hole
1
11
Tie
11
21
87
87
46
Ground
Wire
66
88
46
Tie
11
66
