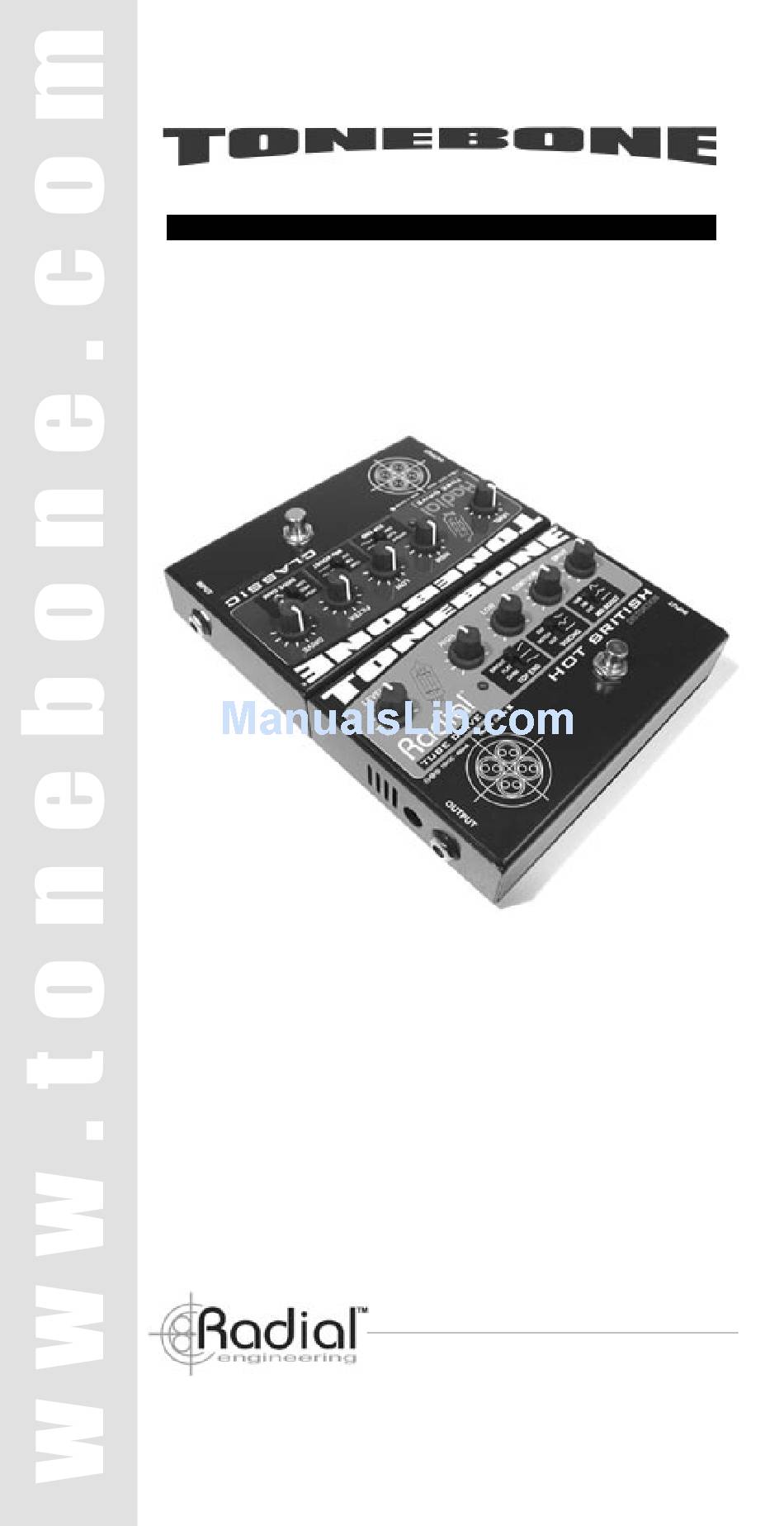

- Page 1 ™ • CLASSIC HOT BRITISH T u b e D i s t o r t i o n Owner’s Manual ™ True to the Music 1638 Kebet Way, Port Coquitlam, BC V3C 5W9 tel:604-942-1001 fax: 604-942-1010 email:info@radialeng.com www.radialeng.com...
-
Page 2: Table Of Contents
This manual has been designed to show the user how to gain access to those sounds and more. Once you have read through, take time to experiment. You will find that the Tonebone is so well designed; it is practically impossible to make it sound bad! Most of all, enjoy. -
Page 3: Unpacking, Powering & Getting Connected
12AX7 tube inside. When the power suppy is connected, the Tonebone will be in standby mode. Like all tube amps, for best tone let your Tonebone warm up for 5 minutes so that it achieves electrical and thermal stability. The LED on the unit lights up when the foot switch is depressed to indicate it is powered up and ready for use. -
Page 4: Tonebone Classic Function Overview
LEVEL control: This is used to adjust the output level without alter- ing any of the tonal characteristics. FOOTSWITCH: Toggles between effect and True-Bypass. i.e. when the Tonebone is off, the signal passes straight through without any effect. An on/off status indicator LED is provided. -
Page 5: Tonebone Hot British Function Overview
LEVEL control: This is used to adjust the output level without alter- ing any of the tonal characteristics. FOOTSWITCH: Toggles between effect and True-Bypass. i.e. when the Tonebone is off, the signal passes straight through without any effect. An on/off status indicator LED is provided. -
Page 6: Changing The Tube
True to the Music 7. Changing the tube: Your Tonebone has been designed to provide years of performance before changing the tube. In fact, it is unlikely that a tube change will be necessary for two to three years or more, depending on use. Change the tube only when a degradation of sound is noticeable. -
Page 7: Trouble Shooting
I am getting sound but no distortion… Make sure you have not connected the Tonebone backwards by revers- ing the input and output. If connections are correct, check the tube. If the problem persists, see your Tonebone dealer. -
Page 8: Factory Setups - Classic
True to the Music Slow Hand Bluze FILTER This sound was created using a Strat with a Duncan Stack and used in the neck position. Joe Sat Solo This sound was created using a Strat with a Duncan Jeff Beck humbucker in the neck position. Adams Apple ... - Page 9 True to the Music ZZ Texas Riff This sound was created using a Strat with a Duncan Jeff Beck in the neck position. Chunky Rhythm This sound was created using a Strat in the middle position. Water Smoke ...
- Page 10 True to the Music Deep Lazy This sound was created using a stock Strat with a Twin using the middle pick-up. Move to the bridge pickup for more cut. Dire Violin Singing Strat This sound was created using a Les Paul in the neck position.
- Page 11 True to the Music Johnny B. Goodness This sound was created using a Strat inthe bridge position. Great for all kinds of rhythms when you want extra edge. Clean Voodoo Child This sound was created using a Strat in the neck position.
-
Page 12: Factory Setups - Hot British
True to the Music Texas Tornado This sound was created using a Strat with a Duncan Stack in the bridge position. Try also single coil in the middle position. Stevie R Neck This sound was created using a Strat in the neck position. - Page 13 True to the Music Xtra Grind This sound was created using a Strat with a Duncan in the bridge position. Great for drop tuning and fast muted playing. Adjust CONTURE to taste. Eric’s Buzz Solo This sound was created using a Les Paul in the neck position.Try rolling off the tone and then bring up the level to offset.
- Page 14 True to the Music Big Mean Scoop This sound was created using a Strat in the bridge position. Great for metal where you want total control over the stage... or the world for that matter. Dark Solo This sound was created using a Strat in the middle and the bridge position.
- Page 15 True to the Music Crimson Solo Vintage Strat neck pickup with tone control for this pickup rolled off. King Kong This sound was created using a Strat in the bridge position. Smokin’ China Grove This sound was created using a Strat in the bridge position.
-
Page 16: User Setting Charts - Classic
True to the Music User settings - Tonebone Classic... - Page 17 True to the Music User settings - Tonebone Classic...
-
Page 18: User Setting Charts - Hot British
True to the Music User settings - Tonebone Hot British... - Page 19 True to the Music User settings - Tonebone Hot British...
-
Page 20: Warranty
RADIAL LIMITED THREE YEAR WARRANTY Radial Engineering - a division of JP Cabletek Electronics Ltd. war- rants this product to be free from defects in material and workmanship to the original owner and will remedy any such defects free of charge according to the terms of this warranty.
