Summary of Contents for Radial Engineering Voco-Loco
-

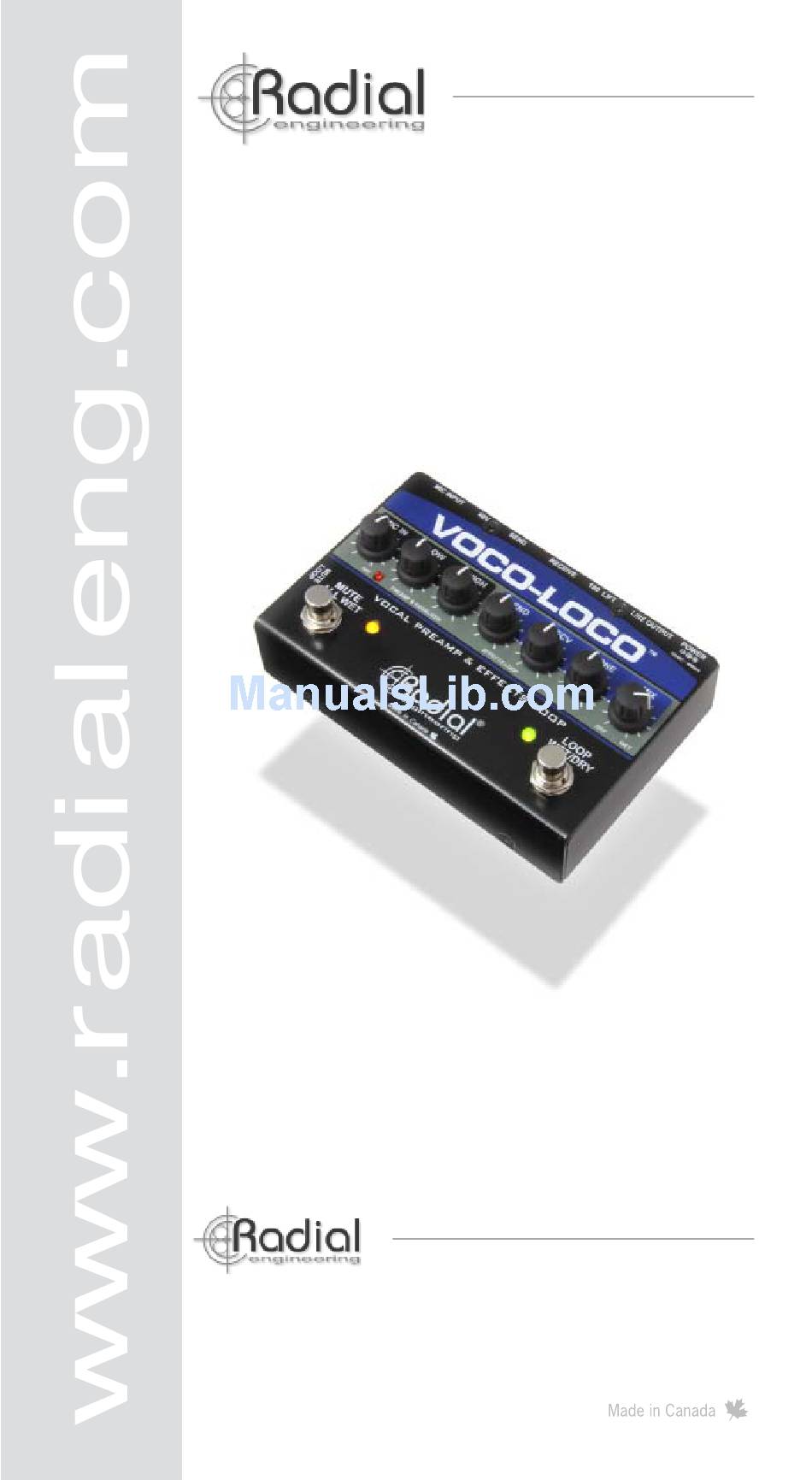

Page 1: User Guide
True to the Music ® Voco-Loco ™ Mic Preamp and Effects Loop User Guide True to the Music ® Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam British Columbia, Canada, V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 email: info@radialeng.com... -
Page 2: Table Of Contents
Voco-Loco so that you get the most out of it. If after you have read it you still have some questions, please take a minute to visit the Voco-Loco FAQ page on the Radial web site. -
Page 3: Overview
The cool thing about using the Voco-Loco with a variety of pedals is you can decide which effects you want to use for a given solo without having to necessarily follow a given path. -

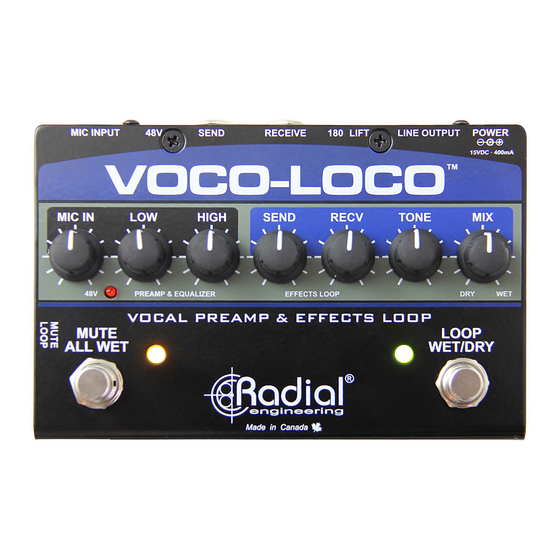

Page 4: Features
6. LINE OUTPUT: Male XLR output, used to connect to the PA system. 7. POWER: Connection for the 400mA 15VDC power supply. 8. MIC IN: Sets the input level of the Voco-Loco’s mic preamp section. 9. LOW / HIGH: Dual band EQ used to adjust the tone of your mic. -
Page 5: Making Connections
Connect the XLR output to a mic input on your PA system. The Voco- Loco’s output level will work equally well with a mic or line level input. If you hear distortion, lower the level on the Voco-Loco or reduce the sensitivity of the mixer’s input channel. -
Page 6: Setting Up Dry And Wet Sounds
True to the Music ® SETTING UP THE DRY SOUND Start with both footswitches turned off. Check the LED indicators and make sure they are also off. Set all the Voco-Loco controls to the 12 o’clock position to start. MIC IN HIGH... -
Page 7: Using The Polarity Reverse
180° polarity reverse. This will invert the wet signal and bring it into phase with the dry signal to create a full sound. INVERTED NORMAL POLARITY POLARITY 180° REVERSE NO PHASE CANCELLATION Radial Engineering Ltd. Voco-Loco™ Preamp Loop... -
Page 8: Using The Left Footswitch Modes
When the MUTE/LOOP switch is set outward, the left footswitch functions as a ‘mute’. Used in the mute mode the left footswitch allows you to turn off the Voco-Loco’s XLR output when not in use. The LED indicator illuminates when the mute function is on. -
Page 9: Using With Various Effects
True to the Music ® USING THE VOCO-LOCO WITH VARIOUS EFFECTS Adding distortion to a vocal or instrument Adding distortion can be a lot of fun! Although you may automatically think of bands like Nine Inch Nails, you do not necessarily need to use full-on distortion. - Page 10 ® Voco-Loco with delay & reverb The most common use for the Voco-Loco is adding traditional effects such as echo and reverb to the mic. Doubling up a vocal with a slight delay can add depth, modulation and perceived loudness when performing live.
-
Page 11: Specifi Cations
LIFT DRIVER FX LOOP LOOP 1 FOOT SWITCH SEND RECEIVE RECEIVE AMPLIFIER & FX TONE REAR PANEL TONE SEND/RECEIVE WET/DRY & MUTE CONTROL ALL WET PROGRAMMABLE BLEND OR MUTE FUNCTION FOOT SWITCH PROGRAMMING SWITCH Radial Engineering Ltd. Voco-Loco™ Preamp Loop... - Page 12 THREE YEAR TRANSFERABLE LIMITED WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi...
