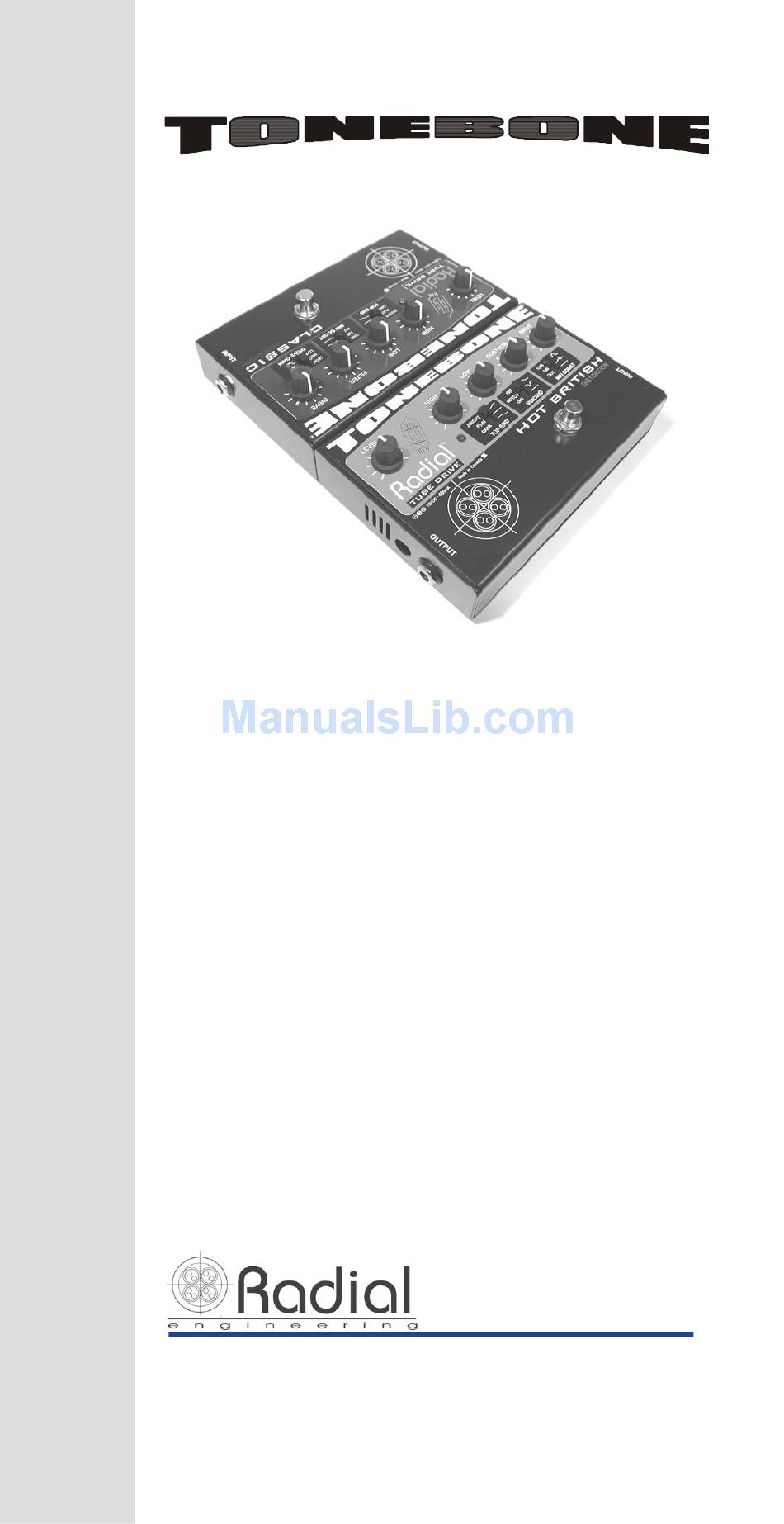

- Page 1 TONEBONE ™ Owner’s Manual 1638 Kebet Way, Port Coquitlam BC V3C 5W9 tel: 604-942-1001 fax: 604-942-1010 email: info@radialeng.com www.radialeng.com...
-
Page 2: Table Of Contents
True to the Music 1638 Kebet Way, Port Coquitlam BC V3C 5W9 www.radialeng.com tel: 604-942-1001 fax: 604-942-1010 email: info@radialeng.com www.radialeng.com Radial is a division of JP Cabletek Electronics Ltd. Radial Tonebone™ manual V1.1 - 07-09-02 Specifications and appearence subject to change without notice. -
Page 3: Unpacking, Powering & Getting Connected
Turn your amp up to a comfortable listening level and adjust the LEVEL output control for unity gain, i.e.: the level with Tonebone on (LED is on) matches the level with it off (LED off). Now start turning knobs! You will find that most of the controls are intuitive and extremely sensitive to changes. -
Page 4: Tonebone Classic Function Overview
LEVEL DRIVE FILTER control: Used to balance the high frequency ratio between the amplifier and the ToneBone - Hint: start adjustments at the full clockwise position and work backwards. MID BOOST switch: Gives you +7dB & +12dB boost @ 360Hz. -
Page 5: Tonebone Hot British Function Overview
LEVEL control: This is used to adjust the output level without altering any of the tonal characteristics. Foot-switch: True-Bypass type; i.e.: when the Tonebone is off, the signal passes straight through without any effect. An on/off status indicator LED is provided. -
Page 6: Changing The Tube
7. Changing the tube: Your Tonebone has been designed to provide years of performance before changing the tube. In fact, it is unlikely that a tube change will be necessary for two to three years or more, depending on use. Change the tube only when a degradation of sound is noticeable. -
Page 7: Trouble Shooting
I am getting sound but no distortion… Make sure you have not connected the Tonebone backwards by reversing the input and output. If connections are correct, check the tube. If the problem persists, see your Tonebone dealer. -
Page 8: Factory Setups - Classic
Slow Hand Bluze ® HIGH LEVEL FILTER DRIVE BRIGHT 12dB HIGH FLAT DARK TOP END MID BOOST DRIVE GAIN 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat with a Duncan Stack and used in the neck position.. - Page 9 ZZ Texas Riff LEVEL HIGH FILTER DRIVE DRIVE BRIGHT 12dB HIGH FLAT DARK TOP END MID BOOST DRIVE GAIN 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat with a Duncan Jeff beck in the neck position Chunky Rhythm LEVEL HIGH...
- Page 10 Deep Lazy ® LEVEL LEVEL HIGH FILTER DRIVE LEVEL BRIGHT 12dB HIGH FLAT DARK TOP END MID BOOST DRIVE GAIN 15VDC · 400mA Made in Canada DISTORTION This sound was created using a stock Strat with a Twin using the middle pick-up. Move to the bridge pickup for more cut.
- Page 11 Johnny B. Goodness DRIVE LEVEL HIGH FILTER BRIGHT 12dB HIGH FLAT DARK TOP END MID BOOST DRIVE GAIN 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat in the bridge position. Great for all kinds of rhythms when you want extra edge.
-
Page 12: Factory Setups - Hot British
Texas Tornado ® ® LEVEL HIGH CONTOUR DRIVE BRIGHT 12dB FLAT NOTCH DARK TOP END VOICING MID BOOST 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat with a Duncan Stack in the bridge position. Try also single coil in the mid position. - Page 13 Xtra Grind HIGH LEVEL CONTOUR DRIVE BRIGHT 12dB FLAT NOTCH DARK TOP END VOICING MID BOOST 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat with a Duncan in the bridge position. Great for drop tuning and fast muted playing.
- Page 14 Big Mean Scoop HIGH DRIVE LEVEL CONTOUR BRIGHT 12dB FLAT NOTCH DARK TOP END VOICING MID BOOST 15VDC · 400mA Made in Canada DISTORTION This sound was created using a Strat in the bridge position. Great for metal where you want total control over the stage...
- Page 15 Crimson Solo ® ® ® ® ® ® LEVEL HIGH CONTOUR DRIVE BRIGHT 12dB FLAT NOTCH DARK TOP END VOICING MID BOOST 15VDC · 400mA Made in Canada DISTORTION Vintage Strat neck pickup with tone control for this pickup rolled off. King Kong ®...
-
Page 16: User Setting Charts - Classic
® ® LEVEL LEVEL LEVEL LEVEL HIGH HIGH HIGH HIGH FILTER FILTER FILTER FILTER DRIVE DRIVE DRIVE DRIVE BRIGHT BRIGHT BRIGHT BRIGHT 12dB 12dB 12dB 12dB HIGH HIGH HIGH HIGH FLAT FLAT FLAT FLAT DARK DARK DARK DARK TOP END TOP END TOP END TOP END... - Page 17 ® ® LEVEL LEVEL LEVEL LEVEL HIGH HIGH HIGH HIGH FILTER FILTER FILTER FILTER DRIVE DRIVE DRIVE DRIVE BRIGHT BRIGHT BRIGHT BRIGHT 12dB 12dB 12dB 12dB HIGH HIGH HIGH HIGH FLAT FLAT FLAT FLAT DARK DARK DARK DARK TOP END TOP END TOP END TOP END...
-
Page 18: User Setting Charts - Hot British
® ® ® ® LEVEL LEVEL HIGH HIGH CONTOUR CONTOUR DRIVE DRIVE BRIGHT BRIGHT 12dB 12dB FLAT FLAT NOTCH NOTCH DARK DARK TOP END TOP END VOICING VOICING MID BOOST MID BOOST DISTORTION DISTORTION Sound: Sound: Guitar: Guitar: Date: Date: Pickup: Pickup: Reference:... - Page 19 ® ® ® ® LEVEL LEVEL HIGH HIGH CONTOUR CONTOUR DRIVE DRIVE BRIGHT BRIGHT 12dB 12dB FLAT FLAT NOTCH NOTCH DARK DARK TOP END TOP END VOICING VOICING MID BOOST MID BOOST DISTORTION DISTORTION Sound: Sound: Guitar: Guitar: Date: Date: Pickup: Pickup: Reference:...
-
Page 20: Warranty
Radial will repair or replace at its option any defective component(s) of this product, excluding the finish, wear and tear on components under normal use, and the tube and footswitch (which are warranted for 90 days), for a period of one (1) year from the original date of purchase.
