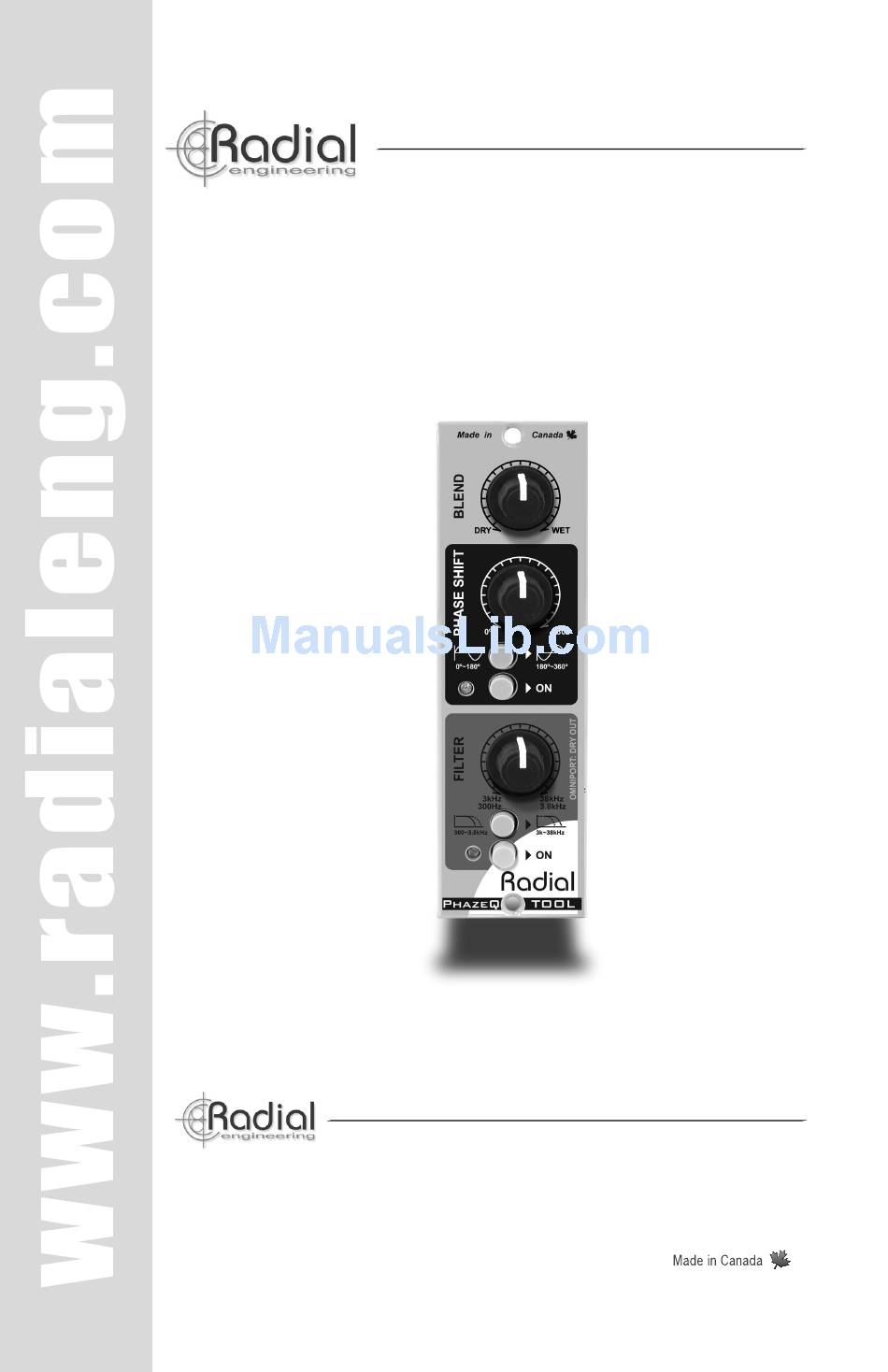

- Page 1 H A Z E O O L Phase Alignment Tool & Filter 500 Series Module User Guide ® True to the Music www.radialeng.com Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam British Columbia, Canada, V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 email: info@radialeng.com...
-
Page 2: Table Of Contents
® ™ Radial 500 User Guide HAZE Table of Contents ............Page Feature Set ..............1 Overview ................ 2 Getting Started ............... 4 Using As Phase Adjustment ........... 6 Using As Equalizer ............7 Using The Low-pass Filter ..........8 Specifi cations ..............9 Block Diagram .............. -
Page 3: Feature Set
8. OMNIPORT - Available when used with the Radial Workhorse, the Omniport is assigned as a direct dry signal output for re-patching to other devices. Q 500 Module Radial Engineering Ltd. HAZE... -
Page 4: Overview
The effect is even more pronounced when combining a direct signal such as from a direct box with a room microphone. Engineers will often spend hours moving mics to capture the perfect tone. The PhazeQ lets you quickly do it by turning a dial. Q 500 Module Radial Engineering Ltd. HAZE... - Page 5 (because all frequencies have different wavelengths), you will be able to sleep much better at night. Let’s have fun! Q 500 Module Radial Engineering Ltd. HAZE...
-
Page 6: Getting Started
3. INVERT: outward position (0° ~ 180°) 4. ON: outward position (PhaseQ bypassed) 5. FILTER: set to fully clockwise 6. RANGE: outward position (300Hz ~ 3.8kHz) 7. ON: outward position (fi lter bypassed) Q 500 Module Radial Engineering Ltd. HAZE... - Page 7 EQ AND TONE SHAPING: With a single microphone the BLEND control is used to mix the original and phase shifted signals together. This combined with the LPF fi lter can create a variable EQ that uses phase cancellation to shape the sound. Q 500 Module Radial Engineering Ltd. HAZE...
-
Page 8: Using As Phase Adjustment
Try depressing the 180º switch. This will reverse the polarity of the signal from 0º to 180º to effectively shift the phase between 181º to 360º. The effects can be dramatic, weird and very pleasing. There are no rules… just fun! Q 500 Module Radial Engineering Ltd. HAZE... -
Page 9: Using As Equalizer
The only way to really understand how this works is by trying it. The more you play with it, the more you will begin to realize the scope. It is huge. Q 500 Module Radial Engineering Ltd. HAZE... -
Page 10: Using The Low-Pass Filter
Once again there are no rules, only choices. Thank you for taking the time to read throught this manual. The suggested uses and applications outlined are simply an introduction to the capabilities of the PhazeQ 500 module. Enjoy! Q 500 Module Radial Engineering Ltd. HAZE... -
Page 11: Specifi Cations
® True to the Music PHASEQ 500 MODULE SPECIFICATIONS* Circuit Type: Discrete Component Class A Frequency Response: 20Hz~20KHz Dynamic Range: 102dB Noise - Dry: -90dB below0dBu Noise - Wet: -80dB below 0dBu Maximum Output: +17dBu THD+N - Dry: >0.002% @1kHz (0dB input, 100k load) THD+N - Wet: >0.015% @1kHz (0dB input, 100k load) - Page 12 THREE YEAR TRANSFERABLE LIMITED WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi nish and wear and tear on components under normal use) for a period of three (3) years from the original date of purchase.
