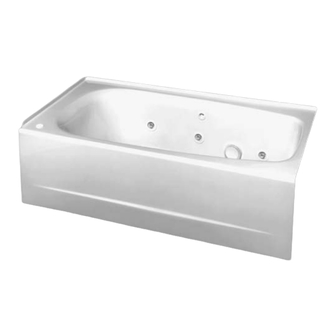

American Standard Cambridge 2460.002 Specification Sheet

American Standard Cambridge 2460.002 Specification Sheet

Barrier free 5' whirlpool and bathing pool, americast brand engineered material

Advertisement

Quick Links

BARRIER FREE
CAMBRIDGE™ 5' WHIRLPOOL AND
BATHING POOL
2461.028W Whirlpool Featuring System I
Right Hand Drain Outlet
2460.028W Whirlpool Featuring System I
Left Hand Drain Outlet
• Americast
brand engineered material
®
• Acid-resistant porcelain finish
• Integral apron with integral 3-sided tile/water
retention flange
• Integral lumbar support with beveled headrest
• Full slip-resistant coverage
• 1.6 HP single speed, self-draining pump/motor
• Factory installed power cord and plug
• Six multi-directional and flow-adjustable jets
• Deck-mounted air switch On/Off
• Two silent air volume controls
• Quick Connect Safe-T-Heater
connection system
• Factory installed and tested whirlpool system
Whirlpool featuring System I
2461.128W Whirlpool Featuring System I
Right Hand Drain Outlet with Grab Bar Drilling
2460.128W Whirlpool Featuring System I
Left Hand Drain Outlet with Grab Bar Drilling
• Same as above except with grab bar drilling
(grab bar must be ordered separately)
EverClean
Whirlpool featuring System I
®
2461.028WC Whirlpool Featuring System I
Right Hand Drain Outlet
2460.028WC Whirlpool Featuring System I
Left Hand Drain Outlet
• Same as 2460/2461.028W except with the
EverClean
System
®
EverClean Whirlpool featuring
System I and Grab Bar Drilling
2461.128WC Whirlpool Featuring System I
Right Hand Drain Outlet with Grab Bar Drilling
2460.128WC Whirlpool Featuring System I
Left Hand Drain Outlet with Grab Bar Drilling
• Same as 2460/2461.028W except with the
EverClean whirlpool system and grab bar
drilling (grab bar must be ordered separately)
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ASME A112.19.4M for Americast Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
WHIRLPOOL AND BATHING POOL
AMERICAST
Bathing Pool:
2461.002 Bathing Pool Right Hand Drain Outlet
2460.002 Bathing Pool Left Hand Drain Outlet
Bathing Pool with Grab Bar Drilling:
2461.102 Bathing Pool Right Hand Drain Outlet
2460.102 Bathing Pool Left Hand Drain Outlet
Nominal Dimensions:
1524 x 813 x 451mm (60" x 32" x 17-3/4")
Bathing Well Dimensions:
1372 x 660 x 432mm (54" x 26" x 17")
Americast
®
brand engineered material is a composition of porcelain bonded to
enameling grade metal, bonded to a patented structural composite.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.
INSTALL WITH SEAT AT HEAD END.
To Be Specified - Required:
❏ Color:
❏ Bath Filler: (specify finish)
❏ Bath Drain: 1583.470 (specify finish)
To Be Specified - Optional:
❏ Safe-T-Heater*: 9075.120
❏ Jet Trim Ring Kit: 9860.200-one per kit (specify color)
for Body Massage Jets only
❏ Universal Tile Bead Kit: 751755-100
For color/finish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
* NOTE: the Safe-T-Heater is designed to maintain water
temperature during operation. It will not heat cold water to
desired bathing temperature.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
H109
CAMBRIDGE™ 5'
BRAND ENGINEERED MATERIAL
®
Revised 2/08
