Infinity Modulus II Owner's Manual page 9

C S
ENTER AND ATELLITE
Turn Off All Power
After placing the speakers, you are ready to connect your system.
First, turn off all audio-system power. Use high-quality speaker
wire to make your connections. Use at least 1.3 mm diameter
speaker wire with polarity coding.The side of the wire with a
ridge or other coding is usually considered positive polarity (i.e.,
+ ). Also, consult the owner's manuals that were included with
your amplifier or receiver to confirm connection procedures.
Connection
Observe polarities when making speaker connections, as shown
in Figures 9 and 10. Connect each + terminal on the back of the
amplifier or receiver to the respective + (red) terminal on each
speaker. Connect the – (black) terminals in the same way.
Important!
Do not reverse polarities (i.e., + to – or – to +) when making
connections. Doing so will cause poor imaging and diminished
bass response. Be certain that positive and negative wire strands
are completely isolated to avoid short circuits that may damage
your equipment.

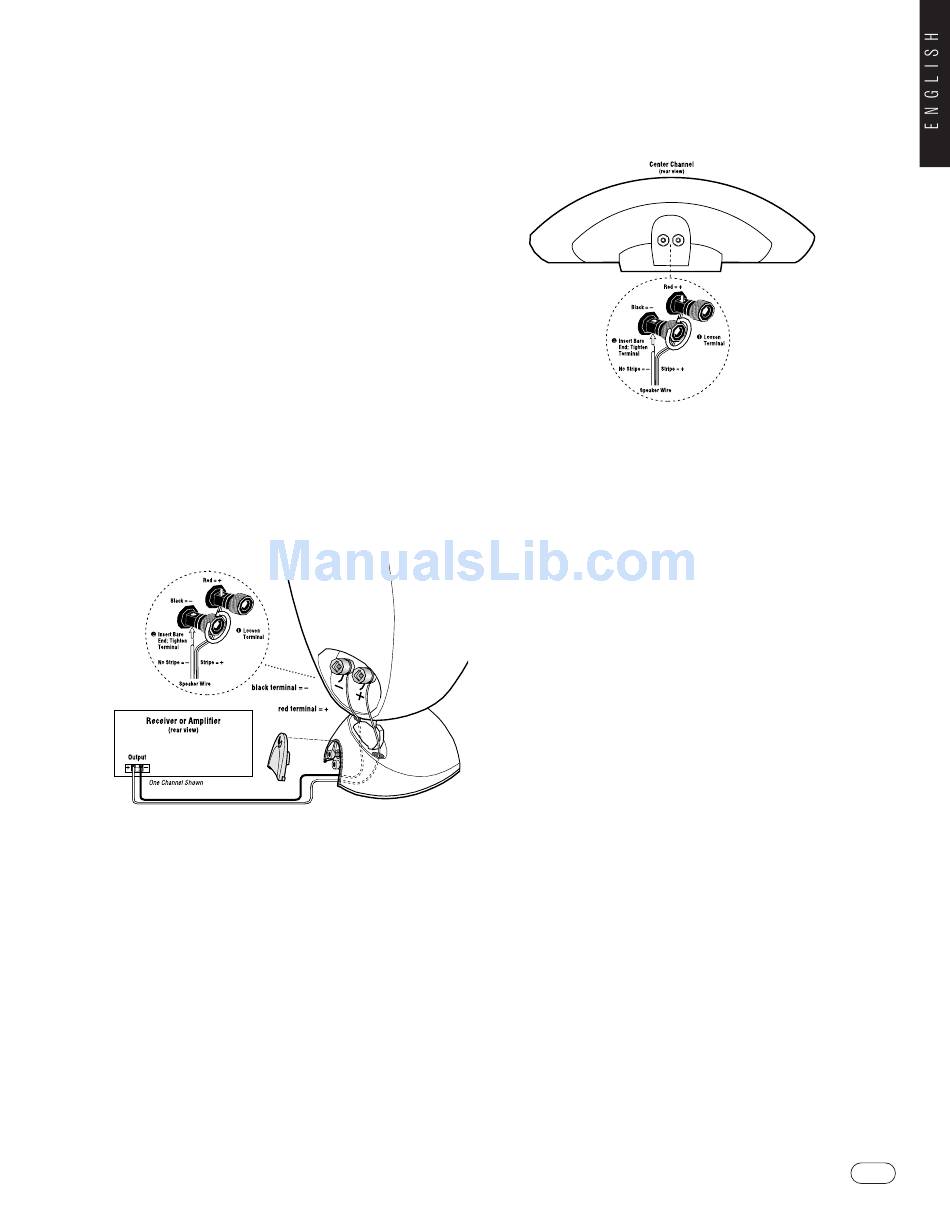

F 9
– Wiring diagram shows polarity connections for one
IGURE
channel of a home-theater system.
S C
PEAKER ONNECTIONS
F 10
– The satellites and center-channel speaker feature terminals
IGURE
that can be connected in several different ways; e.g., banana plugs, spade
terminals and direct wiring (as shown here).
MODULUS II HOME THEATER SYSTEM
5
