Infinity Modulus II Owner's Manual page 8

I
NSTALLING THE SATELLITES
For Wall-Mounting
Note: The customer is responsible for the correct selection
and use of mounting hardware (available through hardware
stores) that will ensure the proper and safe wall-mounting of
the speakers.
1. Remove the Modulus from its box. Remove rubber cover from
the base and pull out Allen wrench. Use Allen wrench to remove
mounting plate screw and remove mounting plate from base.

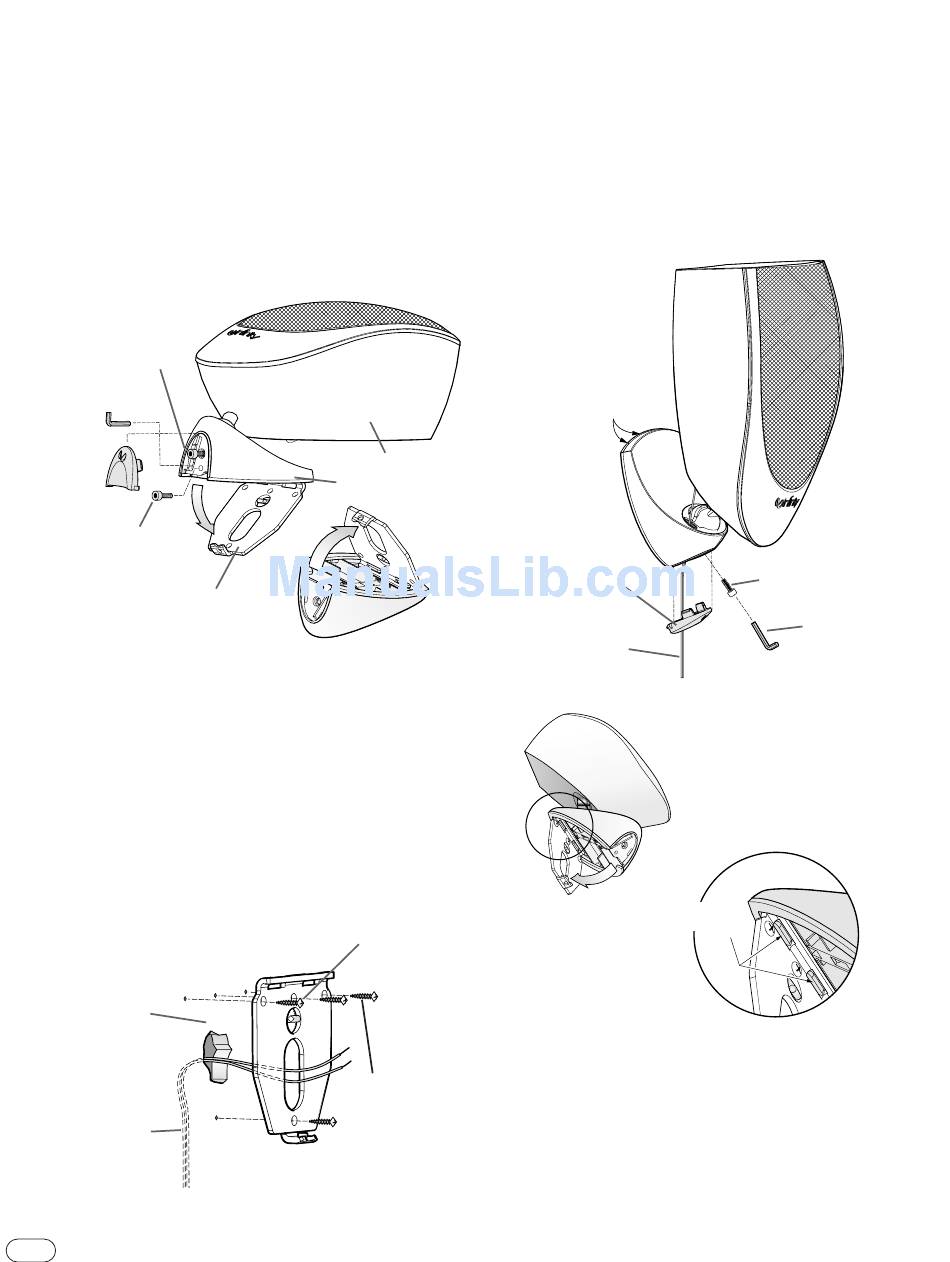

F 6
IGURE
Adjustment
Screw
Allen Wrench
housed
in Base
Rubber
Cover
Mounting Plate Screw
Mounting Plate
2. Secure the mounting plate to a wall stud using 4 screws with a
minimum 30 mm length. If fastened to sheetrock or wallboard with
a minimum 12 mm depth, use screws with plastic inserts or
anchors. Do not mount directly to sheetrock or wallboard without
plastic inserts or anchors. One of the mounting plates in the
Modulus system has a built-in bubble level for leveling while
securing to the wall.This mounting plate should be used as a
template for mounting the mounting plates that do not include a
bubble level.
2a. In cases where you would like to run the speaker wires
through the wall, the mounting plate has a center hole for wire
access.
WALL
F 7
IGURE
Hole in the wall
Speaker Wires
MODULUS II HOME THEATER SYSTEM
4
3. Run the speaker wires through the base as shown below.Attach
base to mounting plate by slipping the returns on the underside of
base into slots on the top of the mounting plate and hinging the
base downward. Secure base by inserting and tightening mounting
plate screw.Tighten adjustment screw, fixing the speaker in
position.
Speaker
Base
Bubble Level
4. Insert the Allen wrench back into holder in base
and attach rubber cover.
Wood screws
(not included)
F 8
IGURE
Returns on
underside of Base
Rubber Cover
Speaker Wires
Viewed from below
Note: Base has returns
that grab Mounting Plate
Adjustment Screw
Allen Wrench
