Using the Width Selector
Read the following instructions carefully.The example
presented may not look like the graph you just created.
Focus on the concepts and techniques presented. Specific
cases will be discussed later.

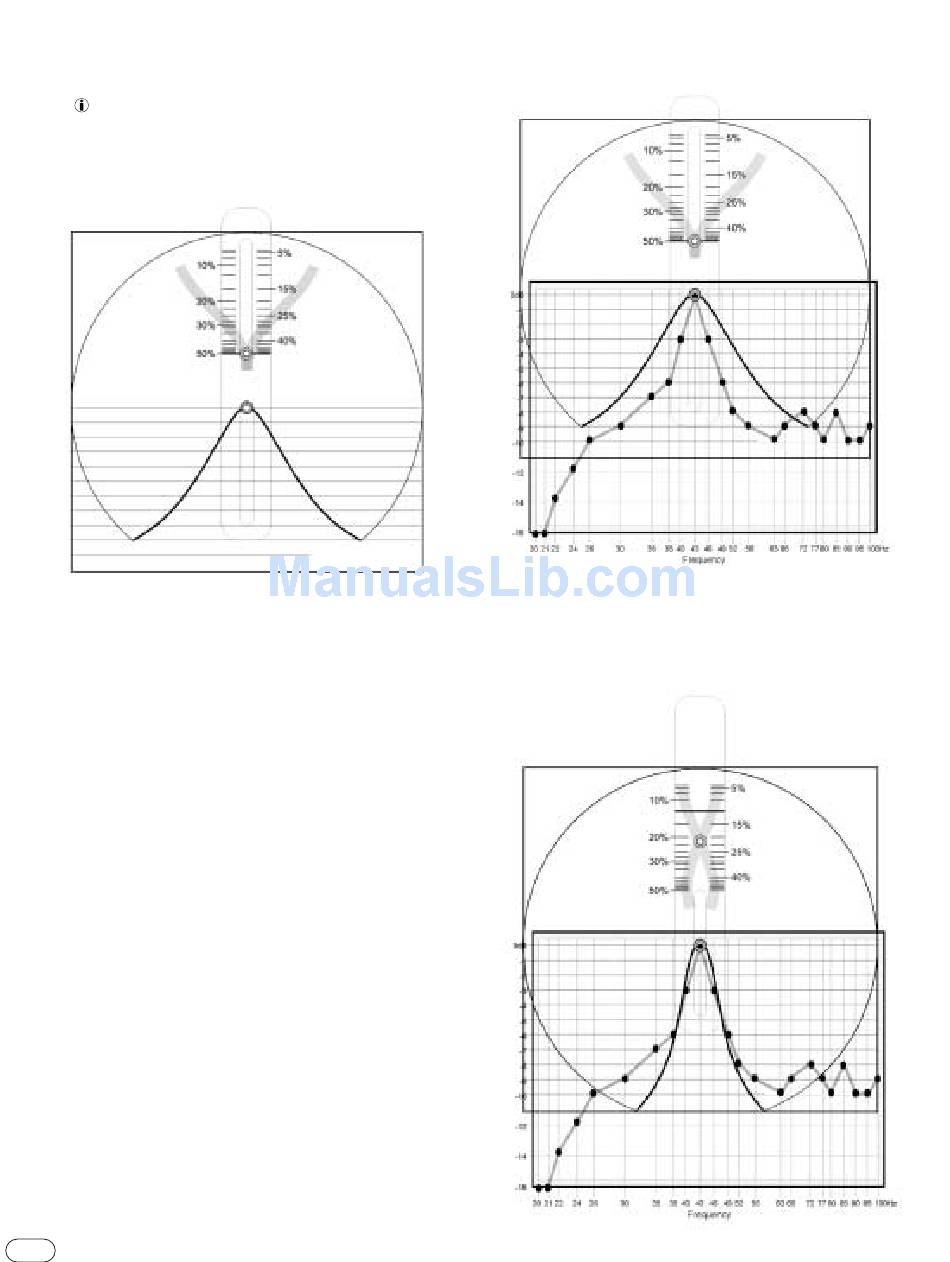

Width Selector
F 22
IGURE
You will use the Measurement Template just completed and the
Width Selector to determine the correct width setting.The Width
Selector graphically depicts a single resonant peak.The peak
looks similar to a slice of a pie. See Figure 22. At the top of the
Selector is a pull tab. When you slide the tab up and down, the
width of the pie slice becomes narrower and wider, respectively.
The pointers on the sides of the button point to the bandwidth that
corresponds to the width of the slice.
Place the Width Selector over the Measurement Template,
positioning the center rivet of the Selector over the response
peak, as shown in Figure 23. Be sure to align the horizontal lines
of the Width Selector with those of the Measurement Template.
MODULUS II HOME THEATER SYSTEM
14
Placement of the
Bandwidth Selector
F 23
IGURE
Apply pressure to the upper and lower left corners of the Selector
using the thumb and forefinger of your left hand. Now gently slide
the tab up or down until the adjustable slice most closely fits the
response data. See Figure 24.
Selector adjusted for
the "best fit"
F 24
IGURE
