Infinity Modulus II Owner's Manual page 7

I S
NSTALLING THE ATELLITES
For Shelf Placement
1. Remove the Modulus satellites from the box. Remove rubber
cover from the base and pull out Allen wrench.
NOTE: To prevent damage to the mounting ball, do not rotate the
speaker unless the adjustment screw has been loosened.

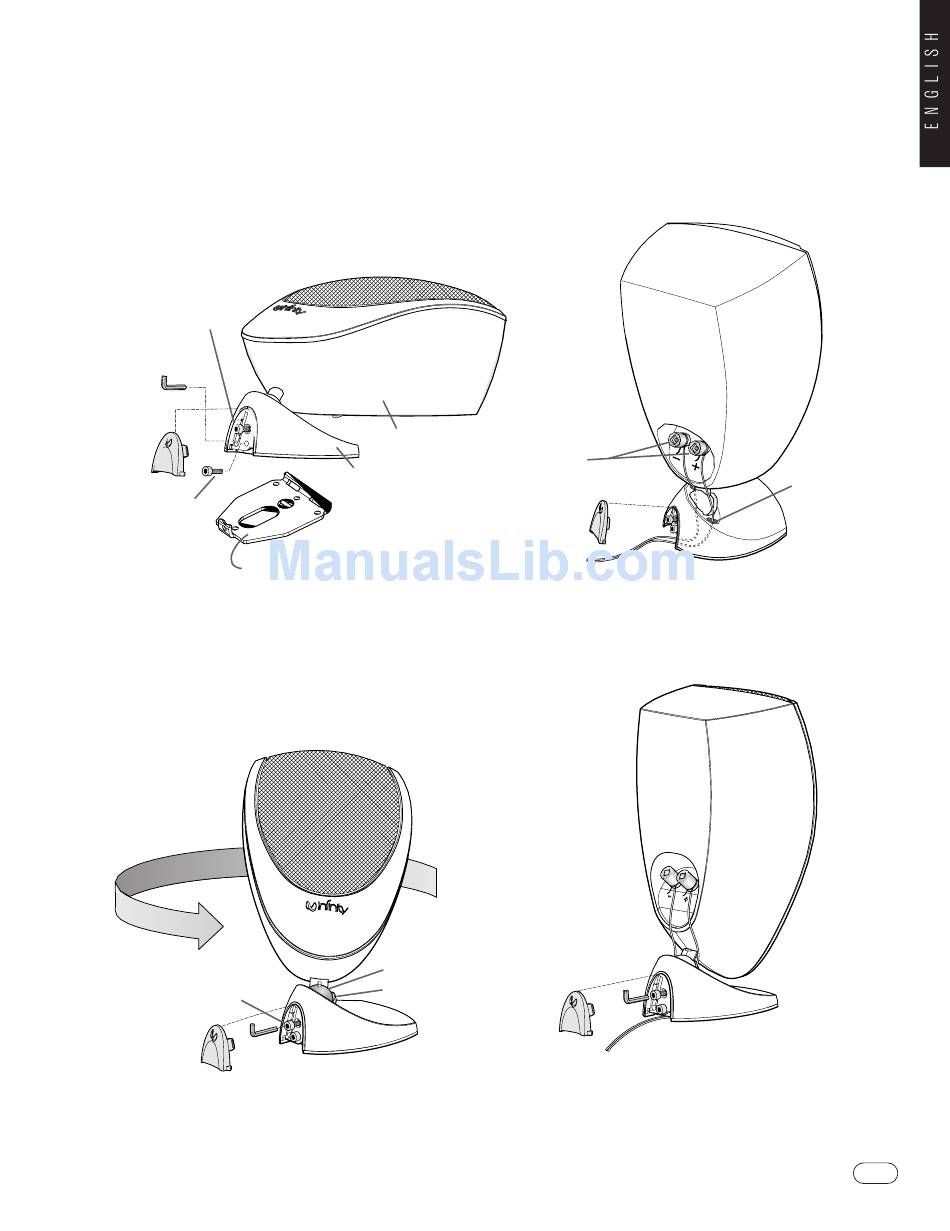

F 2
IGURE
Adjustment
Screw
Allen Wrench
housed
in Base
Rubber
Cover
Mounting Plate Screw
Mounting Plate shown removed from Base.
The Mounting Plate is used to secure the
Modulus to a surface in a fixed position
such as for wall-mounting or on an
uneven surface.
2. Use the Allen wrench to loosen the adjustment screw
(as necessary) to allow the mounting ball on the speaker to turn
freely in the cup restraint.
F 3
IGURE
Adjustment Screw
3. Run the speaker wires in through the rear of the base and
up through the speaker wire holes on the left and right sides
of the cup restraint (see page 5, Figure 9 for wire connections).
F
IGURE
Speaker
Connector Posts
Base
4. Rotate speaker on its base into the shelf placement position as
shown below.Tighten the adjustment screw with the Allen wrench
(securing the speaker in position) and replace the cover.
F
IGURE
Speaker
Mounting Ball
Cup Restraint
4
5
MODULUS II HOME THEATER SYSTEM
Speaker
Wire Hole
3
