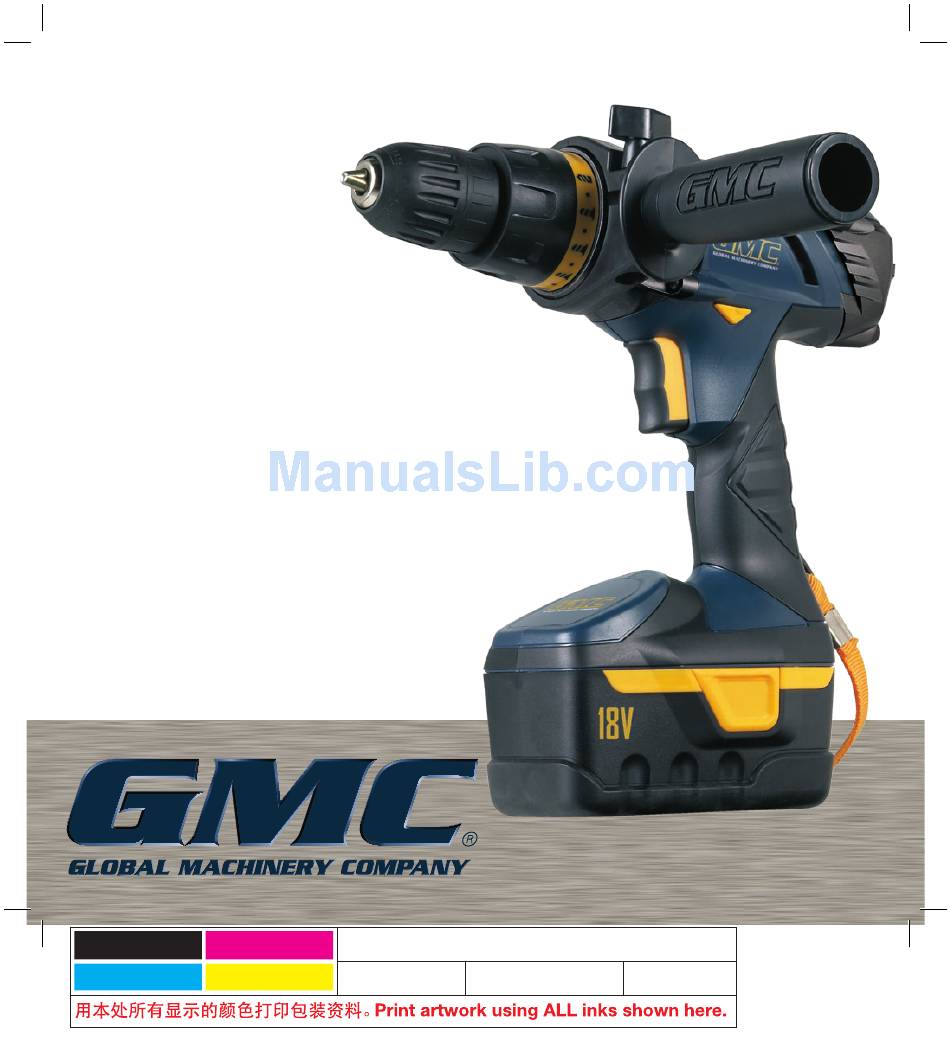

- Page 1 CORDLESS DRILL/DRIVER BN18SB INSTRUCTION MANUAL Black Magenta Cyan Yellow Code: BN18SB Date: 080508 Edition: 03 Op: DCR...
-
Page 2: Table Of Contents
Additional safety instructions for the charger Know your product Fitting and removing the battery pack Battery charging To obtain the best life for the battery Using the drill Forward/reverse switch Adjustable torque Inserting and removing bits Adjustable side handle Drilling... -
Page 3: Introduction
Specifications Nominal battery charge: 18V Charger: Input: 100 – 240V ~ 50-60Hz 300mA Output: 26V dc 320mA Charging time: 3-5 Hours Drill no load speed: 0-550 min Torque settings: 21 Positions Drill chuck capacity: 10mm Keyless Weight: 2.1kg... -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Save these instructions 1. -
Page 5: Additional Safety Rules For Drills
Ensure that the lighting is adequate. • Do not put pressure on the drill, such that it slows the motor down. Allow the drill bit to cut without pressure. You will get better results and you will be taking better care of your tool. -
Page 6: Additional Safety Instructions For The Charger
who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards. Children and frail people must not use this tool. Children should be supervised at all times if they are in the area in which the tool is being used. -
Page 7: Know Your Product
Know your product This drill is mainly used for drilling in wood or metal sheet and screwdriving. Use the tool and accessories only for intended applications. All other applications are expressly ruled out. 1. Keyless chuck 2. Torque collar 3. Trigger with variable speed control 4. -
Page 8: Fitting And Removing The Battery Pack
Fitting and removing the battery pack To remove the battery pack from the drill firmly press the battery release tabs (7) at either side of the battery pack, and slide the battery backward out of the tool. To install the battery pack, align rails, on the tool with the... -
Page 9: Forward/Reverse Switch
3. Holding the rear section of the chuck firmly, rotate the front section of the chuck clock-wise until the jaws tighten on the drill bit. The front section of the chuck needs to be tightened firmly to ensure the drill bit is held securely. -
Page 10: Drilling
• Mark off the centre of the hole using a centre punch or nail. • Don’t force the drill, let it work at its own pace • Keep the drill bit sharp. • Reduce pressure, as the drill is about to break through the item being drilled. - Page 12 GMC customer assist If your product needs repairing or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
