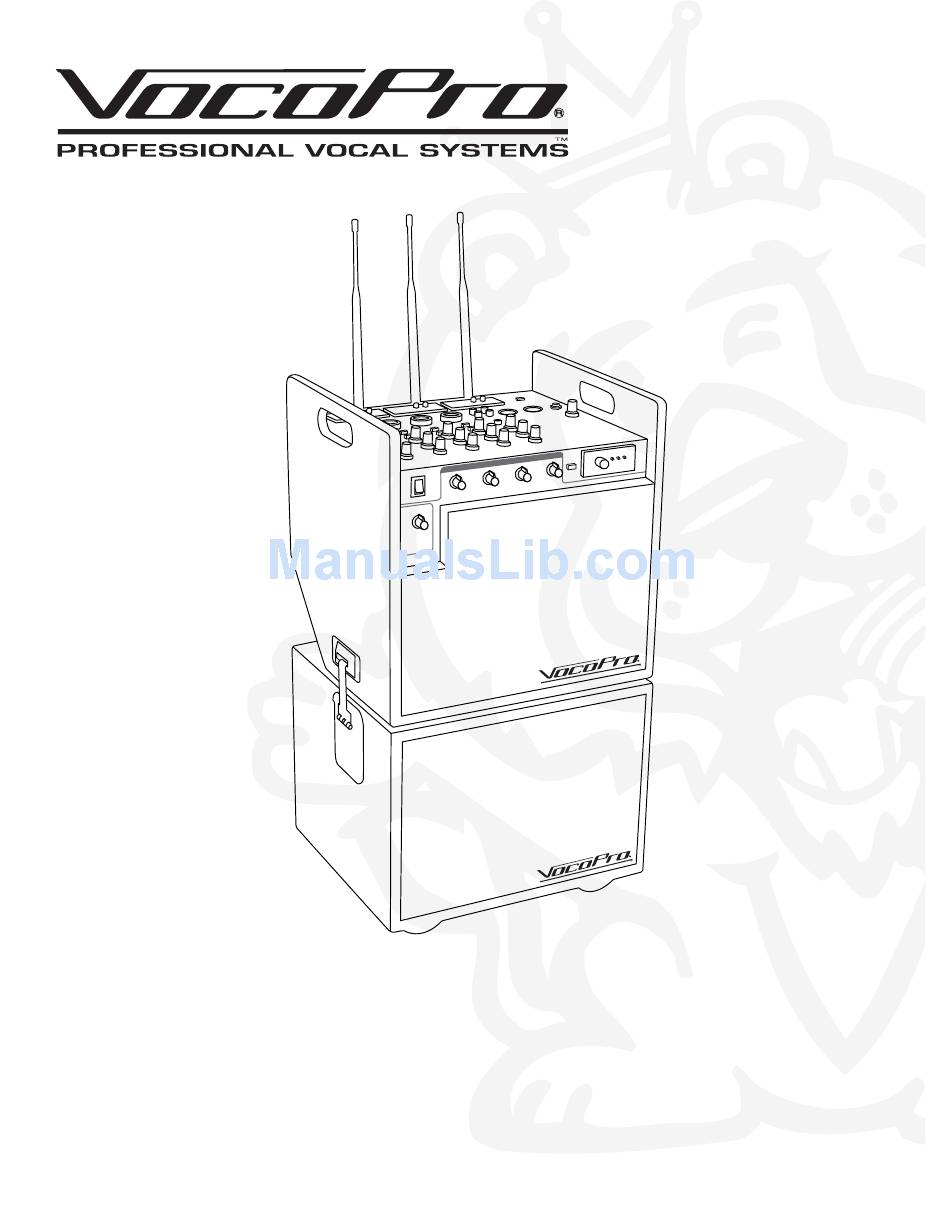

MOBILEMAN
Battery Powered P.A. System
O W N E R ' S
M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for VocoPro Mobileman

Summary of Contents for VocoPro Mobileman

  • Page 1 MOBILEMAN Battery Powered P.A. System O W N E R ’ S M A N U A L...

  • Page 2: Table Of Contents

    Table of Contents FCC Information ..............3 Listening for a Lifetime ............4 Safety Instructions .............. 5 Welcome ................6 Before Getting Started ............7 Getting Started ..............8 Getting Connected .............. 9 Descriptions and Features ..........16 SDR-3 Descriptions and Features ........22 SDR-3 Operations ............

  • Page 3: Fcc Information

    FCC requirements. Modifications not expressly approved by 1. To ensure the finest performance, please read this Vocopro may void your authority, granted by the FCC, manual carefully. Keep it in a safe place for future reference. to use this product.

  • Page 4: Listening For A Lifetime

    Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

  • Page 5: Safety Instructions

    Safety Instructions CAUTION 9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) RISK OF SHOCK that produce heat. CAUTION: To reduce the risk of electric shock, do 10.

  • Page 6: Welcome

    Service directory! a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate singer’s ultimate choice. choice.

  • Page 7: Before Getting Started

    Before Getting Started Introduction Thank you for purchasing the MOBILEMAN system. The MOBILEMAN will provide years of reliability and high quality entertainment for you if used properly. Please read this manual carefully before using your MOBILEMAN to ensure best performance.

  • Page 8: Getting Started

    Getting Started Unpacking the MOBILEMAN: Carefully remove the MOBILEMAN from its carton. It is recommended that you store the original packaging materials in case you need to ship this equipment for any reason. Be sure you have the following parts and components included with your MOBILEMAN:...

  • Page 9: Getting Connected

    Getting Connected Quick Start Diagram Use the connection diagram below for quick reference to the MOBILEMAN’s input and outputs. MIC, INSTRUMENTS, LINE-LEVEL PRE-AMP OUTPUTS MIXERS, AMPLIFIERS, POWERED SPEAKERS CD/DVD PLAYERS (USE RCA PLUG) DVX-890K Digital Key Control Multi-Format Player OPEN/CLOSE...
  • Page 10 Getting Connected Locking the Main Unit to the Subwoofer Position the main unit so it is flush with the subwoofer. Position the latch of the locking mechanism in the slot, and turn the lock lever clockwise to lock. Repeat on both sides. Unlocking the Main Unit to the Subwoofer Turn the lock lever counter-clockwise to unlock the mechanism.

  • Page 11: Descriptions And Features

    Connect the other end to the INPUT jack on the rear panel of the subwoofer. 1/4” - 1/4” Mono Audio Cable See the Subwoofer Descriptions and Features section for information on setting up the subwoofer controls. MOBILEMAN...
  • Page 12 If you are connecting a microphone that requires phantom power, make sure to set the +48V button to ON. If you are connecting a line-level pre-amp output, make sure to set the 30dB PAD button to LINE. MIC, INSTRUMENTS, LINE-LEVEL PRE-AMP OUTPUTS MOBILEMAN XLR-M to XLR-F cable 1/4” - 1/4” Mono Audio Cable...
  • Page 13 POWER POWER PLAY/PAUSE PLAY/PAUSE AUDIO AUDIO PREV PREV NEXT NEXT STOP STOP DIGITAL ECHO DIGITAL ECHO DOWN DOWN NEUTRAL NEUTRAL 10 0 10 0 SD/MMC/MS SD/MMC/MS KEY CONTROL KEY CONTROL MOBILEMAN Laptop or Mp3 player 1/8” - 1/8” audio jack...
  • Page 14 Getting Connected Connecting XLR Line Output These balanced pre-amp outputs are for connecting to mixers, amplifiers, or other device with XLR line inputs. MIXERS, AMPLIFIERS, POWERED SPEAKERS XLR-M to XLR-F cable MOBILEMAN...

  • Page 15: Mobileman Main

    Connecting to a Second MOBILEMAN Main Unit You can connect a line output to a second MOBILEMAN main unit for double the power and stereo audio output using the STEREO LINK jacks. When two MOBILEMANs are connected, one is designated the master and the other the slave.

  • Page 16: Descriptions And Functions

    UHF modules when they are not being used. 3. EFFECT MONO/STEREO button – Use this button to switch between mono and stereo modes when using the echo effect. When using a single MOBILEMAN main unit, set the button to MONO. When using two MOBILEMAN main units together in stereo, set the button to STEREO.
  • Page 17 Descriptions and Functions Top Panel MOBILEMAN CHANNEL 1-3 STRIPS 9. XLR-1/4” jack – These combo-jacks are for connecting microphones, music instruments, and line-outs from mixers. Connect cables with a ¼” plug into the center of each jack. Connect cables with an XLR plug into the outer ring of each jack.

  • Page 18: Descriptions And Features

    Descriptions and Features Top Panel MOBILEMAN CH 4/5/SD STRIP 15. CD/DVD jacks – Use these RCA jacks to connect a stereo audio device such as a CD, DVD, or portable MP3 player. Use t he controls below the jacks to adjust the audio levels for the connected device.

  • Page 19: Front Panel

    Turn clockwise to increase, and counter-clockwise to decrease. 3. POWER LED indicator – This LED indicates the power status of the MOBILEMAN main unit. The LED light green when the MOBILEMAN is turned on, and turn off when the power is off.

  • Page 20: Rear Panel

    1. CH 1/2/3 ANTENNA inputs – Connect antennas to these inputs if UHF modules are installed. (See page 25 for antenna installation instructions.) 2. STEREO LINK - The stereo link jacks provide a convenient way to connect multiple MOBILEMAN main units together. (See page 15 for instructions on connecting two MOBILEMAN main units together.) 3.
  • Page 21 4. INPUT jack (1/4”) – Use this jack to connect to the main unit with the supplied ¼” mono cable. 5. 12V DC input – Connect the AC power cable here for powering and charging the subwoofer. NOTES: Do not connect both AC and DC power cable at the same time. The MOBILEMAN is 110-220V compatible.

  • Page 22: Sdr-3 Descriptions And Features

    7. PLAY LED – This orange LED will illuminate during playback of recorded material, and during a recording in progress. 8. POWER LED – This green LED indicates the SDR-3 is on and drawing power from the MOBILEMAN. This LED should illuminate and stay lit as long as the MOBILEMAN is powered on.

  • Page 23: Sdr-3 Operations

    SDR-3 Operations SDR-3 Installation 1. Unscrew the two retaining screws. 2. Remove plate and store it in a safe place. 3. Attach the cable to the back of the SDR-3. 4. Carefully slide the SDR-3 into place. 5. Replace and tighten screws. Inserting/Removing an SD card 1.

  • Page 24: Wireless Module Descriptions And Features

    SINGLE CHANNEL WIRELESS MICROPHONE RECEIVER MODULE UHF Wireless Channels (MOBILEMAN-II Only) There are two UHF wireless microphone modules (sold separately) available with the MOBILEMAN. Use the CH 1 & 2, and DSP controls to make adjustments to UHF microphone signals. Refer to the information below to setup and use your UHF wireless microphone(s).

  • Page 25: Wireless Module Operations

    1. Unscrew the two retaining screws. 2. Remove the cover plate and store it in a safe place. 3. Fully insert the wireless module so the module is flush with the faceplate of the MOBILEMAN. 4. Replace and tighten screws.

  • Page 26: Operations

    (+/-). 3. Close the battery compartment lid. Basic Operations 1. Press the POWER switch on the front panel of the MOBILEMAN. 2. Adjust the module level controls to approximately 50%. 3. Switch the microphone’s power switch to the ON position.

  • Page 27: Troubleshooting

    There is noise coming from the receiver with the microphones turned OFF. • This is called interference. Remove local sources of UHF interference, such as lighting equipment. In some locations this may be unavoidable due to a frequency conflict. Contact VocoPro tech support for more information.
  • Page 28 MOBILEMAN Owner’s Manual © VocoPro 2012 v1.0718 www.vocopro.com...
