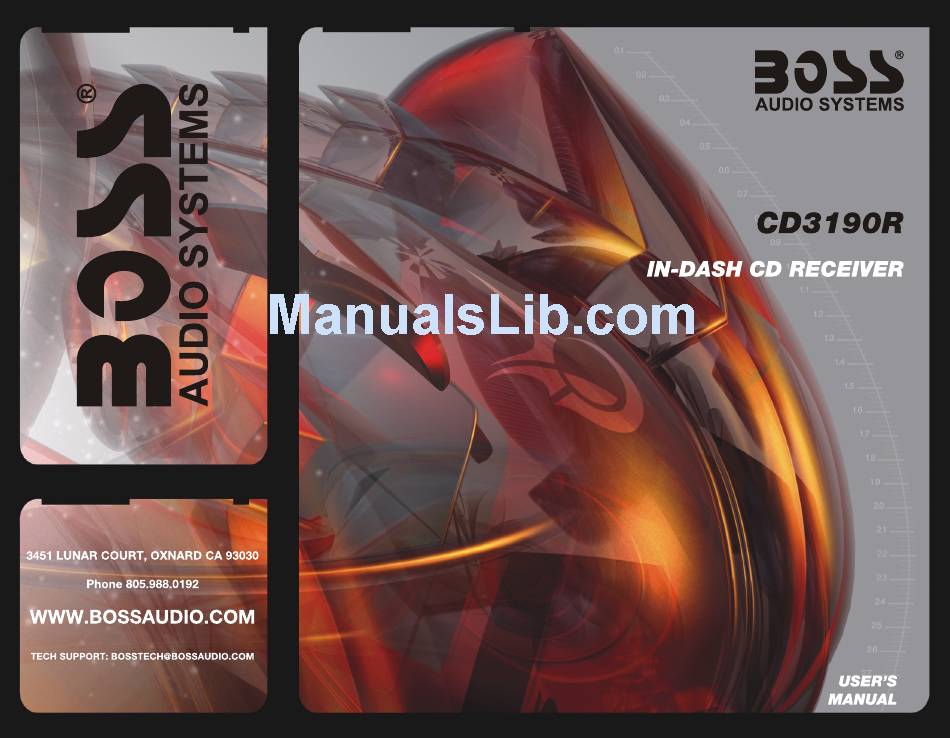

Boss CD3190R User Manual

In-dash cd receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD3190R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boss CD3190R

Summary of Contents for Boss CD3190R

  • Page 2 1. BUTTONS LOCATION AND FUNCTIONING PANEL LOCAL/DX PRESET PANEL POWER BUTTON RELEASE EQUALIZER OPEN/EJECT BUTTON (LOC) BUTTON BUTTON BUTTON (ILL) ENCODER AUDIO MUTE PRESET MEMORY BUTTONS (M1~M6) BAND/LOUDNESS VOLUME BUTTON BUTTON BUTTON BUTTON MONO/ REMOTE DISPLAY STEREO CONTROL BUTTON BUTTON RECEIVER AUTOMATICALLY TUNING UP / DOWN...

  • Page 3: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 5: Din Rear-Mount (Method B)

    Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.

  • Page 6: Detachable Control Panel (D.c.p .)

    4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P .
  • Page 7 5. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE ANTENNA ANTENNA JACK WHITE YELLOW 20-PIN AUX IN AUDIO/POWER HARNESS (See Figure 1) DIN SOCKET RCA-TO-RCA CABLES 8 PIN CD SUB WOOFER (not supplied) BLUE CHANGER (OPTION) WHITE RCA-TO-RCA CABLES (not supplied) WHITE REAR LINE OUT GREY...
  • Page 8 6.PANEL OPEN/CLOSE OPERATION (MOTORIZED SLIDE DOWN VERSION) This unit is equipped with the most advanced full logic motorized slide down system. You can enjoy this advance technology with just a single press of the “OPEN” button Please read the following instructions carefully before operating the unit.

  • Page 9: Basic Operations

    7. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12)POWER ON/OFF BUTTON Press this button long to turn on or off the power. In VFD button short press this button to toggle dimmer function. This will change the brightness of VFD and there are three levels of brightness can be selected.

  • Page 10: Audio Operations

    8. AUDIO OPERATIONS 10)ENCODER VOLUME BUTTON Turn this knob to adjust desired volume level. 5) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, press turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode.

  • Page 11: Radio Operations

    9. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1.PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2.AUTO MEMORY STORE: Press AS/PS button for couple of seconds to enter Auto Store mode, this feature will automatically scan the current band and enter up to 6 strongest stations into the 6 preset memories.
  • Page 12 10.CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.

  • Page 13: Cd Changer Operations

    11.CD CHANGER OPERATIONS The CD Changer must be properly installed before operation, connect the CD Changer control cable to the CD Changer control input socket at the back of the unit. CD PLAYING Press the Mode Button to select CD mode, if CDs are loaded and the magazine is inserted, the VFD will display "CDC"...

  • Page 14: Remote Control

    12.REMOTE CONTROL OPERATIONS: Radio Mode CD Player Mode CDC Player Mode 1. Power Power On/Off Power On/Off Power On/Off 2. Volume Up/Down Adjust Vol,Bas, Adjust Vol,Bas, Adjust Vol,Bas, Tre,Fad,Bal Tre,Fad,Bal Tre,Fad,Bal 3. DISP Display Clock Display Clock Display Clock 4. Stereo/Mono FM Mono/ Stereo No Function No Function...

  • Page 15: Specifications

    13.SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ratio RADIO SECTION 87.5-107.9MHz Frequency Range 87.5-108MHz 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz...

  • Page 16: Troubleshooting

    14.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
