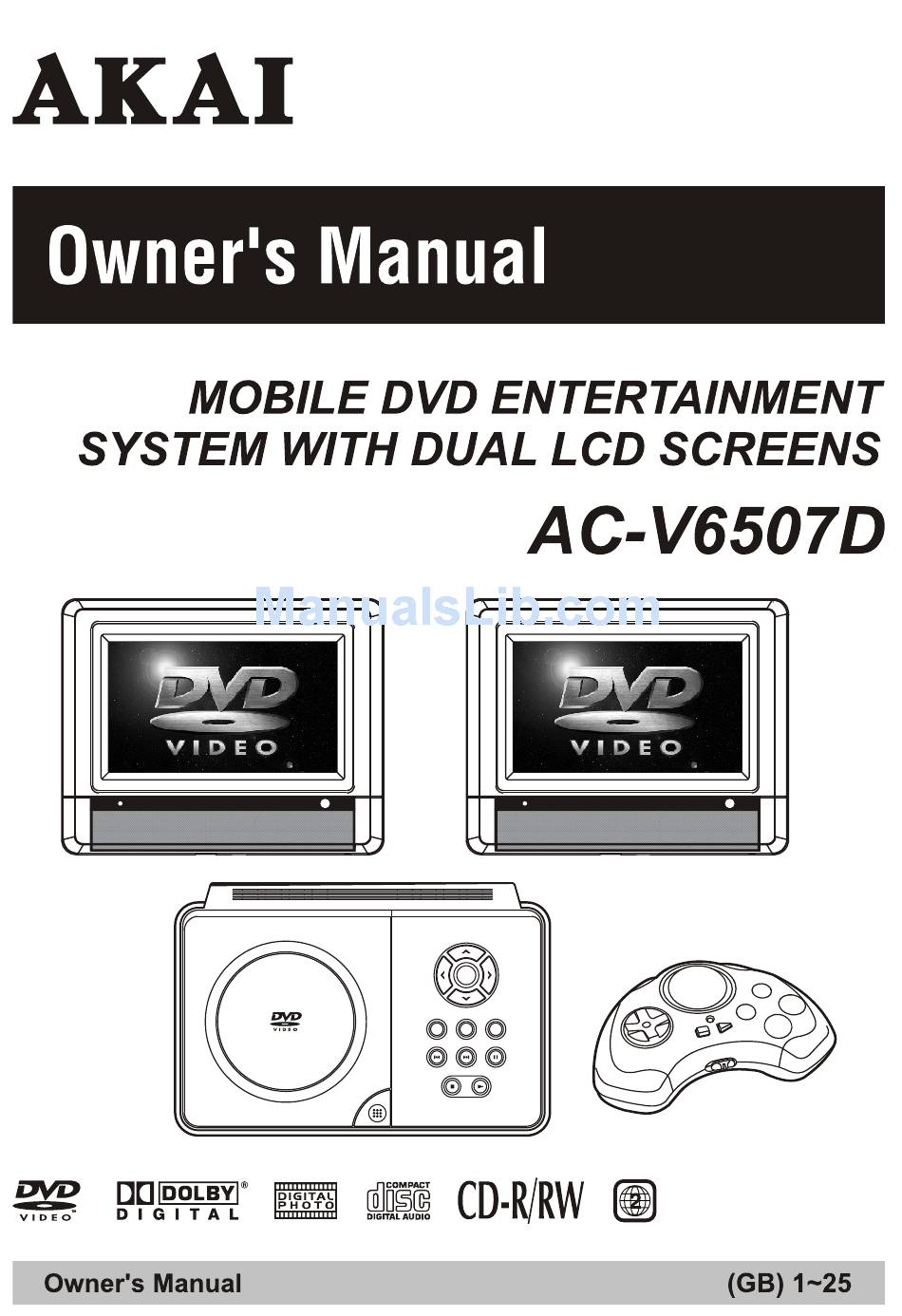

Summary of Contents for Akai AC-V6507D
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS The following mark and symbols are located on The lightning flash with an arrowhead symbol, bottom of the unit. within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to cause an electric shock. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Precautions ........1 Repeat Playback ........19 Important Safety Instructions ....2 Repeating a title/chapter (DVD) ......19 Repeating a single track/whole disc (CD) ... 19 Table of Contents ........3 Repeating a specific section (DVD) ...... 19 Disc Formats .......... -
Page 5: Disc Formats
DISC FORMATS The unit can playback. DVDs D I G I TAL P H O T O [8cm/12cm disc] Audio CDs [8cm/12cm disc] Remarks: 1. "CD-R / CD-RW play capability of this unit may vary depend on quality of media, CD burner and application software."... -
Page 6: Accessories
ACCESSORIES Please check and identify the supplied accessories. Remote control (with battery) ....................x 1 12V car plug adapter ......................x 1 AC adapter .......................... x 1 AC power cord ........................x 1 Audio/Video cable ........................ x 1 Din cable ..........................x 2 Strap ............................ -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control MENU TV MODE STOP PLAY PAUSE PREV SEARCH NEXT ENTER AUDIO SUBTITLE / RETURN GOTO MEMORY ANGLE DISPLAY SETUP DISC REPEAT 1) TV MODE button 8) MENU button In stop mode, select whether to output the video Open and close DVD menu. - Page 8 CONTROL REFERENCE GUIDE Unit 1) Open button NEXT button Open the disc door. Press NEXT button to advance to chapters 2) POWER ON/OFF switch / tracks. Press and hold NEXT button to 3) DC IN 12V jack begin fast scan. Four speeds are available. 4) Disc Door PAUSE button Close by pushing the disc door.
- Page 9 CONTROL REFERENCE GUIDE Monitor 1) MONITOR ON/OFF switch SCREEN switch 2) STANDBY indicator Wide: Wide-screen The LED will illuminate when the monitor is Normal: Pan screen in standby mode. COLOUR control 3) Screen Adjust for colour intensity. 4) Remote sensor BRIGHTNESS control Receives the remote control unit signals.
-
Page 10: Screen Viewing Angle Adjustment
SCREEN VIEWING ANGLE ADJUSTMENT The Monitor is designed to allow users to have a comfortable viewing angle. The viewing angle can be adjusted +/- 12°. • Gently push the top or bottom of the screen frame to adjust the viewing angle. Caution: •... -
Page 11: Connections
CONNECTIONS Connecting the Monitors • Use the included DIN cables to connect the monitors to the main unit. Monitors CONNECT TO CONNECT TO MAIN UNIT port MAIN UNIT port (Input) (Input) DIN CABLES Connect to MONITOR ports (Output) Main unit Using Headphones/Earphones •... -
Page 12: Using This Unit With Other Equipment
CONNECTIONS Using this Unit with Other Equipment A. Connecting Game Systems/Video Equipment • You can connect Game Systems or other Video Equipment for playback through the monitors. AV IN Right side of unit MONITOR 2 MONITOR 1 (Yellow) AV IN AV IN AV IN (Red) -
Page 13: Connections
CONNECTIONS C. Connecting a Stereo Receiver or Amplifier Analog connection Rear of unit (No need to connect Stereo Receiver the Yellow video plug) or Amplifier (Red) (Yellow) (White) (Red) (White) AUDIO/VIDEO CABLE (not included) AUDIO/VIDEO CABLE (included) Connecting to a Surround Sound System Rear of unit Audio equipment with digital audio input jack... -
Page 14: Unit Operation
UNIT OPERATION Turning the Unit On The system is in the standby condition (STANDBY indicator lights) when the AC power supply cord or Car adapter is connected. Slide the POWER ON/OFF switch (on unit) to the ON position to turn ON the unit. •... -
Page 15: Playing A Disc
PLAYING A DISC Basic playback This owner’s manual explains the basic instructions of this unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. Such as, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 16: Skip (Forward/Reverse)
PLAYING A DISC SKIP (Forward / Reverse) While you are playing a disc, press the NEXT button to move to the beginning of the next chapter or track. Press PREV button to move to the previous chapter or track and automatically start playing it. Audio selection On some discs, the sound is recorded in two or more formats. -
Page 17: Special Functions
SPECIAL FUNCTIONS DISPLAY function Using DISPLAY, you can check and change the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. Remaining time: Remaining time of the title which is currently playing. -
Page 18: Locating A Specific Chapter/Track
SPECIAL FUNCTIONS Locating a specific chapter / track If you know the chapter / track number you want to play, you can locate a specifc chapter / track by directly selecting a chapter / track number. 1.Press the GOTO button to search your desired chapter / track. 2.Press button to highlight a chapter / track and press the corresponding number button(s) for the chapter you want. -
Page 19: Cd/Dvd Programmable Memory
CD/DVD PROGRAMMABLE MEMORY Programmable memory The two types of programmed playback provided by this Unit are title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1.Press the MEMORY button while the disc is stopped. 2.Enter the title numbers in . -
Page 20: Repeat Playback
REPEAT PLAYBACK You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a chapter You can play the same chapter repeatedly. 1.While the disc is playing, press the REPEAT DISC button until the “ ”... -
Page 21: Playing Mp3/Picture Files
PLAYING MP3 / PICTURE FILES This unit can play MP3 and Picture files recorded on CD-R and CD-RW discs. Playing a MP3/Picture file disc 1.Slide the OPEN switch to open the disc door. 2.Hold a MP3 files/Picture file disc by its sides and carefully fit onto the central CD-ROM 1/117 00:00:35... -
Page 22: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS LANGUAGE setting Language Video Audio Rating 1.Press the SETUP button in stop mode. English 2.Use button to one language, then press the ENTER button. The screen Deutsch will change to your selected language wordings immediately. Français Español 3.To exit the SETUP MENU and return to the normal screen, press the RETURN Italiano... -
Page 23: Audio Setting
CUSTOMIZING THE FUNCTION SETTINGS AUDIO setting 1.Press the SETUP button in stop mode. Language Video Audio Rating 2.Use button to select Audio, press the ENTER button repeatedly to Digital Out select Digital Out type. 3.To exit the FUNCTION SETUP MENU and return to the normal screen, press the RETURN button. -
Page 24: Language Code List
LANGUAGE CODE LIST Code Language Name Code Language Name Code Language Name Code Language Name Afar Frisian Malagasy Slovenian Abkhazian Irish Maori Samoan Afrikaans Scots Gaelic Macedonian Shona Ameharic Galician Malayalam Somali Arabic Guarani Mongolian Albanian Assamese Gujarati Moldavian Serbian Aymara Hausa Marathi... -
Page 25: Maintenance
MAINTENANCE Cleaning Disc A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •... -
Page 26: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC cord and AC adpater or the Car plug adapter are connected. • You did not turn on the unit. The remote does • Remove any obstacles between the remote and the unit. not function.
