Summary of Contents for Akai ACVDS940UCX

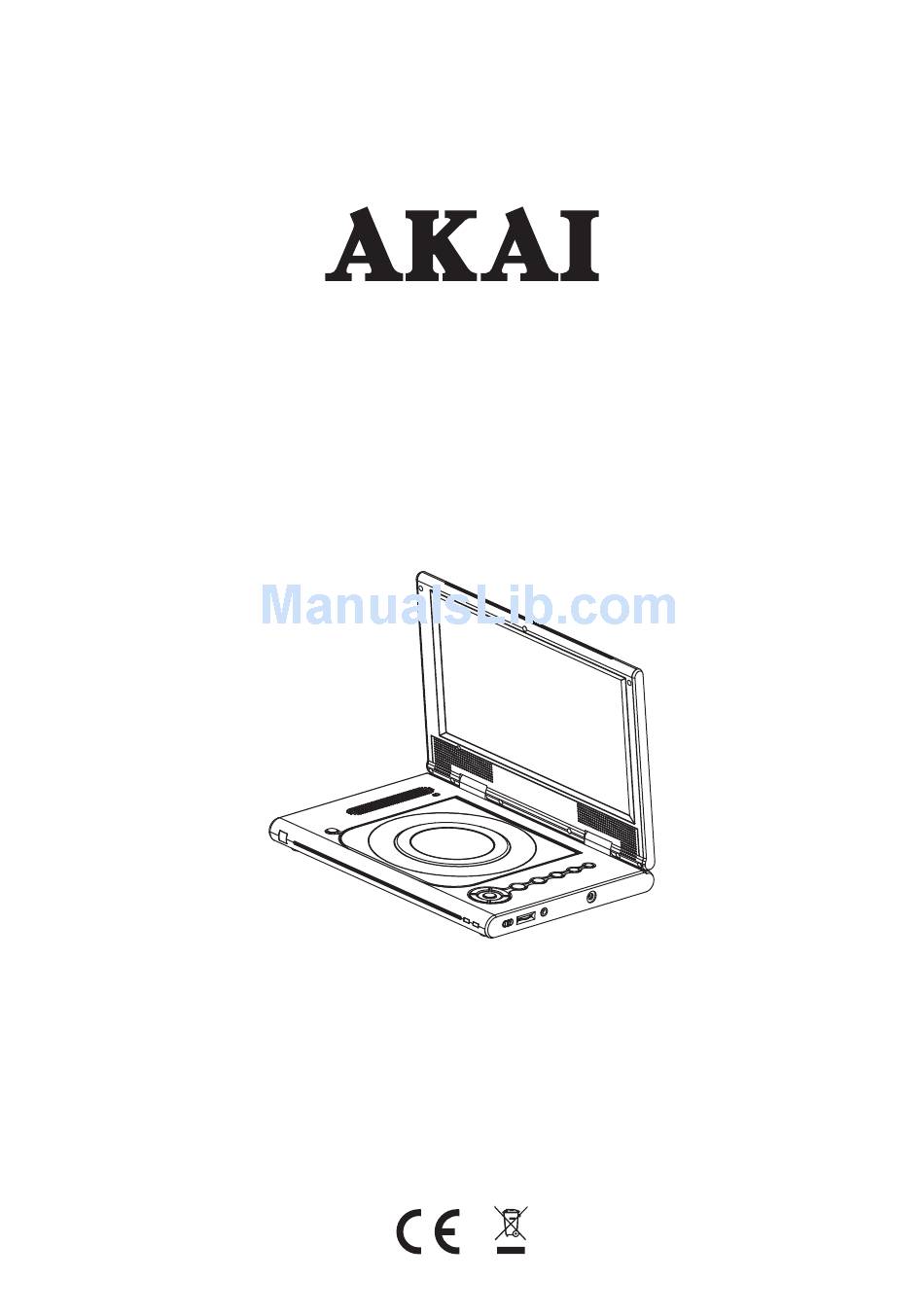

- Page 1 PORTABLE DVD PLAYER ACVDS940UCX OPERATION MANUAL...
- Page 2 PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE OPERATING THIS UNIT. THIS PRODUCT IS SOLD WITH AN AC ADAPTER AND A CAR ADAPTER AC Adapter Car Adapter 1. Input : AC100-240V~ 0.5A 50/60Hz 1. Input : DC 2. Output: DC 12V / 1500mA 2.
-
Page 3: Getting Started
Getting Started Before attempting to connect, operate or adjust this product, please read these instruction completely and keep this manual for future reference. Dear Customers : May we take this opportunity to thank you for purchasing this DVD Player. We strongly recommend that you carefully study the operating instructions before operating the unit. -
Page 4: Disc Types
Disc types Disc size 12cm single side, single layer / single side, double layer Audio & Video PAL and NTSC DVD disc Playback time 135min / 240min max. Disc size 12cm / 8cm Audio CD disc Playback time 74min/20min max. CD-G format disc Audio &... -
Page 5: Safety Precautions
Safety precautions Warning Attention To avoid electrical shock, do not open the If smoke, malodor or unrelated noise are cabinet, refer servicing to qualified person- emitted from the unit, turn off the power and nel only. disconnect the AC power cord. Warning Attention Keep the unit away from flower vases, tubs,... -
Page 6: Location Of Controls
Location of Controls LCD Panel Headphones Output Jack Speaker DC IN :12V Remote Sensor S-Video Output Setup Button Line In/Out Switch Selector 5. Skip Buttons N o t e : W h e n u s i n g t h e L I N E I N setting of the selector switch, Play / Pause Button the LCD screen will be blank if... - Page 7 Corrosion, oxidation, battery-leakage and any other gradually acidic defect of this nature will invalidate the guarantee.
-
Page 8: Charging The Battery
GETTING STARTED The following steps will help you to get your Player ready for use. CHARGING THE BATTERY Begin by locating the Battery Pack and the Power Supply Switching Adapter. Plug the adapter’s circular connector into the battery’s connector labeled “DC IN 12V”... -
Page 9: Operation
OPERATION PLAYING DISCS If necessary, turn the unit ON with the Power Switch. The unit’s Power LED should be GREEN, indicating that the battery is not in need of a charge. The unit will attempt to load a disc if one is present under the disc cover. Press the PUSH TO OPEN button (item 11 on page 6), on the left side of the front panel to open the DVD door and put a disc on the loader, with the label side facing up. - Page 10 8. To exit the Setup Menu, press the SETUP button again or scroll down to EXIT S E T U P ( u s e t h e d o w n [ ] d i r e c t i o n k e y t o h i g h l i g h t t h e p h r a s e , a n d t h e PLAY/ENTER key to select EXIT SETUP,after which, the unit was display its logo, and wait for the next command.
-
Page 11: System Setup
SYSTEM SETUP In STOP mode, press the SETUP button and highlight SYSTEM setup with remote control. Once done, press the ENTER button to confirm. To select the desired item, use the direction buttons ( , , , ), then press the ENTER button to confirm the selection. - Page 12 LANGUAGE SETUP In the STOP mode, press the SETUP button and then the direction ( ) to highlight LANGUAGE SETUP. Once done, press ENTER. OSD LANGUAGE LANGUAGE SETUP (ON SCREEN DISPLAY) LANGUAGE OSD LANGUAGE ENGLISH Press the UP/DOWN direction buttons ( / ) to AUDIO LANG GERMAN...
-
Page 13: Video Setup
VIDEO SETUP In the STOP mode, press SETUP button and press direction buttons to highlight VIDEO setup. Then press ENTER button to confirm. • BRIGHTNESS VIDEO SETUP Using direction button to move the scroll bar and – – – – adjust the brightness. -
Page 14: Dvd Operation
DVD OPERATION DVD Menu Play The DVD Menu Play function is only applicable for DVD movie. User can access the Casting information, Production History, Movie Introduction etc. directly through this function. Press the DVD MENU key on the remote control to enter the Root Menu. Use the direction button ( / ) or input the item index through the Number keys (0-9) to do the selection. - Page 15 Repeat AB User can specify the repeating interval by marking the starting point and the end point. Press the REPEAT A-B button to mark the starting point (Playback will continue). Press the REPEAT A-B button to mark the end point (The marked part will be repeated automatically.) Note : •...
- Page 16 Picture CD Load a picture CD into the tray, sothe disc can be identified. The player will start showing each picture (JPG) in sequence (in a slide show format). Operation During Slide Show Mode: • Press the STOP button.It will shift to the Digest Mode in which 6 pictures will be shown on the screen at a time.
-
Page 17: Troubleshooting
TROUBLESHOOTING Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Correction The unit is NOT The AC adapter is disconnected Plug the AC adapter securely into receiving power from the wall outlet or is not the wall outlet and securely into the connected to the unit. -
Page 18: Specifications
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit : www.akai.eu GB-18...
