Inserting a SmartMedia Card (continued)

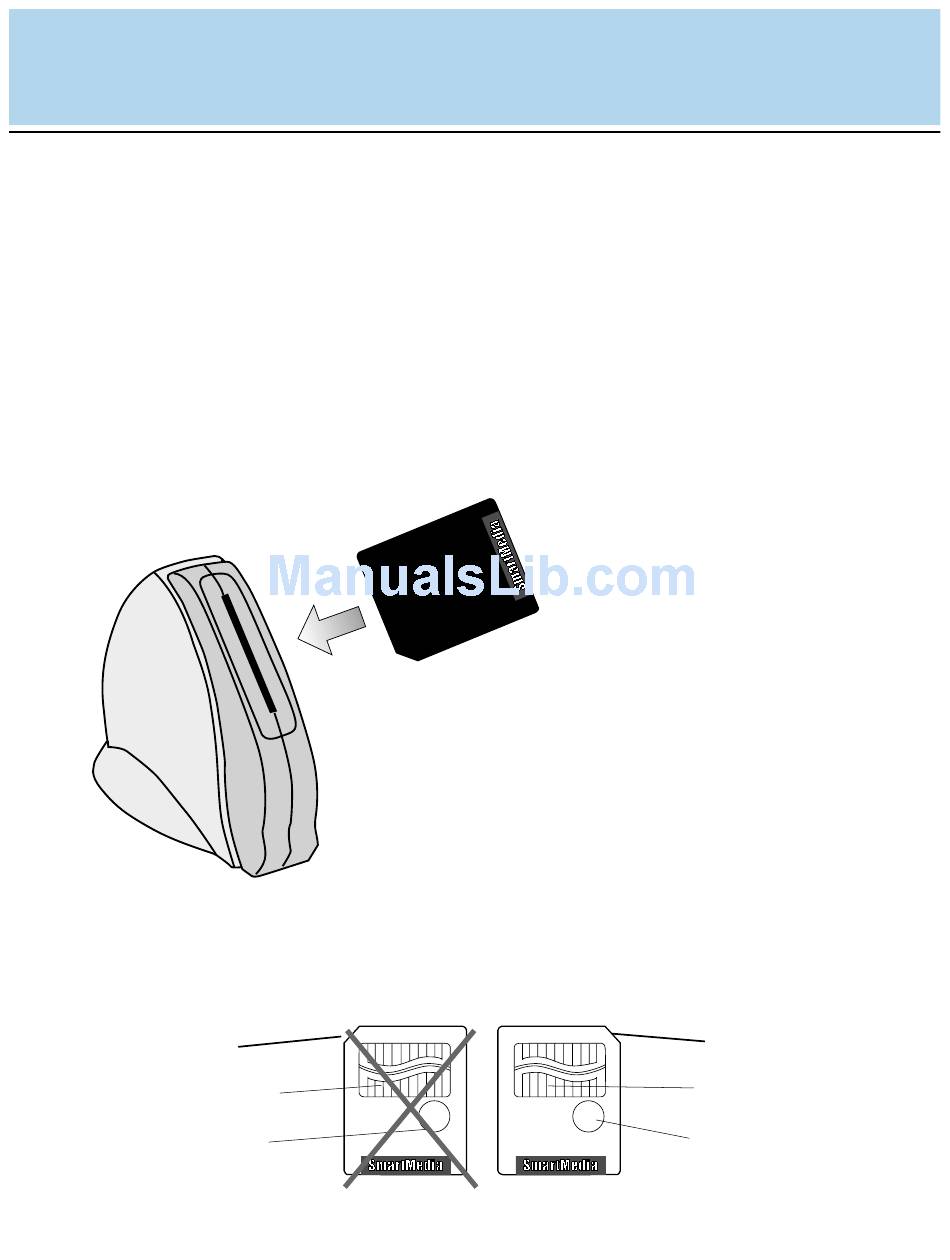

Insert the SmartMedia card as shown below. This product can only accept 3.3V SmartMedia
cards. Notice the notched corner of the SmartMedia card. The location of the notch for a 3.3V
SmartMedia card will appear on the right-hand side when you are looking directly at the gold
contacts from the top (refer to the illustration at the bottom of the page). Flip the card on its side
with the notched corner facing down and the gold contacts on the right hand side.
IMPORTANT NOTE: 5V SmartMedia cards are not supported.
SmartMedia Card Comparison (view of cards from top)
Left notch
indicates 5V card
Gold contacts
Write protect area
27
5V SmartMedia cards 3.3V SmartMedia cards
(NOT COMPATIBLE) (COMPATIBLE)
NOTE: As shown on the left, you
should have the SmartMedia
positioned so that the gold contacts
are on the right and the notched
corner is on the bottom or facing
down.
Right notch
indicates 3.3V card
Gold contacts
Write protect area
