Summary of Contents for SCM Microsystems SPR532

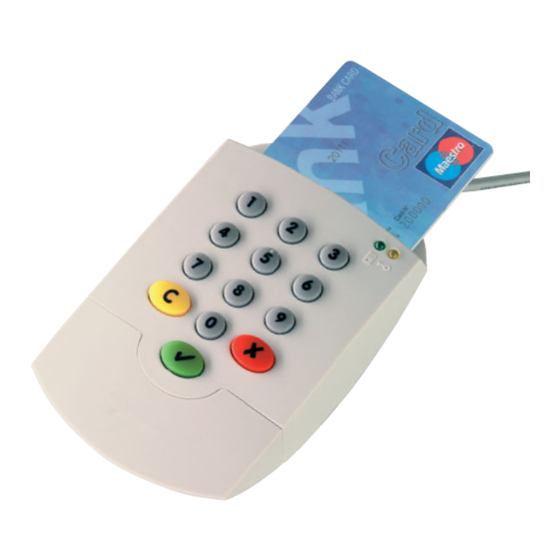

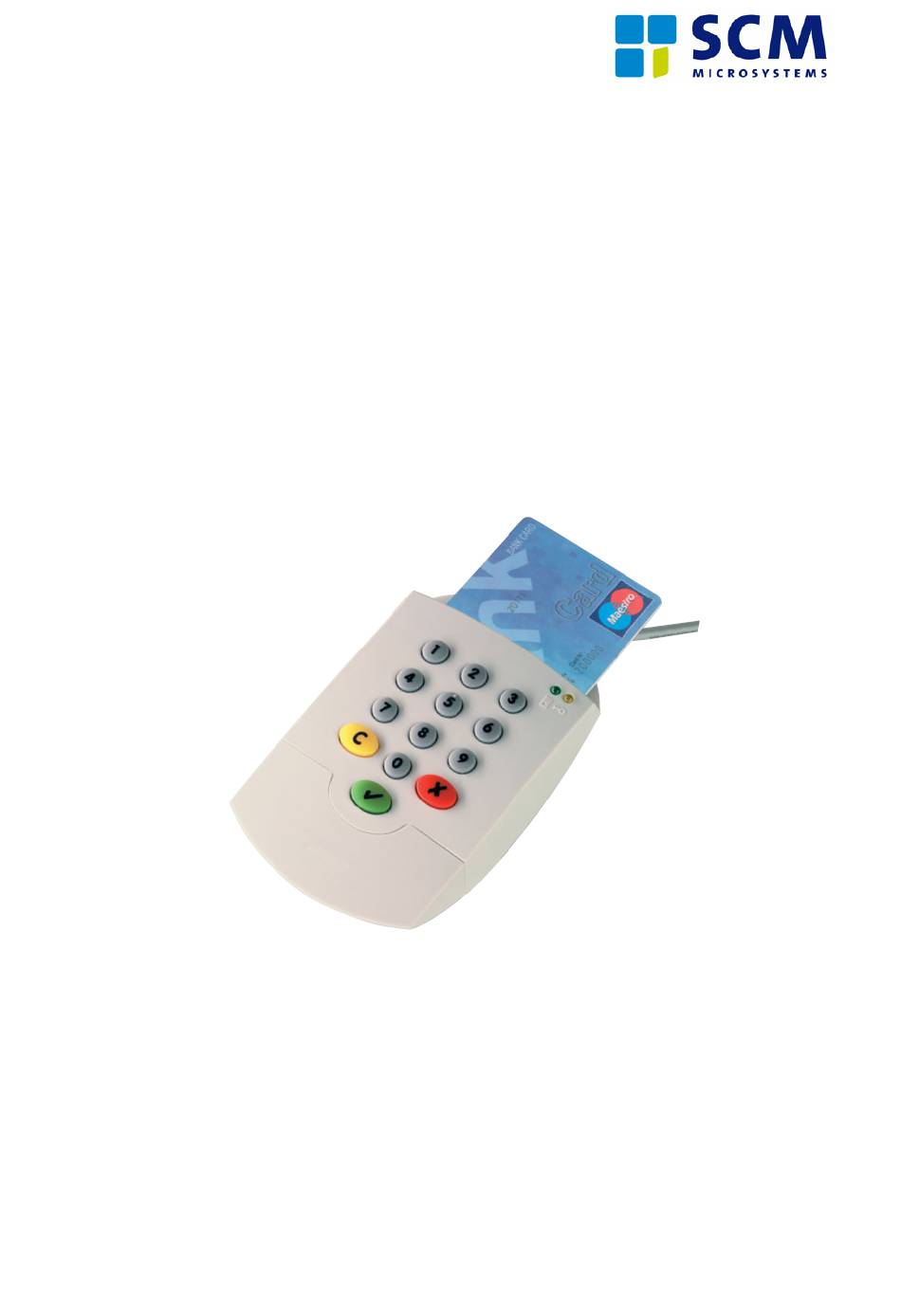

- Page 1 Class 2 Smart Card Reader SPR532 User Manual SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30 Date: 07/04/2006 - Technical data subject to change without notice -...
-
Page 2: Table Of Contents
..........................15 ECHNICAL UPPORT ..............................15 OTLINE ........................15 DDITIONAL INFORMATION ABBREVIATIONS ............................. 16 SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30 Date: 07/04/2006 - Technical data subject to change without notice -... -
Page 3: Introduction
Please read the security information in Chapter 5 before using the reader. Standards The SPR532 is a class 2 card reader, compatible with the software standards CT-API and PC/SC as well as the Microsoft USB CCID protocol. With this reader you can use all ISO7816- and EMV2000-compatible cards, e.g. -
Page 4: Applications
(SE) with extended USB support. In order to install the software you need a CD-ROM drive. For the serial version of the SPR532 you need both a COM and a PS/2 port. The USB version requires a free USB port. For further information refer to Chapter 2, "Installation". -
Page 5: Installation
The setup automatically checks the firmware version of the connected SPR532 reader. If the firmware version is lower than the actual version V5.10, it will update the firmware version. This step guarantees that SPR532 read- ers (in particular readers with firmware version V4.15 - part number 903391, certification label CC:TUVIT- DSZ-CC-9209, SigG:TUVIT.09370.TE) as well as readers with the firmware version V5.09 –... - Page 6 During the firmware update the following screens must confirmed with “OK”, “Finish” and “Close”. Reference that during the update no smart card reader functionality is available: SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30 Date: 07/04/2006...
- Page 7 Information about the firmware on the smart card reader and the firmware that can be loaded: Information about the successful firmware download: Instruction to shut down and switch off the system before the reader can be used: SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30 Date: 07/04/2006...
-
Page 8: Hardware
Hardware The SPR532 is delivered with a hybrid connector, which enables you to attach the reader to the serial or USB interface by plugging in the appropriate cable. The serial as well as the USB adaptor must be connected to the reader before attaching it to the PC. -
Page 9: Control Elements
3 Control elements Keypad The SPR532 is equipped with an integrated keypad that allows you to securely enter your PIN: Function Numeric keypad Numeric keys 0 - 9 Clear Cancel Confirmation Fig. 3.1: SPR532 keypad SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30... -
Page 10: Led-Status And Acoustic Signals (Buzzer)
The SPR532 has two LEDs and a buzzer to indicate the actual operating mode or possible malfunctions. Always install the SPR532 in such a way that you can see both LEDs. Together with the buzzer, they indicate the follow- ing states:... -
Page 11: Pin-Entry
5.1.1 Secure PIN-entry The SPR532 is a class 2 card reader. Therefore the PIN verification is performed between the smart card reader and the smart card. As the PIN never leaves the smart card reader or is transmitted to the PC it is impossible for other applications (e.g. -
Page 12: Usage Security Recommendations
It is recommended to discontinue use and to contact your dealer or your local SCM Microsystems branch. The SPR532 is exclusively designed for home and office usage and therefore not suitable for any kind of pub- licly accessible areas. -
Page 13: Secure Handling Of The Pin
Do not enter the PIN via the keyboard of the PC. Always use the keypad of the SPR532. During PIN-entry, please ensure that the SPR532 is working in "Secure PIN-entry mode". You can verify this by checking the LED status (table "LED-status and acoustic signals"). -
Page 14: Troubleshooting
6 Troubleshooting If you encounter any problems using the SPR532 or if your smart card is not recognized, this chapter will give you some advice on how to solve the most common issues. In case you are not able to solve the problem, please refer to Chapter 7, "Support". -
Page 15: Support
(Germany, Europe) Hotline SCM Microsystems telephone support is available from Monday to Friday 9.00 to 13.00 (CET): 01805 666830 (0,12 €/min) If you want to reach us from outside Germany, please call this number: +49 89 9595 5000 Additional information http://www.tuvit.de/... -
Page 16: Abbreviations
Signature Application Programming Interface of the German ZKA (Zentraler Kreditausschuss der deutschen Kreditwirtschaft) All company and product names mentioned are registered marks of the respective manufacturers. SCM Microsystems GmbH, Oskar-Messter-Straße 13, D-85737 Ismaning, Tel.: +49 (0)89 9595-5000 Document ID: MANUAL_SPR532, Version 1.30 Date: 07/04/2006...
