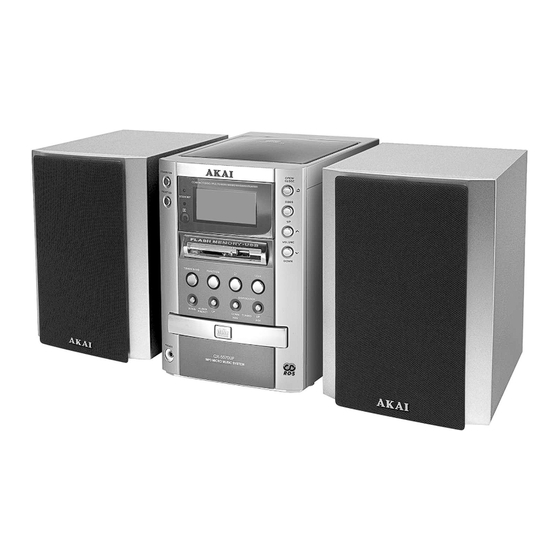

Micro radio/cd/mp3 system wtih card-slot & usb port
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Akai QX-5570UF

Summary of Contents for Akai QX-5570UF

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Precautions For Unit

    19. SERVICING - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 20. DAMAGES REQUIRING SERVICE - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions.

  • Page 4: Table Of Contents

    Manual. Once again, thanks for purchasing this audio product. For future reference, record the serial number in the space provided. Model No: QX-5570UF Serial Number: CLASS 1 LASER PRODUCT...

  • Page 5: Important Notes

    IMPORTANT NOTES • Avoid installing this unit in places • Operate controls and switches as exposed to direct sunlight or close to described in the manual. heat radiating appliances such as electric • Before turning on the power, make certain heaters, on top of other stereo equipment that the connecting cords and power that radiates heat, places lacking...

  • Page 6: Preparation For Use

    PREPARATION FOR USE UNPACKING AND SET-UP • Carefully remove the unit from the carton and remove all packing material from the unit. • Remove any labels or stickers which may be on the front or top of the set, but do not remove any labels from the back or bottom.

  • Page 7: Location Of Controls

    LOCATION OF CONTROLS 1. STANDBY/ON 15. PRESET EQ 2. FUNCTION 16. PLAY/PAUSE 3. TUNER/BAND 17. OPEN/CLOSE 4. STOP 18. SKIP/SEARCH UP 5. PRE-UP 19. CD DOOR 6. PRE-DOWN 20. FM ANTENNA WIRE 7. SKIP/SEARCH DOWN 21. AC CORD 8. PHONES 22.
  • Page 8 REMOTE CONTROL 1. Mute Button 2. Aux Button 3. Tuner/Band Button 4. Preset Down Album/Mem.Ch Button 5. CD Play/Pause Button 6. Skip Down/Search Backward Button 7. CD Stop Button 8. Random/RDS Button 9. Sleep Button 10. Timer Button 11. Standby/On Button 12.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS SPEAKER CONNECTION Connect each speaker to the corresponding speaker terminals on the back panel of the main unit. Make sure that the left speaker plug is connected to the left (L) speaker jack and the right speaker plug is connected to the right (R) speaker jack. CONNECTION OF EXTERNAL AUDIO UNITS •...
  • Page 10 DBBS Press DBBS button to obtain the DBBS effect. And the display will show "BBS-ON" press this button again the "DBBS" resume to the normal sound effect. Random In CD mode, press "Random " button (ON REMOTE), the display will show "RNDM" and CD disc will play in random sequence immediately.
  • Page 11 TUNING TO A PRESET STATION By pressing the PER-UP/PER-DOWN button to preset station. ANTENNA For FM reception there is a built-in antenna wire at the rear of the unit. Unravel the wire and move it around to obtain the best reception RDS (RADIO DATA SYSTEM) RDS is a system transmitting additional information via FM stations.
  • Page 12 CLOCK SETTING 1) Press the STANDBY/ON button to turn the unit off standby. 2) Press and hold the PROGRAM button, the 24Hr will appear on the display. Press the skip/search button. Once for select your suitable Hours for the clock. 3) Press the PROGRAM button ONCE.
  • Page 13 NOTE: • Clock time is only retained while the unit is plugged into the AC outlet. In the event of a power failure the clock will need to be reset the power supply resumes. PLAYING COMPACT DISCS/MP3 DISCS LOADING AND UNLOADING COMPACT DISCS/MP3 DISCS 1.
  • Page 14 DISC PLAY CD/MP3 (USB.FLASH CARD) 1. Insert a CD as described in the previous section and close the disc compartment. 2. The display will then show the total number of tracks and total play time. 3. Press the PLAY/PAUSE button. Disc play will begin from the start of the first track of the disc.
  • Page 15 TO STOP A CD BEFORE THE DISC ENDS CD/MP3 (USB.FLASH CARD) 1. Press the Stop button. Disc play will stop, and the display will show the total number of tracks. 2. To temporarily stop disc play (Pause mode), press the PLAY/PAUSE button.
  • Page 16 TO SKIP TO THE PREVIOUS TRACK ON A DISC CD/MP3 (USB.FLASH CARD) For example to skip back to the beginning of track 3 while track 4 is playing. 1. Press the Reverse Skip track button twice. Disc play will resume at the beginning of track 3.
  • Page 17 REPEAT DISC PLAY CD/MP3 (USB.FLASH CARD) Use the REPEAT button to play an entire disc or one track continuously. CD MODE Repeat play of all tracks 1. Press the REPEAT/PTY button twice. The "ALL " indicator appears in the display. MP3 MODE 2.
  • Page 18 ENTERING A PROGRAM 1. Press the PROGRAM/Clock-Dispaly button. "PROG" appears and the following information will be display on the display: 2. Select the first desired track using the Forward and Reverse Skip Buttons. 3. Press the PROGRAM/Clock-Dispaly button. The first program selection is now stored in the program memory.
  • Page 19 NOTES: • If the PLAY/PAUSE button is pressed before the PROGRAM/Clock-Display button is pressed to store a track, the track will not be programmed, and the disc will start playing from the first selected track. • Any track can be programmed to play more than once. •...
  • Page 20 Mode MP3 In MP3 mode, press the MODE button (remote Conbtrol) change to title search mode, press the MODE button twice change to album search mode. Use the Skip Up & Down button to search the song. Press the MODE 2 sec, the LCD Display will show the IDT3 information. Press the MODE button again return to normal mode.
  • Page 21 NOTE: • If playback the Flash Memory Card. The indicator light Red. • If palyback the Flash USB. The indicator light Green. PLAYING FLASH MEMORY CARD OR FLASH USB LOADING AND UNLOADING FLASH MEMORY CARD OR FLASH USB 1. Press the STANDBY/ON button to turn the unit 'ON'.The STANDBY/ON indicator lights'OFF' and the LCD Backlights'ON'.

  • Page 22: Care And Maintenance

    CARE AND MAINTENANCE COMPACT DISC CARE • To remove a disc from its storage case, press down on the centre of the case and lift the disc outs, holding if carefully by the edges. • Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth.
  • Page 23 Cleaning The Unit • To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. • If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax or polish sprays on the cabinet. •...

  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Should this unit exhibit a problem, check the following before seeking service. Symptom Possible Cause Solution Radio Noise or sound distorted Station not tuned properly for Retune the AM or FM on AM or FM AM or FM. broadcast station.

  • Page 25: Technical Specification

    Model : QX-5570UF Specification Main Unit FM tuner section Tuning range 87.5 MHz to 108 MHz (50 KHz Step) Usable sensitivity (30 dB S/N) 22 dBµ Antenna terminals Antenna Wire MW tuner section Tuning range 522 KHz to 1620 KHz (9 KHz Step)
  • Page 26 Importer AKAI Benelux - Elmarc B.V. Information: www.akai.nl <http://www.akai.nl> GB 75...
