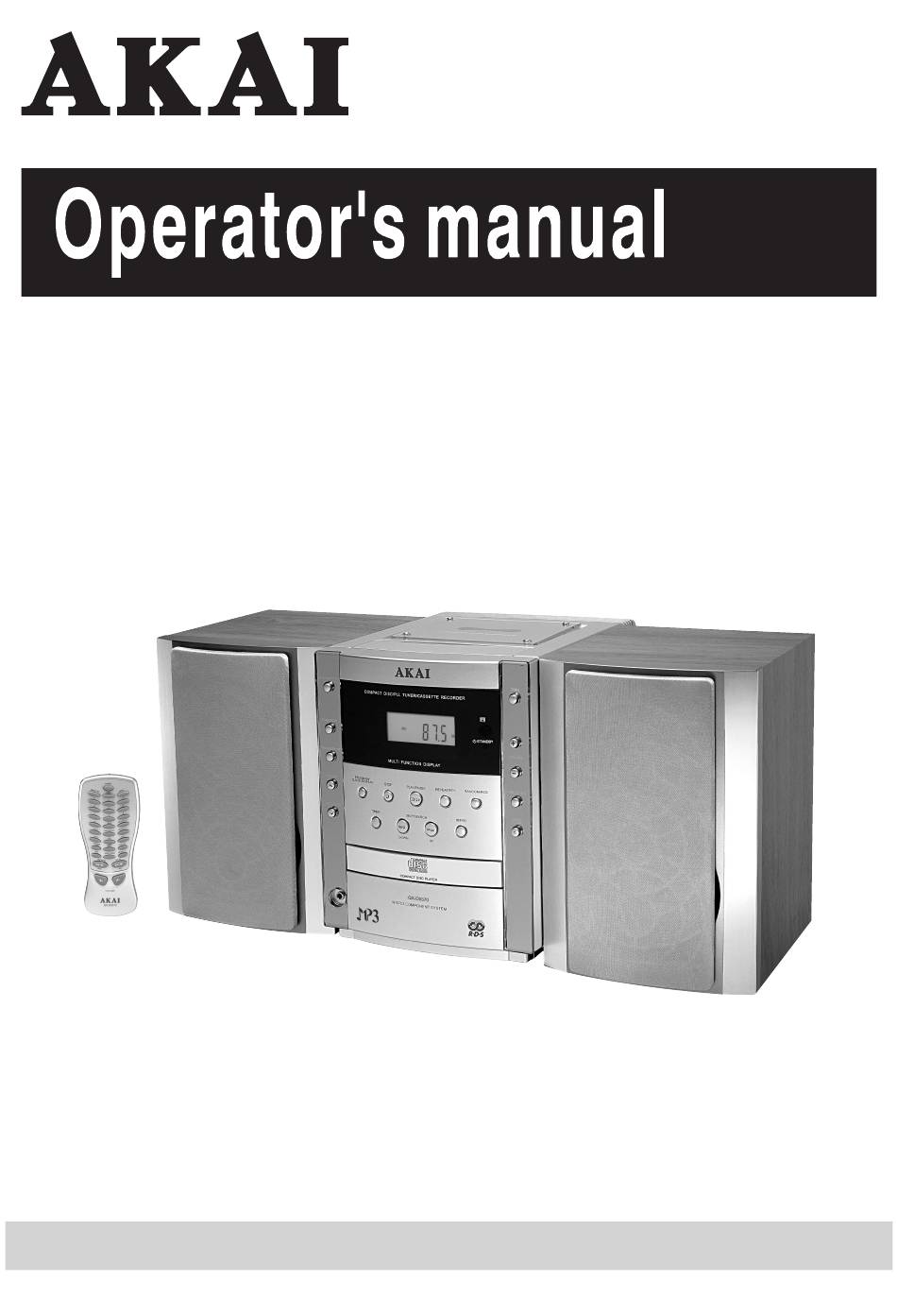

MICRO MUSIC SYSTEM
QX-D5370
Operator's manual
(GB) 1~27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QX-D5370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akai QX-D5370

Summary of Contents for Akai QX-D5370

  • Page 1 MICRO MUSIC SYSTEM QX-D5370 Operator's manual (GB) 1~27...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product* enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Precautions For Unit

    19. DAMAGES REQUIRING SERVICE - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. a) When the power-supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen into the product. c) If the product has been exposed to rain or water.

  • Page 4: Table Of Contents

    Manual. Once again, thanks for purchasing this audio product. For future reference, record the serial number in the space provided. Model No: QX-D5370 Serial Number: CLASS 1 LASER PRODUCT...

  • Page 5: Important Notes

    IMPORTANT NOTES • Avoid installing this unit in places • Operate controls and switches as exposed to direct sunlight or close to described in the manual. heat radiating appliances such as electric • Before turning on the power, make certain heaters, on top of other stereo equipment that the connecting cords and power that radiates heat, places lacking...

  • Page 6: Preparation For Use

    PREPARATION FOR USE UNPACKING AND SET-UP • Carefully remove the unit from the carton and remove all packing material from the unit. • Remove any labels or stickers which may be on the front or top of the set, but do not remove any labels from the back or bottom.

  • Page 7: Location Of Controls

    LOCATION OF CONTROLS 1. STANDBY/ON 17. REPEAT/PTY 2. FUNCTION 18. RANDOM/RDS 3. TUNER/BAND 19. PRESET EQ 4. STOP 20. PLAY/PAUSE 5. PRE-UP 21. OPEN/CLOSE 6. PROGRAM/CLOCK-DISPLAY 22. INTRO 7. PRE-DOWN 23. SKIP/SEARCH UP 8. TIMER 24. CD DOOR 9. SKIP/SEARCH DOWN 25.
  • Page 8 REMOTE CONTROL Standby/On Button Preset EQ Button DBBS Button Direct Search Button Timer Button Sleep Button Random/RDS Button Intro Button Stop Button 10. Program/Clock Button 11. Tuner/Band Button 12. Tape Button 13. Preset Down Button 14. Skip Down Button 15. Volume Down Button 16.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS SPEAKER CONNECTION Connect each speaker to the corresponding speaker terminals on the back panel of the main unit. Make sure that the left speaker plug is connected to the left (L) speaker jack and the right speaker plug is connected to the right (R) speaker jack. PRESET EQUALIZER •...
  • Page 10 DBBS Press DBBS button to obtain the DBBS effect. Press this button again the "DBBS" resume to the normal sound effect. Random In CD mode, press "Random" button, the display will show "Random" and CD disc will play in random sequence immediately. Press "Random" again, the "Random" mark will disappear from display and CD disc will play in normal sequence.
  • Page 11 TUNING TO A PRESET STATION Select the desired station preset number by pressing the PER-UP/PER-DOWN button. ANTENNA For FM reception there is a built-in antenna wire at the rear of the unit. Unravel the wire and move it around to obtain the best reception RDS (RADIO DATA SYSTEM) RDS is a system transmitting additional information via FM stations.
  • Page 12 CLOCK SETTING 1) Press the STANDBY/ON button to turn the unit off standby. 2) Press and hold the PROGRAM button, the 24Hr will appear on the display. Press the skip/search button. Once for select your suitable Hours for the clock. 3) Press the PROGRAM button ONCE.
  • Page 13 NOTE: • Clock time is only retained while the unit is plugged into the AC outlet. In the event of a power failure the clock will need to be reset the power supply resumes. PLAYING COMPACT DISCS/MP3 DISCS LOADING AND UNLOADING COMPACT DISCS/MP3 DISCS 1.
  • Page 14 DISC PLAY 1. Insert a CD as described in the previous section and close the disc compartment. 2. The display will then show the total number of tracks and total play time. 3. Press the PLAY/PAUSE button. Disc play will begin from the start of the first track of the disc.
  • Page 15 TO STOP A CD BEFORE THE DISC ENDS 1. Press the Stop button. Disc play will stop, and the display will show the total number of tracks. 2. To temporarily stop disc play (Pause mode), press the PLAY/PAUSE button. Disc play will stop at the current play position.
  • Page 16 To skip to the previous track on a disc. For example to skip back to the beginning of track 3 while track 4 is playing. 1. Press the Reverse Skip track button twice. Disc play will resume at the beginning of track 3.
  • Page 17 REPEAT DISC PLAY Use the REPEAT button to play an entire disc or one track continuously. CD MODE Repeat play of all tracks 1. Press the REPEAT/PTY button twice. The "ALL " indicator appears in the display. MP3 MODE 2. Press the Play/Pause button.
  • Page 18 ENTERING A PROGRAM 1. Press the PROGRAM/Clock-Dispaly button. "PROG" appears and the following information will be display on the display: 2. Select the first desired track using the Forward and Reverse Skip Buttons. 3. Press the PROGRAM/Clock-Dispaly button. The first program selection is now stored in the program memory.
  • Page 19 NOTES: • If the PLAY/PAUSE button is pressed before the PROGRAM/Clock-Display button is pressed to store a track, the track will not be programmed, and the disc will start playing from the first selected track. • Any track can be programmed to play more than once. •...
  • Page 20 NOTES ON MP3 DISCS An MP3 file stores audio data compressed using MPEG 1/2, the audio layer-3 file-coding scheme. In this manual, we refer to what, in PC terminology, are called "folders" and "Files" as "albums" and "tracks" respectively. Notes on playing MP3 discs •...
  • Page 21 CASSETTE TAPE OPERATIONS Playing A Cassette Tape 1. Select the Tape function by pressing the FUNCTION button. 2. Press the Cassette Stop/Eject button to open the Cassette Compartment door. 3. Insert a pre-recorded cassette tape into the slots on the inside of the cassette door with the full reel on the right side and the open edge facing up.
  • Page 22 4. Press the Cassette Record button. The Cassette Play button will also engage and recording will begin. If you wish to stop the tape temporarily to avoid recording certain material such as a radio commercial, press the Cassette Pause button. Press again to cancel the pause mode and resume recording.
  • Page 23 Safeguard Against Accidental Erasure When a new recording is made, any program material previously recorded is automatically erased and only the new recording remains. To safeguard valuable recordings from being erased accidentally, the cassette and the deck are equipped with a special device. On the back of the cassette there is an erase prevention tab on each side.

  • Page 24: Care And Maintenance

    CARE AND MAINTENANCE COMPACT DISC CARE • To remove a disc from its storage case, press down on the centre of the case and lift the disc outs, holding if carefully by the edges. • Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth.
  • Page 25 Tape Head Cleaning Cotton Swab The tape heads, pinch roller and capstan require Capstan periodic cleaning. This removes particles of the metal oxide coating that wear off the tape and accumulate on these parts and impair performance. Switch off the power, press the STOP/EJECT key to open the cassette door, Head...

  • Page 26: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Should this unit exhibit a problem, check the following before seeking service. Symptom Possible Cause Solution Radio Noise or sound distorted Station not tuned properly for Retune the AM or FM on AM or FM AM or FM. broadcast station.

  • Page 27: Technical Specification

    Model : QX-D5370 Specification Main Unit FM tuner section Tuning range 87.5 MHz to 108 MHz (50 KHz Step) Usable sensitivity (30 dB S/N) 22 dBµ Antenna terminals Antenna Wire MW tuner section Tuning range 522 KHz to 1620 KHz (9 KHz Step)
