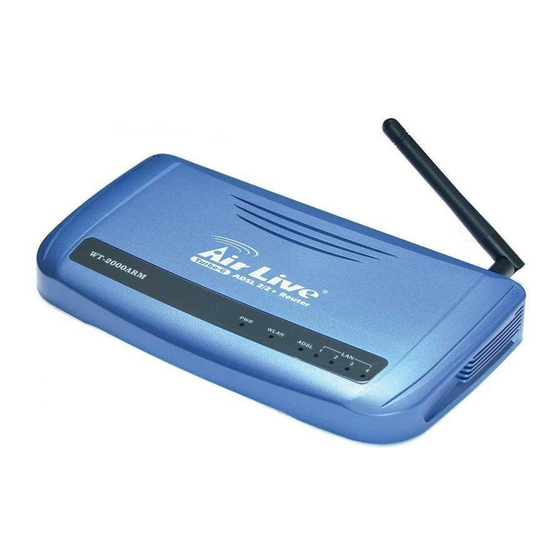

  • Page 1 WT-2000ARM Turbo-G Wireless ADSL 2/2+ Router User’s Manual...
  • Page 2 OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. AirLive WT-2000ARM User’s Manual...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ....................1 1.1 Overview....................1 1.2 Firmware Upgrade and Tech Support ..........1 1.3 Features....................2 2. Installing the WT-2000ARM ...............4 2.1 Minimum Requirements ...............4 2.2 Package Content .................4 2.3 Knowing your WT-2000ARM..............5 2.4 Hardware Installation ................6 2.5 LED Table ....................7 2.6 Restore Settings to Default ..............7...
  • Page 4 Administrator .........................51 8.2 Time Zone..................52 8.3 Firmware....................53 8.4 SysRestart ..................54 8.5 Diagnostics ..................54 9. Status ......................55 9.1 Device Info..................55 9.2 System Log..................56 9.3 Statistics.....................57 10. Troubleshooting..................58 11. Specifications..................62 Feature ....................62 Hardware Interface ..................62 Wireless Interface ..................62 AirLive WT-2000ARM User’s Manual...
  • Page 5 Table of Contents ADSL Data Mode ..................63 WAN Mode Support .................63 LAN Mode Support ..................63 Bridge Mode ....................63 Router Mode ....................63 Firewall ....................64 Security....................64 Certifications ....................64 12. Network Glossary ..................65 AirLive WT-2000ARM User’s Manual...

  • Page 6: Introduction

    FAQ are frequently updated with latest information. In addition, you might find new firmwares that either increase software functions or provide bug fixes for WT-2000ARM. You can reach our on-line support center at the following link: http://www.airlive.com/support/support_2.jsp Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.

  • Page 7: Features

    Supports 64-bit/128-bit WEP, WPA-PSK and WPA2-PSK wireless security  functions Supports MAC address filtering   Router NAT (Network Address Translation) IP Sharing  Virtual Server   VPN Pass Through (IPSec/PPTP/L2TP)  SPI Anti-DOS Firewall  DHCP Server and Client  AirLive WT-2000ARM User’s Manual...

  • Page 8: Access Management

    1. Introduction  Access Management ACL (Access Control)  IP Filter  UPnP (Universal Plug and Play)  SNMP  Dynamic DNS  irLive WT-2000ARM User’s Manual...

  • Page 9: Installing The Wt-2000Arm

    WT-2000ARM This section describes the hardware features and the hardware installation procedure for the WT-2000ARM. For software configuration, please go to chapter 3 for more details. 2.1 Minimum Requirements The following devices are necessary to configure and use the ADSL2+ Router: ...

  • Page 10: Knowing Your Wt-2000Arm

    2. Install the WT-2000ARM 2.3 Knowing your WT-2000ARM Below are descriptions and diagrams of the product:  Antenna Connector The antenna connector of the router is reverse SMA connector. It allows you to connecting an external antenna with reverse SMA connector to the router easily.

  • Page 11: Hardware Installation

    2. Install the WT-2000ARM 2.4 Hardware Installation Step 1: Connect the ADSL Line Connect the router to your ADSL cable through the supplied RJ-11 telephone line. Step 2: Connect the router to your LAN network Connect the router to your PC, hub or switch by attached the Ethernet cable to the LAN port of the router.

  • Page 12: Led Table

    2. Install the WT-2000ARM 2.5 LED Table On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description. Light Status Description PWR (Green) The router is ready...

  • Page 13: Configuring The Wt-2000Arm

    3. Configuring the WT-2000ARM Configuring the WT-2000ARM 3.1 Important Information The following information will help you to get start quickly. However, we recommend you to read through the entire manual before you start. Please note the password and SSID are case sensitive.

  • Page 14: Prepare Your Pc - Windows 2000

    3. Configuring the WT-2000ARM 5. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server. Note: Please make sure that the router’s DHCP server is the only DHCP server available on your LAN.

  • Page 15: Prepare Your Pc - Windows 95/98/Me

    3. Configuring the WT-2000ARM 5. In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen. 6. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server.
  • Page 16 3. Configuring the WT-2000ARM 5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the OK button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation. 6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of Network Components and then click the Properties button.

  • Page 17: Prepare Your Pc - Windows Nt

    3. Configuring the WT-2000ARM 3.5 Prepare your PC - Windows NT 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Double-click Network icon. The Network window will appear. Select the Protocol tab from the Network window.

  • Page 18: Setup Wizard Tool

    3. Configuring the WT-2000ARM 7. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the router’s DHCP server is the only DHCP server available on your LAN.
  • Page 19 3. Configuring the WT-2000ARM 3. Type Modem router’s IP address and password, press Next then utility will start searching for the ADSL modem device. 4. Select the ISP you applied, or select “Other” to configure the ADSL setting manually. You can press “Back” button to select the other country.
  • Page 20 3. Configuring the WT-2000ARM 5. Type in the account name and password provided by ISP, and press Next. 6. Check the ADSL setting configuration again. If the setting is correct, press “Save” to upload ADSL router with the setting. AirLive WT-2000ARM User’s Manual...
  • Page 21 3. Configuring the WT-2000ARM 7. Saving ADSL Router settings from utility. 8. ADSL router is rebooting automatically after saving the settings. AirLive WT-2000ARM User’s Manual...
  • Page 22 3. Configuring the WT-2000ARM 9. ADSL router will try to obtain IP address from ISP after it is done the rebooting. 10. The ISP Settings are all finished. If your want to configure more settiungs. Please Click “Advanced Settings” or click “Finish” to close the wizard.

  • Page 23: Management Interface

    3.8 Web Management The WT-2000ARM’s web management menu is divided into 2 main menus: The main menus are displayed in “Top Menu Bar”. Within each main menu category, there are sub-menu options which are displayed on the “Side Menu Bar”...
  • Page 24 3. Configuring the WT-2000ARM TOP Menu Bar: Main Menus Middle Menu Bar: Sub Menus  Quick Start (Chapter 4) Follow the setup process in the Quick Start, you can quickly set the router as an Internet Access device.  Interface Setup (Chapter 5) It allows you to configure the Internet, LAN and Wireless access.

  • Page 25: Quick Start

    Mode. VPI/VCI, VC-based/LLC-based multiplexing, IP Address, RFC1483 Routed Subnet Mask, Gateway Address, and Domain Name System (DNS) IP Address (It is a fixed IP Address). In the Quick Start, click “Run Wizard” to start the configuration. AirLive WT-2000ARM User’s Manual...
  • Page 26 4. Quick Start Please follow the steps in the setup wizard to complete the configuration of the Internet connection Step 1: Set your new password Please enter the new password and confirm the password again. AirLive WT-2000ARM User’s Manual...
  • Page 27 4. Quick Start Step 2: Choose your tome zone Please select the tome zone where you are located. Step 3: Set your Internet connection Please check with your ISP the connection type of the ADSL line. AirLive WT-2000ARM User’s Manual...
  • Page 28 Step 4: Input the data supplied by your ISP To know more about the explanation of each setting, please refer to Chapter 5. Step 5: Re-start your ADSL router Click “Next” to save the settings and restart the router. AirLive WT-2000ARM User’s Manual...

  • Page 29: Interface Setup

    The cell rate is constant with time. Select CBR to specify fixed (always on) bandwidth for voice or data traffic. ATM QoS UBR (Unspecified Bit Rate) – Select UBR for applications that are non-time sensitive, such as e-mail. AirLive WT-2000ARM User’s Manual...
  • Page 30 Static IP Address address to access Internet services. PPPoE (PPP over Ethernet) and PPPoA (PPP over ATM) are PPPoE/PPPoA common connection methods used for xDSL. Bridge Mode is a common connection method used for xDSL Bridge Mode modem. AirLive WT-2000ARM User’s Manual...
  • Page 31 RIP direction from “None”, “Both”, “IN Only” or “OUT Only”. Specify the method of transmitting data simultaneously to many Multicast receivers. Please select “IGMP v1” or “IGMP v2” as the multicast protocol or select “Disabled” to disable the function. AirLive WT-2000ARM User’s Manual...
  • Page 32 Dynamic Route RIP2-M protocols for dynamic routing. After the RIP protocol is selected, please choose the RIP direction from “None”, “Both”, “IN Only” or “OUT Only”. Multicast Specify the method of transmitting data simultaneously to many AirLive WT-2000ARM User’s Manual...
  • Page 33 Connect On-Demand – Only connect when you want to surf the Connection Internet. “Close if idle for xx minutes” is set to stop the connection when the network traffic is not sending or receiving after an idle time. AirLive WT-2000ARM User’s Manual...
  • Page 34 RIP direction from “None”, “Both”, “IN Only” or “OUT Only”. Specify the method of transmitting data simultaneously to many Multicast receivers. Please select “IGMP v1” or “IGMP v2” as the multicast protocol or select “Disabled” to disable the function. AirLive WT-2000ARM User’s Manual...

  • Page 35: Lan

    RIP direction from “None”, “Both”, “IN Only” or “OUT Only”. Specify the method of transmitting data simultaneously to many Multicast receivers. Please select “IGMP v1” or “IGMP v2” as the multicast protocol or select “Disabled” to disable the function. AirLive WT-2000ARM User’s Manual...
  • Page 36 Enter the ISP’s DNS Server IP Address; or you can specify your Primary DNS Server own preferred DNS Server IP Address. Secondary DNS Server You can enter another DNS Server’s IP Address as a backup. The (Optional) secondary DNS will be used should the Primary DNS fail. AirLive WT-2000ARM User’s Manual...

  • Page 37: Wireless

    802.11 g – This router will only work in 802.11g mode. If there are only 802.11g wireless clients in the network, you can set the router 802.11b/g to this mode. 802.11 b+g – This router will support 802.11b and 802.11g communications simultaneously. It is recommended to set this mode. AirLive WT-2000ARM User’s Manual...
  • Page 38 128-bit key lengths to encrypt the wireless data. The longer key WEP-64Bits length will provide higher security. When “WEP-64Bits” is selected, you have to enter exactly 5 ASCII characters (“a-z” and “0-9”) or 10 hexadecimal digits ("0-9", "a-f") for each Key (1-4). AirLive WT-2000ARM User’s Manual...
  • Page 39 WPA-PSK and WPA2-PSK is that WPA2-PSK provides data encryption via the AES. In contrast, WPA-PSK uses Temporal WPA2-PSK Key Integrity Protocol (TKIP). WPA2-PSK offers the highest level of security available. When “WPA2-PSK” is selected, please enter 8-64 characters as the “Pre-Shared Key”. AirLive WT-2000ARM User’s Manual...
  • Page 40 Deny Association – The wireless clients with the MAC Address you have specified will be denied accessing to the router. Please enter the MAC Address of the wireless clients for the Mac Address #1-8 filtering control. AirLive WT-2000ARM User’s Manual...

  • Page 41: Advanced Setup

    WAN side: SYN flooding attack  Firewall Ping of Death  Teardrop  Land attack  If you enable SPI, all traffics initiated from WAN site will be blocked including DMZ, Virtual Server, etc. AirLive WT-2000ARM User’s Manual...

  • Page 42: Routing

    Show the interface that go to the next hop (router), such as LAN Device port. The counter for access time. Edit Edit the route, this icon is not shown for system default route. Drop Drop the route, this icon is not shown for system default route. AirLive WT-2000ARM User’s Manual...
  • Page 43 LAN. It must be between 1 and 15. Select “Yes”, this routing path will be propagated to other hosts Announced in RIP through RIP broadcasts. Select “No”, this routing path will be kept private and it is not included in RIP broadcasts. AirLive WT-2000ARM User’s Manual...

  • Page 44: Nat

    The activated or deactivated status for the NAT function will be NAT Status shown here. Select “Single” if you only have a public IP Address. Select Number of IPs “Multiple” if you have multiple IP Addresses. AirLive WT-2000ARM User’s Manual...
  • Page 45 Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN) to a particular LAN private IP Address and its service port number. AirLive WT-2000ARM User’s Manual...
  • Page 46 Address may be changed dynamically and will cause problem on Local IP Address this feature. Please assign a static IP Address to the server and make sure that the IP Address is not in the range of IP Addresses that the DHCP Server will assign. AirLive WT-2000ARM User’s Manual...

  • Page 47: Adsl

    ADSL Mode and G.lite. If you are not sure how to select the ADSL mode, please contact with your ISP. Check with your ISP about the ADSL type of the DSLAM device ADSL Type they use. AirLive WT-2000ARM User’s Manual...

  • Page 48: Access Management

    Type an IP Address to restrict access to a user with a matching IP Address. Choose the services that you permit to use in your LAN or WAN Application interface. These services include Web, Telnet, Ping, FTP and SNMP. AirLive WT-2000ARM User’s Manual...

  • Page 49: Filter

    You can forbid some users accessing to the router by filtering the users through IP Address or MAC Address. You can also restrict some applications or URLs be accessing by users through the router. Please select the filter type to start configuring. IP / MAC Filter  AirLive WT-2000ARM User’s Manual...
  • Page 50 Rule Unmatched leave it pass through; “Next” is to check it by the next rule. The IP Filter Listing will list the IP Filter rules you have configured. IP/MAC Filter Listing You can review the settings here. AirLive WT-2000ARM User’s Manual...
  • Page 51 Application Filter Activate or deactivate the application filter If “Allow” is selected, the packets for these applications will be able ICQ/MSN/YMSG/Real to pass through the router. If you want to restrict these Audio/Video applications. Please select “Deny”. AirLive WT-2000ARM User’s Manual...
  • Page 52 “web address”. Please enter the web address here that you want to restrict to be connected. The URL Filter Listing will list the URL you have configured. You URL Filter Listing can review the settings here. AirLive WT-2000ARM User’s Manual...

  • Page 53: Snmp

    Parameter Description Enter the password for the incoming Get- and GetNext requests Get Community from the management station. Set Community Enter the password for a Set request to configure the router. AirLive WT-2000ARM User’s Manual...

  • Page 54: Upnp

    NAT traversal, UPnP Auto-configured applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application. AirLive WT-2000ARM User’s Manual...

  • Page 55: Ddns

    E-mail Address Enter the E-mail address assigned by DDNS service provider. Username Enter your username. Password Enter the password you set for the DDNS service. Wildcard Support Enable or disable the wildcard to stand for some characters. AirLive WT-2000ARM User’s Manual...

  • Page 56: Maintenance

    Maintenance 8.1 Administrator Parameter Description Username The username of the router is “admin” by default. New Password Enter up to 30-digit of the new password. Confirm Password Enter the new password again to confirm the setting. AirLive WT-2000ARM User’s Manual...

  • Page 57: Time Zone

    Select the time zone of the country you are currently in. The router Time Zone will set its time based on your selection. Daylight Saving Select this option if it is in daylight savings time. NTP Server Address Enter the IP Address of your time server. AirLive WT-2000ARM User’s Manual...

  • Page 58: Firmware

    Click “Browse” to find the new firmware. Click “Upgrade” to begin the upgrade process. After the router is Upgrade restarted, the process is completed. It might take several minutes, don't power off the router during upgrading. AirLive WT-2000ARM User’s Manual...

  • Page 59: Sysrestart

    You can also click the “Reset” button in the rear panel of the router over 5 seconds to reset default settings. 8.5 Diagnostics This page allows you to diagnose the connectivity of the LAN and WAN network. AirLive WT-2000ARM User’s Manual...

  • Page 60: Status

    9. Status Status 9.1 Device Info In this page, you can know the device information including firmware, MAC Address, LAN and WAN settings and also the ADSL line status. AirLive WT-2000ARM User’s Manual...

  • Page 61: System Log

    9. Status 9.2 System Log Display system logs accumulated up to the present time. You can also save the logs for future reviewing. AirLive WT-2000ARM User’s Manual...

  • Page 62: Statistics

    9. Status 9.3 Statistics Show the statistics of transmit and receive packets on the LAN port and the ADSL line. AirLive WT-2000ARM User’s Manual...

  • Page 63: Troubleshooting

    Check the IP address of ADSL2+ Router. Your computer and ADSL2+ Router’s IP addresses must be on the same subnet for LAN access. If you changed ADSL2+ Router’s LAN IP address, then enter the new one as the URL. AirLive WT-2000ARM User’s Manual...
  • Page 64 Step 2: Type in “cmd” and click “OK”. Step 3: Type ipconfig /all and click enter. Your PC’s IP address is 192.168.2.111.  The PC’s Subnet Mask is 255.255.255.0.  Your PC’s MAC Address is the one entitled Physical Address (00-00-E2-82-C3-AD).  ==================================================================== AirLive WT-2000ARM User’s Manual...
  • Page 65 ISP. Restart the router. If you still have problems, you may need to verify your VPI, VCI, type of encapsulation and type of multiplexing settings with the ISP. AirLive WT-2000ARM User’s Manual...
  • Page 66 Service Type, User Name and Password (be sure to use the correct casing). ==================================================================== 8. Internet connection disconnects. STEPS CORRECTIVE ACTION Check the schedule rules. If you use PPPoA or PPPoE encapsulation, check the idle time-out setting. Contact your ISP. AirLive WT-2000ARM User’s Manual...

  • Page 67: Specifications

    11. Specifications Specifications The specification of WT-2000ARM is subject to change without notice. Please use the information with caution. Feature  CD based Auto Installation for Argentina, Austria, Australia, Belgium, Czech, Denmark, Egypt, France, Germany, Israel, Italy, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Slovakia, Spain, Sweden, UK, and more...

  • Page 68: Adsl Data Mode

    Classical Internet Protocol Over ATM (RFC 1577)  Multi-VCS support up to 8 PVCs Bridge Mode  IEEE 802.1D  Supports MAC Bridge control Router Mode  IP routing-RIPv2, Static routing, DHCP Server and Client  NAT, ICMP AirLive WT-2000ARM User’s Manual...

  • Page 69: Firewall

    DMZ, Virtual Server  SPI Firewall  ACL Access management Security  User authentication for PPP  PAP (Password Authentication Protocol), CHAP (Challenge Authentication Protocol Certifications  FCC Part 15/FCC Part 68  CE/ EN60950 3rd Ed. AirLive WT-2000ARM User’s Manual...

  • Page 70: Network Glossary

    Bridges can usually be made to filter packets, that is, to forward only certain traffic. Related devices are: repeaters which simply forward electrical signals from one cable to the other and full-fledged routers which make routing decisions based on several criteria. AirLive WT-2000ARM User’s Manual...
  • Page 71 Idle Timeout is designed so that after there is no traffic to the Internet for a pre-configured amount of time, the connection will automatically be disconnected. Internet Service Provider is a business that provides connectivity to the Internet for individuals and other businesses or organizations. AirLive WT-2000ARM User’s Manual...
  • Page 72 Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers: Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere 5631 PC Anywhere 5632 AirLive WT-2000ARM User’s Manual...
  • Page 73 A system responsible for making decisions about which of several paths network (or Internet) traffic will follow. To do this, it uses a routing protocol to gain information about the network and algorithms to choose the best route based on several criteria known as "routing metrics. AirLive WT-2000ARM User’s Manual...
  • Page 74 Web-based management Graphical User Interface (GUI) Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed. AirLive WT-2000ARM User’s Manual...
