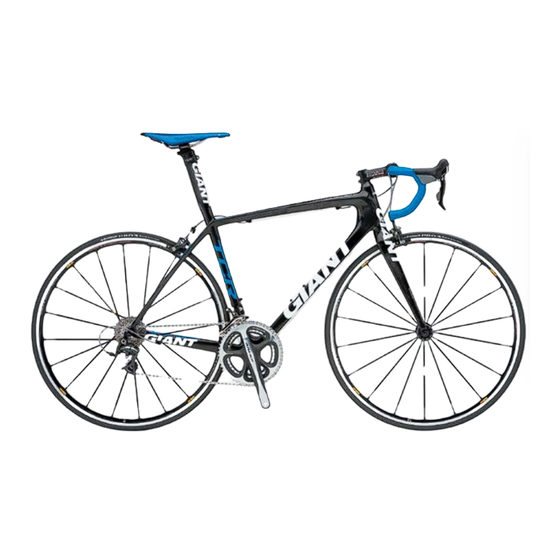

Giant TCR Advanced SL 1 Specifications

20 giantbicycle.com
ROAD
COMPETITION
Specifications
SIZES XS,S,M,M/L,L,XL
Composite/Team Blue
COLORS
Advanced SL-Grade Composite,
FRAME
Integrated Seatpost
Advanced SL-Grade Composite,
FORK
Full Composite OverDrive Steerer
SHOCK N / A
Race Face Revolution, 31.8
HANDLEBAR
STEM Race Face Revolution
Advanced SL-Grade Composite,
SEATPOST
Integrated Design
Fi'zi:k Arione w/ k:ium rails
SADDLE
PEDALS Not Included
SHIFTERS Shimano Dura-Ace 7900
Shimano Dura-Ace 7900
FRONT DERAILLEUR
REAR DERAILLEUR Shimano Dura-Ace 7900
BRAKES Shimano Dura-Ace 7900
Shimano Dura-Ace 7900
BRAKE LEVERS
Shimano Dura-Ace 7900 12/25,
CASSETTE
10-speed
Shimano Dura-Ace 7900
CHAIN
CRANKSET Shimano Dura-Ace 7900, 39/53
Shimano Dura-Ace, Internal Press
BOTTOM BRACKET
Fit
Mavic Ksyrium Premium
RIMS
HUBS Mavic Ksyrium Premium
SPOKES Mavic Ksyrium Premium
Michelin Pro Race3, 700x23
TIRES
2 ISP clamps provided : Regular
EXTRAS
20mm & XL 40mm
Specifications and availability subject to change without notice.
TCR Advanced SL 1
All new. All race. All conquering. That's the TCR Advanced SL. Developed for the pro ranks,
tested in the world's toughest races from the Spring Classics to the Tour de France and the
choice of High Road's Team Columbia. Ready to ride. Ready to rip. Ready to win.
Frame Technology
Giant's lightest, stiffest, fastest road racer ever. Handcrafted, engineered precision creates the new
benchmark for pedaling stiffness and efficiency. From its sleek integrated seatpost to the massive
MegaDrive rectangular downtube and oversized toptube, this is pure Advanced SL-grade composite
performance. Without compromise.
Key Upgrades (from TCR Advanced SL 2)
— Shimano Dura-Ace 7900 component group
— Integrated seatmast
— Mavic Ksyrium Premium wheelset
frame geometry
Actual
Part Number Head Angle Seat Angle*
Frame Size
centimeters degrees degrees
XS/43.0 cm 387042 71.0 74.5
S/46.5 cm 387043 72.0 73.5
M/50.0 cm 387044 73.0 73.0
M/L/53.5 cm 387045 73.0 72.0
L/55.5 cm 387046 73.0 72.0
XL/58.5 cm 387047 73.0 72.0
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
Toptube** Headtube Chainstay Wheelbase
centimeters centimeters centimeters centimeters
52.0 12.0 40.5 97.7
53.5 13.5 40.5 97.4
55.5 15.0 40.5 98.0
57.0 17.0 40.5 98.6
58.5 18.5 40.5 100.1
60.5 20.0 40.5 102.1
Standover
Height***
inches
28.5
29.2
30.1
31.0
31.7
32.4
