Giant Cycle Specifications

22 giantbicycle.com
ROAD
COMPETITION
Specifications
SIZES XS,S,M,M/L,L,XL
Charcoal/Composite
COLORS
FRAME Advanced-Grade Composite
Advanced-Grade Composite, Full
FORK
Composite OverDrive Steerer
SHOCK N / A
Race Face Revolution, 31.8
HANDLEBAR
STEM Race Face Revolution
SEATPOST Giant Vector Composite Seatpost
Fi'zi:k Arione w/ k:ium rails
SADDLE
Not Included
PEDALS
SHIFTERS SRAM Force SL
SRAM Force
FRONT DERAILLEUR
SRAM Force
REAR DERAILLEUR
BRAKES SRAM Force
BRAKE LEVERS SRAM Force SL
SRAM OG-1070 12/25, 10-speed
CASSETTE
CHAIN SRAM PC-1090
CRANKSET SRAM S500 2.2, 39/53
SRAM GXP, Internal Press Fit
BOTTOM BRACKET
RIMS Mavic Ksyrium Elite
HUBS Mavic Ksyrium Elite
Mavic Ksyrium Elite
SPOKES
TIRES Michelin Pro Race3, 700x23
EXTRAS
Specifications and availability subject to change without notice.

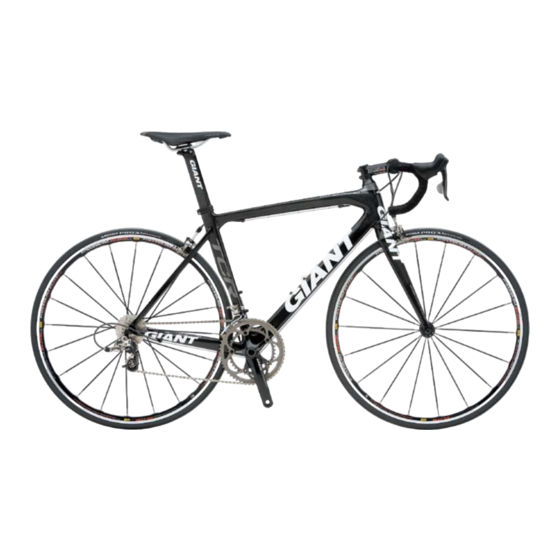

TCR Advanced 1
Giant's Compact Road is the pro peloton's most imitated design. And the latest TCR Advanced
represents the re-birth of a legend. Whether you're chasing KoM points or sprinting for victory,
the all-new TCR Advanced will get you there first.
Frame Technology
Introducing the all-new TCR Advanced, featuring an Advanced-grade composite frameset with state-
of-the-art material shaped by cutting-edge construction techniques. Couple that with a massively
oversized PowerCore bottom bracket/chainstay area and an oversized OverDrive headtube/steerer, and
you have a platform that's stiff, light and fast.
Key Upgrades (from TCR Advanced 2)
— SRAM Force drivetrain
— Race Face Revolution handlebar and stem
— Lighter Mavic Ksyrium Elite wheelset
frame geometry
Actual
Part Number Head Angle Seat Angle*
Frame Size
centimeters degrees degrees
XS/43.0 cm 386442 71.0 74.5
S/46.5cm 386443 72.0 73.5
M/50.0 cm 386444 73.0 73.0
M/L/53.5 cm 386445 73.0 72.0
L/55.5 cm 386446 73.0 72.0
XL/58.5 cm 386447 73.0 72.0
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
Toptube** Headtube Chainstay Wheelbase
centimeters centimeters centimeters centimeters
52.0 12.0 40.5 97.7
53.5 13.5 40.5 97.4
55.5 15.0 40.5 98.0
57.0 17.0 40.5 98.6
58.5 18.5 40.5 100.1
60.5 20.0 40.5 102.1
Standover
Height***
inches
28.5
29.2
30.1
31.0
31.7
32.4
