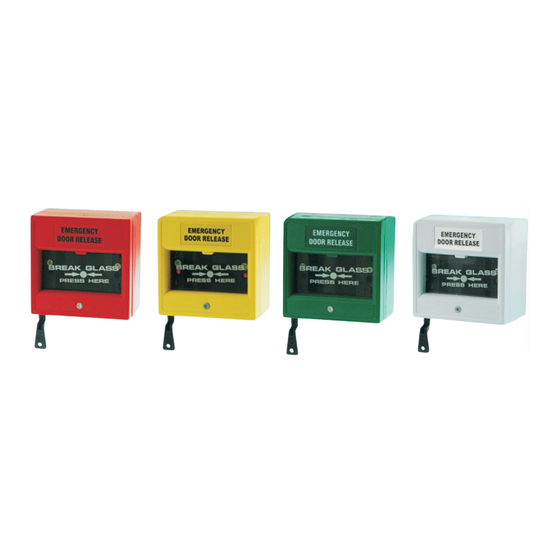

Gianni Industries GEM CP-21-GE Specification

CP-21-YL
CP-21-RE
Statement
The CP-21 series call points, with double pole, change
contacts from N/C to N/O. The main function is to override the
electrical locking/release devices in case of emergency. A key
is used to replace glass .
Specification
Dimensions: 88x88x52 mm
Contact resistance: 150mΩ
Switch rating: 3A/125VAC
Switch 2
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-CP-21-22 Ver. E Published on 2011.03.22
CP-21-WI
CP-21-GE
Switch 1
Break Glass Call Point
(Break Glass Unit)
Application
Electromagnetic
locks (locked)
s
l o c k
E M
Electromagnetic
locks (unlocked)
Dimensions
(European Size)
Auxiliary Key
(to change the broken glass)
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original client. The GEM policy
is one of continual development and improvement; therefore
GEM reserves the right to change specifications without
notice.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
Power supply
Alarm
Power supply
Alarm
5 2
E M
D O E R
O R G E
N C
R E
Y
L E
A S
E
B R
E A
8 8
K G
L A
P R
S S
E S
S H
E R
E
8 8
Unit: mm
